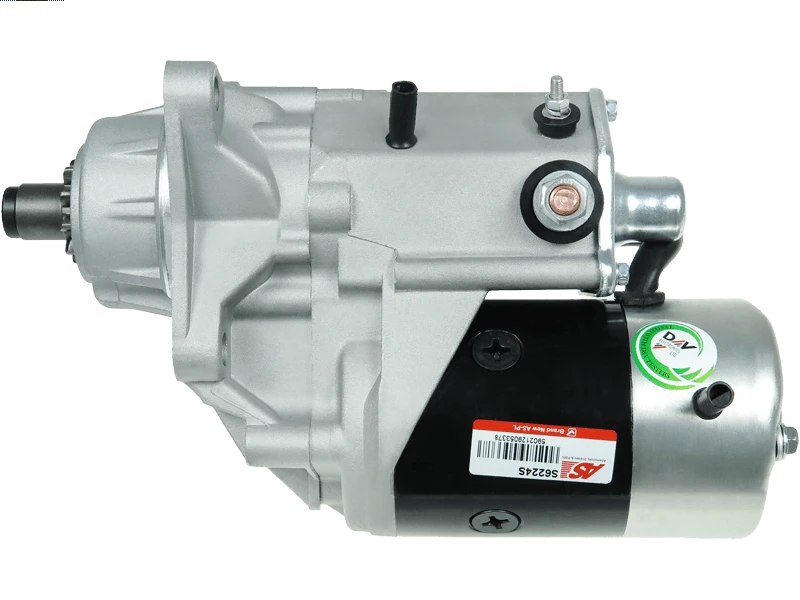

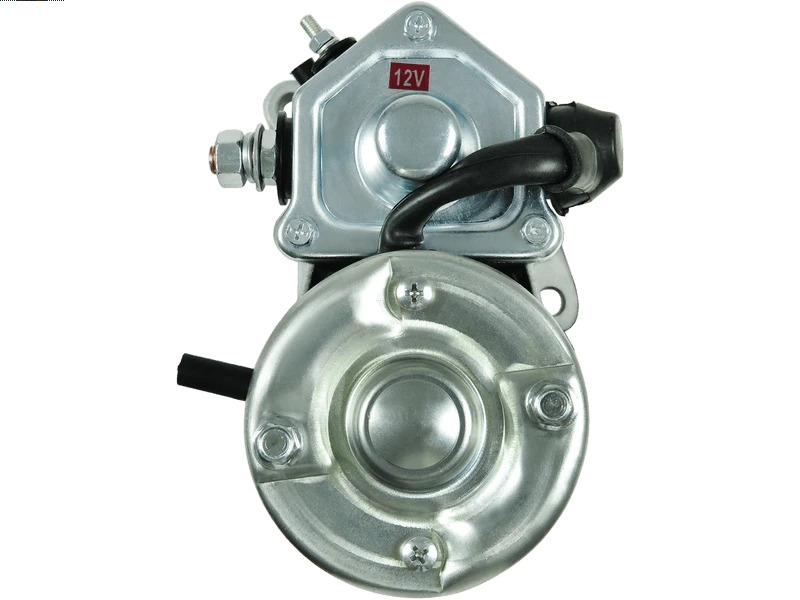

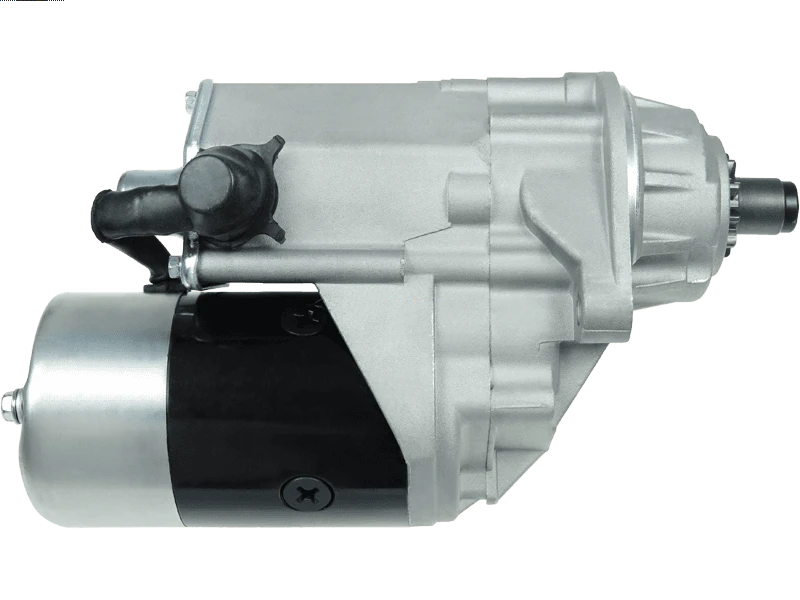

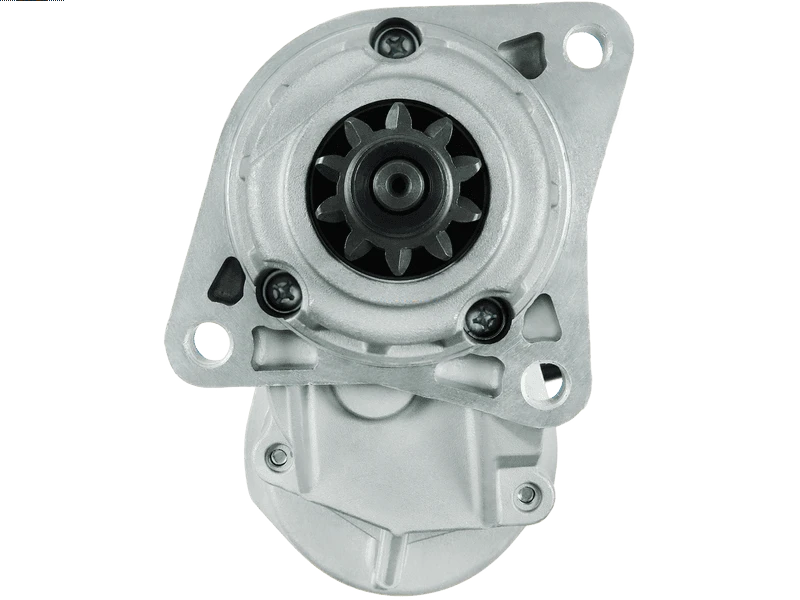

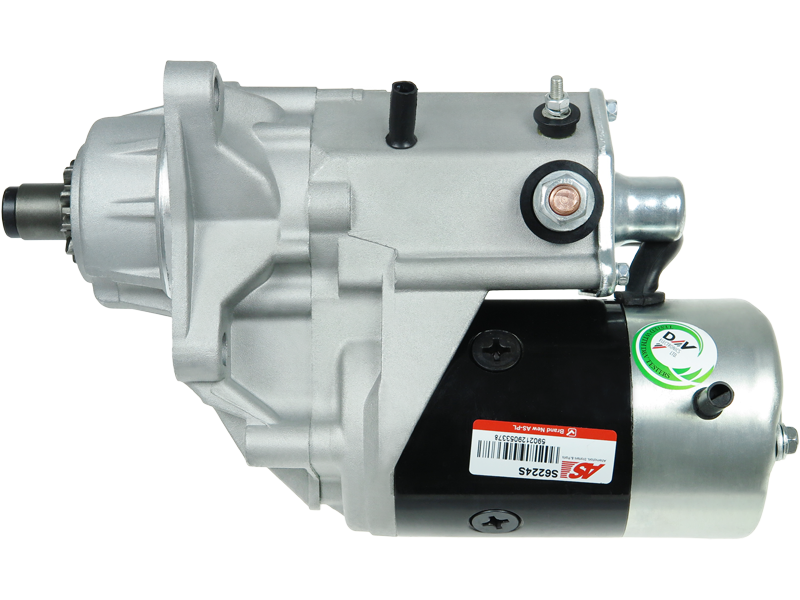

S6224S - Brand new AS-PL Starter motor

Specifications

Kilowatt	2.5 kW
Length (L.1)	297 mm
Mount Hole Center - Center (O.1)	90 mm
Mount Hole Center - Center (O.2)	90 mm
Mount Hole Center - Center (O.3)	127 mm
Mount Hole Diameter (C.1)	11.5 mm
Mount Hole Diameter (C.2)	11.5 mm
Mount Hole Diameter (C.3)	11.5 mm
No./Mount holes	3 qty
No./Mount holes with thread	0 qty
No./Teeth	10 qty
Pinion at Rest (B)	47 mm
Rotation	CW
Spigot Diameter (A)	89 mm
Unit Type	DENSO
Voltage	12 V
Wet Clutch	Yes

Vehicle Applications

Make	Model	Type	Year
CATERPILLAR	V60F 4.0	[4.248]	01.1991-
CATERPILLAR	V80F 4.0	[4.248]	01.1991-
JOHN DEERE	Various Models

Reference Information

S-8268 STN0906 91-29-5358 7C2264 RE40092 8T8619 AR70611 CST40134OS 20906 RE59595 S12DE0712A2 CST40134GS 8504305 190-25110 CST40134ES 5040639 CST40134AS 1430536 640.510.103 115625 CST40134 SE501426 6040134 128000-8292 246-25109 128000-8291 CST40134RS 128000-8290 TY24437 MAV421340 STR6695 RE54090 17399R 17399N 20906M 128000-8294 6665654 128000-8293 STR30053

Video/Publications

115625 128000-8290 128000-8291 128000-8292 128000-8293 128000-8294 1430536 17399N 17399R 190-25110 20906 20906M 246-25109 6040134 640.510.103 7C2264 8T8619 91-29-5358 CST40134 CST40134AS CST40134ES CST40134GS CST40134OS CST40134RS MAV421340 RE40092 RE54090 RE59595 S-8268 SE501426 STN0906 STR30053 TY24437
