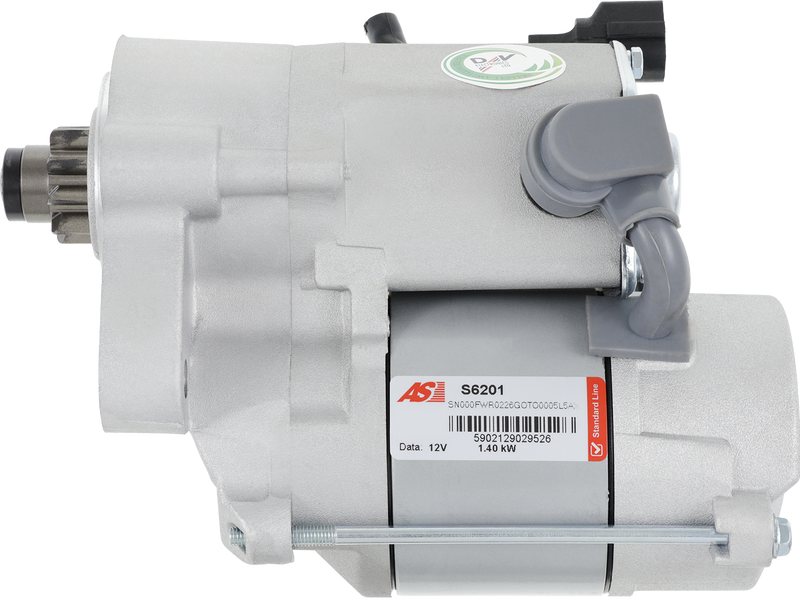

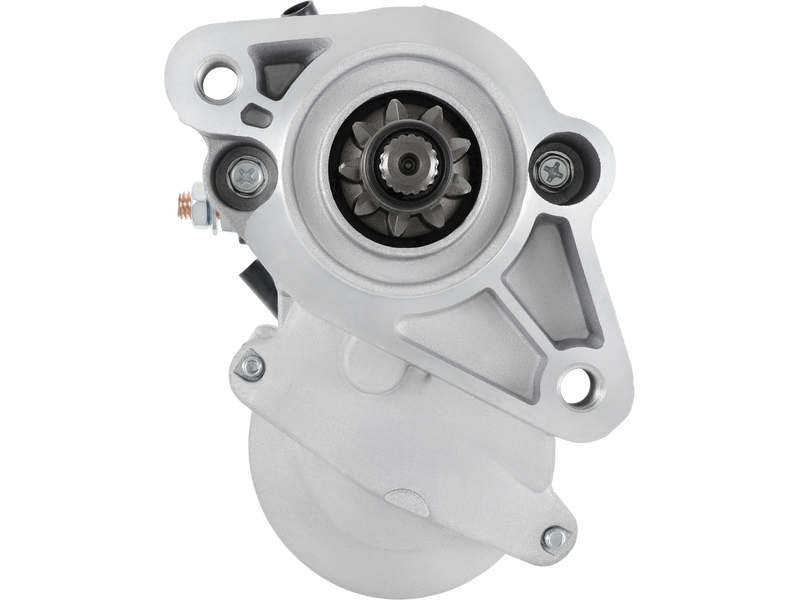

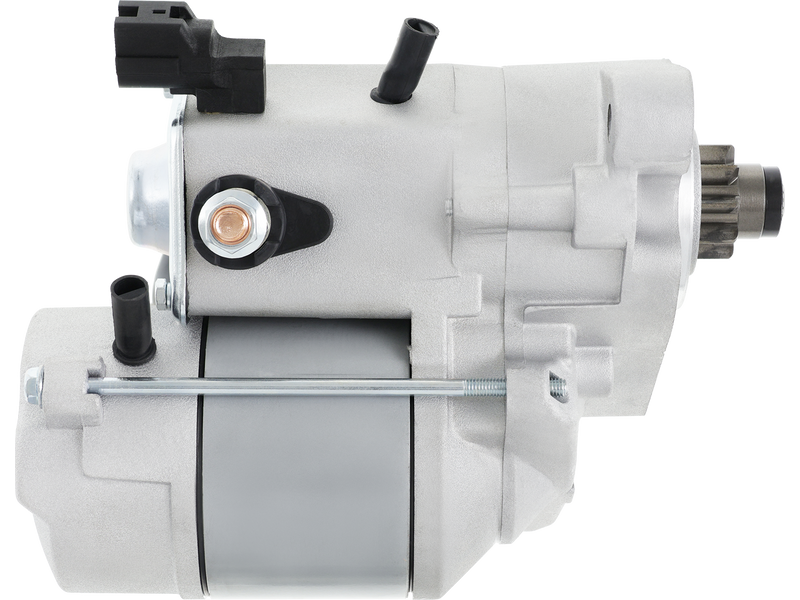

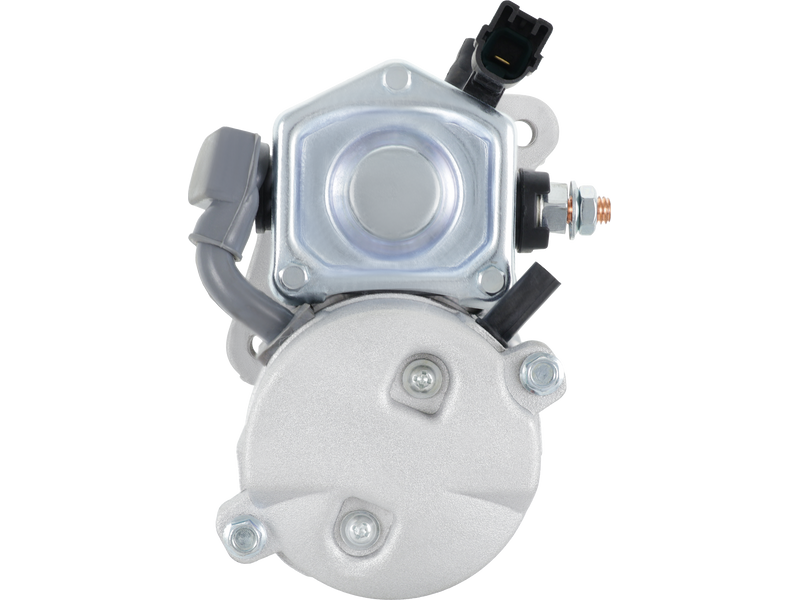

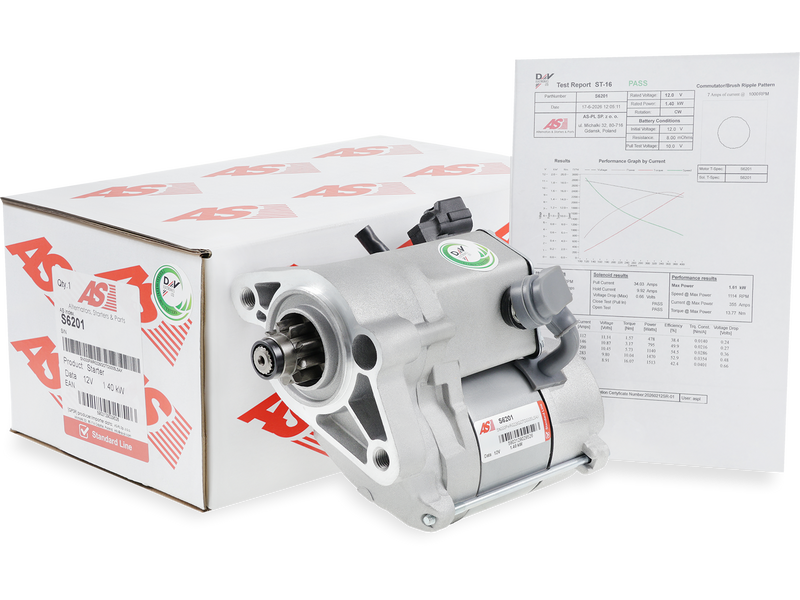

S6201 - Brand new AS-PL Starter motor

Specifications

Kilowatt	1.4 kW
Length (L.1)	187 mm
Mount Hole Center - Center (O.1)	105 mm
Mount Hole Diameter (C.1)	M10x1.25 mm
Mount Hole Diameter (C.2)	M10x1.25 mm
No./Mount holes	2 qty
No./Mount holes with thread	2 qty
No./Teeth	9 qty
Pinion at Rest (B)	16.5 mm
Rotation	CW
Spigot Diameter (A)	55 mm
Unit Type	DENSO
Voltage	12 V

Vehicle Applications

Make	Model	Type	Year
TOYOTA	4 Runner 3.0 V6		07.1990-11.1995
TOYOTA	4 Runner 3.4	[5VZ-FE]	01.1995-12.2002
TOYOTA	Hi-Lux 3.0	[5VZ-FE]	01.1989-
TOYOTA	Land Cruiser 3.4 V6	[5VZ-FE]	01.1996-
TOYOTA	Land Cruiser Prado 3.4	[5VZ-FE]	01.1989-

Reference Information

88213153 8EA737963-001 CST40376ES 113119 CST40376AS 20432673BN 28100-07010 190.520.092 228000-5300 228000-5303 AEY2405 228000-5301 228000-3961 228000-5302 CST40376RS UD12960S 17671R 28100-62050-84 DRS0577 STRF282 17671N EAA-111665 25-4077 SS503 LRS2405 JS1231 28100-07010-84 STR6117 CST40376 228000-3750 28100-0W070 201231 6040376 CST40376OS ANM12797X CGB-25300 LRS02405 CST40376GS 28100-62050 STR70134
