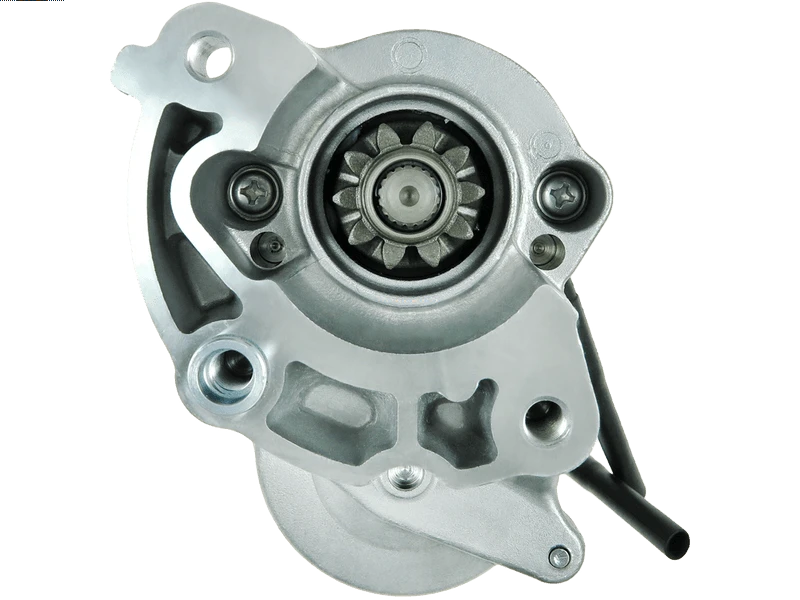

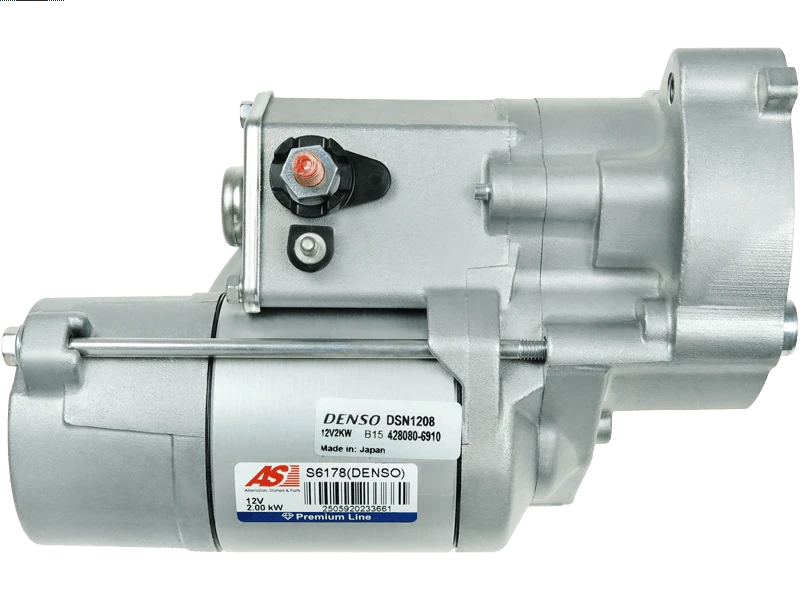

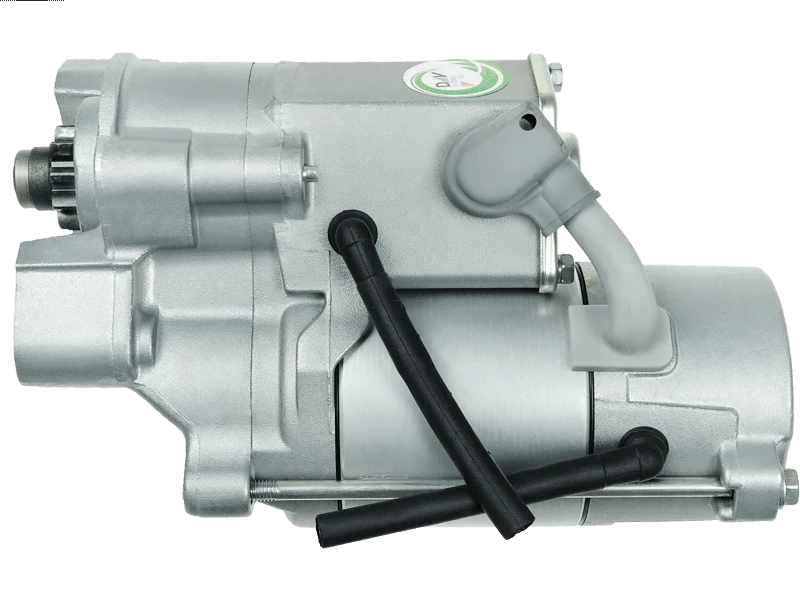

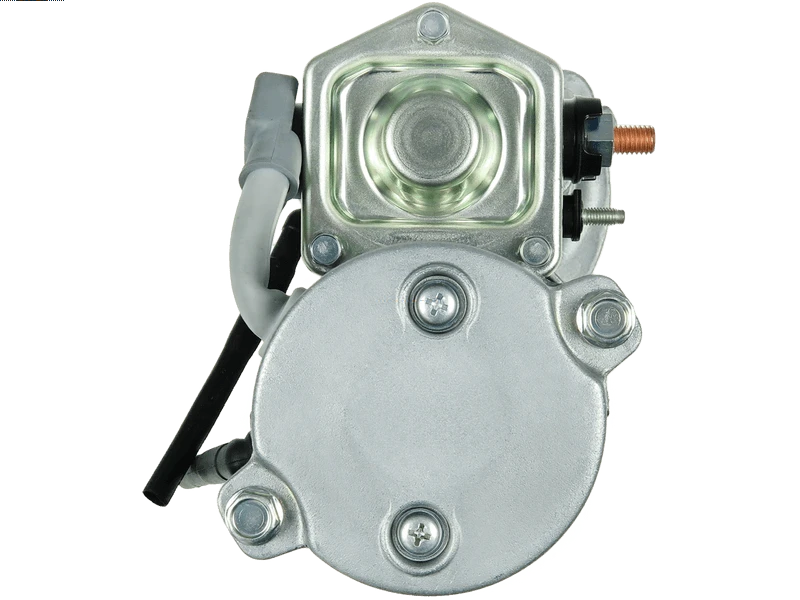

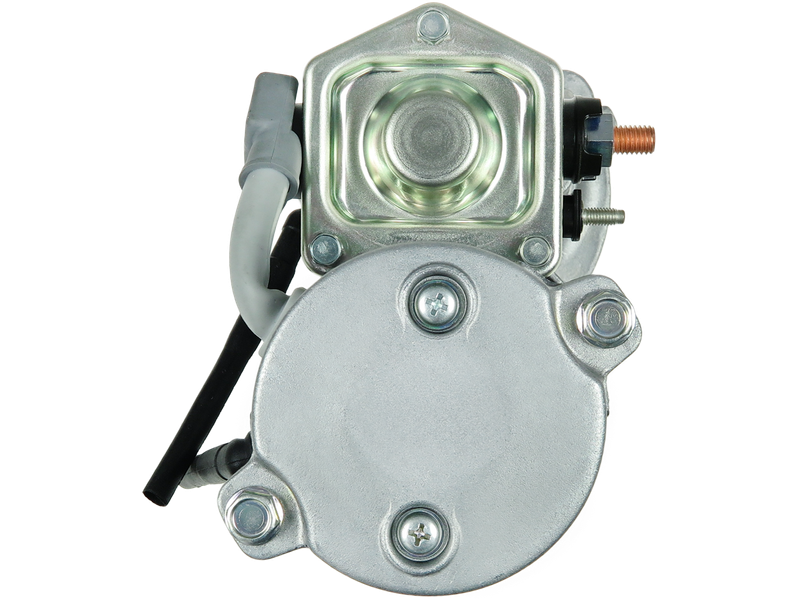

S6178(DENSO) - Brand new OEM DENSO Starter motor

Specifications

Kilowatt	2 kW
Length (L.1)	220 mm
Mount Hole Center - Center (O.1)	103 mm
Mount Hole Center - Center (O.2)	66 mm
Mount Hole Center - Center (O.3)	66 mm
Mount Hole Diameter (C.1)	M10x1.5 mm
Mount Hole Diameter (C.2)	M10x1.5 mm
Mount Hole Diameter (C.3)	M10x1.5 mm
No./Mount holes	3 qty
No./Mount holes with thread	3 qty
No./Teeth	10 qty
Pinion at Rest (B)	-5.3 mm
Rotation	CW
Unit Type	DENSO
Voltage	12 V

Vehicle Applications

Make	Model	Type	Year
LAND ROVER	Discovery Sport 2.2 SD4	[224DT]	01.2014-12.2015
LAND ROVER	Discovery Sport 2.2 TD4	[224DT]	01.2014-12.2015
LAND ROVER	Freelander 2.2 D	[224DT]	02.2006-
LAND ROVER	Freelander 2.2 D 4x4	[224DT]	06.2011-
LAND ROVER	Freelander 2.2 D SD4	[224DT]	08.2010-
LAND ROVER	Freelander 2.2 SD4 4x4	[224DT]	08.2010-10.2014
LAND ROVER	Freelander 2.2 TD4	[224DT]	01.2007-
LAND ROVER	Freelander 2.2 TD4 4x4	[224DT]	10.2006-10.2014
LAND ROVER	Freelander 2.2 TD4 4x4	[DW12BTED4]	10.2006-10.2014
LAND ROVER	Range Rover Evoque 2.2 SD4	[224DT]	01.2011-
LAND ROVER	Range Rover Evoque 2.2 TD4	[224DT]	01.2011-

Reference Information

6G9N11000MA LR009432 6G9N11000MB LR007372 AH52-11001-AC CST40267RS STN2849 255342 25-4439 CS1579 UD809831(DENSO)S CST40267 CST40267ES 6040267 CST40267AS LR003468 STR6301 DRS0137 LR003469 30243N LRS2766 220706 DSN1208 CST40267OS AH521101AC 115725 255342D CST40267GS 450.525.103 AEX1087 SG1152 STN2849XH KTR901074204 STR70075 428000-4851 428000-4850 LR014060 S12DE0858A2 428000-6910 LRS02766

Video/Publications

115725 25-4439 255342 255342D 30243N 428000-4850 428000-4851 428000-6910 450.525.103 6040267 6G9N11000MA 6G9N11000MB AEX1087 AH52-11001-AC CS1579 CST40267 CST40267AS CST40267ES CST40267GS CST40267OS CST40267RS DRS0137 DSN1208 LR003468 LR007372 LR014060 LRS02766 LRS2766 SG1152 STN2849 STN2849XH STR70075 UD809831(DENSO)S 220706
