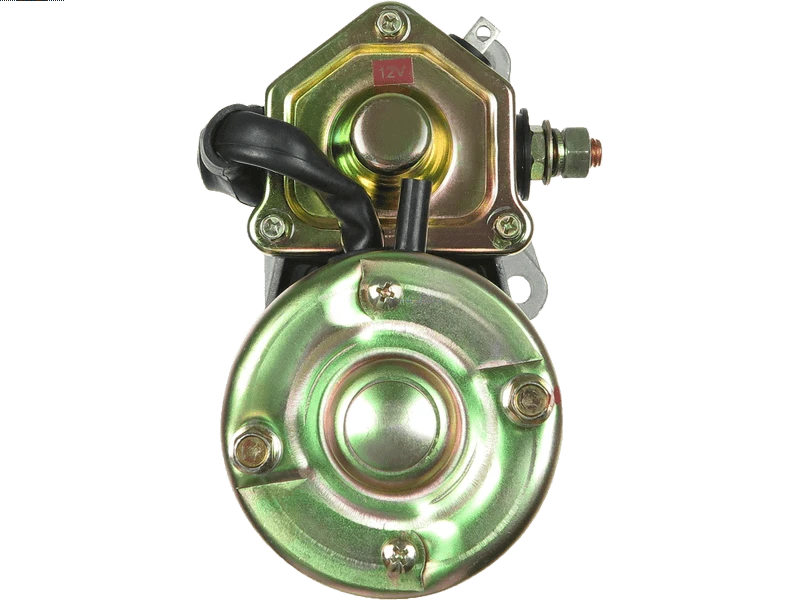

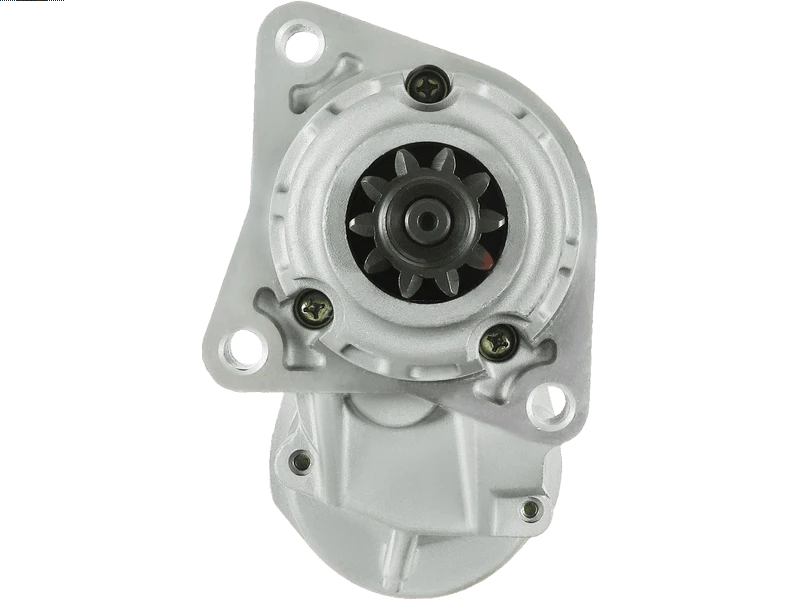

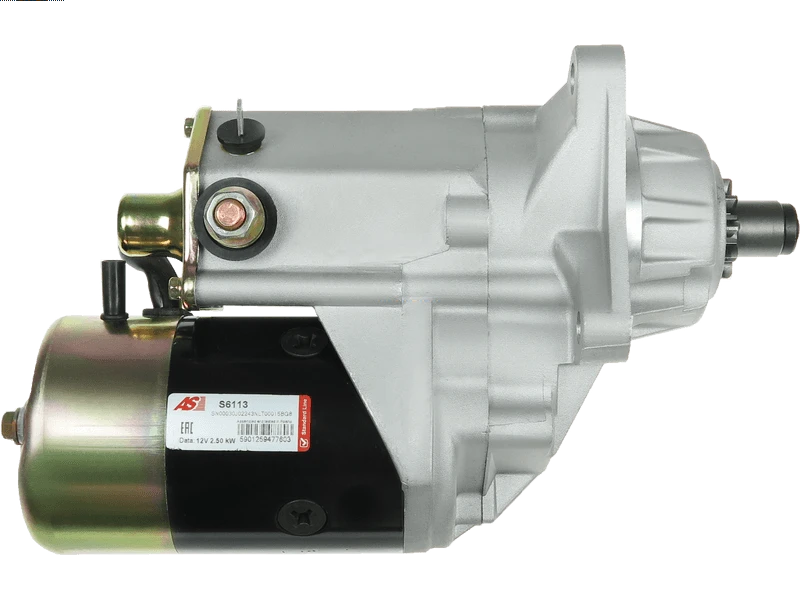

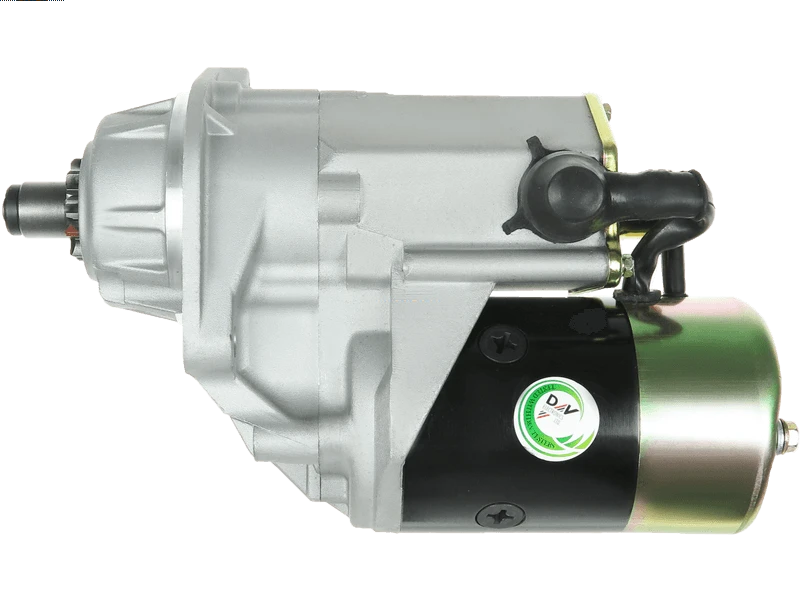

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
DENSO
Price:
NZ$ 511.62 including GST
NZ$ 444.89 excluding GST
or four payments of $127.91
with
Learn More
each
S6113
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
1280007040Associated Numbers
1068553 128000-4090 128000-4091 128000-4092 128000-7040 128000-7041 128000-7042 143-0537 17388N 2-1731-ND 20432963OE 255087 6040369 7C4622 8T9685 91-29-5130 CST40369GS S-8269 S-8307 STR70137 UD02107SSpecifications
| Kilowatt | 2.50 kW |
| Length (L.1) | 293 mm |
| Mount Hole Center - Center (O.1) | 89 mm |
| Mount Hole Center - Center (O.2) | 89 mm |
| Mount Hole Center - Center (O.3) | 127 mm |
| Mount Hole Diameter (C.1) | 11 mm |
| Mount Hole Diameter (C.2) | 11 mm |
| Mount Hole Diameter (C.3) | 11 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 10 qty |
| OEM Product | No |
| Pinion at Rest (B) | 48 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 88.80 mm |
| Unit Type | DENSO |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| GRADALL | 534B6 | ||
| GRADALL | 534B8 | ||
| GRADALL | 534B9 | ||
| GRADALL | 544 | ||
| GRADALL | B | 01.1996- | |
| GRADALL | GW3 |
Reference Information
| 1068553 | CATERPILLAR |
| 128000-4090 | DENSO |
| 128000-4091 | DENSO |
| 128000-4092 | DENSO |
| 128000-7040 | DENSO |
| 128000-7041 | DENSO |
| 128000-7042 | DENSO |
| 143-0537 | CATERPILLAR |
| 16981 | CATERPILLAR |
| 17388 | CATERPILLAR |
| 17388N | WAI / TRANSPO |
| 20432963OE | REAL |
| 2-1731-ND | WAI / TRANSPO |
| 255087 | KUHNER |
| 402500442 | WHITE |
| 428000-2490 | DENSO |
| 6040369 | SANDO |
| 7C4622 | CATERPILLAR |
| 8517523 | HYSTER |
| 8T9685 | CATERPILLAR |
| 91-29-5130 | WILSON |
| CST40369GS | CASCO |
| S6113 | AS-PL |
| S-8269 | DIXIE |
| S-8307 | DIXIE |
| STR6139 | ELECTROLOG |
| STR70137 | WOODAUTO |
| UD02107S | AS-PL |
| UD104243S | AS-PL |
Video/Publications
S6113View your shopping basket or Browse other items in Starter Motors.
