Associated Numbers
17896N 255449 428000-2200 428000-2201 4608801AA 4608801AB S6092 S6092A - Similar S6092A-Similar
Bosch SR6450X
Denso 280-0348
Wilson 91-29-5635
References:
Arrowhead SND0543
Bosch SR6450X
Chrysler 4608801AA, 4608801AB
Denso 280-0348, 428000-2200, 428000-2201
Lester 17896
PIC Picture ID 190-6008
Wilson 91-29-5635
J&N 410-52258
Wilson 91-29-5635
References:
Arrowhead BSR6450X
J&N 410-52258
Chrysler 04608801AA, 04608801AB, 4608801AA, 4608801AB
Denso 428000-2200
Lester 17896
J&N 410-52258
References:
J&N 410-52258
Bosch SR6450X
Denso 280-4255, 428000-2200, 428000-2201
Lester 17896
PIC Picture ID 190-6008
Specifications
Kilowatt | 1.4 kW |
Length (L.1) | 189 mm |
Mount Hole Center - Center (O.1) | 78 mm |
Mount Hole Center - Center (O.2) | 50 mm |
Mount Hole Center - Center (O.3) | 117 mm |
Mount Hole Diameter (C.1) | M10x1.5 mm |
Mount Hole Diameter (C.2) | M10x1.5 mm |
Mount Hole Diameter (C.3) | M10x1.5 mm |
No./Mount holes | 3 qty |
No./Mount holes with thread | 3 qty |

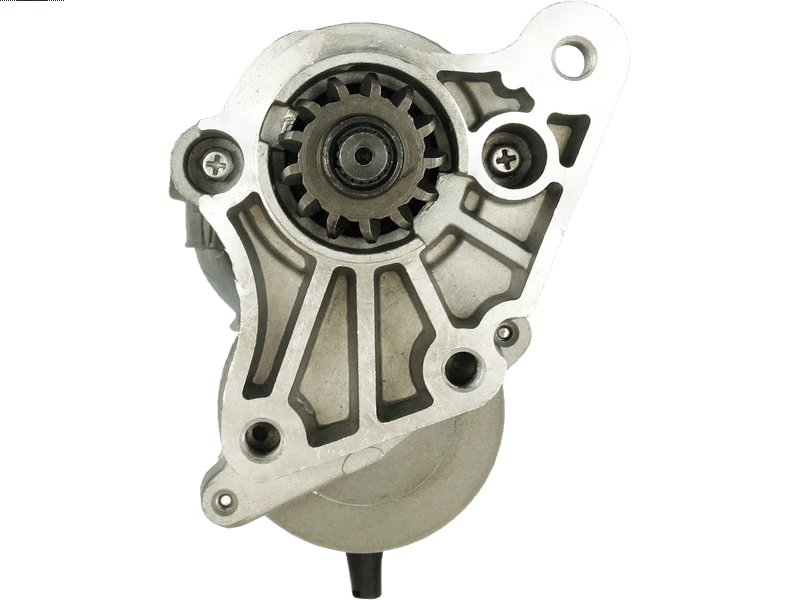

No./Teeth | 13 qty |
No./Teeth (Replaces) | 13 qty |
Pinion at Rest (B) | 5 mm |
Rotation | CW |
Spigot Diameter (A) | 50 mm |
Unit Type | DENSO |
Voltage | 12 V |
Vehicle Applications
Make | Model | Type | Year |
---|---|---|---|
CHRYSLER | 300 5.7 V8 | ||
CHRYSLER | 300 6.1 V8 | ||
DODGE | Challenger 5.7 V8 | ||
DODGE | Charger 5.7 V8 | ||
DODGE | Magnum 5.7 V8 |
Alternatives >>>
S6092 - Switch terminal faces opposite way
Reference Information
255449 17896N STR6198 4608801AA 428000-2200 428000-2201 4608801AB S6092Video/Publications
17896N 255449 428000-2200 428000-2201 4608801AA 4608801AB S6092Add Your Number
