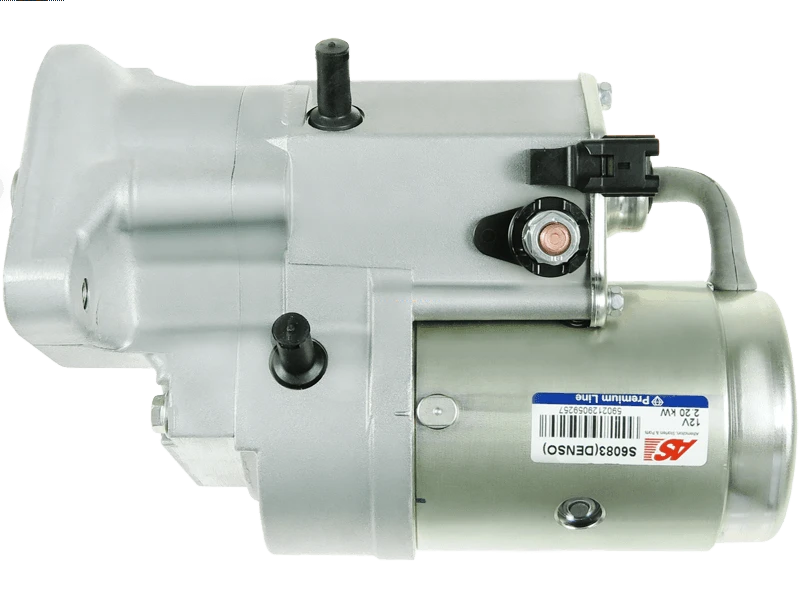

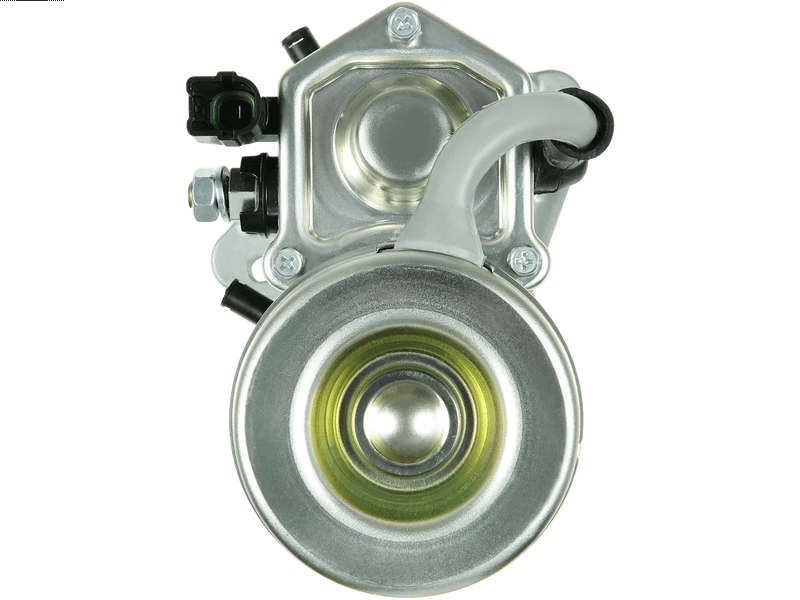

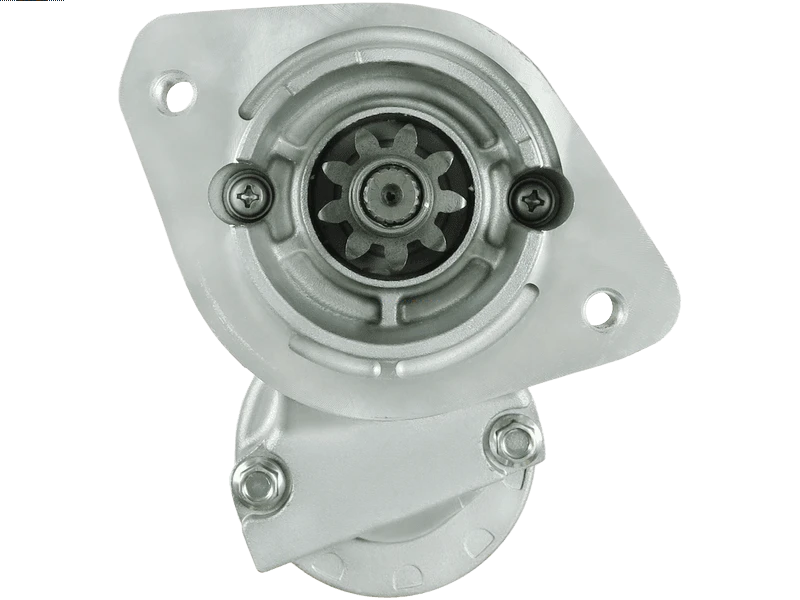

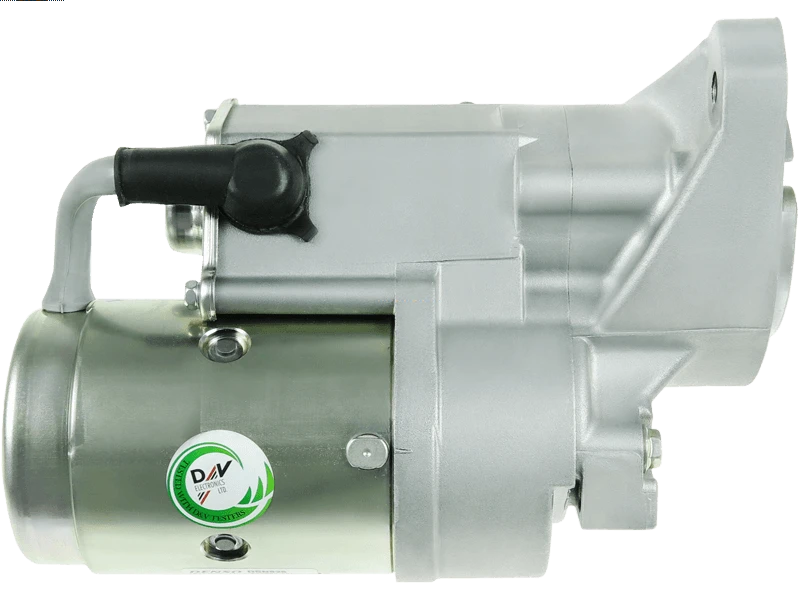

S6083(DENSO) - Brand new OEM DENSO Starter motor

Specifications

Kilowatt	2.2 kW
Length (L.1)	234 mm
Mount Hole Center - Center (O.1)	115 mm
Mount Hole Diameter (C.1)	M10x1.25 mm
Mount Hole Diameter (C.2)	M10x1.25 mm
No./Mount holes	2 qty
No./Mount holes with thread	2 qty
No./Teeth	9 qty
Pinion at Rest (B)	3 mm
Rotation	CW
Spigot Diameter (A)	74 mm
Unit Type	DENSO
Voltage	12 V

Vehicle Applications

Make	Model	Type	Year
TOYOTA	Avensis 2.0 D-4D Verso	[1CD-FTV]	08.2001-
TOYOTA	Carina E 2.0 D	[2C]	01.1993-01.1996
TOYOTA	Carina E 2.0 TD	[2C-T]	01.1996-09.1997
TOYOTA	Corolla 2.0 D-4D	[1CD-FTV]	05.2003-
TOYOTA	Corolla 2.0 D-4D Verso	[1CD-FTV]	01.2002-05.2004
TOYOTA	Picnic 2.2 D	[3C-TE]	08.1997-12.2001
TOYOTA	Previa 2.0 D-4D	[1CD-FTV]	03.2001-01.2006
TOYOTA	RAV4 2.0 D-4D 4WD	[1CD-FTV]	09.2001-11.2005

Reference Information

9762 S1049B MTT359 111874 3T359 JS1088 20510182 228000-3641 201135 228000-3640 8212681 201138 228000-3642 31184N 201088 228000-9220 CST44105AS 228000-9221 6044105 003-T359 428000-7850 31185RW UD805062(DENSO)S 28100-64310 28100-64430 DRS7500 220703 28100-08010 20452501BN 228000-4980 228000-4981 CST44105GS RAS38611 228000-4982 EAA-121300 20452501OE STR70055 220094 11879 GS003640-A 0001218166 8052286 28100-64350 DSN928

Video/Publications

0001218166 003-T359 111874 11879 201088 201135 201138 20452501BN 20452501OE 20510182 228000-3640 228000-3641 228000-3642 228000-4980 228000-4981 228000-4982 228000-9220 228000-9221 28100-08010 28100-64310 28100-64350 28100-64430 31185RW 3T359 428000-7850 6044105 8052286 8212681 9762 CST44105AS CST44105GS DRS7500 DSN928 EAA-121300 GS003640-A JS1088 MTT359 RAS38611 S1049B STR70055 UD805062(DENSO)S 220094 220703
