Associated Numbers
0228000-5730 0228000-5731 113237 128000-5720 128000-5721 128000-5722 128000-5723 17615N 20432902BN 228000-5730 228000-5731 246-30103 254200 3E5382 6040209 830.569.103 91-29-5143 9W2946 CST40209 CST40209AS CST40209ES CST40209GS CST40209OS CST40209RS DRS0255 LES0152 S-8272 STR9020 UD11130S UNIT BOM 190-844Specifications

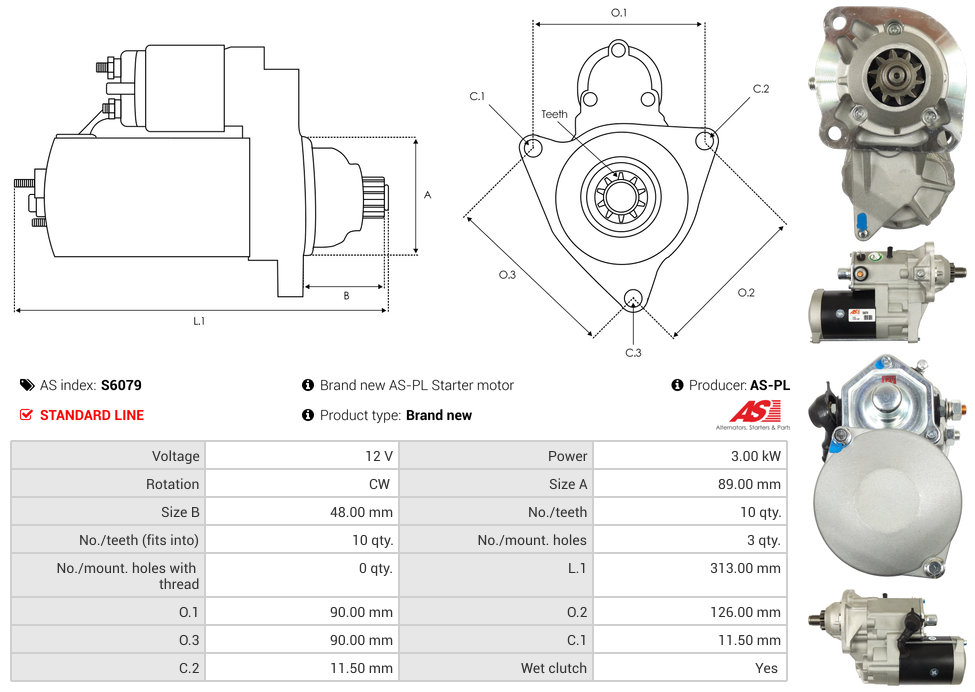

Kilowatt | 3 kW |
Length (L.1) | 313 mm |
Mount Hole Center - Center (O.1) | 90 mm |
Mount Hole Center - Center (O.2) | 126 mm |
Mount Hole Center - Center (O.3) | 90 mm |
Mount Hole Diameter (C.1) | 11.5 mm |
Mount Hole Diameter (C.2) | 11.5 mm |
No./Mount holes | 3 qty |
No./Mount holes with thread | 0 qty |
No./Teeth | 10 qty |
No./Teeth (Replaces) | 10 qty |
Pinion at Rest (B) | 48 mm |
Rotation | CW |
Spigot Diameter (A) | 89 mm |
Unit Type | DENSO |
Voltage | 12 V |
Wet Clutch | Yes |
Vehicle Applications
Make | Model | Type | Year |
---|---|---|---|
CATERPILLAR | 3114 | 01.1991-01.1993 | |
CATERPILLAR | 3116 | 01.1991-01.1993 |
Reference Information
20432902BN CST40209AS 113237 246-30103 CST40209 S6079 CST40209ES CST40209GS 1053133 STR6687 9X1270 6667825 CST40209RS 254200 LES0152 830.569.103 DRS0255 128000-5721 128000-5720 BOM 128000-5723 9W2946 128000-5722 UNIT 3E5382 UD11130S 17615N 6040209 0228000-5731 0228000-5730 228000-5730 336215 228000-5731 CST40209OS CGB-25720 MAV422090 17199N S-8272 91-29-5143 STR9020 190-844Video/Publications
S6079 0228000-5730 0228000-5731 113237 128000-5720 128000-5721 128000-5722 128000-5723 17615N 20432902BN 246-30103 254200 3E5382 6040209 830.569.103 91-29-5143 9W2946 CGB-25720 CST40209 CST40209AS CST40209ES CST40209GS CST40209OS CST40209RS DRS0255 LES0152 MAV422090 S-8272 STR9020 UD11130S UNIT BOM 190-844Add Your Number
