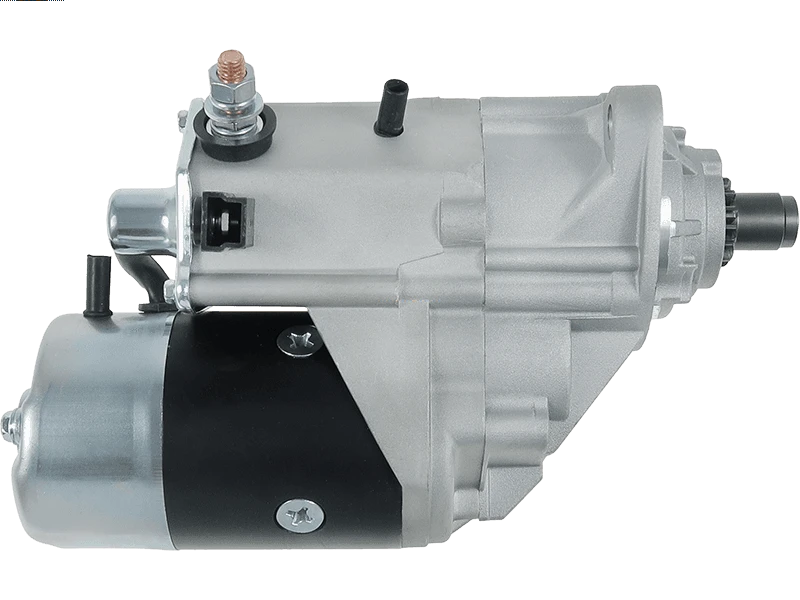

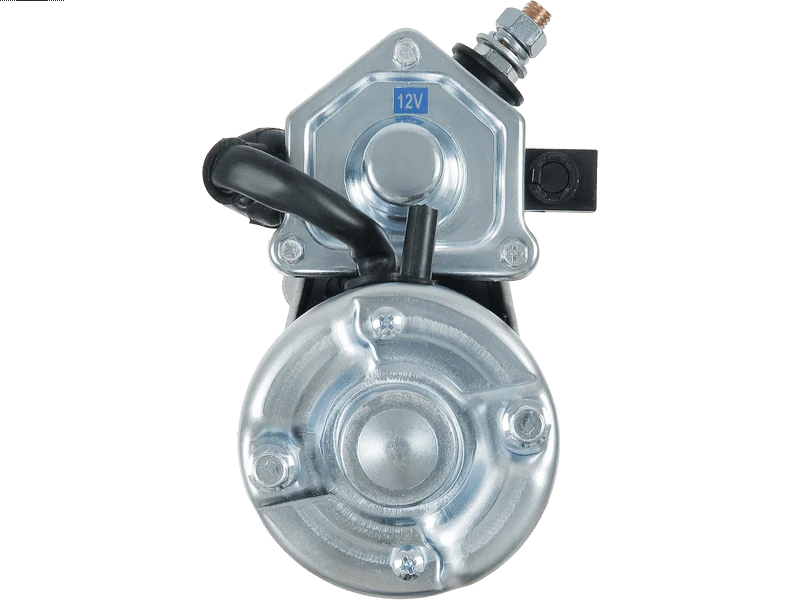

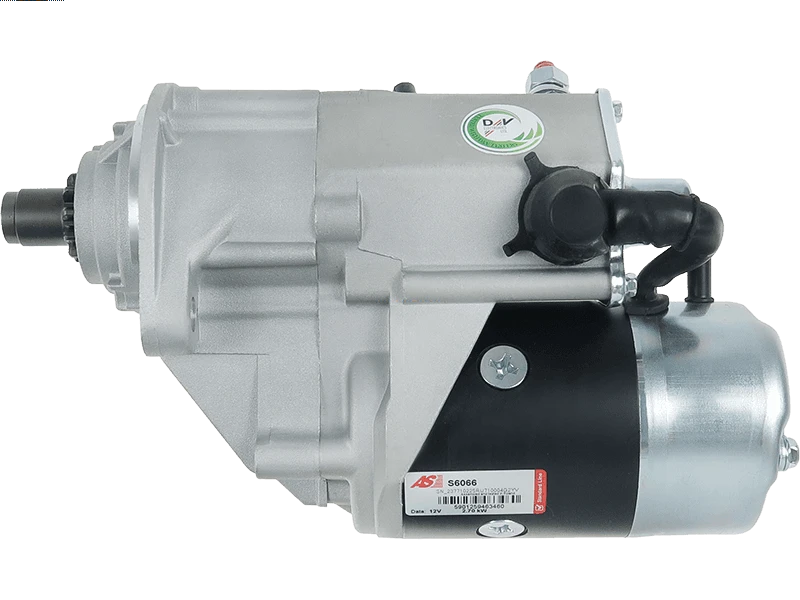

S6066 - Brand new AS-PL Starter motor

Specifications

Kilowatt	2.7 kW
Length (L.1)	297 mm
Mount Hole Center - Center (O.1)	105 mm
Mount Hole Diameter (C.1)	11.5 mm
Mount Hole Diameter (C.2)	11.5 mm
No./Mount holes	2 qty
No./Mount holes with thread	0 qty
No./Teeth	11 qty
No./Teeth (Replaces)	11 qty
Pinion at Rest (B)	35.5 mm
Rotation	CW
Spigot Diameter (A)	82.5 mm
Unit Type	DENSO
Voltage	12 V

Vehicle Applications

Make	Model	Type	Year
BOBCAT	Various Models	[KUBOTA]	01.1985-
BOBCAT	Various Models	[PERKINS]	01.1985-

Reference Information

110942 2-1750ND MAV123600 MAV421720 335779 RE540925 TY25971 MAV422460 2355695 TY6688 CST40172OS 20929 20432271BN 228080-6470 228080-6471 CST40172GS RE51694 S-8278 RE68470 SE501425 6631597 CGB-23107 CST40172 M100R2017SE RE51447 6040172 DRS0162 STN0929 6632415 RE540300 S12DE0484A2 5040590 RE501298 228000-6470 RE41799 228000-6471 20929M CST40172AS 20929L 246-25111 ANM12382X CST40172ES RE19275 028000-8403 028000-8404 RE519975 028000-8401 028000-8402 91-29-5106 028000-8405 CST40172RS SE501402 91-29-5106N TY24438 RE54092 TY6719 DS1272 028000-8400

Video/Publications

028000-8400 028000-8401 028000-8402 028000-8403 028000-8404 028000-8405 110942 2-1750ND 20432271BN 20929 20929L 20929M 228000-6470 228000-6471 228080-6470 228080-6471 2355695 246-25111 6040172 6631597 6632415 91-29-5106 91-29-5106N CGB-23107 CST40172 CST40172AS CST40172ES CST40172GS CST40172OS CST40172RS DRS0162 DS1272 M100R2017SE MAV123600 MAV421720 MAV422460 RE19275 RE41799 RE501298 RE51447 RE51694 RE519975 RE540300 RE54092 RE540925 RE68470 S-8278 SE501402 SE501425 STN0929 TY24438 TY25971 TY6688 TY6719
