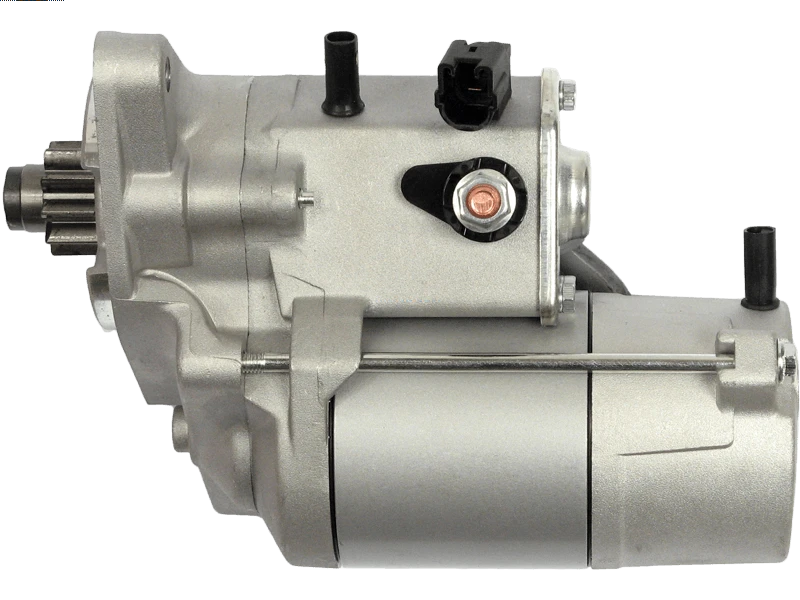

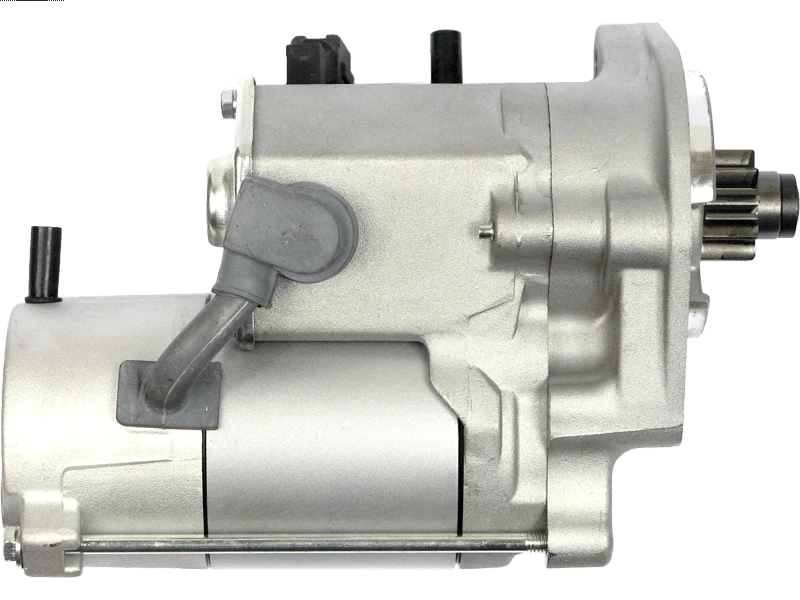

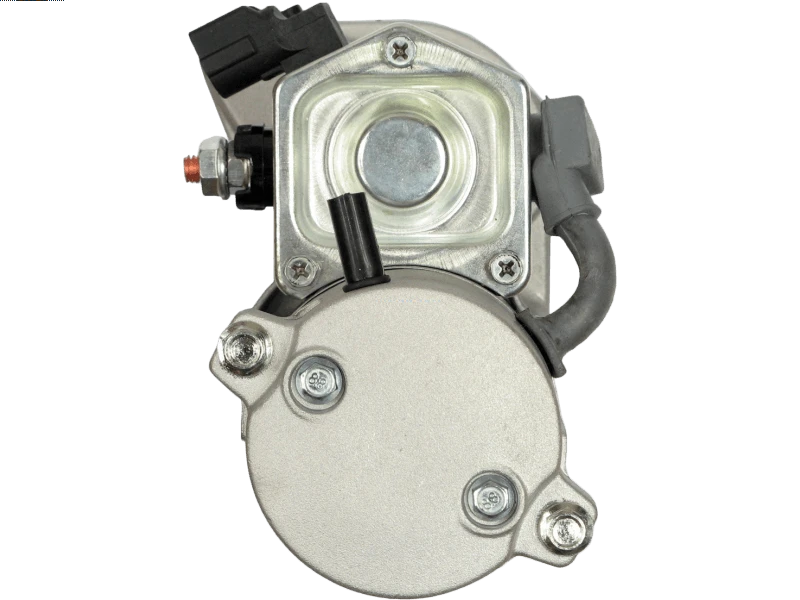

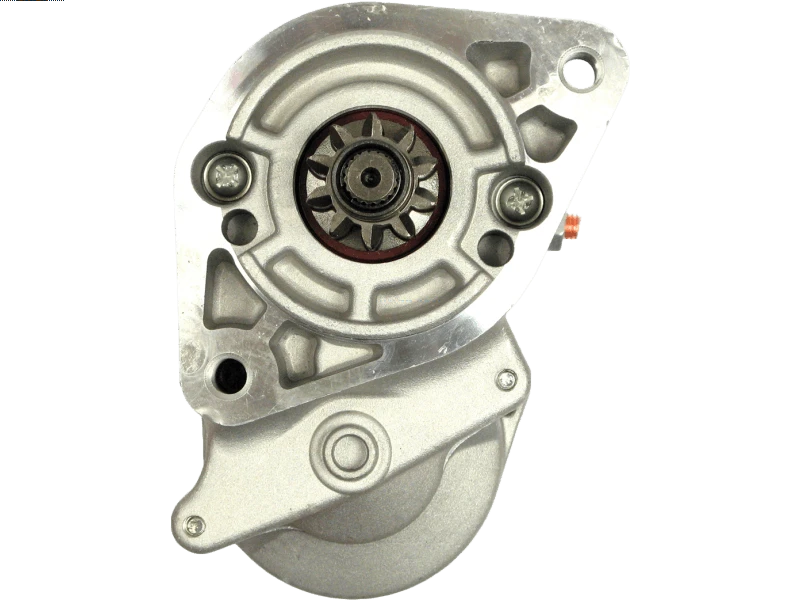

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
DENSO
Price:
NZ$ 452.86 including GST
NZ$ 393.79 excluding GST
or four payments of $113.22
with
Learn More
each
S6299S
S6054
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
4280001250Associated Numbers
113809 17876N 2-2662-ND 20432524OE 25-3374 255589 28100-31050 428000-1250 6040425 AEY2203 CST40425GS LRS02203 STR-5033 STR70315Specifications
| Kilowatt | 2.20 kW |
| Length (L.1) | 221 mm |
| Mount Hole Center - Center (O.1) | 113 mm |
| Mount Hole Diameter (C.1) | M10x1.25 mm |
| Mount Hole Diameter (C.2) | M10x1.25 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 2 qty |
| No./Teeth | 10 qty |
| No./Teeth (Replaces) | 10 qty |
| OEM Product | No |
| Pinion at Rest (B) | 22.50 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 74 mm |
| Unit Type | DENSO |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| TOYOTA | 4 Runner 4.0 | [1GR-FE] | 01.2003-12.2005 |
| TOYOTA | Land Cruiser 4.0 | [1GR-FE] | 01.2003- |
| TOYOTA | Tacoma 4.0 | [1GR-FE] | 01.2005- |
Reference Information
| 113809 | CARGO |
| 17876N | WAI / TRANSPO |
| 20432524OE | REAL |
| 2-2662-ND | WAI / TRANSPO |
| 25-3374 | ELSTOCK |
| 255589 | KUHNER |
| 28100-31050 | TOYOTA |
| 428000-1250 | DENSO |
| 6040425 | SANDO |
| AEY2203 | AUTOELECTRO |
| CST40425GS | CASCO |
| F032113809 | CARGO |
| LRS02203 | LUCAS |
| LRS2203 | LUCAS |
| S6054 | AS-PL |
| STR-5033 | UNIPOINT |
| STR6588 | ELECTROLOG |
| STR70315 | WOODAUTO |
| STX201250 | STARDAX |
Video/Publications
