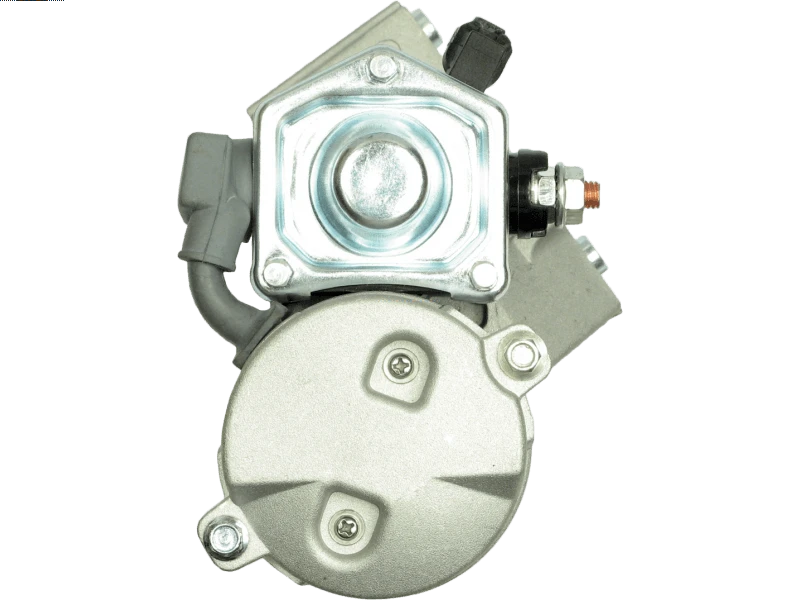

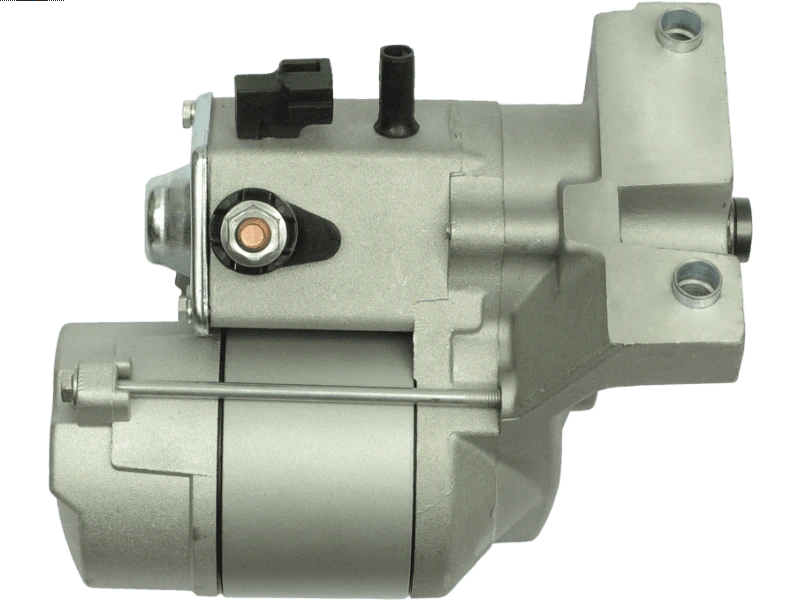

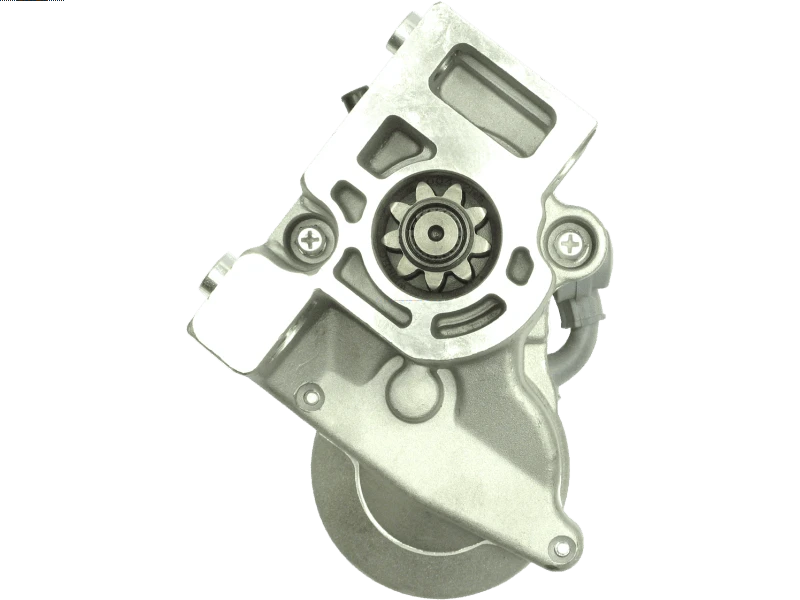

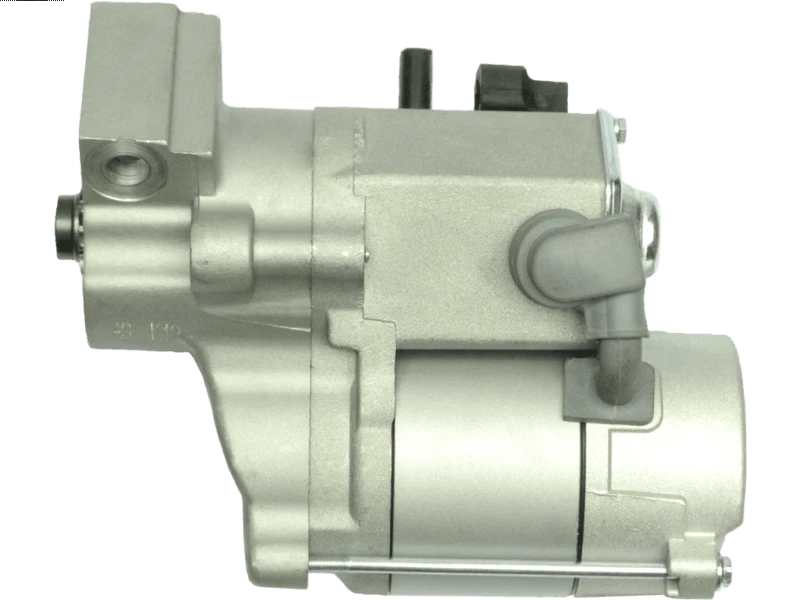

S6050 - Brand new AS-PL Starter motor

Specifications

Kilowatt	1.4 kW
Length (L.1)	188 mm
Mount Hole Center - Center (O.1)	82 mm
Mount Hole Diameter (C.1)	10.5 mm
Mount Hole Diameter (C.2)	10.5 mm
No./Mount holes	2 qty
No./Mount holes with thread	0 qty
No./Teeth	9 qty
No./Teeth (Replaces)	9 qty
Pinion at Rest (B)	15 mm
Rotation	CW
Spigot Diameter (A)	0 mm
Unit Type	DENSO
Voltage	12 V

Vehicle Applications

Make	Model	Type	Year
HONDA	Passport 3.2 EX	[6VD1]	01.1994-01.1997
HONDA	Passport 3.2 EX	[6VD1]	01.1998-01.2000
HONDA	Passport 3.2 EX	[6VD1]	01.2001-01.2002
HONDA	Passport 3.2 LX	[6VD1]	01.1994-01.1997
HONDA	Passport 3.2 LX	[6VD1]	01.1998-01.2000
HONDA	Passport 3.2 LX	[6VD1]	01.2001-01.2002
ISUZU	Amigo 3.2	[6VD1]	01.1999-01.2000
ISUZU	Amigo 3.2		01.1998-01.1998
ISUZU	Rodeo 3.2	[6VD1]	01.1998-01.2000
ISUZU	Rodeo 3.2	[6VD1]	01.2001-01.2002
ISUZU	Rodeo 3.2	[6VD1]	01.2003-
ISUZU	Rodeo 3.2		01.1993-01.1997
OPEL	Monterey 3.2	[6VD1]	06.1992-07.1998

Reference Information

93175893 LRS01391 17509N S114-753 S114-753C 97064553 S114-753A S114-753B 2912762340 25-2272 20432871BN 8970645530 128000-9702 190-386 113402 128000-9701 128000-9700 R1040027 LRS1391 8971239230 6040178 1202101 R1540019 9120557 STR72096 94384314 112986 254190 228000-0810 228000-0811 STR3059 22.3177 2911233280 6202058 2-1561-ND 8943647220 STR6043 1202153 8943647221 AEY1391 CGB-23874 17546N CST40178AS STM673 SS524 1202046 MAV421780 336241 8912762340 22.3205 89438431401 8943843140 8943843141

Video/Publications

112986 113402 128000-9700 128000-9701 128000-9702 17509N 17546N 190-386 2-1561-ND 20432871BN 22.3177 22.3205 228000-0810 228000-0811 25-2272 254190 2911233280 2912762340 6040178 8912762340 8943647220 8943647221 8943843140 89438431401 8943843141 8970645530 8971239230 AEY1391 CGB-23874 CST40178AS LRS01391 LRS1391 MAV421780 S114-753 S114-753A S114-753B S114-753C SS524 STR3059 STR72096
