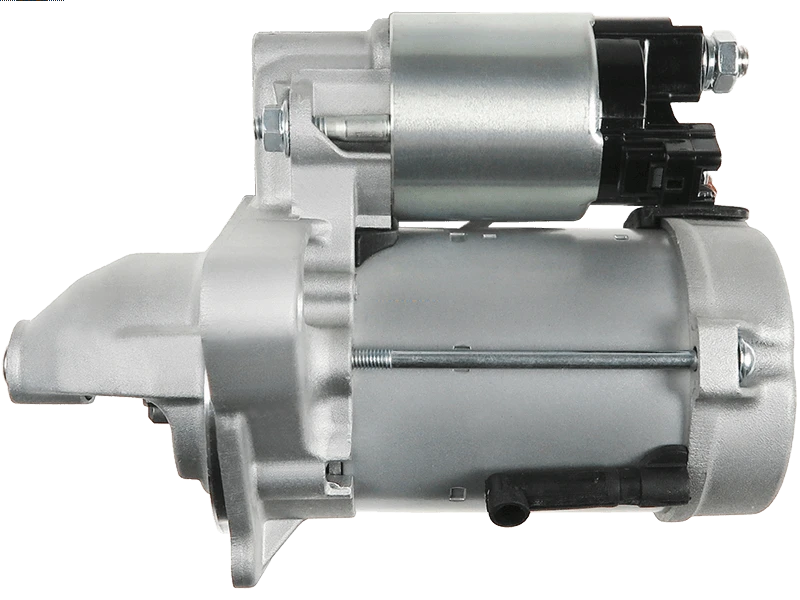

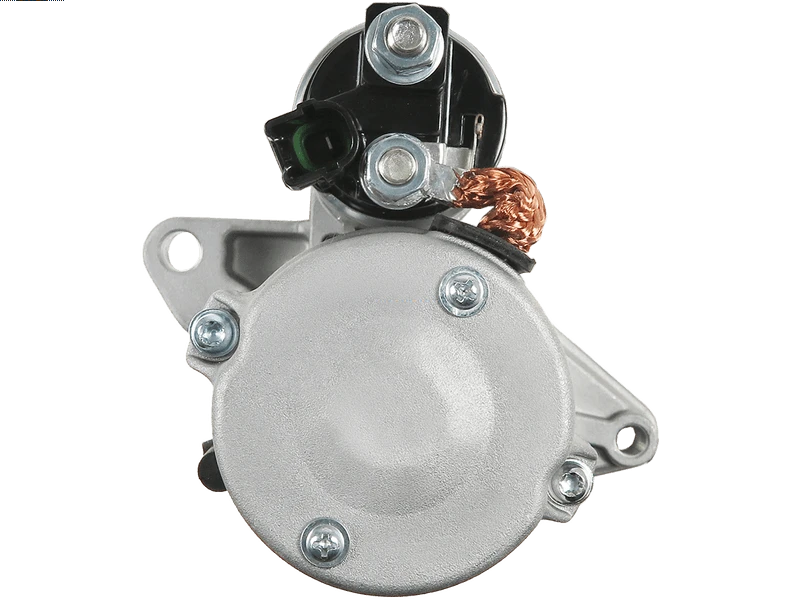

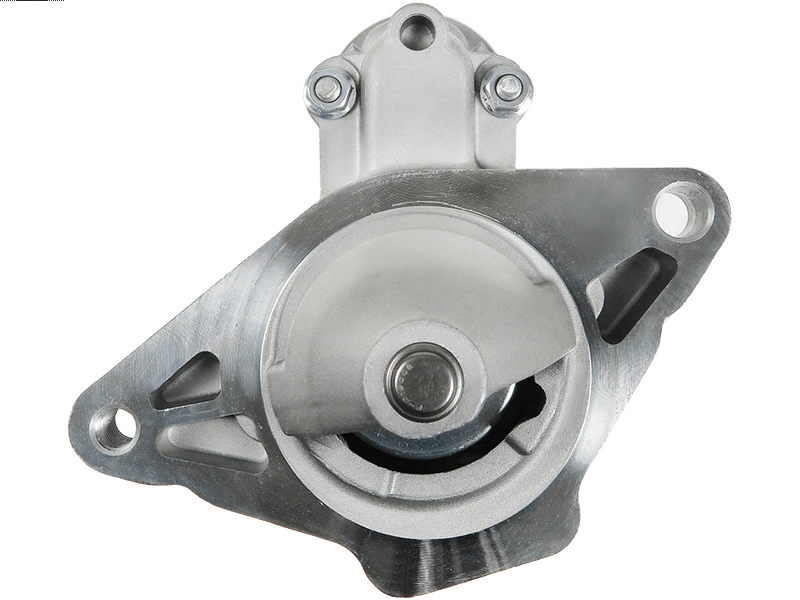

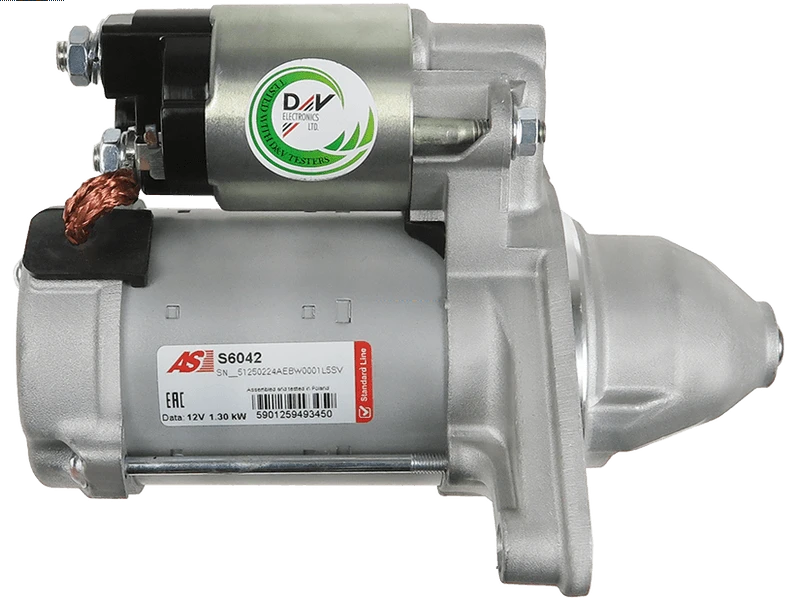

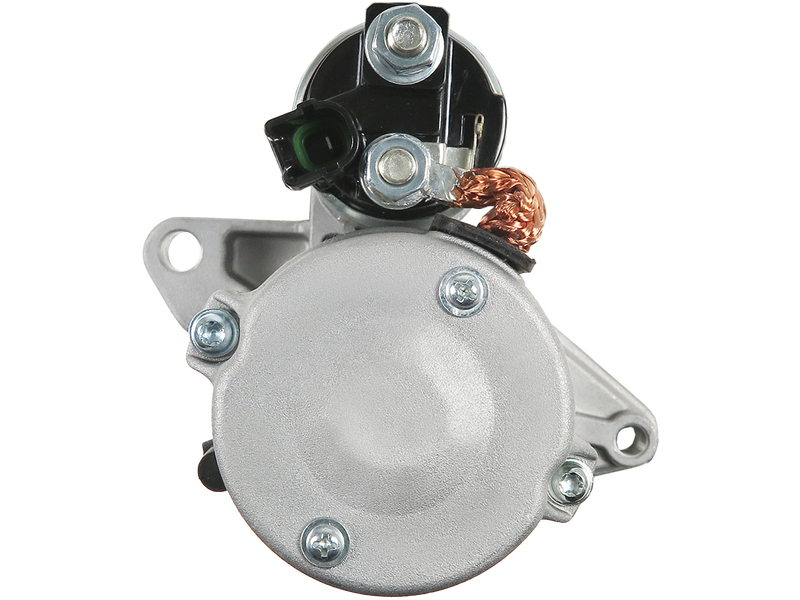

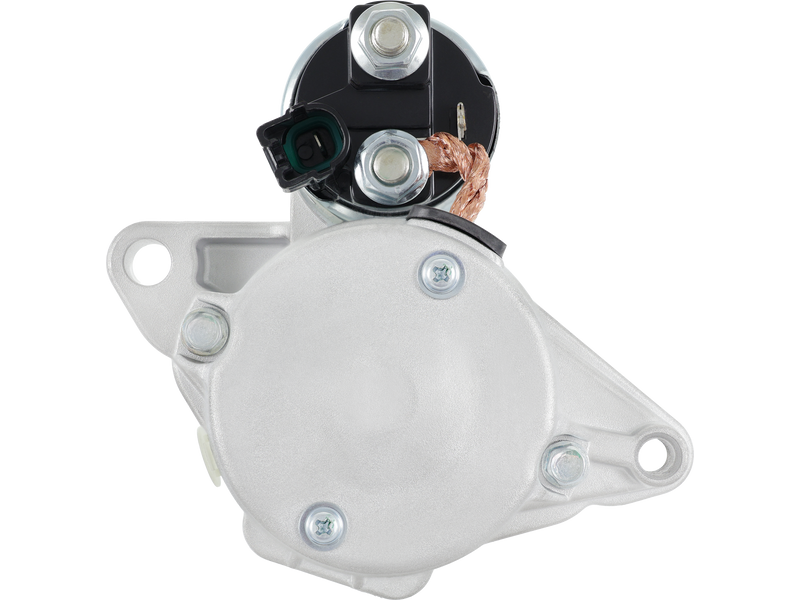

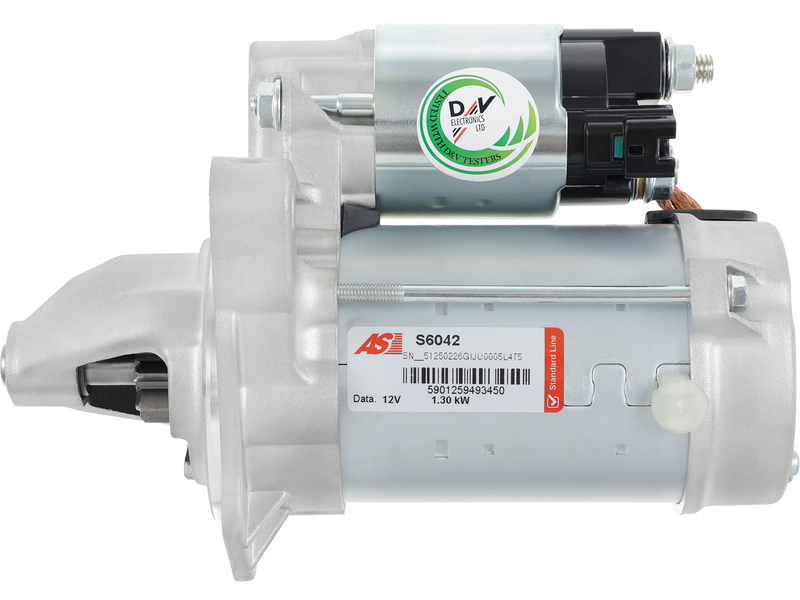

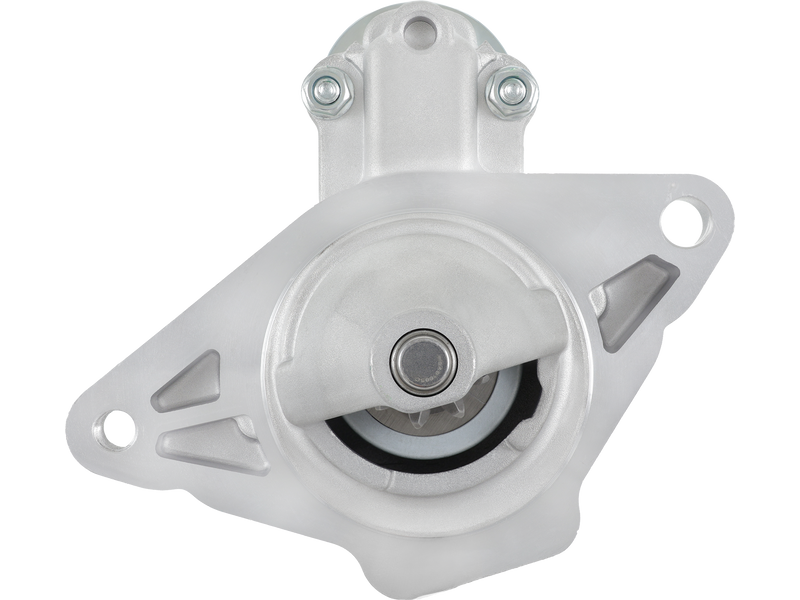

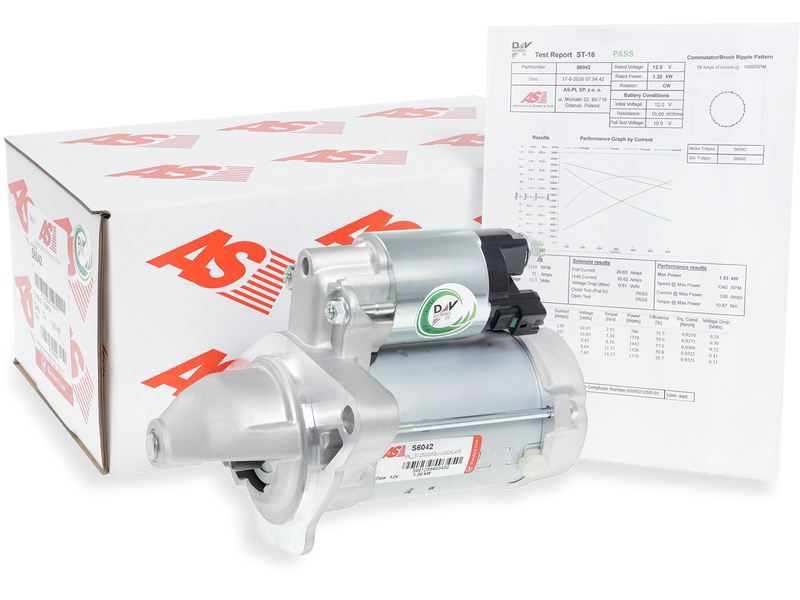

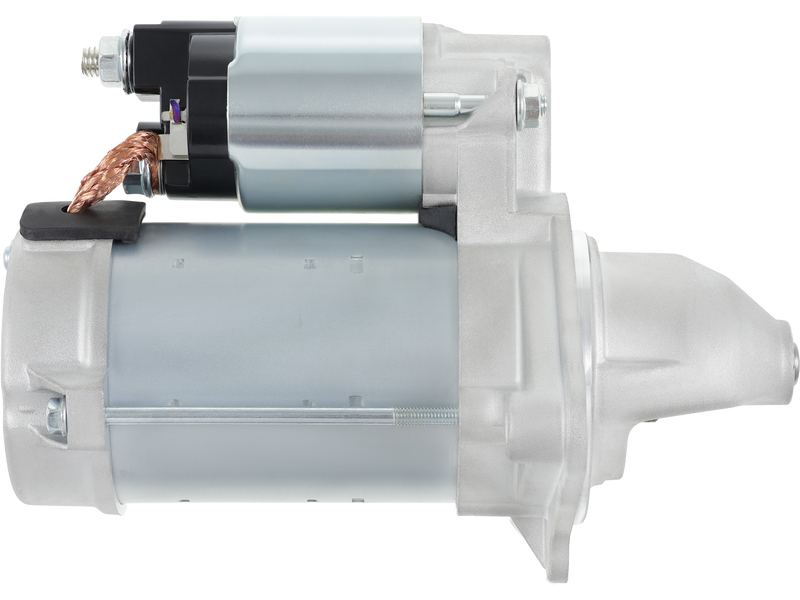

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
DENSO
Price:
NZ$ 350.09 including GST
NZ$ 304.43 excluding GST
or four payments of $87.52
with
Learn More
UOM:
each
Alternative Item:
S6042(DENSO)
Product Code:
S6042
Quantity In Stock Nationally
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
4280006180Associated Numbers
20432782OE 25-4195 254591 254591D 28100-0Y010 428000-6180 6040287 AEY2523 CST40287GS DSN949 LRS02523 28100-B1030
Parts Model Number： 428000-7610 28100-B1030
Parts Model Number： 428000-7610
Specifications
| Kilowatt | 1.30 kW |
| Length (L.1) | 189 mm |
| Mount Hole Center - Center (O.1) | 139 mm |
| Mount Hole Diameter (C.1) | 11 mm |
| Mount Hole Diameter (C.2) | M10x1.25 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 1 qty |
| No./Teeth | 9 qty |
| No./Teeth (Replaces) | 9 qty |
| OEM Product | No |
| Pinion at Rest (B) | 25 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 74 mm |
| Unit Type | DENSO |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| DAIHATSU | CHARADE VIII 1.33 16V | 1NR-FE | 05.2011- |
| TOYOTA | Auris 1.33 Dual-VVTi | [1NR-FE] | 05.2009- |
| TOYOTA | AURIS (_E15_) 1.33 Dual-VVTi (NRE150_, NRE150R) | 1NR-FE | 01.2010-09.2012 |
| TOYOTA | AURIS (_E15_) 1.33 Dual-VVTi (NRE150_, NRE150R) | 1NR-FE | 05.2009-09.2012 |
| TOYOTA | COROLLA Saloon (_E15_) 1.3 (NRE150) | 1NR-FE | 12.2008-07.2014 |
| TOYOTA | URBAN CRUISER (_P1_) 1.33 (NSP110_, NSP110) | 1NR-FE | 04.2009-03.2016 |
| TOYOTA | URBAN CRUISER (_P1_) 1.33 (NSP110_, NSP110R) | 1NR-FE | 01.2009-03.2016 |
| TOYOTA | Yaris 1.33 VVT-i | [1NR-FE] | 03.2009- |
| TOYOTA | YARIS (_P9_) 1.33 VVT-i (NSP90_, NSP90R) | 1NR-FE | 07.2010-05.2011 |
| TOYOTA | YARIS (_P9_) 1.33 VVT-i (NSP90_, NSP90R) | 1NR-FE | 11.2008-12.2011 |
Reference Information
| 115613 | CARGO |
| 20432782OE | REAL |
| 220637 | ERA |
| 25-4195 | ELSTOCK |
| 254591 | KUHNER |
| 254591D | KUHNER |
| 28100-0Y010 | TOYOTA |
| 28100-47120 | TOYOTA |
| 28100-47121 | TOYOTA |
| 28100-47122 | TOYOTA |
| 28100-47130 | TOYOTA |
| 28100-47131 | TOYOTA |
| 2810047131 | TOYOTA |
| 28100-47132 | TOYOTA |
| 31248N | WAI |
| 428000-6180 | DENSO |
| 428000-6181 | DENSO |
| 428000-6210 | DENSO |
| 428000-6211 | DENSO |
| 6040287 | SANDO |
| 6040287.1 | SANDO |
| AEY2523 | AUTOELECTRO |
| AM-2195 | AUTO MAGNETO |
| CST40287GS | CASCO |
| DSN949 | DENSO |
| F032115613 | CARGO |
| J5212144 | HERTH+BUSS |
| LRS02523 | LUCAS |
| LRS2523 | LUCAS |
| MAV422870 | SIOM |
| RNL428000-6180 | RNL |
| S12DE0859A2 | SIDAT |
| S6042 | AS-PL |
| STR6195 | ELECTROLOG |
| STR6195A | ELECTROLOG |
| STX210251 | STARDAX |
| STX210251R | STARDAX |
| UD105718S | AS-PL |
Video/Publications
