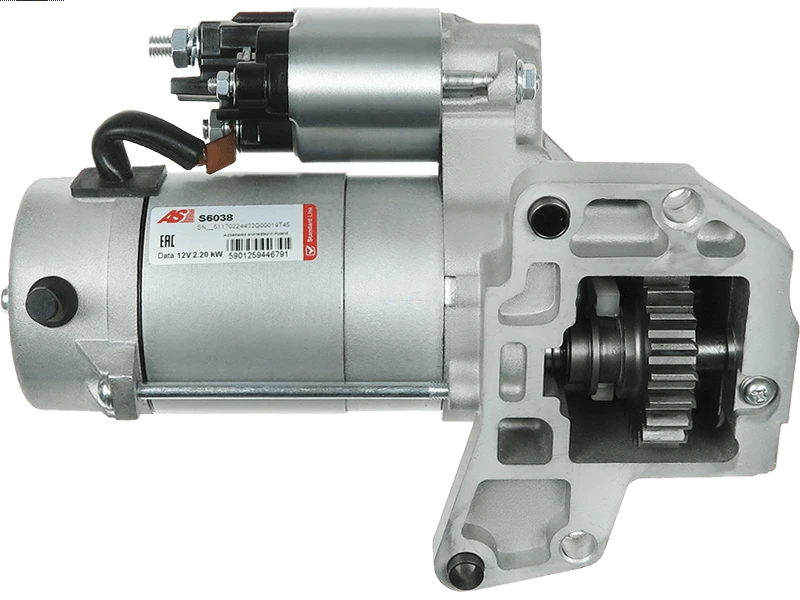

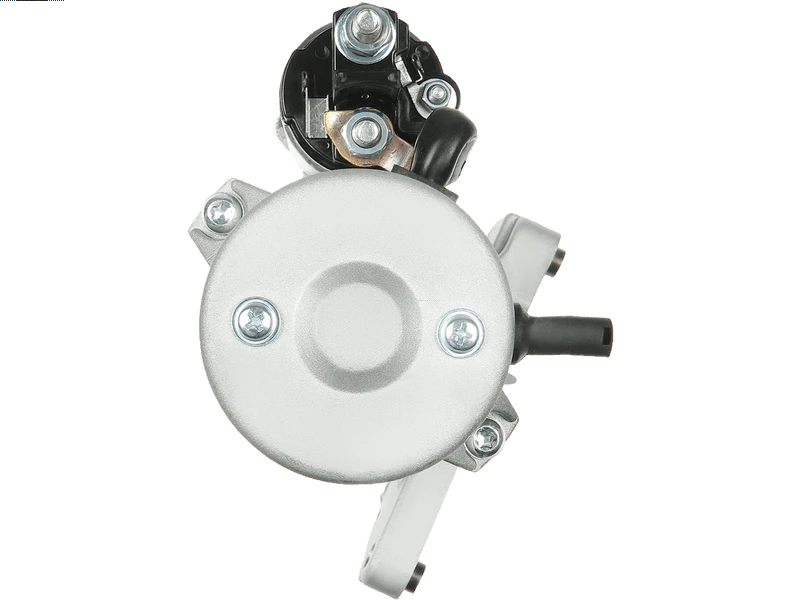

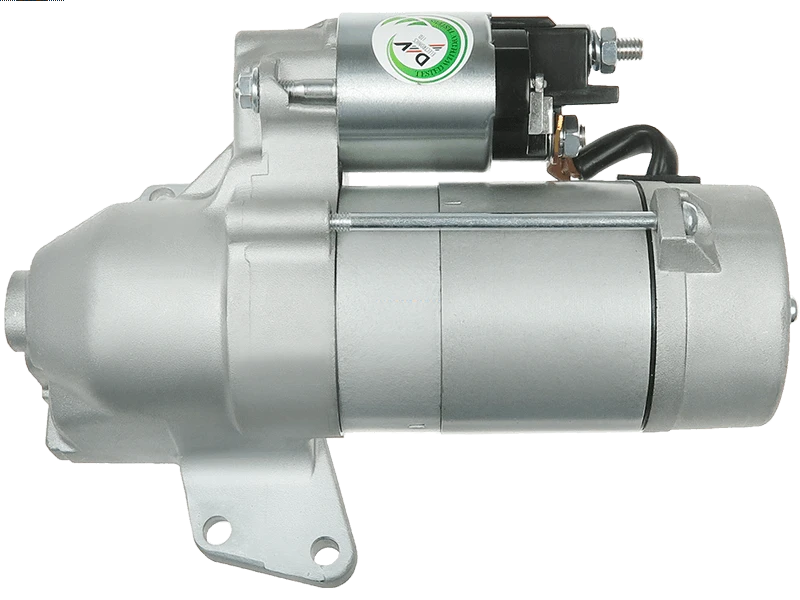

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
DENSO
Price:
NZ$ 588.39 including GST
NZ$ 511.64 excluding GST
or four payments of $147.10
with
Learn More
each
S6038
1
Associated Numbers

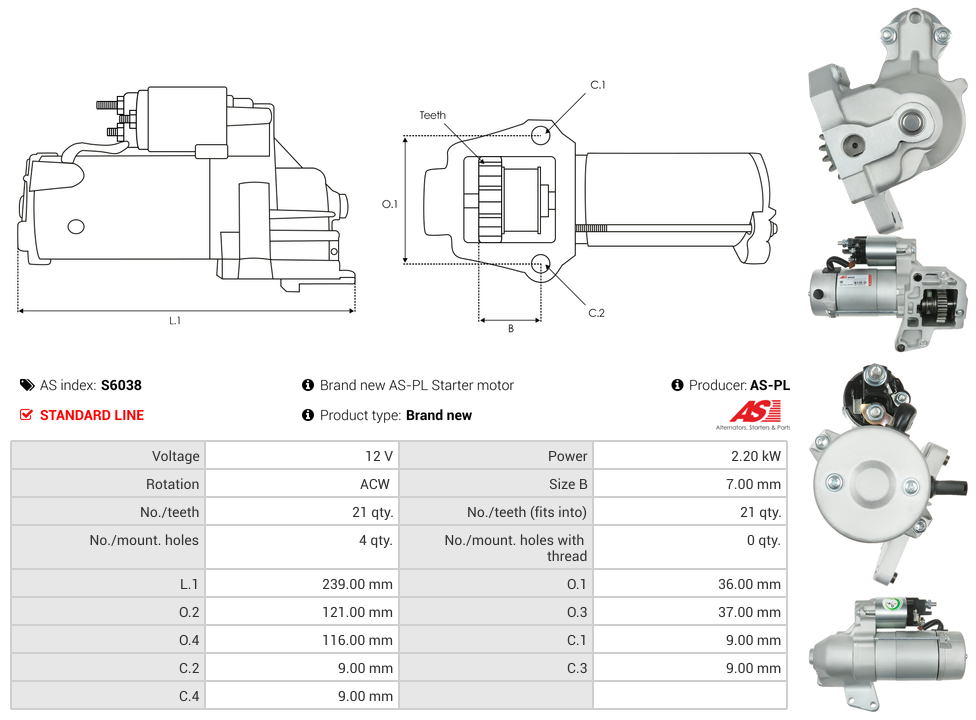

12080 201368 201368D 20432713BN 20432713OE 25-4014 3109 33336RW 428000-1630 428000-4810 5802AH 5802AJ 5802AX 5802FE 6040317 9649448380 AET1368 CST40317AS CST40317GS DSN942 EAA-121956 JS1368 LRS02342 S6038Specifications
| Kilowatt | 2.2 kW |
| Length (L.1) | 239 mm |
| Mount Hole Center - Center (O.1) | 36 mm |
| Mount Hole Center - Center (O.2) | 121 mm |
| Mount Hole Center - Center (O.3) | 37 mm |
| Mount Hole Center - Center (O.4) | 116 mm |
| Mount Hole Diameter (C.1) | 9 mm |
| Mount Hole Diameter (C.2) | 9 mm |
| Mount Hole Diameter (C.3) | 9 mm |
| Mount Hole Diameter (C.4) | 9 mm |
| No./Mount holes | 4 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 21 qty |
| No./Teeth (Replaces) | 21 qty |
| OEM Product | No |
| Pinion at Rest (B) | 7 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | ACW |
| Unit Type | DENSO |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| CITROEN | C5 2.7 HDi | [DT17ED4] | 02.2008- |
| CITROEN | C5 2.7 HDi | [UHZ(DT17BTED4)] | 02.2008- |
| CITROEN | C6 2.7 HDi | [DT17TED4] | 09.2005-05.2008 |
| PEUGEOT | 407 2.7 HDi | [DT17TED4] | 10.2005-07.2008 |
| PEUGEOT | 607 2.7 HDi 24V | [DT17TED4] | 12.2004- |
Reference Information
5802AX JS1368 20432713OE DSN942 5040569 201368D 5802AP 20432713BN 6040317 5802AH 5802AJ 25-4014 S12DE0345 EAA-121956 S6038 428000-1630 RNL1368JS 6040317.1 220801 9649448380 115328 5702FE 12080 201368 3109 33336RW STR6451 MAV423170A LRS02342 S12DE0345A2 33336N STRL297 CST40317AS STX201043 CST40317GS 5802FE 9664883081 428000-4810 5802FF 9638525380 9664883080 LRS2342 AET1368Video/Publications
