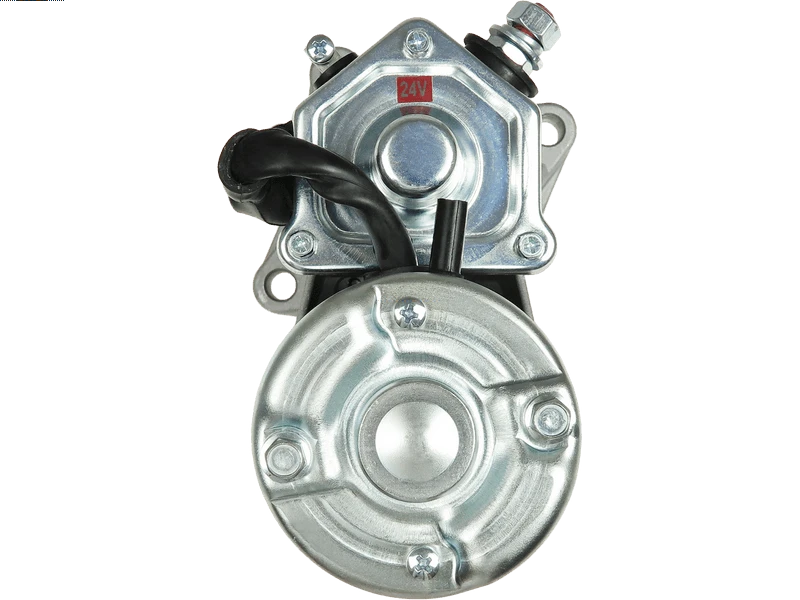

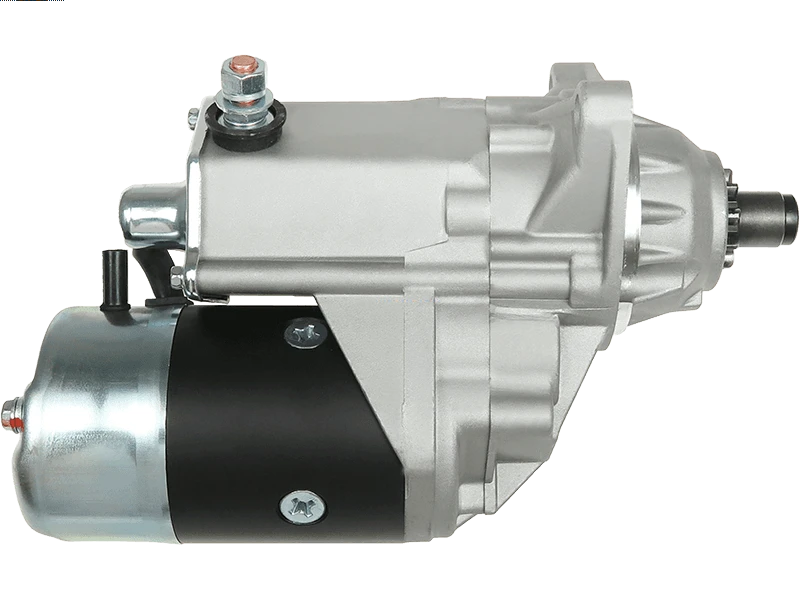

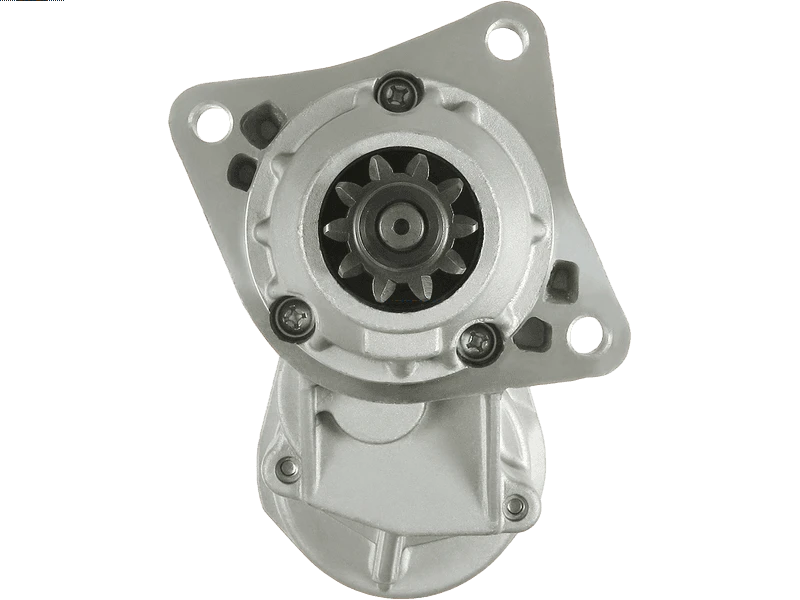

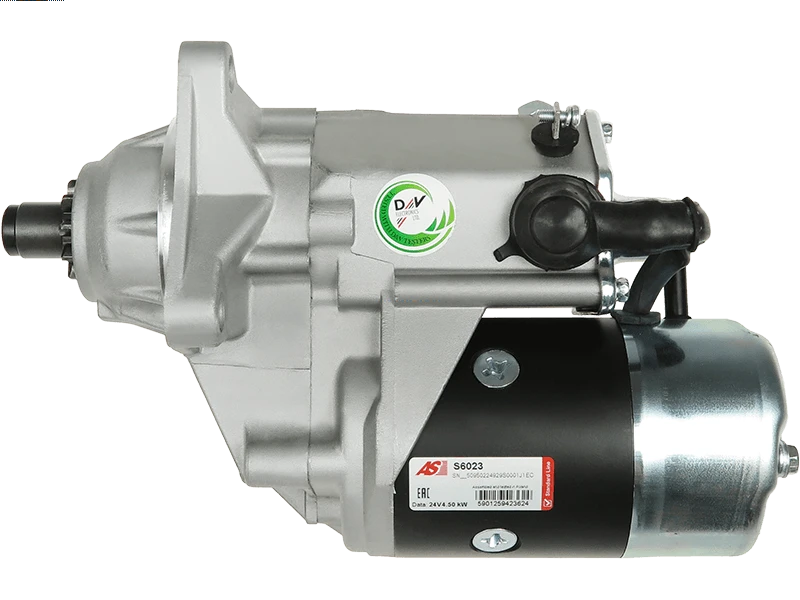

S6023 - Brand new AS-PL Starter motor

Specifications

Kilowatt	4.5 kW
Length (L.1)	297 mm
Mount Hole Center - Center (O.1)	89 mm
Mount Hole Center - Center (O.2)	89 mm
Mount Hole Center - Center (O.3)	126 mm
Mount Hole Diameter (C.1)	11 mm
Mount Hole Diameter (C.2)	11 mm
Mount Hole Diameter (C.3)	11 mm
No./Mount holes	3 qty
No./Mount holes with thread	0 qty
No./Teeth	10 qty
Pinion at Rest (B)	49 mm
Rotation	CW
Spigot Diameter (A)	89 mm
Unit Type	DENSO
Voltage	24 V
Wet Clutch	Yes

Vehicle Applications

Make	Model	Type	Year
IVECO	180 E 24 7.8	[F2BE0681D]	09.1999-11.2004
IVECO	180 T 27 7.8	[F2BE0681F]	06.2005-
IVECO	190 E 24 7.8	[F2BE0681D]	09.1998-
IVECO	190 E 24 7.8	[F2BE0681D]	09.1999-11.2004
IVECO	190 E 27 7.8	[F2BE0681C]	09.1998-
IVECO	190 E 27 7.8	[F2BE0681F]	09.1998-
IVECO	190 E 31 7.8	[F2BE0681B]	09.1998-
IVECO	190 E 31 7.8	[F2BE0681B]	09.1999-11.2004
IVECO	190 E 35 7.8	[F2BE0681A]	09.1998-
IVECO	190 E 35 7.8	[F2BE0681A]	09.1999-11.2004
IVECO	190 S 27 7.8	[F2BE0681C]	05.2005-
IVECO	190 S 27 7.8	[F2BE0681F]	04.2004-
IVECO	190 S 27 7.8	[F2BE0681F]	05.2005-
IVECO	190 S 30 7.8	[F2BE0681E]	04.2004-
IVECO	190 S 31 7.8	[F2BE0681B]	06.2003-
IVECO	190 S 31 7.8	[F2BE0681C]	06.2003-
IVECO	190 S 31 7.8	[F2BE0681E]	06.2003-
IVECO	190 S 31 7.8	[F2BE3681C]	04.2004-
IVECO	190 S 33 7.8	[F2BE3681B]	05.2007-
IVECO	190 S 33 7.8	[F2BE3681B]	12.2006-
IVECO	190 S 35 7.8	[F2BE0681A]	04.2004-
IVECO	190 S 35 7.8	[F2BE0681A]	06.2003-
IVECO	190 S 36 7.8	[F2BE3681A]	05.2007-
IVECO	190 T 31 7.8	[F2BE0681B]	06.2005-
IVECO	190 T 31 7.8	[F2BE0681B]	10.2004-
IVECO	190 T 33 7.8	[F2BE3681B]	03.2006-
IVECO	190 T 35 7.8	[F2BE0681A]	06.2005-
IVECO	190 T 35 7.8	[F2BE0681A]	10.2004-
IVECO	190 T 35 7.8	[F2BE3681A]	10.2004-
IVECO	260 E 24 7.8	[F2BE0681D]	11.1999-
IVECO	260 E 27 7.8	[F2BE0681B]	11.1999-11.2004
IVECO	260 E 27 7.8	[F2BE0681C]	11.1999-
IVECO	260 E 27 7.8	[F2BE0681F]	11.1999-
IVECO	260 E 31 7.8	[F2BE0681B]	01.2001-11.2004
IVECO	260 E 31 7.8	[F2BE0681B]	09.1999-11.2004
IVECO	260 E 31 7.8	[F2BE0681B]	11.1999-
IVECO	260 E 35 7.8	[F2BE0681A]	01.2000-11.2004
IVECO	260 E 35 7.8	[F2BE0681A]	09.1999-11.2004
IVECO	260 E 35 7.8	[F2BE0681A]	11.1999-
IVECO	260 S 27 7.8	[F2BE0641]	01.2008-
IVECO	260 S 27 7.8	[F2BE0681F]	04.2004-
IVECO	260 S 30 7.8	[F2BE0681E]	04.2004-
IVECO	260 S 30 7.8	[F2BE0681E]	10.2005-
IVECO	260 S 31 7.8	[F2BE0681B]	06.2003-
IVECO	260 S 31 7.8	[F2BE3681C]	04.2004-
IVECO	260 S 31 7.8	[F2BE3681C]	06.2003-
IVECO	260 S 33 7.8	[F2BE3681B]	06.2007-
IVECO	260 S 33 7.8	[F2BE3681B]	12.2006-
IVECO	260 S 35 7.8	[F2BE0681A]	04.2004-
IVECO	260 S 35 7.8	[F2BE0681A]	06.2003-
IVECO	260 S 35 7.8	[F2BE3681A]	06.2003-
IVECO	260 S 36 7.8	[F2BE3681A]	07.2007-
IVECO	260 T 31 7.8	[F2BE0681B]	06.2005-
IVECO	260 T 31 7.8	[F2BE0681B]	10.2004-
IVECO	260 T 33 7.8	[F2BE3681B]	03.2006-
IVECO	260 T 33 7.8	[F2BE3681B]	07.2007-
IVECO	260 T 35 7.8	[F2BE0681A]	06.2005-
IVECO	260 T 35 7.8	[F2BE0681A]	10.2004-
IVECO	260 T 35 7.8	[F2BE3681A]	10.2004-
IVECO	260 T 36 7.8	[F2BE3681A]	07.2007-
IVECO	260 T 36 7.8	[F2BE3681A]	10.2004-
IVECO	340 E 35 7.8	[F2BE0681A]	01.2001-11.2004
IVECO	340 E 35 7.8	[F2BE0681A]	09.1999-11.2004
IVECO	340 T 36 7.8	[F2BE3681A]	03.2006-
IVECO	340 T 36 7.8	[F2BE3681A]	06.2006-
IVECO	340 T 36 7.8	[F2BE3681A]	07.2007-
IVECO	380 E 35 7.8	[F2BE0681A]	01.2000-11.2004
IVECO	380 T 33 7.8	[F2BE3681B]	03.2006-
IVECO	380 T 36 7.8	[F2BE3681A]	04.2006-
IVECO	380 T 36 7.8	[F2BE3681A]	10.2004-
IVECO	400 E 31 7.8	[F2BE0681B]	09.1998-
IVECO	400 E 35 7.8	[F2BE0681A]	01.2000-11.2004
IVECO	400 E 35 7.8	[F2BE0681A]	09.1998-
IVECO	400 T 35 7.8	[F2BE0681A]	06.2005-
IVECO	400 T 36 7.8	[F2BE3681A]	10.2004-
IVECO	410 E 35 7.8	[F2BE0681A]	01.2000-11.2004
IVECO	410 T 36 7.8	[F2BE3681A]	03.2006-
IVECO	440 E 31 7.8	[F2BE0681B]	09.1998-
IVECO	440 E 35 7.8	[F2BE0681A]	02.2000-
IVECO	440 E 35 7.8	[F2BE0681A]	09.1998-
IVECO	440 S 31 7.8	[F2BE0681B]	06.2003-
IVECO	440 S 33 7.8	[F2BE3681B]	12.2006-
IVECO	440 S 35 7.8	[F2BE0681A]	06.2003-
IVECO	450 E 32 T 7.8	[F2BE1682G]	03.2008-12.2011
IVECO	450 S 33 T 8.7	[F2CFE611/330]	04.2012-
IVECO	450 S 33 T 8.7	[F2CFE611C]	04.2012-
IVECO	460 S 36 T 8.7	[F2CFE611/360]	04.2012-
IVECO	460 S 36 T 8.7	[F2CFE611B]	04.2012-
IVECO	530 S 36 T 8.7	[F2CFE611/360]	04.2012-
IVECO	530 S 36 T 8.7	[F2CFE611B]	04.2012-

Reference Information

CST40601GS 63207139010 8EA012586-001 228000-5640 228000-5641 CST40601 32957N CGB-23899 115880 220480 M85R3004SE 246-25254 20540102 6040601 ANM16119X GST61671-A 336264 LRS1957 LES0087 RNL1383CS STR70275 DS5009 112822 CST40601ES 45-3259 DENDSN939 8EA738258-111 101383D CST40601AS AEY1957 101383M 99432760 MSN246 501.507.103 STRL120 PRE20540102 CST40601RS DSN939 190-25198 MAV5880 101383 88212277 91-29-5821 S6023 8007 STRL708 UD16532S S24DE0050A2 20432106BN DSN2039 CS1383 986022940 DRS3899 STN1383 STM1383 20432106OE LRS01957 19085004 CST40601OS
