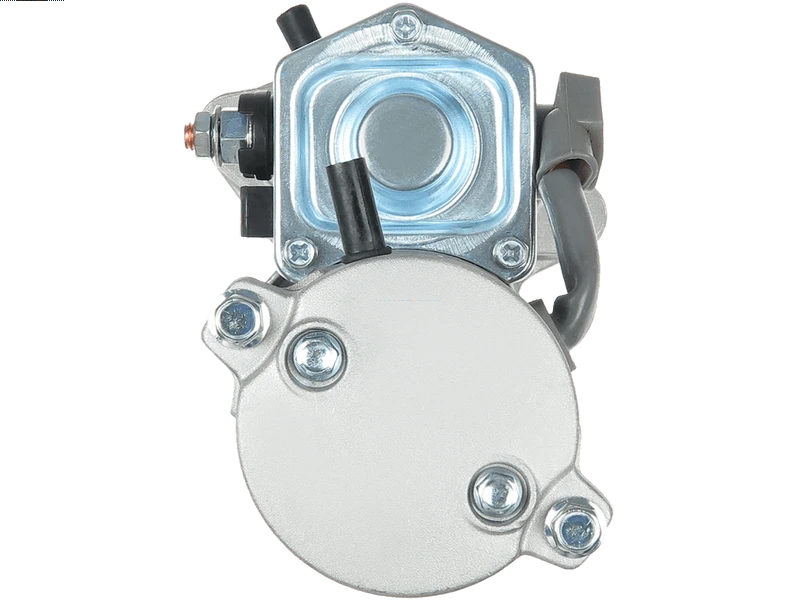

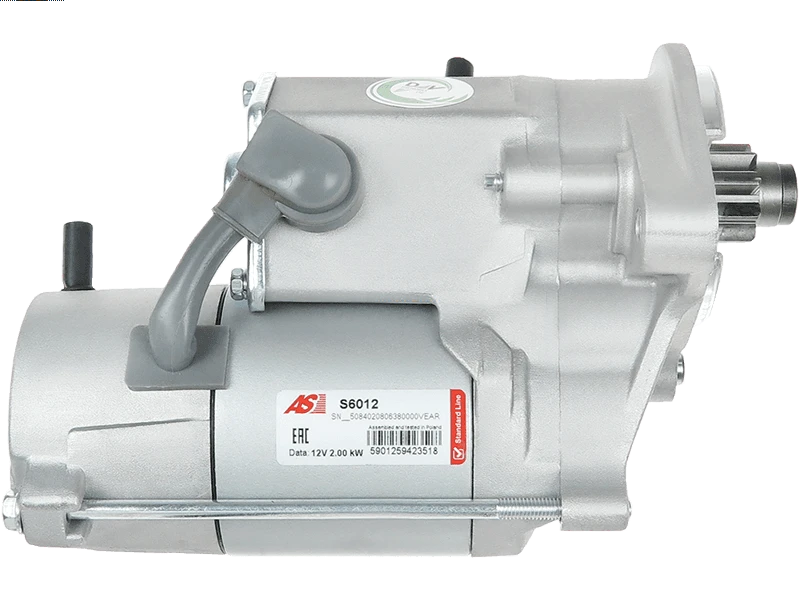

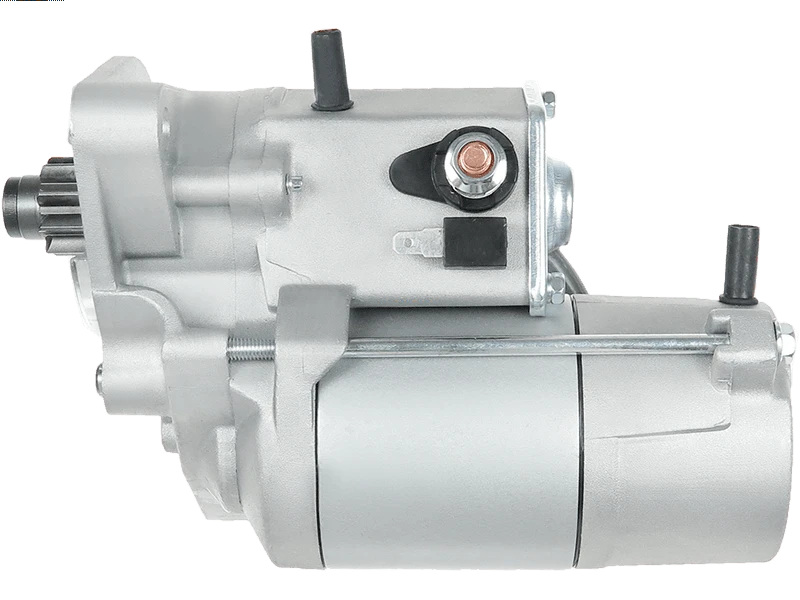

S6012 - Brand new AS-PL Starter motor

Specifications

Kilowatt	2 kW
Length (L.1)	222 mm
Mount Hole Center - Center (O.1)	104 mm
Mount Hole Diameter (C.1)	M10x1.5 mm
Mount Hole Diameter (C.2)	11 mm
No./Mount holes	2 qty
No./Mount holes with thread	1 qty
No./Teeth	9 qty
Pinion at Rest (B)	21 mm
Rotation	CW
Spigot Diameter (A)	76 mm
Unit Type	DENSO
Voltage	12 V

Vehicle Applications

Make	Model	Type	Year
LAND ROVER	Freelander 2.0 TD4	[M47]	11.2000-
ROVER	75 2.0 CDT	[M47]	02.1999-12.2002
ROVER	75 2.0 CDTi	[204D2]	02.2003-05.2005
ROVER	ZT 2.0 CDTi	[M47(204D2)]	10.2001-05.2005
ROVER	ZT- T 2.0 CDTi	[M47(204D2)]	11.2002-05.2005
ROVER	ZT-T 2.0 CDTi	[204D2]	10.2001-05.2005

Reference Information

SS657 ANM16025X STR30050 CST40163AS S6012 AEY1551 JS1321 20432361BN 228000-7801 20432361OE 228000-7800 8080133 8EA738237-001 DRS3805 201321 25-3045 6040163 S12DE0257A2 3658 RNL1321JS 220207 EAA-121084 LRS1551 SS527 22.1321 336319 NAD101140 113965 8212673 MAV421630 NAD101500 986022621 S12DE0257 STRS026 GSDSN601-A LRS01551 42022621 32556N CGB-23805 CST40163GS 11975

Video/Publications

0986022621 113965 11975 201321 20432361BN 20432361OE 22.1321 228000-7800 228000-7801 25-3045 32556N 3658 42022621 6040163 8080133 8212673 8EA738237-001 AEY1551 CGB-23805 CST40163AS CST40163GS DRS3805 EAA-121084 GSDSN601-A JS1321 LRS01551 LRS1551 MAV421630 NAD101140 NAD101500 RNL1321JS S6012 SS527 SS657 STR30050 STRS026 220207
