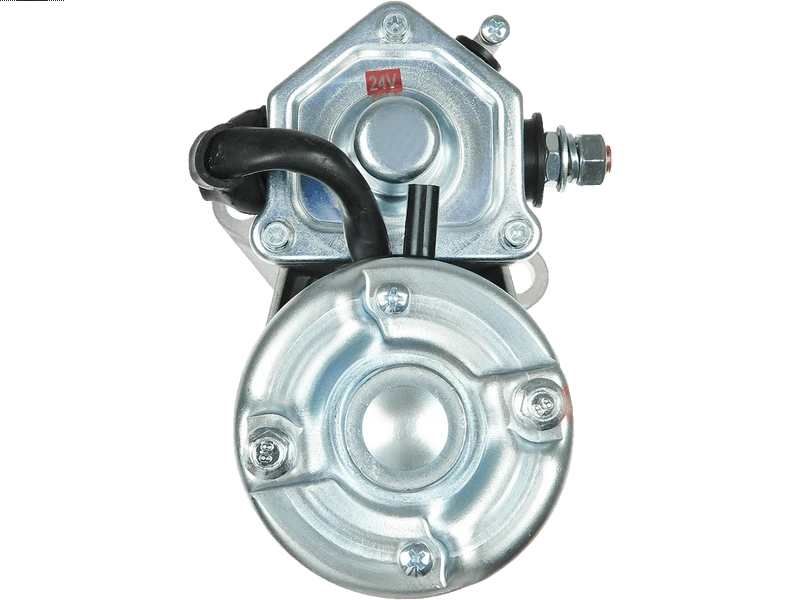

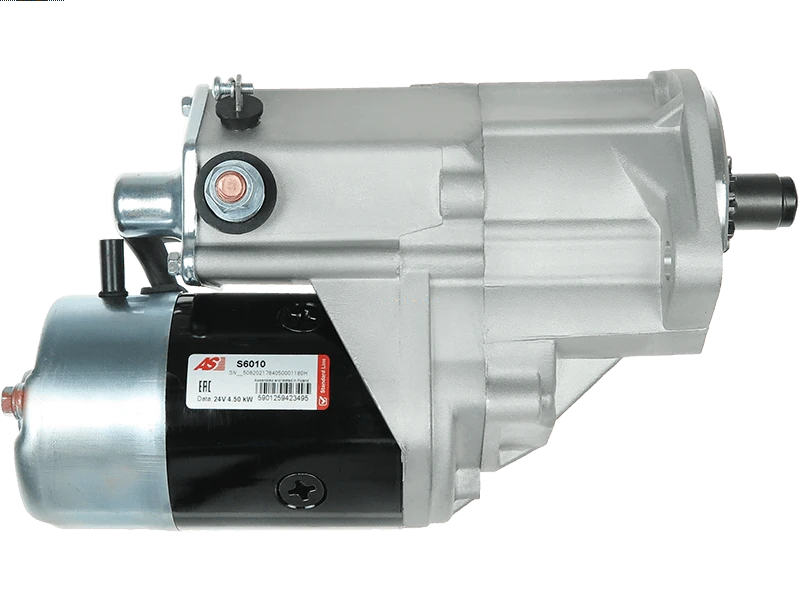

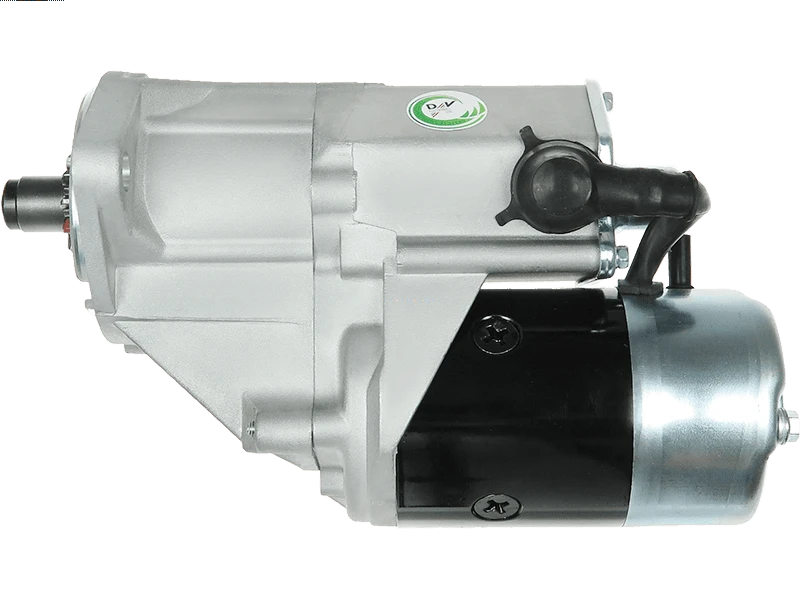

S6010 - Brand new AS-PL Starter motor

Brand new AS-PL Starter motor
Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
DENSO
Price:
NZ$ 460.24 including GST

NZ$ 400.21 excluding GST
each
S6010
No stock in NZ
Item available to backorder, submit your order. Aprox 7-14 day delay - $40 Air freight charge additional
Purchase Qty:

028000-5860 028000-5861 028000-5862 028000-5863 028000-5864 028000-6011 028000-6012 110490 16614N 18180N 20432606BN 20733 228000-7751 28100-22060 28100-22060-71 28100-22061 28100-22061-71 28100-22071 33921 45-1462 6040606 8179 88212235 8EA730274-001 AEY1881 CST40606AS DRS3257 EAA-121624 JS733 LRS01881 STR70233
Kilowatt4.5 kW
Length (L.1)295 mm
Mount Hole Center - Center (O.1)112 mm
Mount Hole Diameter (C.1)13.5 mm
Mount Hole Diameter (C.2)13.5 mm
No./Mount holes2 qty
No./Mount holes with thread0 qty

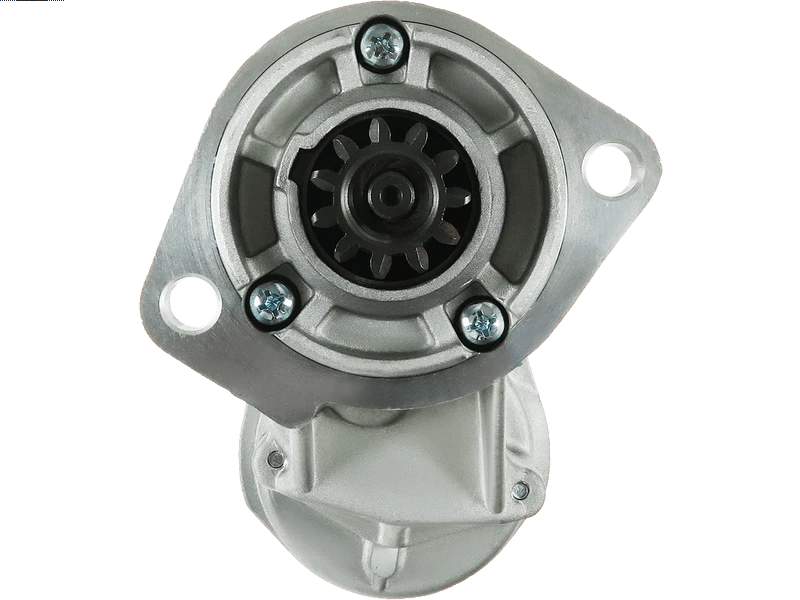

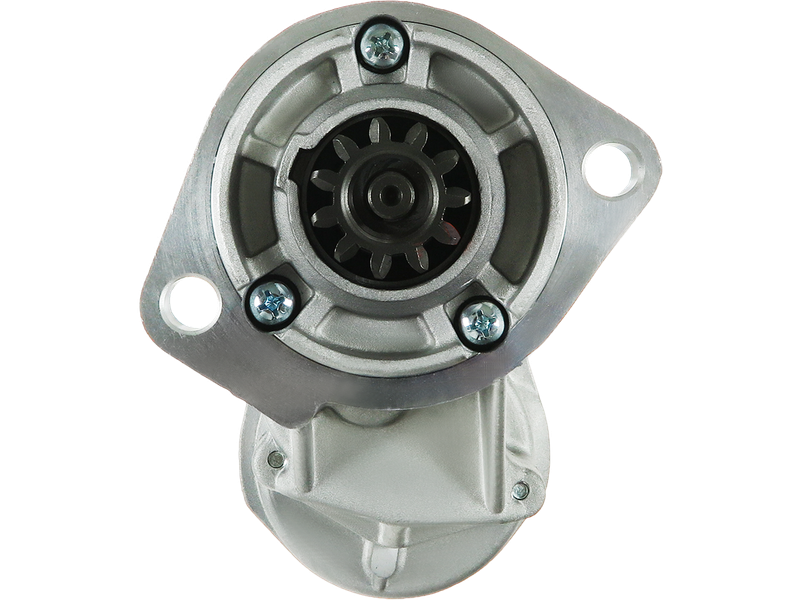

No./Teeth11 qty
Pinion at Rest (B)16 mm
RotationCW
Spigot Diameter (A)90 mm
Unit TypeDENSO
Voltage24 V
Wet ClutchYes
Make Model Type Year
TOYOTA 4FD20 [2J] 01.1978-12.1986
TOYOTA 4FD23 [2J] 01.1978-12.1986
TOYOTA 4FD25 [2J] 01.1978-12.1986
TOYOTA 5FD20 [1Z] 01.1986-12.1994
TOYOTA 5FD23 [1Z] 01.1986-12.1994
TOYOTA 5FD25 [1Z] 01.1986-12.1994
TOYOTA 5FD28 [1Z] 01.1986-12.1994
TOYOTA 5FD30 [1Z] 01.1986-12.1994
TOYOTA 5FD33 [11Z] 01.1988-12.1994
TOYOTA 5FD35 [11Z] 01.1988-12.1994
TOYOTA 5FD40 [11Z] 01.1988-12.1994
TOYOTA 5FD45 [11Z] 01.1988-12.1994
TOYOTA 5FD50 [12Z] 01.1990-12.1996
TOYOTA 5FD50 [14Z] 01.1996-
TOYOTA 5FD60 [12Z] 01.1990-12.1996
TOYOTA 5FD60 [14Z] 01.1996-
TOYOTA 5FD70 [12Z] 01.1990-12.1996
TOYOTA 5FD70 [14Z] 01.1996-
TOYOTA 6FD20 [2Z] 01.1994-12.1998
TOYOTA 6FD23 [2Z] 01.1994-12.1998
TOYOTA 6FD25 [2Z] 01.1994-12.1998
TOYOTA 6FD28 [2Z] 01.1994-12.1998
TOYOTA 6FD30 [2Z] 01.1994-12.1998
028000-5861 8179 028000-5860 028000-5863 LRS1881 028000-5862 028000-5864 RNL733JS S6010 CST40606AS 28100-22061-71 S24DE0003A2 20733 STR6041 28100-22060 28100-22061 335583 16614N LRS01881 CGB-8312 JS733 28100220607 88212235 MAV426060 028000-6011 110490 028000-6012 2.81002E+11 028000-5510 18180N AEY1881 6040606 228000-7751 28100-22060-71 45-1462 STR70233 8EA730274-001 28100-22071 EAA-121624 3004568 DRS3257 20432606BN STRL696 33921
028000-5860 028000-5861 028000-5862 028000-5863 028000-5864 028000-6011 028000-6012 110490 16614N 18180N 20432606BN 20733 228000-7751 28100-22060 28100-22060-71 28100-22061 28100-22061-71 28100-22071 33921 45-1462 6040606 8179 88212235 8EA730274-001 AEY1881 CGB-8312 CST40606AS DRS3257 EAA-121624 JS733 LRS01881 LRS1881 MAV426060 RNL733JS STR70233 STRL696
