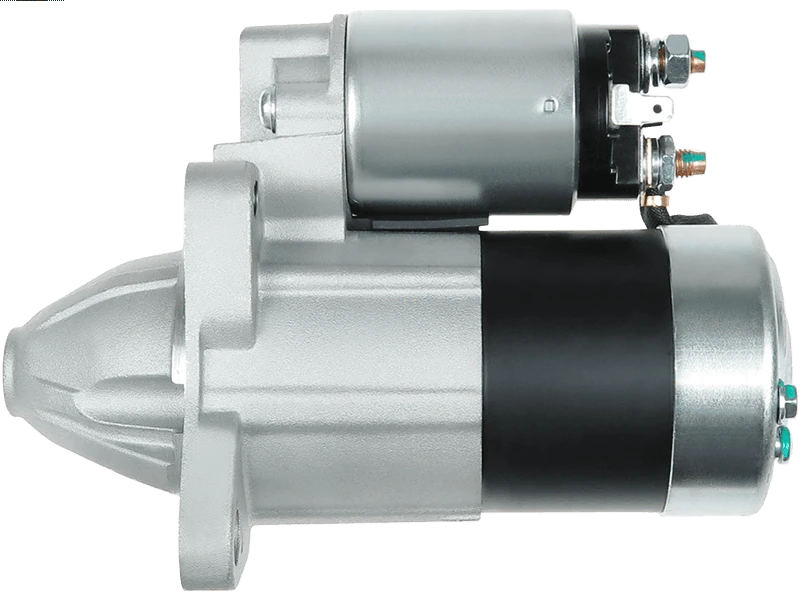

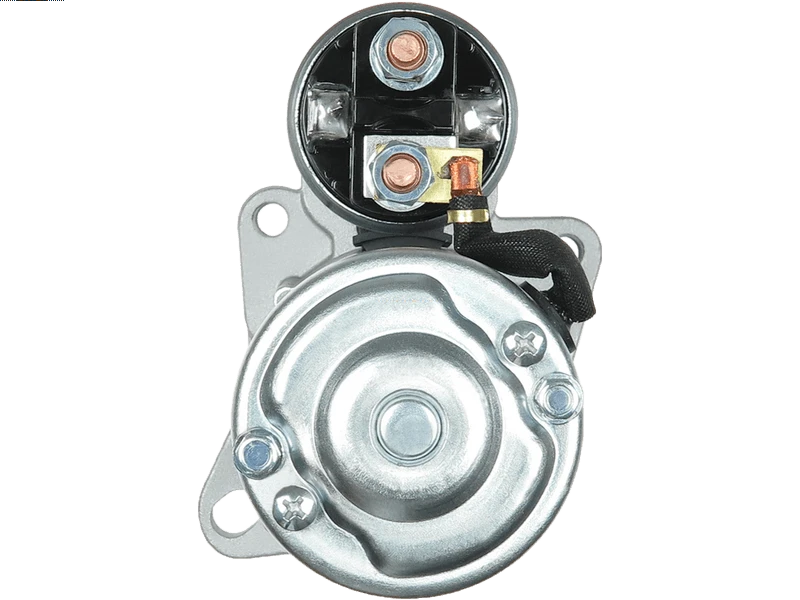

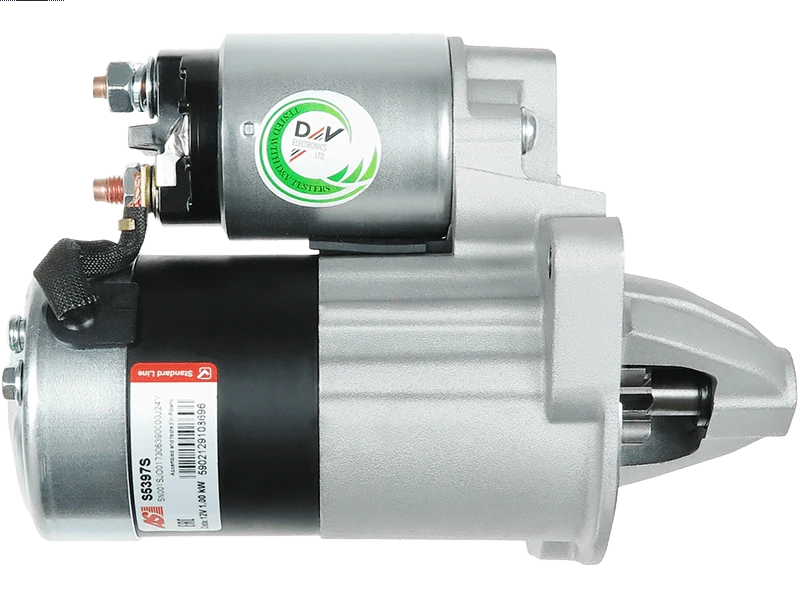

S5397S - Brand new AS-PL Starter motor

Specifications

Kilowatt	1 kW
Length (L.1)	196 mm
Mount Hole Center - Center (O.1)	78 mm
Mount Hole Center - Center (O.2)	111 mm
Mount Hole Center - Center (O.3)	78 mm
Mount Hole Diameter (C.1)	M10x1.25 mm
Mount Hole Diameter (C.2)	11.5 mm
Mount Hole Diameter (C.3)	M10x1.25 mm
No./Mount holes	3 qty
No./Mount holes with thread	2 qty
No./Teeth	8 qty
Pinion at Rest (B)	15 mm
Rotation	CW
Spigot Diameter (A)	74 mm
Unit Type	MITSUBISHI
Voltage	12 V

Vehicle Applications

Make	Model	Type	Year
MAZDA	323 1.3 16V	[B3ME]	09.1998-01.2001
MAZDA	323 1.5 16V	[Z5-DE]	10.1996-
MAZDA	323 1.5 16V	[ZL05]	09.1998-01.2001
MAZDA	323 1.5 16V	[ZL06]	09.1998-01.2001
MAZDA	323 C 1.8	[BPZE]	08.1994-09.1998
MAZDA	323 F 1.6	[ZM]	01.2001-05.2004
MAZDA	323 F 1.8 16V	[BPZE]	08.1994-09.1998
MAZDA	323 S 1.6	[ZM]	01.2001-05.2004
MAZDA	323 S 1.8 16V	[BPZE]	08.1994-09.1998
MAZDA	Demio 1.5 16V	[B5E]	04.2000-07.2003
MAZDA	Miata 1.8		01.1999-01.2000
MAZDA	Miata 1.8		01.2001-01.2002
MAZDA	Miata 1.8 LS		01.2002-01.2003
MAZDA	MX-5 1.6 16V	[B6D]	05.1998-10.2005
MAZDA	MX-5 1.8		08.2002-10.2005
MAZDA	MX-5 1.8 16V	[BPD]	11.2000-10.2005
MAZDA	MX-5 1.9 16V	[BPD]	11.2000-10.2005
MAZDA	Portege 1.8 ES		01.1995-01.1996
MAZDA	Portege 1.8 ES		01.1997-01.1997
MAZDA	Portege 1.8 S		01.1995-01.1995
MAZDA	Protege 1.6		01.1999-01.2000
MAZDA	Protege 1.8 ES		01.1998-01.1998
MERCEDES BENZ	Sprinter 2.1 CDi 4x4	(906)[OM651.955]	08.2011-
MERCEDES BENZ	Sprinter 2.1 CDi 4x4	(906)[OM651.956]	08.2011-

Reference Information

3M162 S5397S M0T80081A STRL859 CST35109GS LRS1361 STR71082 RAS34834 986020731 BPD4-18-400B BPD4-18-400A 003-M162 M000T80081A MQS1136 8EA012527-291 DRS3723 17592R 25-2193 SG0279 ANM15943X 17592N 23300-HA00A S12MH0543A2 M0T80081AM JS1136 CGB-28081 23300HA00A 88212608 63721136010 M000T80081 STM1041 B6DK-18-400 91-27-3175N 6035109 8EA737545-001 DS4833 458326 BPD4-18-400RE CST35109AS 111970 M0T80081 201136 MITM0T80081 MTM162 220920A STR5110 LRS01361 140.520.083 M000T80081AM STM1136 91-27-3175 BPD4-18-400 20437901 000986020731 220920 UD20366S J5213033 9527 12302

Video/Publications

003-M162 063721136010 0986020731 111970 12302 140.520.083 17592N 17592R 201136 20437901 220920A 25-2193 3M162 458326 6035109.0 88212608 8EA012527-291 8EA737545-001 91-27-3175 91-27-3175N 9527 B6DK-18-400 BPD4-18-400 BPD4-18-400A BPD4-18-400B BPD4-18-400RE CGB-28081 CST35109AS CST35109GS DRS3723 DS4833 J5213033 JS1136 LRS01361 LRS1361 M000T80081 M000T80081A M000T80081AM M0T80081 M0T80081A M0T80081AM MITM0T80081 MQS1136 MTM162 RAS34834 SG0279 STM1041 STM1136 STR71082 STRL859 UD20366S
