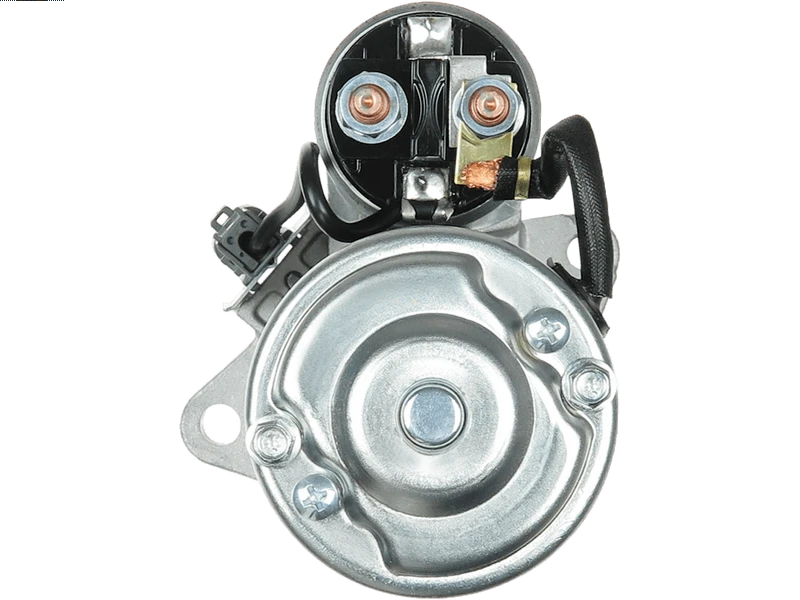

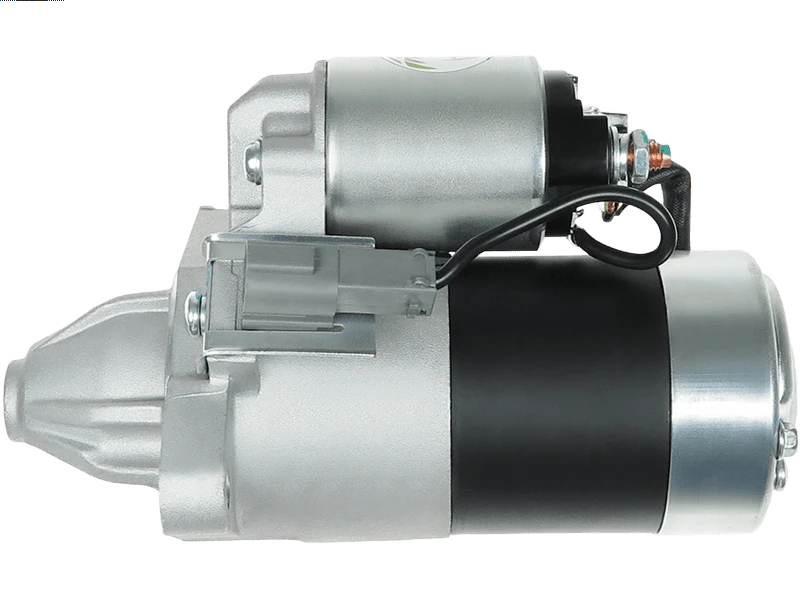

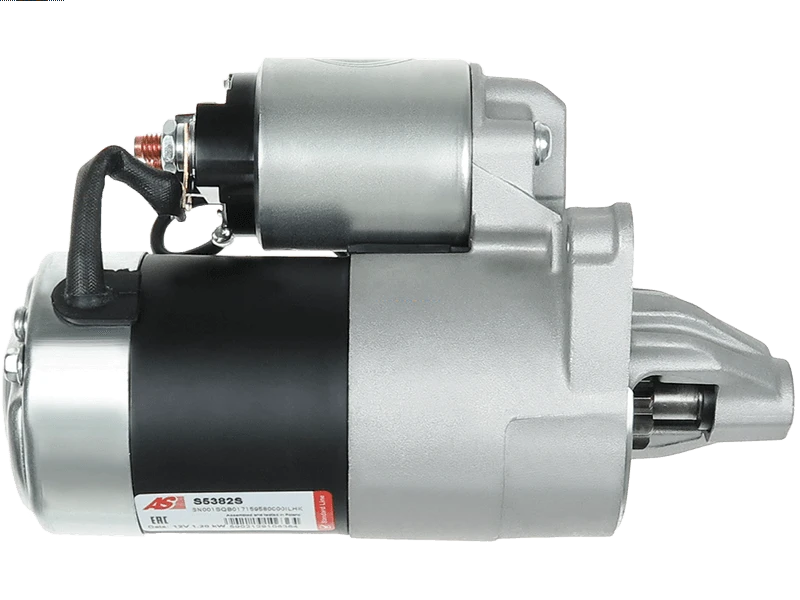

S5382S - Brand new AS-PL Starter motor

Specifications

Kilowatt	1.2 kW
Length (L.1)	208 mm
Mount Hole Center - Center (O.1)	106 mm
Mount Hole Diameter (C.1)	11 mm
Mount Hole Diameter (C.2)	M10x1.5 mm
No./Mount holes	2 qty
No./Mount holes with thread	1 qty
No./Teeth	8 qty
Pinion at Rest (B)	11 mm
Rotation	CW
Spigot Diameter (A)	70 mm
Unit Type	MITSUBISHI
Voltage	12 V

Vehicle Applications

Make	Model	Type	Year
JAGUAR	S-type 2.5 V6	[JB]	04.2002-
NISSAN	100NX 1.6	[GA16DE]	09.1993-10.1994
NISSAN	100NX 1.6	[GA16DS]	03.1990-10.1994
NISSAN	200SX 1.6	[GA16DE]	01.1995-01.1997
NISSAN	200SX 1.6	[GA16DE]	01.1998-01.1998
NISSAN	200SX 1.6 SE	[GA16DE]	01.1995-01.1997
NISSAN	200SX 1.6 SE	[GA16DE]	01.1998-01.1998
NISSAN	Almera 1.6	[GA16DE]	07.1995-03.2000
NISSAN	Almera 1.8	[QG18DE]	10.2002-
NISSAN	Almera Tino 1.8	[QG18DE]
NISSAN	NX 1.6	[GA16DE]	01.1991-01.1993
NISSAN	Primera 1.6	[GA16DE]	06.1993-01.1996
NISSAN	Primera 1.6	[GA16DS]	06.1990-01.1996
NISSAN	Primera 1.6 i	[GA16DE]	03.1994-03.1998
NISSAN	Primera 1.6 i	[GA16DS]	07.1990-03.1998
NISSAN	Primera 1.6 LPG LPG		09.2000-07.2002
NISSAN	Primera 1.6 Visia	[QG16DE]	01.2002-
NISSAN	Primera 1.8 16V LPG		08.1999-07.2002
NISSAN	Primera 1.8 16V LPG		08.1999-12.2001
NISSAN	Primera 1.8 LPG LPG		03.2002-
NISSAN	Pulsar NX 1.6	[GA16I]	01.1990-01.1990
NISSAN	Pulsar NX 1.6 XE	[GA16I]	01.1989-01.1990
NISSAN	Sentra 1.6	[GA16DE]	01.1991-01.1993
NISSAN	Sentra 1.6	[GA16DE]	01.1991-01.1994
NISSAN	Sentra 1.6	[GA16DE]	01.1993-01.1993
NISSAN	Sentra 1.6	[GA16DE]	01.1995-01.1995
NISSAN	Sentra 1.6	[GA16DE]	01.1998-01.1998
NISSAN	Sentra 1.6	[GA16DE]	01.1999-01.1999
NISSAN	Sentra 1.6	[GA16I]	01.1989-01.1990
NISSAN	Sentra 1.6 4WD	[GA16I]	01.1990-01.1990
NISSAN	Sentra 1.6 E	[GA16DE]	01.1993-01.1994
NISSAN	Sentra 1.6 E	[GA16DE]	01.1996-01.1996
NISSAN	Sentra 1.6 GLE	[GA16DE]	01.1995-01.1997
NISSAN	Sentra 1.6 GXE	[GA16DE]	01.1993-01.1994
NISSAN	Sentra 1.6 GXE	[GA16DE]	01.1995-01.1997
NISSAN	Sentra 1.6 LE	[GA16DE]	01.1994-01.1994
NISSAN	Sentra 1.6 SE	[GA16DE]	01.1993-01.1994
NISSAN	Sentra 1.6 XE	[GA16DE]	01.1993-01.1994
NISSAN	Sentra 1.6 XE	[GA16DE]	01.1995-01.1995
NISSAN	Sentra 1.6 XE	[GA16DE]	01.1995-01.1997
NISSAN	Sunny 1.4 16V	[GA14DE]	10.1990-05.1995
NISSAN	Sunny 1.4 i	[GA14DE]	10.1990-05.1995
NISSAN	Sunny 1.4 i	[GA14DS]	10.1990-05.1995
NISSAN	Sunny 1.4 i 16V	[GA14DE]	10.1990-06.1995
NISSAN	Sunny 1.6 16V	[GA16DS]	11.1990-05.1995
NISSAN	Sunny 1.6 i	[GA16DE]	06.1991-03.2000
NISSAN	Sunny 1.6 i	[GA16DE]	10.1990-05.1995
NISSAN	Sunny 1.6 i	[GA16DEL]	10.1990-05.1995
NISSAN	Sunny 1.6 i	[GA16DS]	06.1991-03.2000
NISSAN	Sunny 1.6 i	[GA16DS]	10.1990-05.1995
NISSAN	Sunny 1.6 i 12V 4WD	[GA16i]	10.1988-08.1990
NISSAN	Sunny 1.6 i 16V	[GA16DE]	10.1992-03.2000
NISSAN	Sunny 1.6 i 16V	[GA16DE]	10.1992-05.1995
NISSAN	Sunny 1.6 i 16V 4WD	[GA16DE]	10.1992-05.1995
NISSAN	Sunny 1.6 i 16V 4WD	[GA16DS]	10.1990-05.1995

Reference Information

8EA012526-321 335616 MTD170 3D189 M000T83581 23300-81N10 23300-81N11 66925126 2330081N10 3D194 CST20127 S114-802A STR72040 MTD216 S114-802B STM696 M000T70281 3D216 23300-65Y01 CST20127GS 220197 MTD207 AET1100 STRF198 111459 23300-OM301 LRS1265 20672 23300-OM302 3D207 9.44281E+11 20445721 003-D207 MTD194 CST20127OS 201100 3D170 ANM15573X MRS52151 S12MH0331A2 M1T72086 M1T72085 003-D170 M1T72088 M1T72087 EAA-121160 003-D216 S114520A M1T72087A MTD189 23300-81N00 S114-520B 23300-81N01 RAS34464 S114-520A CST20127ES JS766 J5211051 J5211052 STM1100 CGB-27661 SG0903 M001T72086A S114-750 STH0766 003-D189 S114-758 23300-91N10 233000M30ARE M1T72086A 91-25-1056 9.43253E+11 LRS01265 23300-0M200 25-1460 003-D194 2330091N10 23300-0M30A M1T72085A 23300-50Y01 9.43251E+11 23300-50Y00 DRS3353 MAV2260 S114-530 88213177 M001T72086 S114-534 M001T72085 S114-533 M001T72088 M001T72087 8EA731801-001 23300-65Y00 UD20452S 23300-0M301 23300-84A07 23300-0M302 17146N 23300-50Y10 S114-800C 23300-50Y11 S114-800B 17146R S114-800A 23300-0M300 9575 CST20127RS 20763 S114-520 M001T72087A S114-766 MAV5080 M0T83581 STM753 20766 6020127 S114-767 S114-800 66925339 11814 CST20127AS 160.516.082 CGB-23607 23300-84A18 23300-84A17 M0T70281 S114-766A STR5080 DS4463

Video/Publications

003-D170 003-D189 003-D194 003-D207 003-D216 111459 11814 160.516.082 17146N 17146R 201100 20445721 20672 20763 20766 220197 23300-0M200 23300-0M301 23300-0M302 23300-0M30A 23300-50Y00 23300-50Y01 23300-50Y10 23300-50Y11 23300-65Y00 23300-65Y01 23300-81N00 23300-81N01 23300-81N11 23300-84A07 23300-84A17 23300-OM301 25-1460 3D170 3D189 3D194 3D207 3D216 6020127 66925126 66925339 88213177 8EA012526-321 8EA731801-001 91-25-1056 943251472010 943253182010 944280521510 9575 AET1100 CGB-23607 CGB-27661 CST20127 CST20127AS CST20127ES CST20127GS CST20127OS CST20127RS DRS3353 DS4463 EAA-121160 J5211051 J5211052 JS766 LRS01265 LRS1265 M000T70281 M000T83581 M001T72085 M001T72086 M001T72086A M001T72087 M001T72087A M001T72088 M0T70281 M0T83581 M1T72085 M1T72086 M1T72086A M1T72087 M1T72087A M1T72088 MAV2260 MAV5080 MRS52151 MTD170 MTD189 MTD194 MTD207 MTD216 RAS34464 S114-520 S114-520B S114-530 S114-533 S114-534 S114-750 S114-758 S114-766 S114-766A S114-767 S114-800 S114-800A S114-800B S114-800C S114-802A S114-802B SG0903 STH0766 STM1100 STM696 STR72040 STRF198 UD20452S
