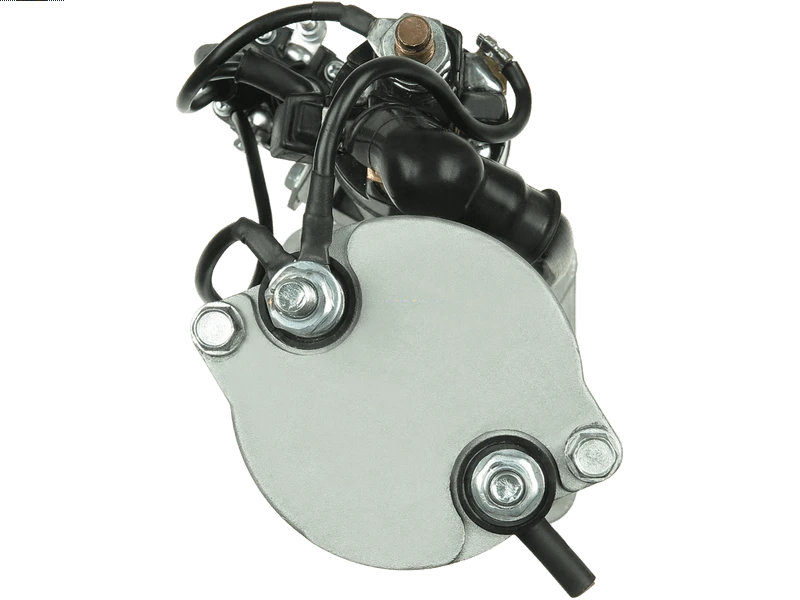

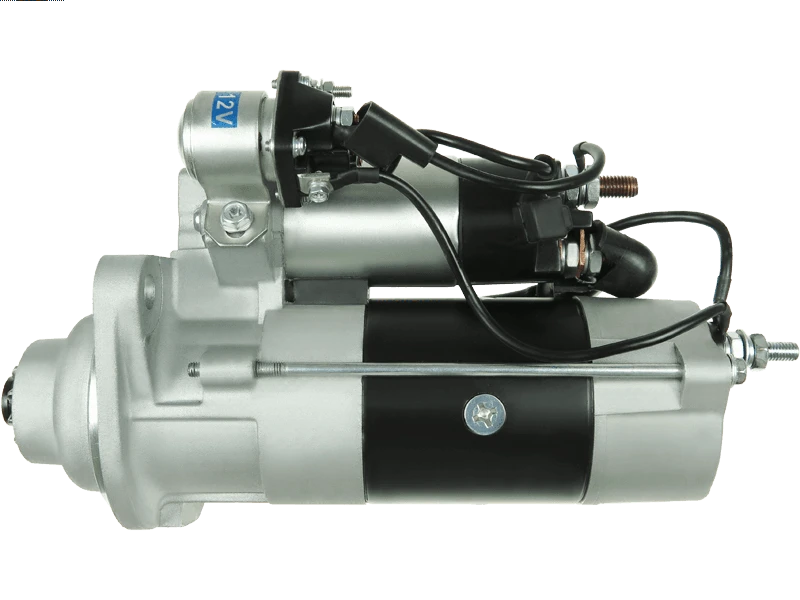

S5302S - Brand new AS-PL Starter motor

Specifications

Kilowatt	3.6 kW
Length (L.1)	320 mm
Mount Hole Center - Center (O.1)	127 mm
Mount Hole Center - Center (O.2)	90 mm
Mount Hole Center - Center (O.3)	90 mm
Mount Hole Diameter (C.1)	11 mm
Mount Hole Diameter (C.2)	11 mm
Mount Hole Diameter (C.3)	11 mm
No./Mount holes	3 qty
No./Mount holes with thread	0 qty
No./Teeth	11 qty
Pinion at Rest (B)	47 mm
Rotation	CW
Spigot Diameter (A)	89 mm
Unit Type	MITSUBISHI
Voltage	12 V

Vehicle Applications

Make	Model	Type	Year
VOLVO PENTA	D4-180		01.2010-
VOLVO PENTA	D4-210		01.2010-
VOLVO PENTA	D4-225		01.2010-
VOLVO PENTA	D4-240		01.2010-
VOLVO PENTA	D4-250		01.2010-
VOLVO PENTA	D4-260		01.2010-
VOLVO PENTA	D4-300		01.2010-
VOLVO PENTA	D6-280		01.2010-
VOLVO PENTA	D6-310		01.2010-
VOLVO PENTA	D6-330		01.2010-
VOLVO PENTA	D6-350		01.2010-
VOLVO PENTA	D6-370		01.2010-
VOLVO PENTA	D6-435		01.2010-

Reference Information

CST35210GS M8T55578AM UD14925S 220553 M008T55579AM 200-25102 M008T56179 CST35210 LRS02636 CST35210OS 3803938 114818 DS1655 STR5225 M008T5579 810.526.113 M008T55779 M008T55779AM M008T55578 M008T55579 30626N 3594614 254537M 254537 CST35210RS 21423488 3801296 STM3879 M8T55779 LRS2636 CST35210ES M008T55578AM M8T55579AM CST35210AS 3588491 3841359 6035210 8308 M8T55579 M8T55578 S5302S 25-4309 UD14924S 874501 ANM12765X STRL272 M8T55779AM DRS0545 M8T56179 M8T56179AM S-80459 STR71265

Video/Publications

114818 200-25102 21423488 25-4309 254537 254537M 30626N 3588491 3801296 3803938 3841359 6035210 810.526.113 8308 874501 CST35210 CST35210AS CST35210ES CST35210GS CST35210OS CST35210RS DRS0545 DS1655 LRS02636 LRS2636 M008T55578 M008T55579 M008T5579 M8T55578 M8T55579 S-80459 STM3879 STR71265 STRL272 UD14924S UD14925S S5302S 220553
