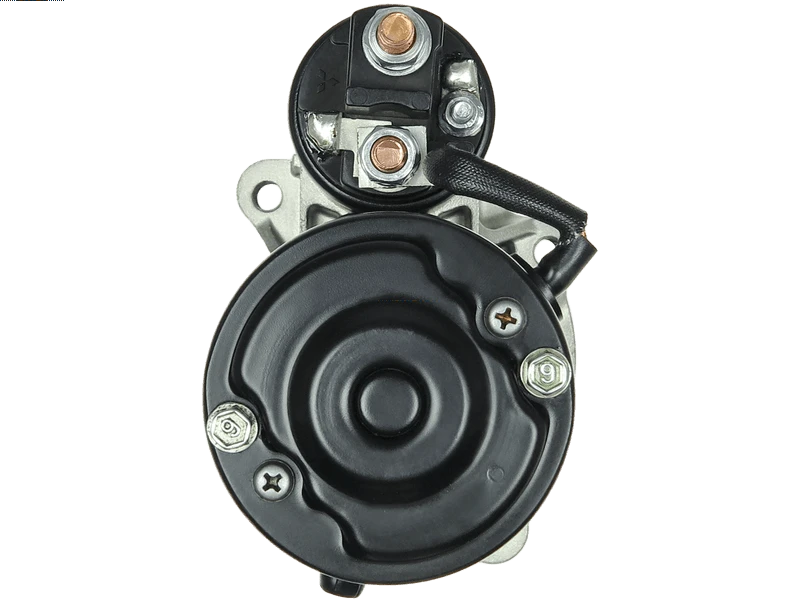

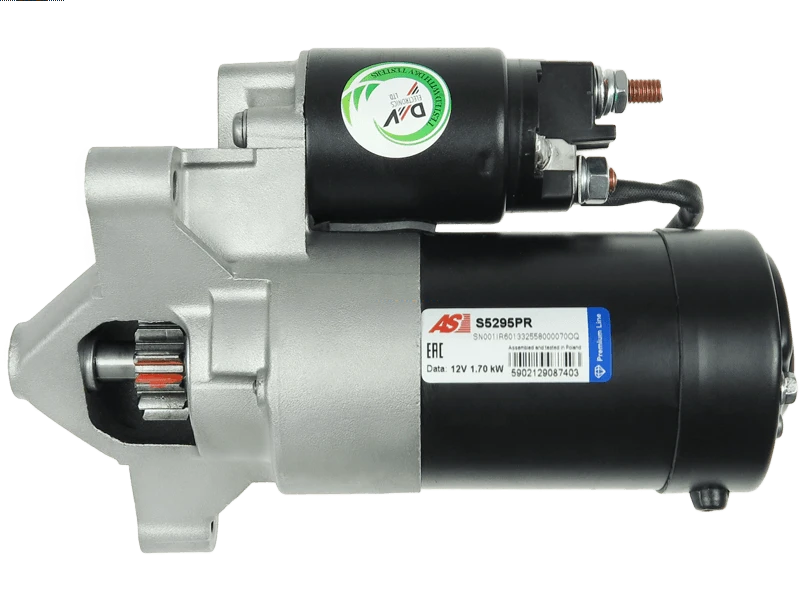

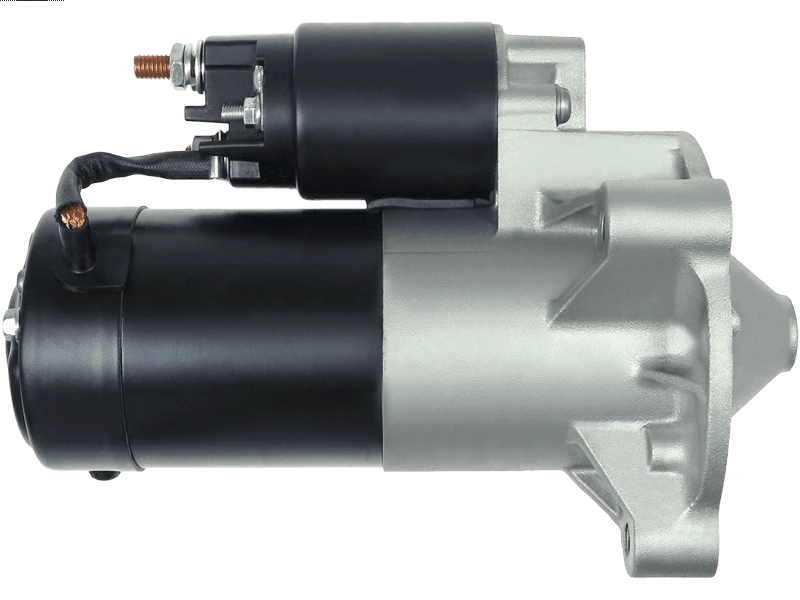

S5295PR - Remanufactured AS-PL Starter motor

Specifications

Kilowatt	1.7 kW
Length (L.1)	222 mm
Mount Hole Center - Center (O.1)	85 mm
Mount Hole Center - Center (O.2)	85 mm
Mount Hole Center - Center (O.3)	120 mm
Mount Hole Diameter (C.1)	M10x1.75 mm
Mount Hole Diameter (C.2)	M10x1.75 mm
Mount Hole Diameter (C.3)	M10x1.75 mm
No./Mount holes	3 qty
No./Mount holes with thread	3 qty
No./Teeth	13 qty
Pinion at Rest (B)	-6 mm
Rotation	CW
Spigot Diameter (A)	63 mm
Unit Type	MITSUBISHI
Voltage	12 V

Vehicle Applications

Make	Model	Type	Year
CITROEN	Berlingo 1.9 D	[DJY(XUD9A)	07.1996-12.2003
CITROEN	Berlingo 1.9 D	[WJY(DW8B)]	07.1998-10.2005
CITROEN	Berlingo 1.9 D	[WJZ(DW8)]	07.1998-10.2005
CITROEN	Berlingo 1.9 D 70	[WJY(DW8B)]	04.1999-12.2011
CITROEN	Berlingo 1.9 D 70	[WJZ(DW8)]	04.1999-12.2011
CITROEN	Berlingo First 1.9 D	[DJY(XUD9A)	07.1996-12.2003
CITROEN	Berlingo First 1.9 D	[WJY(DW8B)]	07.1998-10.2005
CITROEN	Berlingo First 1.9 D	[WJZ(DW8)]	07.1998-10.2005
CITROEN	Berlingo First 1.9 D 70	[WJY(DW8B)]	04.1999-12.2011
CITROEN	Berlingo First 1.9 D 70	[WJZ(DW8)]	04.1999-12.2011
CITROEN	C5 2.0 HDi	[RHS(DW10ATED)]	06.2001-08.2004
CITROEN	C5 2.0 HDi	[RHZ(DW10ATED)]	06.2001-08.2004
CITROEN	C5 2.2 HDi	[4HX(DW12TED4/FAP)]	03.2001-08.2004
CITROEN	C5 2.2 HDi	[4HX(DW12TED4/FAP)]	06.2001-08.2004
CITROEN	C8 2.0 HDi	[RHM(DW10ATED4)]	07.2002-
CITROEN	C8 2.0 HDi	[RHT(DW10ATED4)]	07.2002-
CITROEN	Jumper 1.9 TD	[D8C(XUD9UTF)]	02.1994-04.2002
CITROEN	Jumper 2.2 HDi	[4HY(DW12UTED)]	04.2002-
CITROEN	Jumpy 1.9 D	[D9B(XUD9A/U)]	10.1995-08.1998
CITROEN	Jumpy 1.9 TD	[D8B(XUD9TF)]	04.1996-11.2003
CITROEN	Jumpy 2.0 HDi 110	[RHZ(DW10ATED)]	10.2001-10.2006
CITROEN	Jumpy 2.0 HDi 110	[RHZ(DW10BTED)]	10.2001-10.2006
CITROEN	Jumpy 2.0 HDi 110	[RHZ(DW10BTED+)]	10.2001-10.2006
CITROEN	Jumpy 2.0 HDi 110	[RHZ(DW10CTED)]	10.2001-10.2006
CITROEN	Xantia 2.0 HDi 109	[RHZ(DW10ATED)]	02.1999-04.2003
CITROEN	Xantia 2.0 HDi 90	[RHY(DW10TD)]	03.1999-04.2003
CITROEN	XM .1 D 12V	[P9A(XUD11A)]	11.1991-04.1994
CITROEN	Xsara 1.9 D	[DJY(XUD9A)]	02.1998-09.2000
CITROEN	Xsara 1.9 D	[WJY(DW8B)]	02.1999-03.2005
CITROEN	Xsara 1.9 D	[WJZ(DW8)]	02.1999-03.2005
CITROEN	Xsara 2.0 HDi 90	[RHY(DW10TD)]	02.1999-03.2005
CITROEN	ZX 1.8 D	[161A(XUD7)]	10.1993-10.1997
CITROEN	ZX 1.9 D	[DJZ(XUD9Y)]	03.1991-06.1997
CITROEN	ZX 1.9 D	[DJZ(XUD9Y)]	10.1993-10.1997
CITROEN	ZX 1.9 TD	[DHY(XUD9TE/Y)]	10.1993-10.1997

Reference Information

36100-29000 MITM0T86081 5.80E+05 M0T20873ZZ9 9646972280 5802CP 5802CQ M0T20871 6035151 9624291480 M001T80841 M0T20874 CGB-23617 M0T20873 M0T20872 M001T80081 M001T80082 CST35151AS 9827007180 M001T80481 9671014680 ANM15337X M1T80841 20437151OE 71724272 M1T80481 9670983080 M1T80082 M000T20872AM M0T20873AM M1T80081 220.504.113.136 M0T20871AM M0T20871ZE M000T20873ZZ9 M000T80082 6035151.1 5802Q5 STR5343 71722374 5802M3 9625383080 M1T90281 M000T20873 M000T20872 580200 LRS751 M000T20871 9647157980 1810A101 1502453001E 220.504.113.609 M0T80082 20437151BN LRS00751 CST35151GS M001T80381 130-10111 M001T90281 9625382680 9656262780 1810A193 5802C3 M1T80381 M000T20873AM M0T20872AM M0T20874AM ANM15337 M000T20871ZE M000T20871AM 5802FJ 130-10111NOE

Video/Publications

130-10111 1502453001E 1810A101 1810A193 20437151BN 20437151OE 243-17115 25-2031 443115141404 5802M3 6035151.0 6035151.1 71724272 9625382680 9625383080 9656262780 9670983080 CST35151AS CST35151GS LRS00751 LRS751 M000T20871 M000T20871ZE M001T80081 M001T80082 M001T80381 M001T80481 M001T90281 M0T20871 M0T20871ZE M1T80081 M1T80082 M1T80381 M1T80481 M1T90281 S-80115 SG0327 STM525 220059 220148 220178
