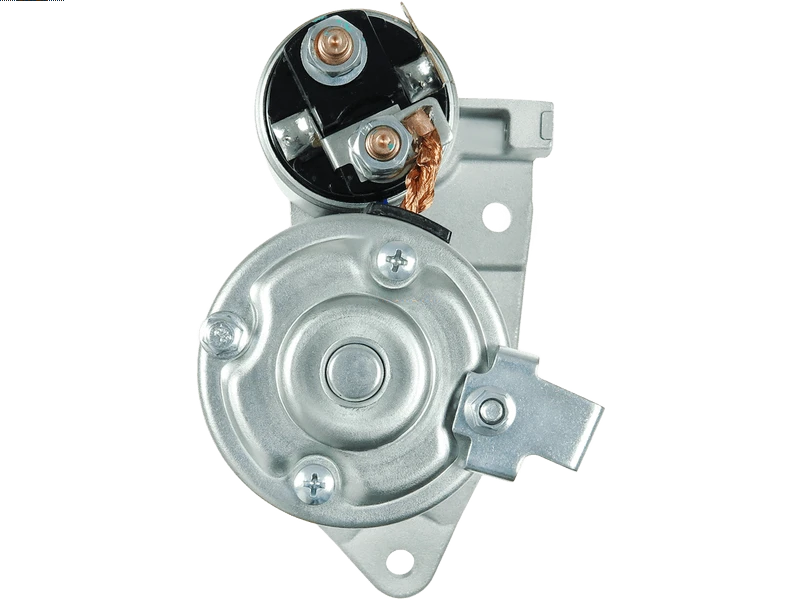

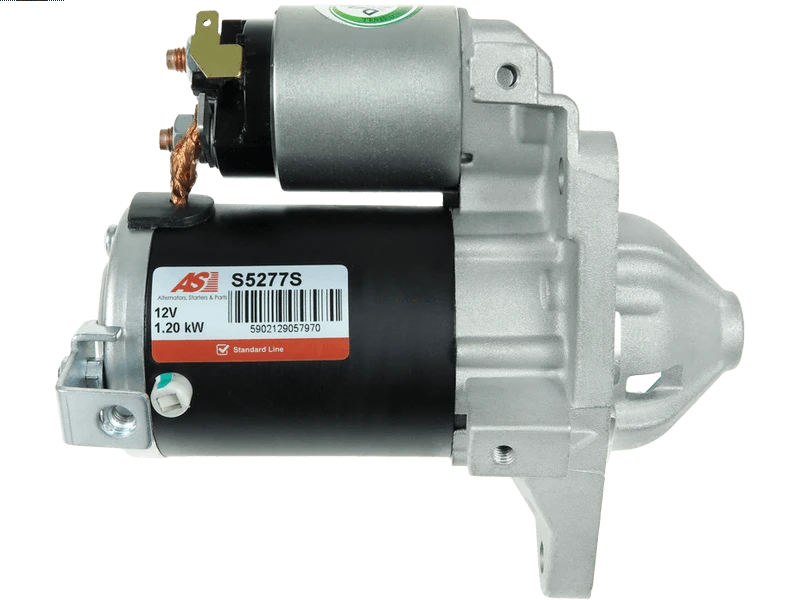

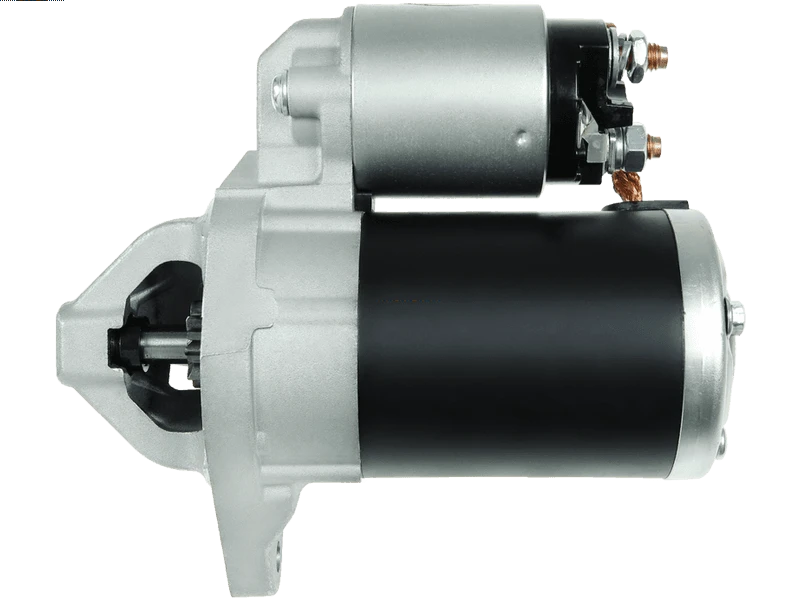

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
MITSUBISHI
Price:
NZ$ 242.62 including GST
NZ$ 210.97 excluding GST
or four payments of $60.66
with
Learn More
each
S5277S
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
M0T46671Associated Numbers
1810A220 J5215063 M000T46671 M000T46671ZT M0T46671 M0T46671ZT UD12913S SR4128X Bosch Service Europe 0-986-CR1-839 0-986-UR1-839 IAT S19274 Lester 19274 Mitsubishi 1810A333 M000T46871 M000T46871ZC M000T46871ZT M00T46871ZT M0T46871 M0T46871ZC M0T46871ZT PIC 103-911Specifications
| Kilowatt | 1.20 kW |
| Length (L.1) | 177 mm |
| Mount Hole Center - Center (O.1) | 108 mm |
| Mount Hole Diameter (C.1) | 9 mm |
| Mount Hole Diameter (C.2) | 9 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 8 qty |
| OEM Product | No |
| Pinion at Rest (B) | 9 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 78 mm |
| Unit Type | MITSUBISHI |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| MITSUBISHI | Mirage 1.0 | [3A90] | 05.2012- |
| MITSUBISHI | Mirage 1.2 | [3A92] | 10.2012- |
| MITSUBISHI | Space Star 1.0 | [3A90] | 05.2012- |
| MITSUBISHI | Space Star 1.2 | [3A92] | 10.2012- |
Reference Information
| 0986UR1839 | BOSCH |
| 108823 | FARCOM |
| 13548 | MAPCO |
| 150.954.082.130 | PSH |
| 150.954.082.132 | PSH |
| 16263 | DELCO |
| 1810A220 | MITSUBISHI |
| 1810A333 | MITSUBISHI |
| 19274 | LESTER |
| 19274N | WAI / TRANSPO |
| 221194A | ERA |
| 25-5263 | ELSTOCK |
| 256751R | KUHNER |
| 31434N | WAI / TRANSPO |
| 326203082 | DRI |
| 88215165 | POWERMAX |
| 91-27-3578 | WILSON |
| 9802 | CEVAM |
| AEY4100 | AUTOELECTRO |
| DRS1017 | DELCO |
| J5215063 | HERTH+BUSS |
| LRS04100 | LUCAS |
| LRS4100 | LUCAS |
| M000T46671 | MITSUBISHI |
| M000T46671ZT | MITSUBISHI |
| M000T46871 | MITSUBISHI |
| M000T46871ZT | MITSUBISHI |
| M0T46671 | MITSUBISHI |
| M0T46671ZT | MITSUBISHI |
| M0T46871 | MITSUBISHI |
| M0T46871ZT | MITSUBISHI |
| S130.323 | PSH |
| S5277S | AS-PL |
| ST02217 | TMI |
| STM7667 | KRAUF |
| STR5405 | ELECTROLOG |
| STRS944 | 3EFFE |
| UD12913S | AS-PL |
Video/Publications
