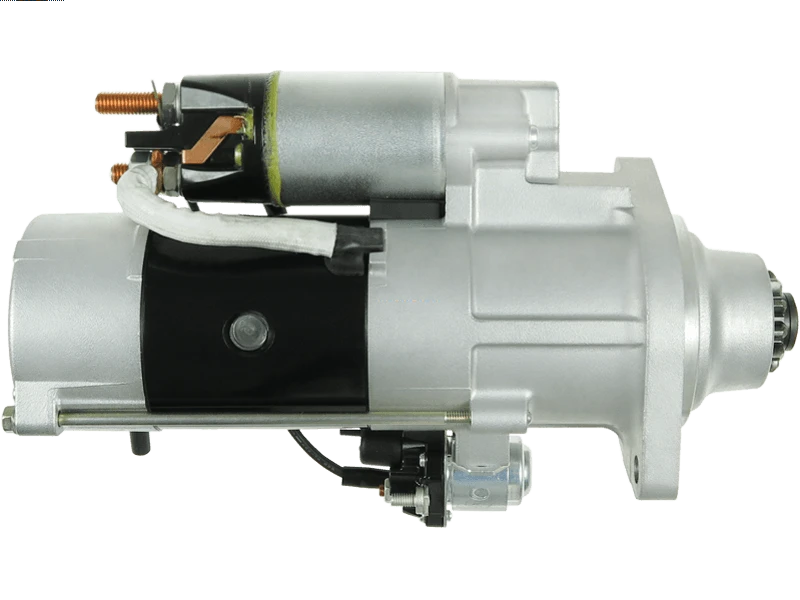

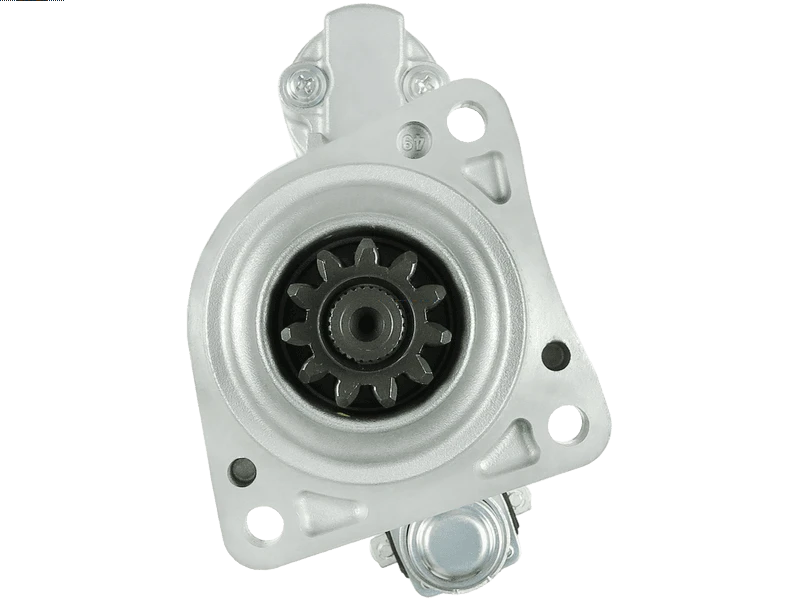

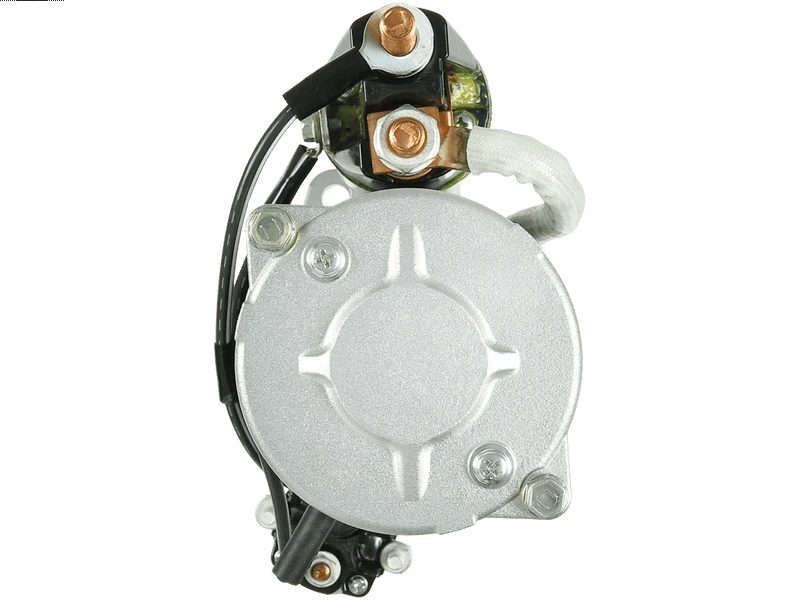

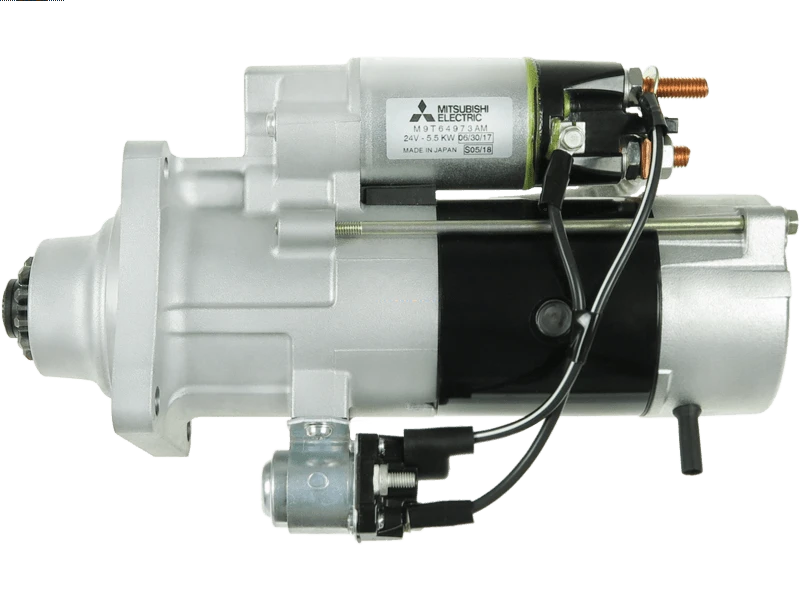

S5269(MITSUBISHI) - Brand new OEM MITSUBISHI Starter motor

Specifications

Kilowatt	5.5 kW
Length (L.1)	320 mm
Mount Hole Center - Center (O.1)	127 mm
Mount Hole Center - Center (O.2)	90 mm
Mount Hole Center - Center (O.3)	90 mm
Mount Hole Diameter (C.1)	11.5 mm
Mount Hole Diameter (C.2)	11.5 mm
Mount Hole Diameter (C.3)	11.5 mm
No./Mount holes	3 qty
No./Mount holes with thread	0 qty
No./Teeth	11 qty
Pinion at Rest (B)	47.5 mm
Rotation	CW
Spigot Diameter (A)	89 mm
Unit Type	MITSUBISHI
Voltage	24 V

Vehicle Applications

Make	Model	Type	Year
RENAULT V.I.	370.18 10.8	[DXi11]	10.2005-
RENAULT V.I.	370.26 10.8	[DXi11]	10.2005-
RENAULT V.I.	370.32 10.8	[DXi11]	10.2005-
RENAULT V.I.	380.18 10.8	[DXi11]	02.2013-
RENAULT V.I.	410.18 10.8	[DXi11]	10.2005-
RENAULT V.I.	410.24 10.8	[DXi11]	10.2005-
RENAULT V.I.	410.25 10.8	[DXi11]	10.2005-
RENAULT V.I.	410.26 10.8	[DXi11]	10.2005-
RENAULT V.I.	410.32 10.8	[DXi11]	10.2005-
RENAULT V.I.	450.18 10.8	[DXi11]	10.2005-
RENAULT V.I.	450.24 10.8	[DXi11]	10.2005-
RENAULT V.I.	450.25 10.8	[DXi11]	10.2005-
RENAULT V.I.	450.26 10.8	[DXi11]	10.2005-
RENAULT V.I.	450.32 10.8	[DXi11]	10.2005-
VOLVO	FM 300 9.4	[D9A300]	09.2005-
VOLVO	FM 300 9.4	[D9B300]	09.2005-
VOLVO	FM 330 10.8	[D11C330]	04.2012-
VOLVO	FM 330 10.8	[D11K330]	04.2012-
VOLVO	FM 370 10.8	[D11C370]	04.2012-
VOLVO	FM 370 10.8	[D11K370]	04.2012-
VOLVO	FM 410 10.8	[D11C410]	04.2012-
VOLVO	FM 410 10.8	[D11K410]	04.2012-
VOLVO	FM 450 10.8	[D11C450]	04.2012-
VOLVO	FM 450 10.8	[D11K450]	04.2012-
VOLVO	FM 9/260 9.4	[D9A260]	12.2001-09.2005
VOLVO	FM 9/300 9.4	[D9A300]	12.2001-09.2005
VOLVO	FM 9/340 9.4	[D9A340]	12.2001-08.2005
VOLVO	FM 9/340 9.4	[D9A340]	12.2001-09.2005
VOLVO	FM 9/380 9.4	[D9A380]	12.2001-09.2005
VOLVO	FMX 330 10.8	[D11C330]	09.2013-
VOLVO	FMX 330 10.8	[D11K330]	09.2013-
VOLVO	FMX 370 10.8	[D11C370]	09.2013-
VOLVO	FMX 370 10.8	[D11K370]	09.2013-
VOLVO	FMX 410 10.8	[D11C410]	09.2013-
VOLVO	FMX 410 10.8	[D11K410]	09.2013-
VOLVO	FMX 450 10.8	[D11C450]	09.2013-
VOLVO	FMX 450 10.8	[D11K450]	09.2013-

Reference Information

M009T61473AM S-80151 M9T68771AM M009T64973AM 20397219 85000148 85020161 CS1495 M90R3556SE STR71072 STR5091 114193 CST35623 0001261041 STM4193 7421036377 CST35623GS CST35623OS M009T61474AM M9T61473AM M9T61472 CST35623AS M9T61473 7420732977 M9T61474 22807178 7485021170 M9T61471 M90R3538SE 22344130 M9T61479 CST35623RS 85013135 3807225 85013134 7421598448 M9T64972 7421598449 M9T64973 M9T64971 35055VL M9T68771 M009T68771ZZ9 CST35644ES EAA-121206 6035644 LRS2463 M009T61471ZZ9 UD14652(MITSUBISHI)S 220559 M009T64973 M9T61474AM M009T64972 M009T64971 20563533 115877 M009T61471AM 7485013136 S24BH0078A2 220560 M009T68771 21598446 21598449 255499M M009T61474 M009T61472 M009T61473 255499P M009T61471 S24MH0077A2 5001866702 21025968 85021310 45-4135 161.523.113 cs1495 LRS02463 85021160 CST35644GS 21598436 6035623 243-55203 CST35644OS M9T64973AM M009T68771AM 7422807161 CST35644AS 11127809 M9T61471AM 254401P MITM9T64973 254401M M90R3555SE 860822 CST35644RS M009T61474-X 1261041 CST35644 85000937 20732977 85000934 5001866924 21221898 CST35623ES M9T68771ZZ9

Video/Publications

0001261041 114193 115877 161.523.113 20397219 220560 22807178 243-55203 254401M 254401P 255499M 255499P 45-4135 5001866702 6035623 6035644 7420732977 7421598448 7421598449 85000148 85013135 85020161 860822 CST35623 CST35623AS CST35623ES CST35623GS CST35623OS CST35623RS CST35644 CST35644AS CST35644ES CST35644GS CST35644OS CST35644RS EAA-121206 LRS02463 LRS2463 M009T61471 M009T61471AM M009T64973 M009T64973AM M90R3538SE M90R3555SE M90R3556SE M9T61471 M9T61471AM M9T64973 M9T64973AM M9T68771 MITM9T64973 S-80151 STM4193 STR71072 UD14652(MITSUBISHI)S cs1495 20563533 85000934 85021310 M009T61474-X 220559 35055VL
