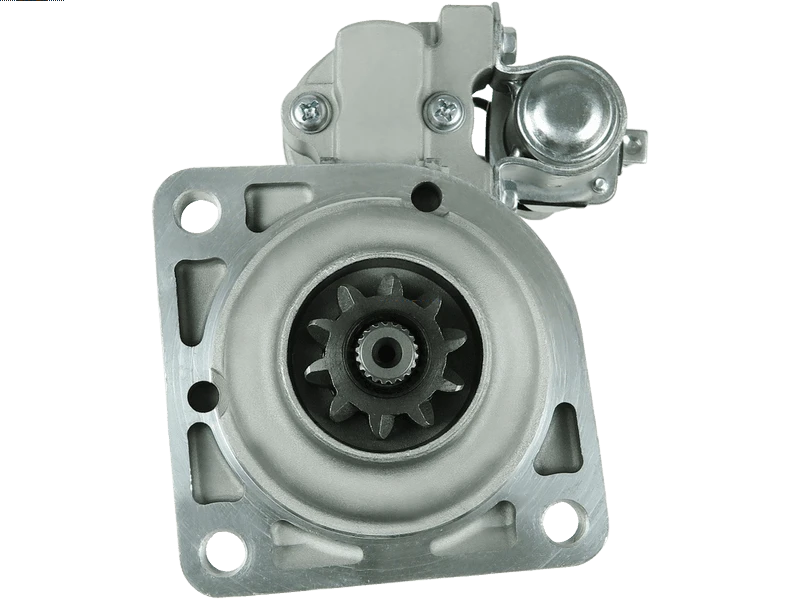

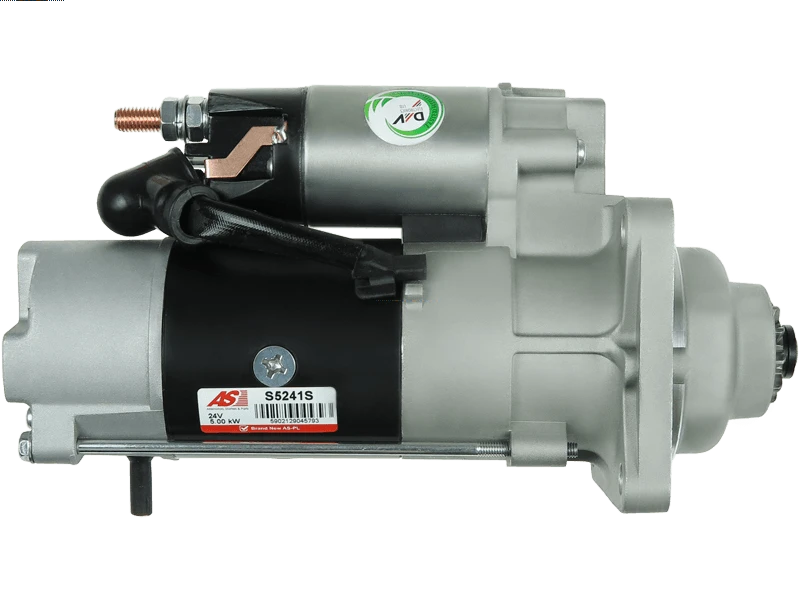

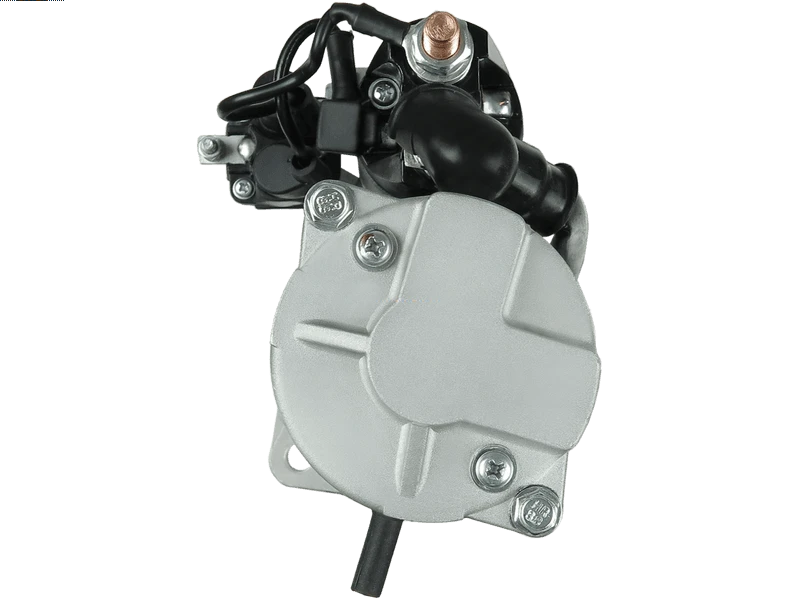

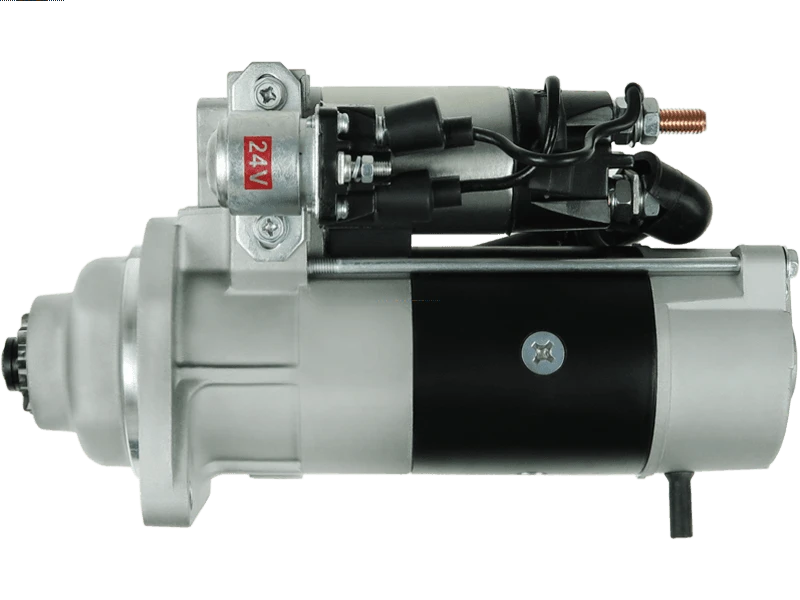

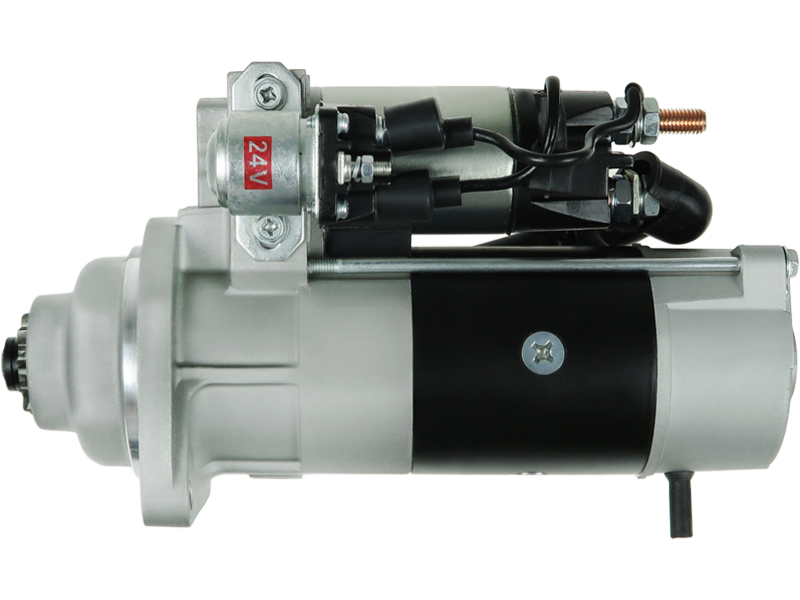

S5241S - Brand new AS-PL Starter motor

Name: Brand new AS-PL Starter motor
Brand: AS-PL
SKU: S5241S
Price: 568.57 NZD
Availability: InStock

Brand new AS-PL Starter motor

STANDARD LINE

Manufacturer:

AS-PL

Replacement For:

MITSUBISHI

Price:

NZ$ 568.57 including GST

NZ$ 494.41 excluding GST

UOM:

each

Product Code:

S5241S

Quantity In Stock Nationally:

No stock in NZ

Availability:

Item available to backorder, submit your order. Aprox 7-14 day delay - $40 Air freight charge additional

Associated Numbers
Specifications
Vehicle Applications
Reference Information
Video/Publications
Add Your Number

101383 101383D 101383M 11.139.612 130-80131 19081024 220554 45-4212 501.508.103 504025884 6035621 AZF4880 CST35621 CST35621AS CST35621ES CST35621GS CST35621OS CST35621RS DRS0282 DS1392 EAA-123251 IS9464 LRS02540 LRS2540 M008T61671 M85R3004SE M8T61671 MITM8T61671 MS769 UD13637S

Kilowatt	5 kW
Length (L.1)	296 mm
Mount Hole Center - Center (O.1)	126 mm
Mount Hole Center - Center (O.2)	89 mm
Mount Hole Center - Center (O.3)	89 mm
Mount Hole Diameter (C.1)	10.5 mm
Mount Hole Diameter (C.2)	10.5 mm
Mount Hole Diameter (C.3)	10.5 mm
No./Mount holes	3 qty
No./Mount holes with thread	0 qty
No./Teeth	10 qty
Pinion at Rest (B)	53.5 mm
Rotation	CW
Spigot Diameter (A)	89 mm
Unit Type	MITSUBISHI
Voltage	24 V

Make	Model	Type	Year
IVECO	180 E 24 7.8	[F2BE0681]	01.2000-12.2004
IVECO	180 T 24 7.8	[F2BE0681]	01.2004-12.2006
IVECO	180 T 27 7.8	[F2BE0681]	01.2004-12.2006
IVECO	180 T 31 7.8	[F2BE0681]	01.2004-12.2006
IVECO	190 E 24 7.8	[F2BE0681]	01.2000-12.2003
IVECO	190 E 24 7.8	[F2BE0681]	01.2000-12.2004
IVECO	190 E 27 7.8	[F2BE0681]	01.2000-12.2003
IVECO	190 E 31 7.8	[F2BE0681]	01.2000-12.2003
IVECO	190 E 31 7.8	[F2BE0681]	01.2000-12.2004
IVECO	190 E 35 7.8	[F2BE0681]	01.2000-12.2003
IVECO	190 E 35 7.8	[F2BE0681]	01.2000-12.2004
IVECO	190 S 27 7.8	[F2BE0681]	01.2003-12.2006
IVECO	190 S 30 7.8	[F2BE0681]	01.2003-12.2006
IVECO	190 S 35 7.8	[F2BE0681]	01.2003-12.2006
IVECO	190 S 36 7.8	[F2BE0681]	01.2003-12.2006
IVECO	190 T 27 7.8	[F2BE0681]	01.2004-12.2006
IVECO	190 T 31 7.8	[F2BE0681]	01.2004-12.2006
IVECO	190 T 33 7.8	[F2BE0681]	01.2006-
IVECO	190 T 35 7.8	[F2BE0681]	01.2004-12.2006
IVECO	190 T 36 7.8	[F2BE0681]	01.2006-
IVECO	260 E 24 7.8	[F2BE0681]	01.2000-12.2003
IVECO	260 E 27 7.8	[F2BE0681]	01.2000-12.2003
IVECO	260 E 27 7.8	[F2BE0681]	01.2000-12.2004
IVECO	260 E 31 7.8	[F2BE0681]	01.2000-12.2003
IVECO	260 E 31 7.8	[F2BE0681]	01.2000-12.2004
IVECO	260 E 35 7.8	[F2BE0681]	01.2000-12.2003
IVECO	260 E 35 7.8	[F2BE0681]	01.2000-12.2004
IVECO	260 S 27 7.8	[F2BE0681]	01.2003-12.2006
IVECO	260 S 30 7.8	[F2BE0681]	01.2003-12.2006
IVECO	260 S 31 7.8	[F2BE0681]	01.2003-12.2006
IVECO	260 S 33 7.8	[F2BE0681]	01.2006-
IVECO	260 S 35 7.8	[F2BE0681]	01.2003-12.2006
IVECO	260 S 36 7.8	[F2BE0681]	01.2006-
IVECO	260 T 31 7.8	[F2BE0681]	01.2004-12.2006
IVECO	260 T 33 7.8	[F2BE0681]	01.2006-
IVECO	260 T 35 7.8	[F2BE0681]	01.2004-12.2006
IVECO	260 T 36 7.8	[F2BE0681]	01.2006-
IVECO	340 T 35 7.8	[F2BE0681]	01.2004-12.2006
IVECO	340 T 36 7.8	[F2BE0681]	01.2006-

M008T63471 MITM8T61671 220554 130-80131 ANM12502X M8T61671 M85R3004SE UD13637S 11.139.612 20437126OE 19081024 5802121827 2995138 M8T61671AM 45-4212 CST35621GS LRS02540 STR5221 MS769 6035621 CST35621OS DRS0282 CST35621 M008T61671ZZ9 112822 EAA-123251 M008T61671 CST35621AS 42498714 101383D M8T63471AM 101383M AZF4880 99432760 STRL120 M8T63471 CST35621RS STR79699 501.508.103 S5241S 101383 M008T61671AM M008T63471AM CS1383 504025884 336362 CST35621ES DS1392 LRS2540 IS9464

101383 101383D 101383M 11.139.612 112822 130-80131 19081024 220554 45-4212 501.508.103 504025884 6035621 AZF4880 CS1383 CST35621 CST35621AS CST35621ES CST35621GS CST35621OS CST35621RS DRS0282 DS1392 EAA-123251 IS9464 LRS02540 LRS2540 M008T61671 M85R3004SE M8T61671 MITM8T61671 MS769 STRL120 UD13637S S5241S
