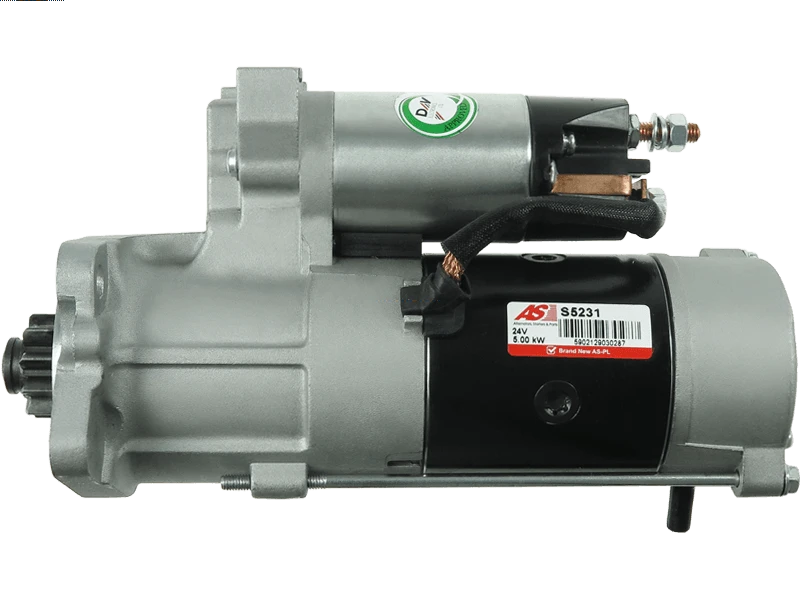

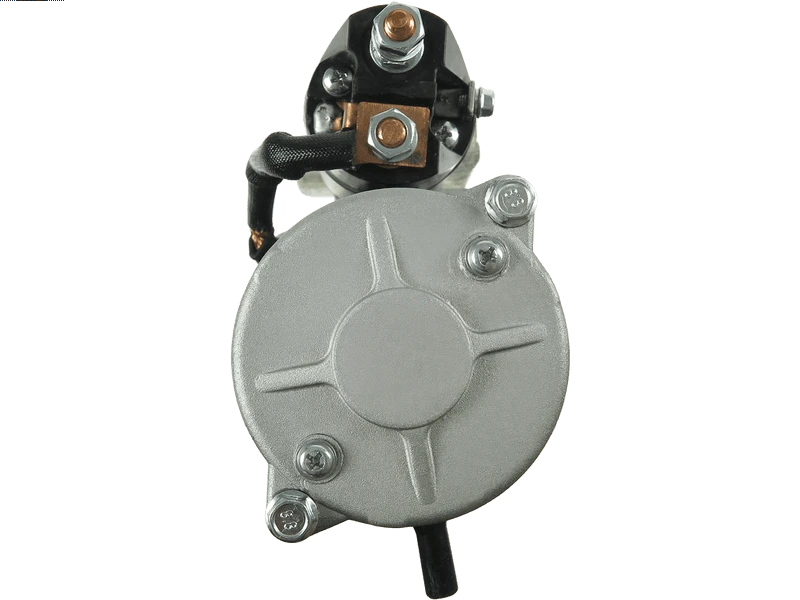

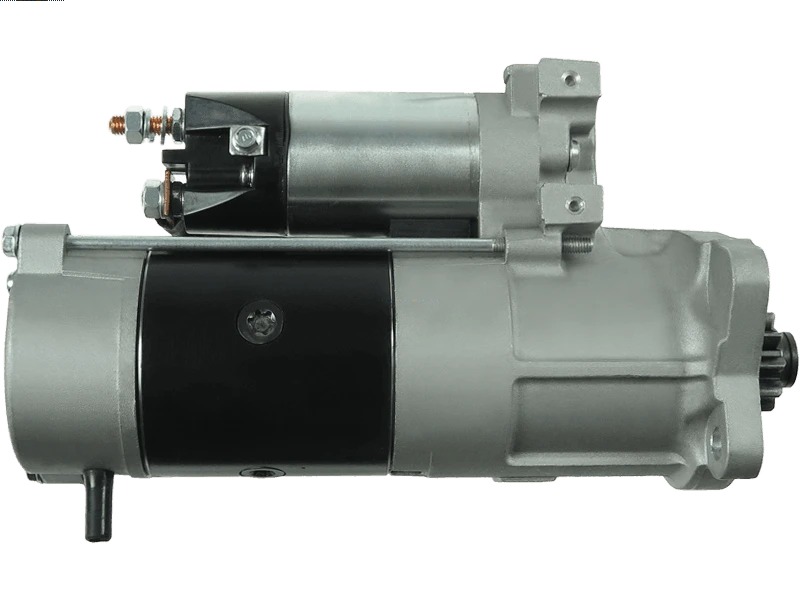

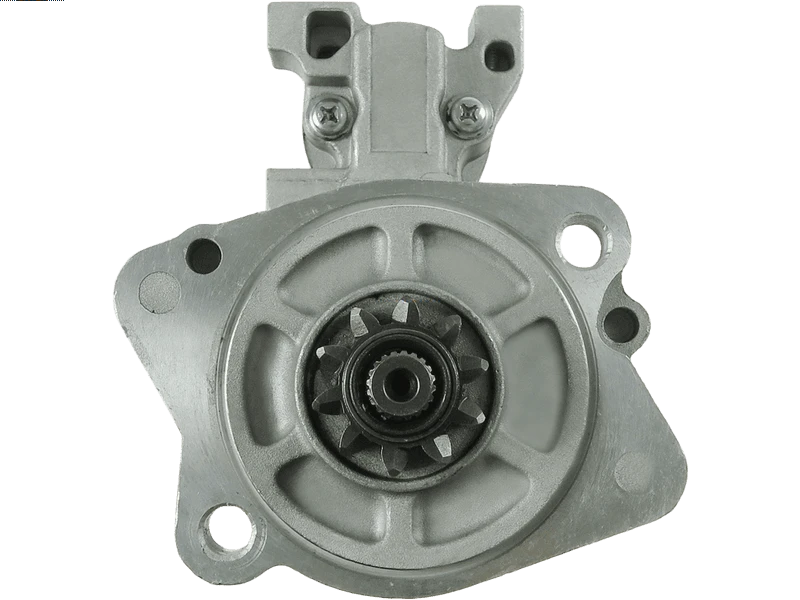

S5231 - Brand new AS-PL Starter motor

Brand new AS-PL Starter motor
Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
MITSUBISHI
Price:
NZ$ 869.56 including GST

NZ$ 756.14 excluding GST
each
S5231
No NZ stock
Item Available ex Poland, Submit to backorder.$40 Air freight charges additional
Purchase Qty:
each

125988 130-80123 243-25210 254090 254388 32B33-02500 32B33-12500 32B66-00202 32B66-02102 32B66-02500 32B66-12500 6035616 641.506.102 CST35616 CST35616AS CST35616ES CST35616GS CST35616OS CST35616RS IR5338 IR7370 M008T60871 M008T60872 M008T60873 M8T60871 M8T60872 M8T60873 S-80283 SI7716 STR71252 UD12036S
Kilowatt5 kW
Length (L.1)288 mm
Mount Hole Center - Center (O.1)105 mm
Mount Hole Diameter (C.1)11 mm
Mount Hole Diameter (C.2)11 mm
No./Mount holes2 qty
No./Mount holes with thread0 qty
No./Teeth10 qty
Pinion at Rest (B)21 mm
RotationCW
Spigot Diameter (A)82.5 mm
Unit TypeMITSUBISHI
Voltage24 V
CATERPILLAR 311B 4.2 [3064]
CATERPILLAR 311C 4.2 [3064]
CATERPILLAR 311D 4.2 [C4.2]
CATERPILLAR 312B 4.2 [3064]
CATERPILLAR 312BL 4.2 [3064]
CATERPILLAR 312C 4.2 [3064]
CATERPILLAR 312CL 4.2 [3064]
CATERPILLAR 312D 4.2 [C4.2]
CATERPILLAR 312DL 4.2 [C4.2]
CATERPILLAR 313C SR 4.2 [C4.2]
CATERPILLAR 313D 4.2 [C4.2]
CATERPILLAR 313D CR 4.2 [C4.2]
CATERPILLAR 314CCR 4.2 [3064]
CATERPILLAR 314CLCR 4.2 [3064]
CATERPILLAR 314D 4.2 [C4.2]
CATERPILLAR 315DL 4.2 [C4.2]
CATERPILLAR 318C 6.7 [3066T] 01.2002-12.2008
CATERPILLAR 318CL 6.4 [3066]
CATERPILLAR 318CLN 6.4 [3066]
CATERPILLAR 318DL 4.2 [C4.2]
CATERPILLAR 319CLN 6.4 [3066]
CATERPILLAR 319D 4.3 [C4.2]
CATERPILLAR 319DL 4.2 [C4.2]
CATERPILLAR 319DLN 4.2 [C4.2]
CATERPILLAR 320 6.4 [3066]
CATERPILLAR 320B 6.4 [3066]
CATERPILLAR 320B RB 6.7 [3066]
CATERPILLAR 320BFMLL 6.4 [3066]
CATERPILLAR 320BL 6.4 [3066]
CATERPILLAR 320BLL 6.4 [3066]
CATERPILLAR 320BLL 6.7 [3066]
CATERPILLAR 320BLU 6.4 [3066]
CATERPILLAR 320BN 6.4 [3066]
CATERPILLAR 320C 6.4 [3066]
CATERPILLAR 320CFM 6.4 [3066]
CATERPILLAR 320CL 6.4 [3066]
CATERPILLAR 320CLN 6.4 [3066]
CATERPILLAR 320CLU 6.4 [3066]
CATERPILLAR 320CS 6.4 [3066]
CATERPILLAR 320D 6.4 [3066]
CATERPILLAR 320D 6.4 [C6.4]
CATERPILLAR 320DFM 6.4 [C6.4]
CATERPILLAR 320DFMRR 6.4 [3066]
CATERPILLAR 320DGC 6.4 [C6.4]
CATERPILLAR 320DL 6.4 [3066]
CATERPILLAR 320DL 6.4 [C6.4]
CATERPILLAR 320DLRR 6.4 [3066]
CATERPILLAR 320DLRR 6.4 [C6.4]
CATERPILLAR 320DRR 6.4 [3066]
CATERPILLAR 320DRR 6.4 [C6.4]
CATERPILLAR 320DRRFM 6.4 [3066]
CATERPILLAR 320L 6.4 [3066]
CATERPILLAR 320N 6.4 [3066]
CATERPILLAR 320S 6.4 [3066]
CATERPILLAR 321BLCR 6.4 [3066]
CATERPILLAR 321C 6.4 [3066]
CATERPILLAR 321CLCR 6.4 [3066]
CATERPILLAR 321DLCR 6.4 [C6.4]
CATERPILLAR 323D 6.4 [C6.4]
CATERPILLAR 323DLN 6.4 [3066]
CATERPILLAR 323DLN 6.4 [C6.4]
CATERPILLAR 323DS 6.4 [3066]
CATERPILLAR 323DS 6.4 [C6.4]
CATERPILLAR 323DSA 6.4 [C6.4]
CATERPILLAR 910G 4.2 [3064]
125988 130-80123 243-25210 254090 254388 32B33-02500 32B33-12500 32B66-00202 32B66-02102 32B66-02500 32B66-12500 6035616 641.506.102 CST35616 CST35616AS CST35616ES CST35616GS CST35616OS CST35616RS IR5338 IR7370 M008T60871 M008T60872 M008T60873 M8T60871 M8T60872 M8T60873 MAV376160 S-80283 SI7716 STR71252 STRL879 UD12036S
