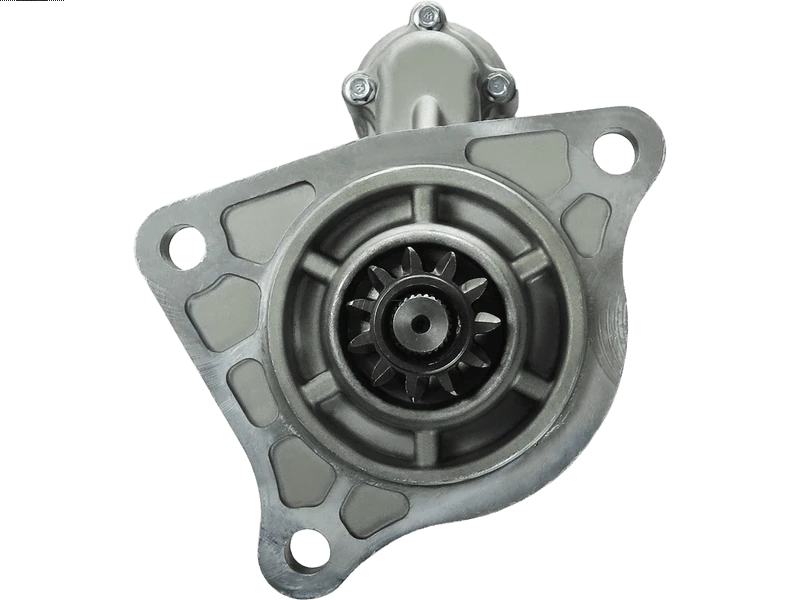

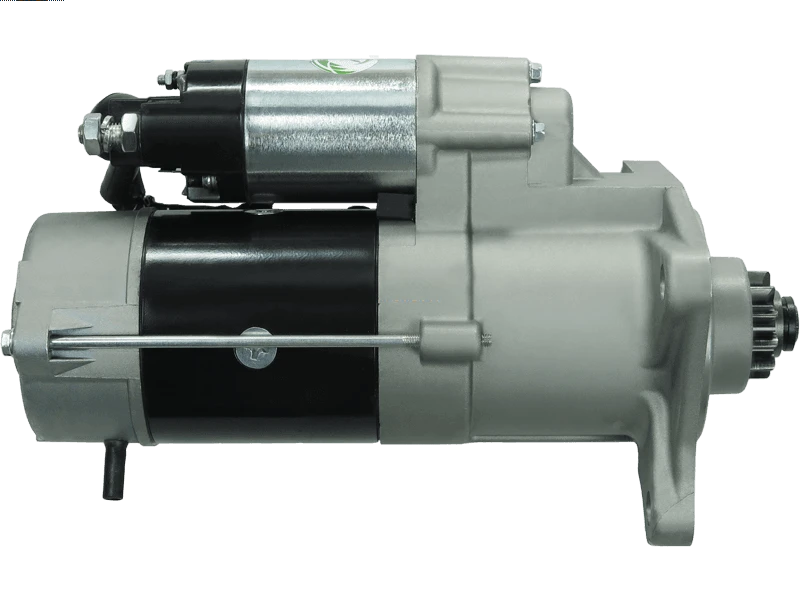

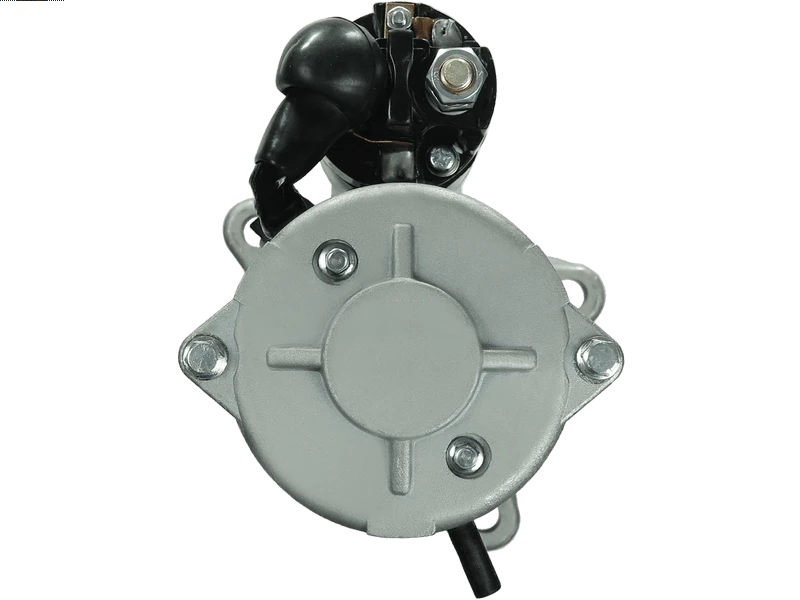

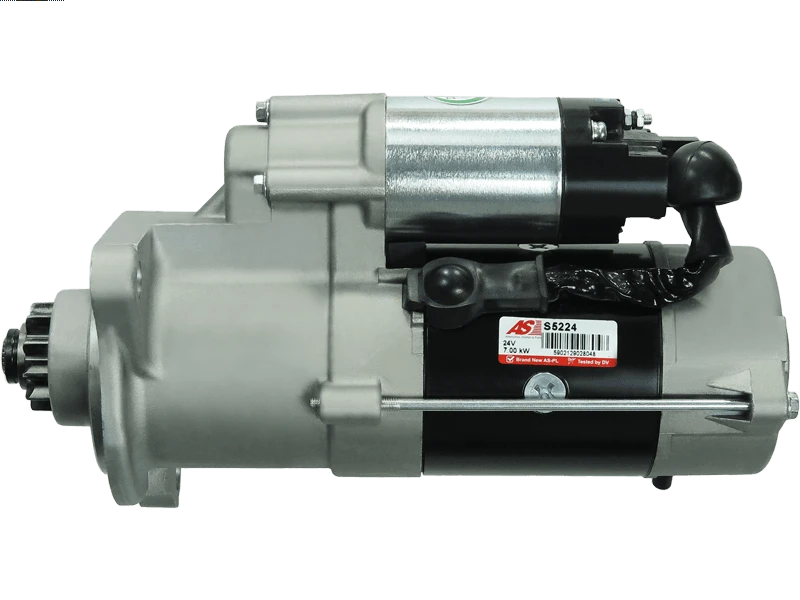

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
MITSUBISHI
Price:
NZ$ 886.60 including GST
NZ$ 770.96 excluding GST
or four payments of $221.65
with
Learn More
each
S5224
No stock in NZ currently
No stock in NZ currently
Associated Numbers
130-90144 151.522.113 1811003522 8973805082 M009T81471 M9T81471 STM3813 UD00601SSpecifications
| Kilowatt | 7 kW |
| Length (L.1) | 349 mm |
| Mount Hole Center - Center (O.1) | 167 mm |
| Mount Hole Center - Center (O.2) | 108 mm |
| Mount Hole Center - Center (O.3) | 147 mm |
| Mount Hole Diameter (C.1) | 15.50 mm |
| Mount Hole Diameter (C.2) | 15.50 mm |
| Mount Hole Diameter (C.3) | 15.50 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 11 qty |
| OEM Product | No |
| Pinion at Rest (B) | 41 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 105 mm |
| Unit Type | MITSUBISHI |
| Voltage | 24 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| ISUZU | Engine | [6WF1] |
Reference Information
| 130-90144 | ROBERT'S |
| 151.522.113 | PSH |
| 151.522.113.138 | PSH |
| 1811003522 | ISUZU |
| 8973805082 | ISUZU |
| M009T81471 | MITSUBISHI |
| M9T81471 | MITSUBISHI |
| S130.366 | PSH |
| STM3813 | KRAUF |
| STR5212 | ELECTROLOG |
| STRJ497 | 3EFFE |
| UD00601S | AS-PL |
