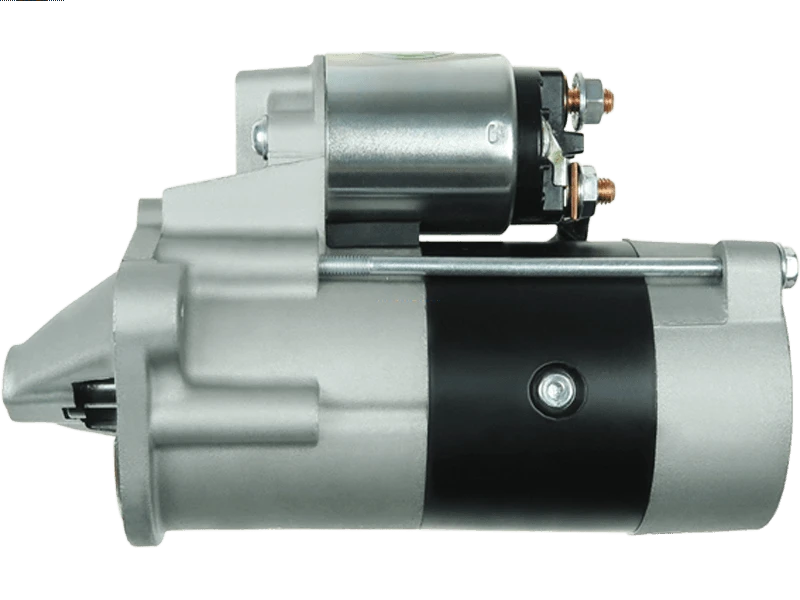

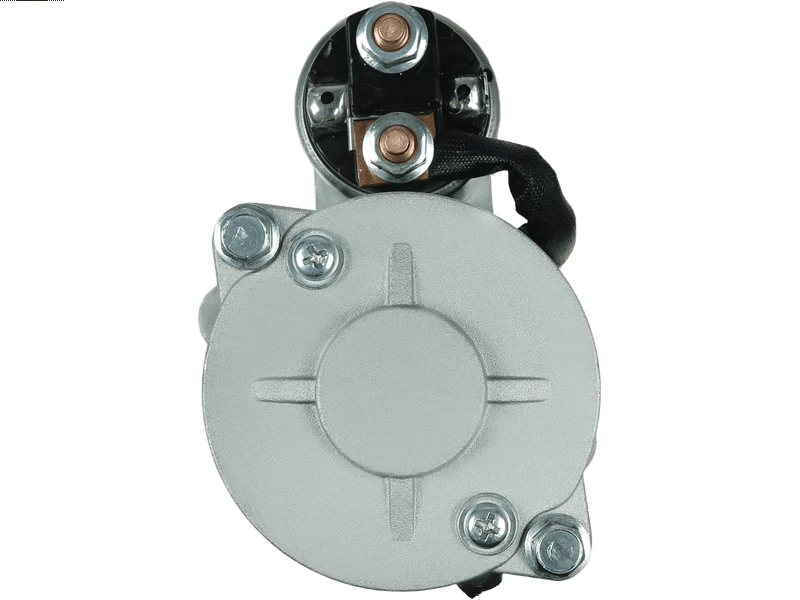

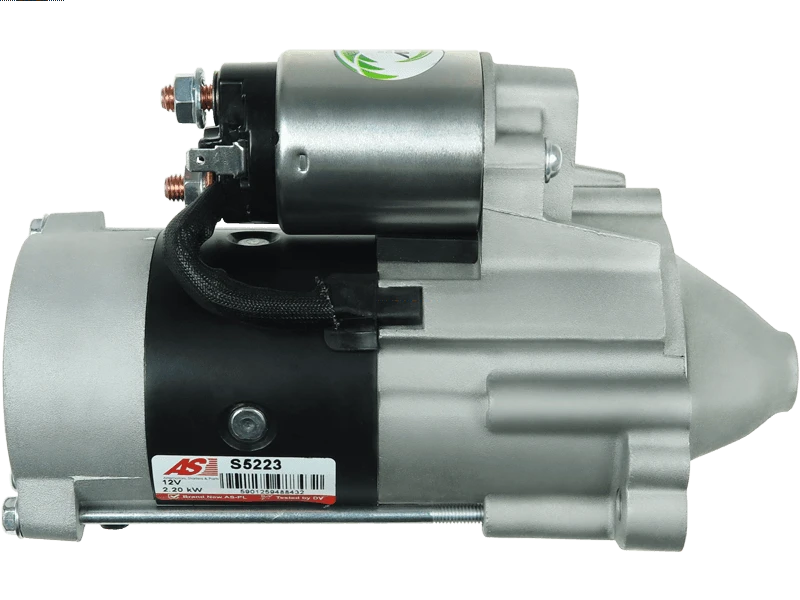

S5223 - Brand new AS-PL Starter motor

Specifications

Kilowatt	2.2 kW
Length (L.1)	228 mm
Mount Hole Center - Center (O.1)	105 mm
Mount Hole Diameter (C.1)	M10x1.75 mm
Mount Hole Diameter (C.2)	M10x1.75 mm
No./Mount holes	2 qty
No./Mount holes with thread	2 qty
No./Teeth	12 qty
Pinion at Rest (B)	2 mm
Rotation	CW
Spigot Diameter (A)	77 mm
Unit Type	MITSUBISHI
Voltage	12 V

Vehicle Applications

Make	Model	Type	Year
HYUNDAI	H-1 2.5	[D4BH]	06.2000-10.2005
HYUNDAI	H-1 2.5 CDi	[D4CB]	06.2006-12.2007
MITSUBISHI	Galant 2.0 TDi	[4D68]	09.1996-10.2004
MITSUBISHI	Galant 2.0 TDi	[4D68T]	09.1996-10.2004
MITSUBISHI	Pajero 2.5 TDi	[4D56T]	04.2000-12.2006
MITSUBISHI	Pajero 2.5 TDi	[4D56T]	08.2003-
MITSUBISHI	Pajero 2.5 TDi	[4D56T]	09.2001-12.2006
MITSUBISHI	Pajero 2.5 TDi	[4D56T]	11.1998-

Reference Information

JS1227 M002T84171ZT 22.1227M STM2008 DS4979 M002T84781 MD314167 M2T84170 M2T87171ZT M70R 25-3244 220086 M002T88071 22.1351M MTC968 M002T84171 M002T84571 113445 3C968 MRS80104 RNL1227JS MAV341140 RE83573N MD344183 LRS01695 36100-42350 M002T87171 8EA737-948-001 MAV371240 M002T87371 M2T88071 22.1351 8EA011-610-702 M2T84171ZT 9.44281E+11 220498 M002T87171ZT 000986022740 DRS3869 M2T84781 RAS34970 201227V 8EA011-610-701 S5223 LRS1695 STM1227 UD02148S M2T87171 M2T87371 201227 MD315547 MD315548 M2T84571 8080104 MD331137 986022740 003-C968 M2T84171 36100-42250 32695N 36100-42450 11970 22.1227 32695R

Video/Publications

003-C968 0986022740 113445 11970 201227 201227V 22.1227 22.1227M 22.1351 22.1351M 25-3244 32695N 32695R 3C968 8080104 8EA011-610-701 8EA011-610-702 8EA737-948-001 944280801040 DRS3869 DS4979 JS1227 LRS01695 LRS1695 M70R MAV341140 MAV371240 MRS80104 MTC968 RAS34970 RE83573N RNL1227JS STM1227 UD02148S S5223 220086 220498
