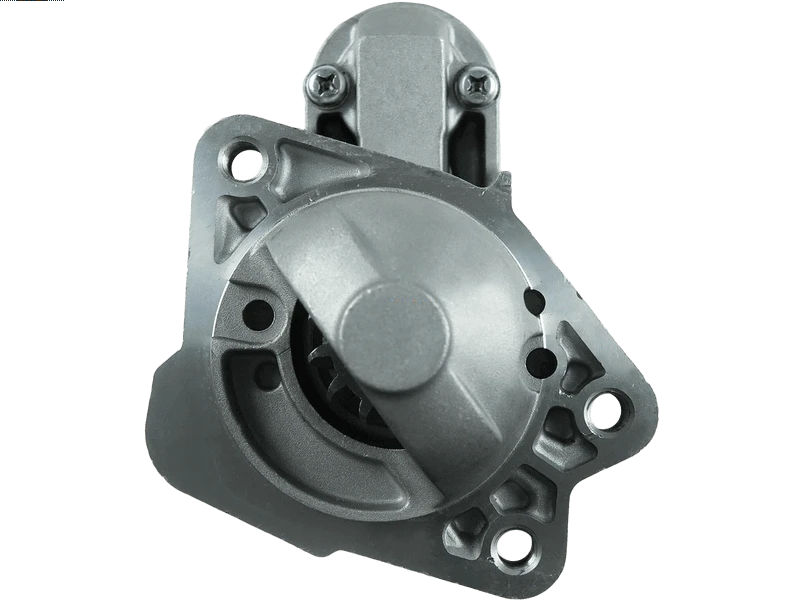

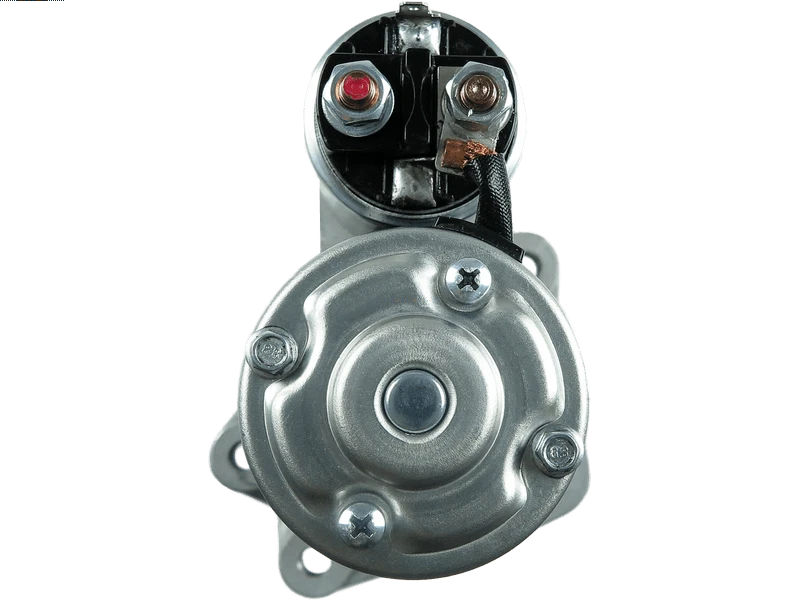

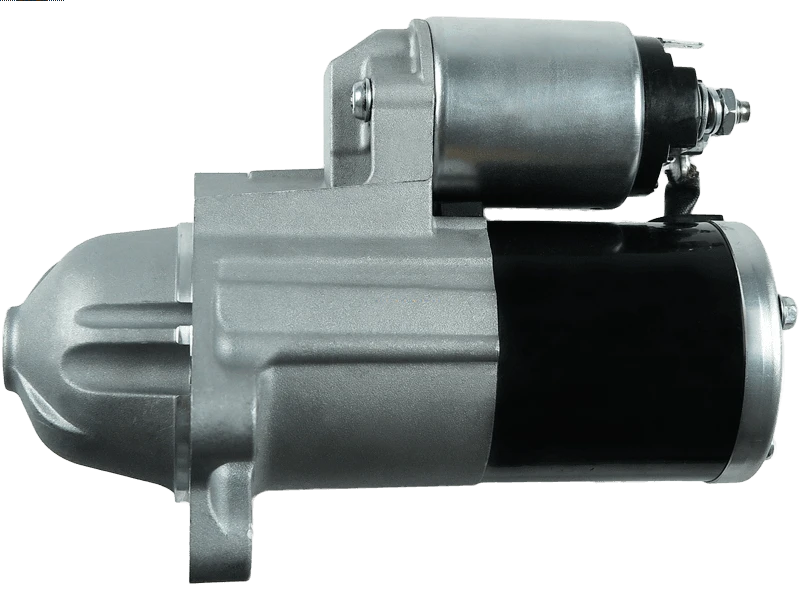

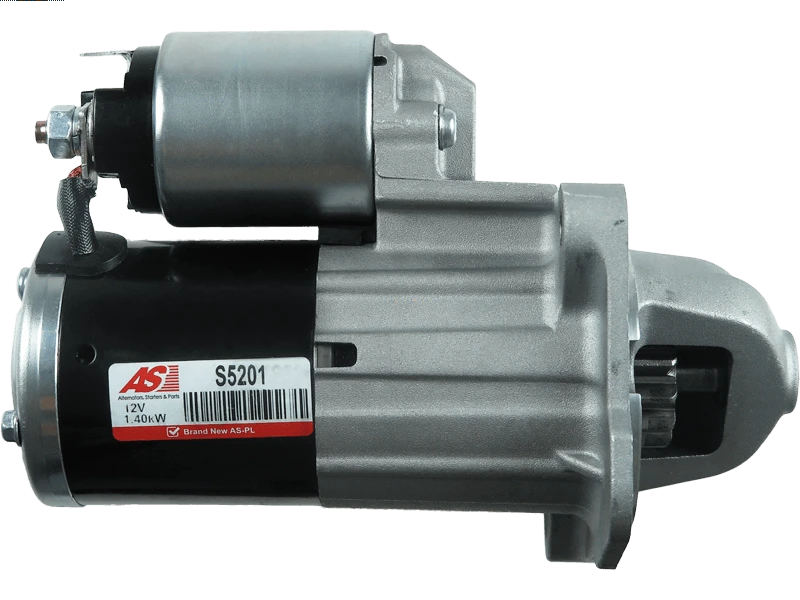

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
MITSUBISHI
Price:
NZ$ 242.51 including GST
NZ$ 210.88 excluding GST
or four payments of $60.63
with
Learn More
UOM:
each
Product Code:
S5201
Quantity In Stock Nationally
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
M0T36771Associated Numbers
0986UR1737 140.545.133 F042200101 M000T36771 M0T36771 STM6771 UD12060S ZJ45-18-400 ZJ4518400Specifications
| Kilowatt | 1.40 kW |
| Length (L.1) | 204 mm |
| Mount Hole Center - Center (O.1) | 100 mm |
| Mount Hole Center - Center (O.2) | 37 mm |
| Mount Hole Center - Center (O.3) | 106 mm |
| Mount Hole Diameter (C.1) | M10x1.25 mm |
| Mount Hole Diameter (C.2) | M10x1.25 mm |
| Mount Hole Diameter (C.3) | M10x1.25 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 3 qty |
| No./Teeth | 13 qty |
| OEM Product | No |
| Pinion at Rest (B) | 14.60 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 73.50 mm |
| Unit Type | MITSUBISHI |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| MAZDA | 2 1.3 | [ZJ-VE] | 10.2007-06.2015 |
| MAZDA | 2 1.5 MZR | [ZY-DE] | 06.2011-06.2015 |
| MAZDA | 2 1.5 MZR | [ZY-VE] | 06.2011-06.2015 |
| MAZDA | 2 (DE_, DH_) 1.3 BiFuel | ZJ-46 | 05.2011-11.2014 |
| MAZDA | 2 (DE_, DH_) 1.3 BiFuel | ZJ-46 | 05.2011-11.2014 |
| MAZDA | 2 (DE_, DH_) 1.3 (DE3FS) | ZJ46 | 10.2007-06.2015 |
| MAZDA | 2 (DE_, DH_) 1.3 (DE3FS) | ZJ46 | 10.2007-06.2015 |
| MAZDA | 2 (DE_, DH_) 1.3 (DE3FS) | ZJ-VE | 10.2007-06.2015 |
| MAZDA | 2 (DE_, DH_) 1.3 (DE3FS) | ZJ-VE | 10.2007-06.2015 |
| MAZDA | 2 (DE_, DH_) 1.3 MZR (DE3FS) | ZJ46 | 01.2010-06.2015 |
| MAZDA | 2 (DE_, DH_) 1.3 MZR (DE3FS) | ZJ-VE | 01.2010-06.2015 |
| MAZDA | 2 (DE_, DH_) 1.5 (DE5FS) | ZY66 | 07.2007-06.2015 |
| MAZDA | 2 (DE_, DH_) 1.5 (DE5FS) | ZY84 | 07.2007-06.2015 |
| MAZDA | 2 (DE_, DH_) 1.5 (DE5FS) | ZY-VE | 07.2007-06.2015 |
| MAZDA | 2 (DE_, DH_) 1.5 (DE5FS, DE10Y) | ZY-VE | 10.2007-06.2015 |
| MAZDA | 2 (DE_, DH_) 1.5 MZR (DE5FS) | ZY05 | 06.2011-06.2015 |
| MAZDA | 2 (DE_, DH_) 1.5 MZR (DE5FS) | ZY66 | 06.2011-06.2015 |
| MAZDA | 2 (DE_, DH_) 1.5 MZR (DE5FS) | ZY-VE | 06.2011-06.2015 |
Reference Information
| 0986UR1737 | BOSCH |
| 140.545.133 | WAI |
| 19286N | WAI |
| 20437263BN | REAL |
| 3N2111000AA | FORD |
| 6035362.0 | SANDO |
| CST35362AS | CASCO |
| F042200101 | BOSCH |
| M000T36771 | MITSUBISHI |
| M0T36771 | MITSUBISHI |
| MAV373620A | SIOM |
| S143.426 | WAI |
| STM6771 | KRAUF |
| STR5517 | ELECTROLOG |
| STX201368 | STARDAX |
| UD12060S | AS-PL |
| ZJ45-18-400 | MAZDA |
| ZJ4518400 | MAZDA |
Video/Publications
S5201View your shopping basket or Browse other items in Starter Motors.
