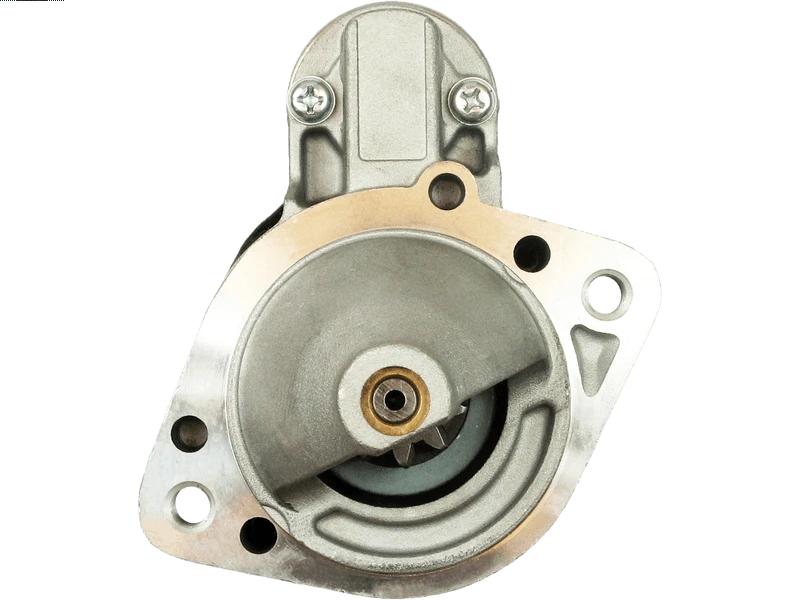

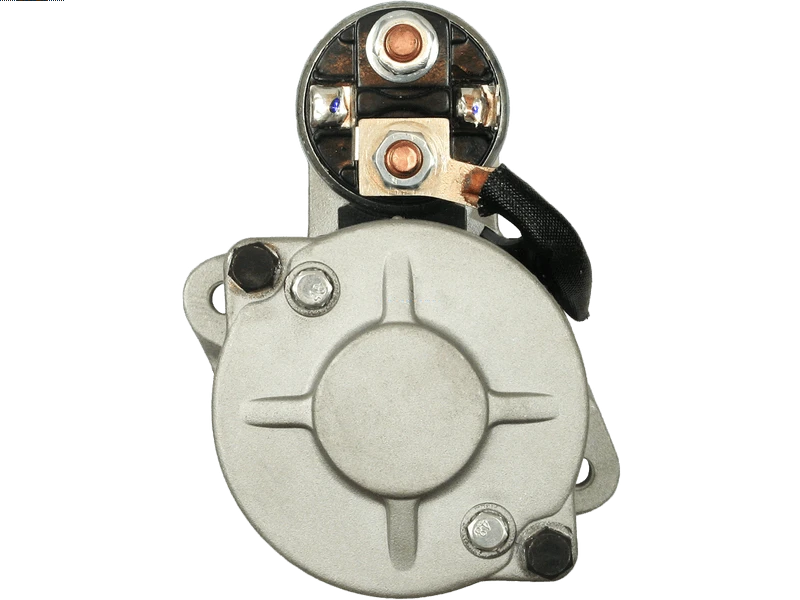

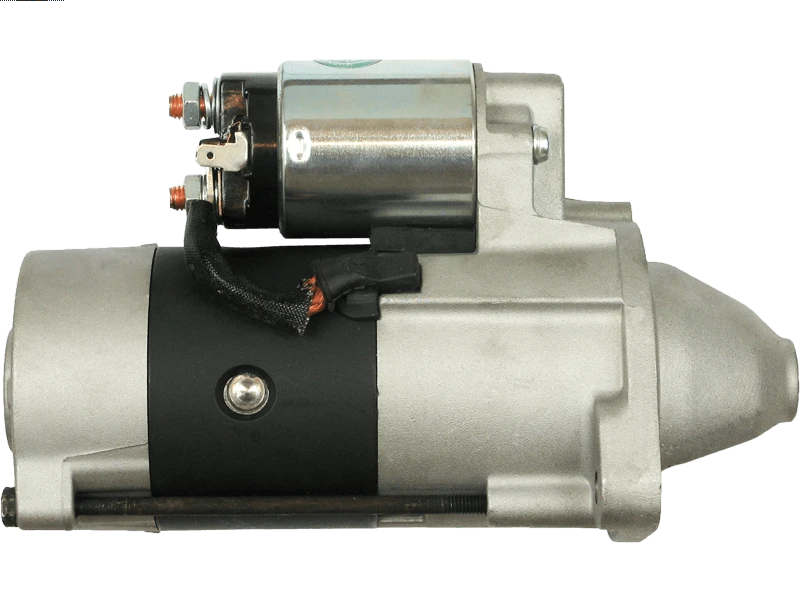

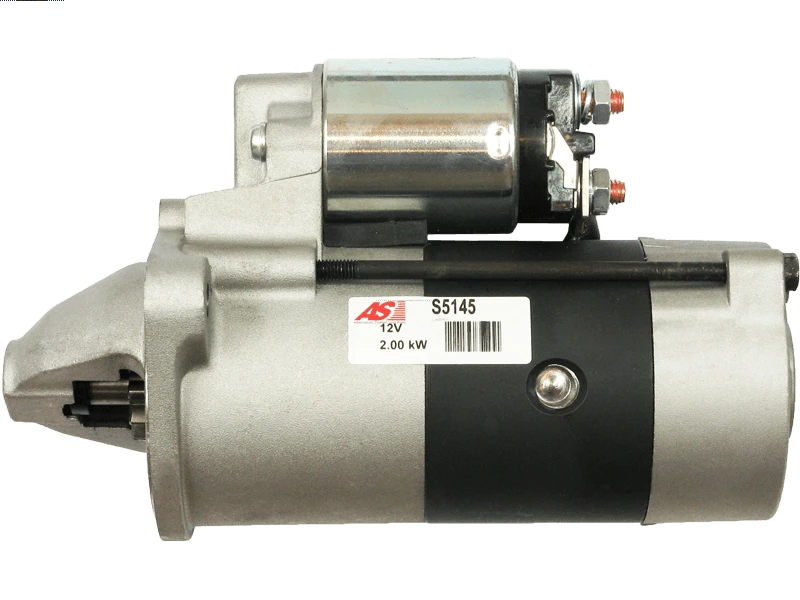

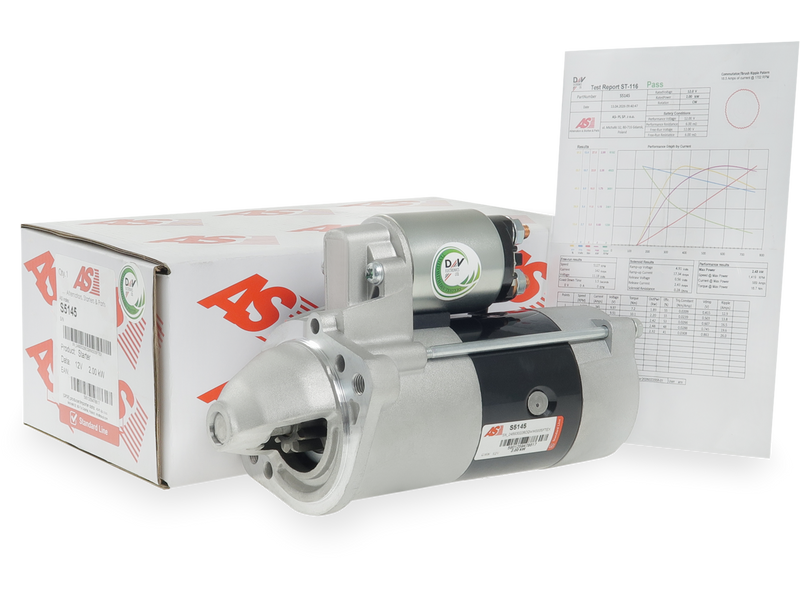

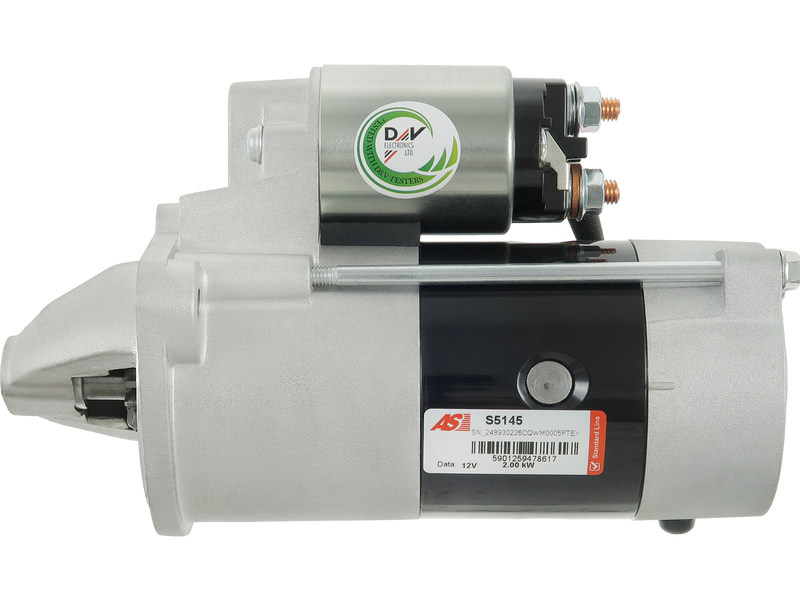

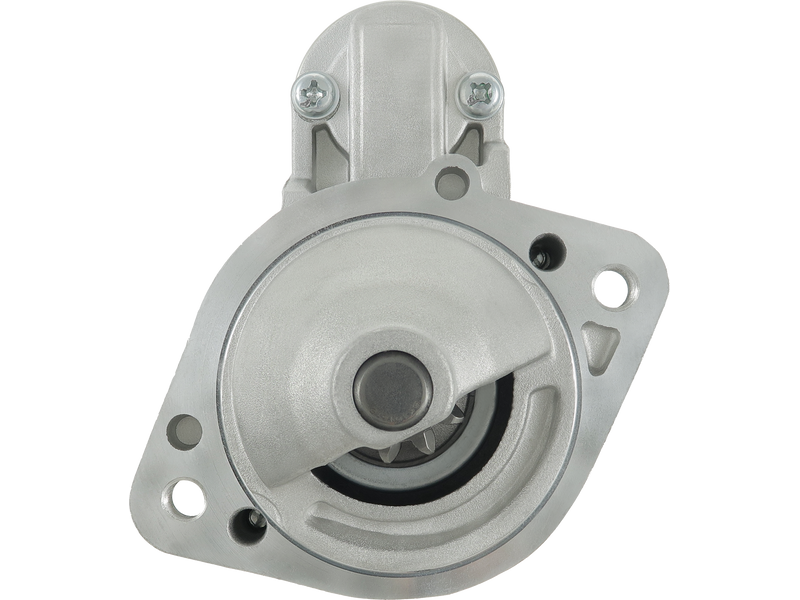

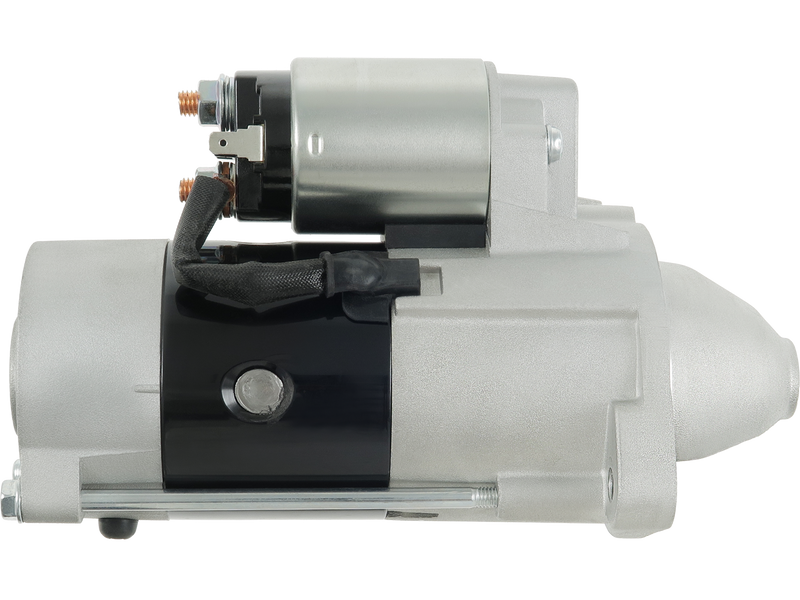

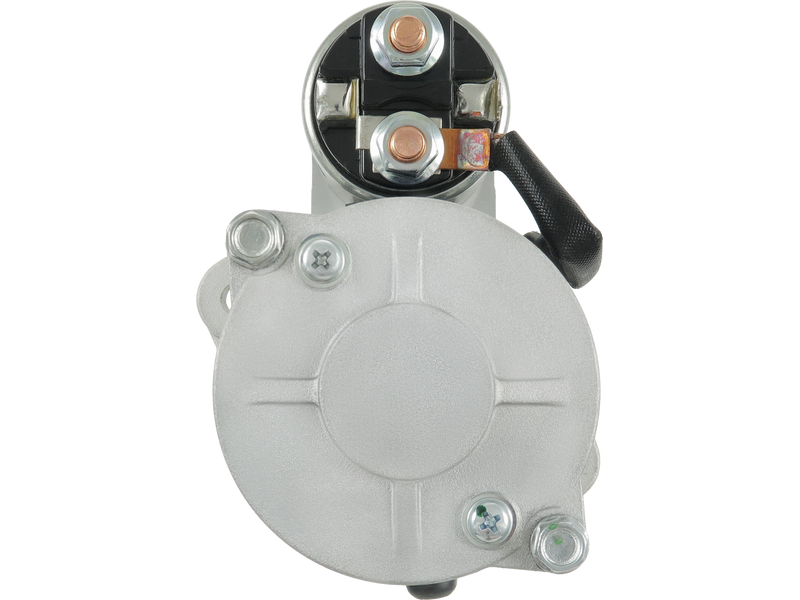

S5145 - Brand new AS-PL Starter motor

Specifications

Kilowatt	2 kW
Length (L.1)	226 mm
Mount Hole Center - Center (O.1)	105 mm
Mount Hole Diameter (C.1)	M10x1.25 mm
Mount Hole Diameter (C.2)	M10x1.25 mm
No./Mount holes	2 qty
No./Mount holes with thread	2 qty
No./Teeth	10 qty
No./Teeth (Replaces)	10 qty
Pinion at Rest (B)	9 mm
Rotation	CW
Spigot Diameter (A)	77 mm
Unit Type	MITSUBISHI
Voltage	12 V

Vehicle Applications

Make	Model	Type	Year
NISSAN	Engine	[SD25]
NISSAN	Forklift SD25

Reference Information

MAV371240A M002T85371 M002T84171ZT UD10739S M002T85373 M2T88071 M2T84171ZT MD314167 M2T84170 M2T87171ZT M002T87171ZT 3610042350 3610042250 M2T84781 M2T85373 M2T85371 115466 23300-FY500 M002T88071 6035124.1 M002T84170 M002T84171 M002T84571 M2T87171 M2T87371 M2T85071 MD315547 MD315548 MD344183 M2T84571 20437421BN MD331137 255544 M2T84171 6035124 20437421OE CST35124GS CST35124AS M002T87171 M002T87371

Video/Publications

115466 23300-FY500 255544 M002T85371 M2T85371 UD10739S
