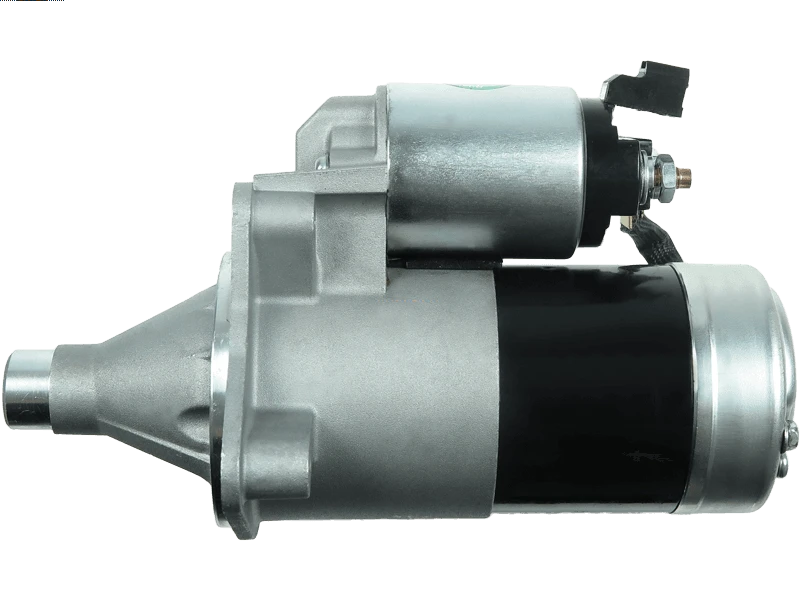

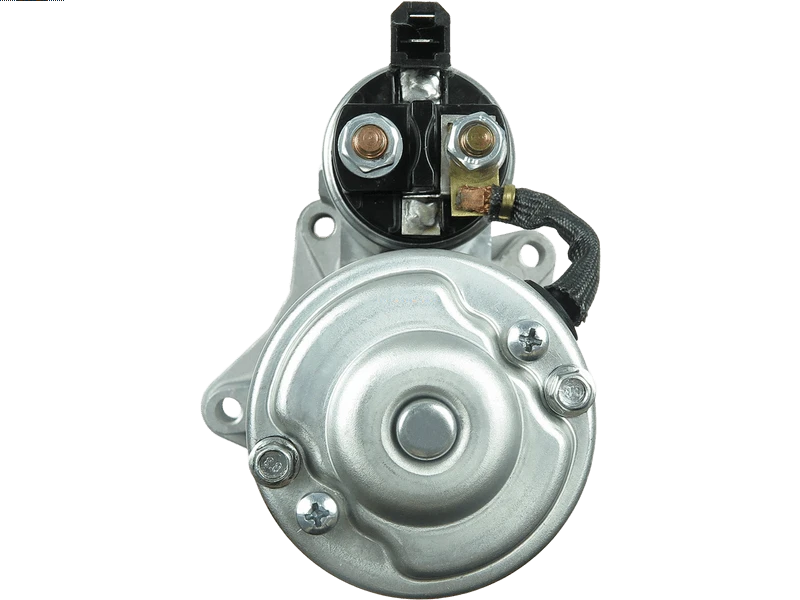

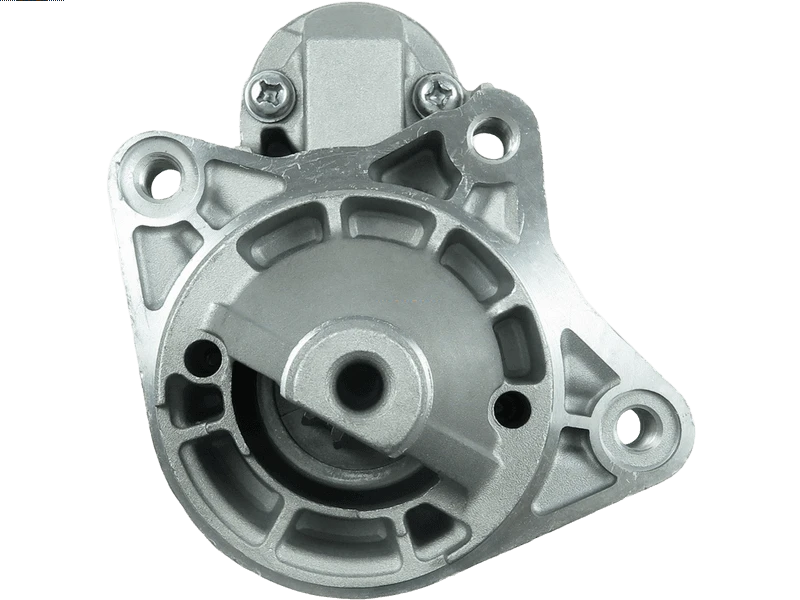

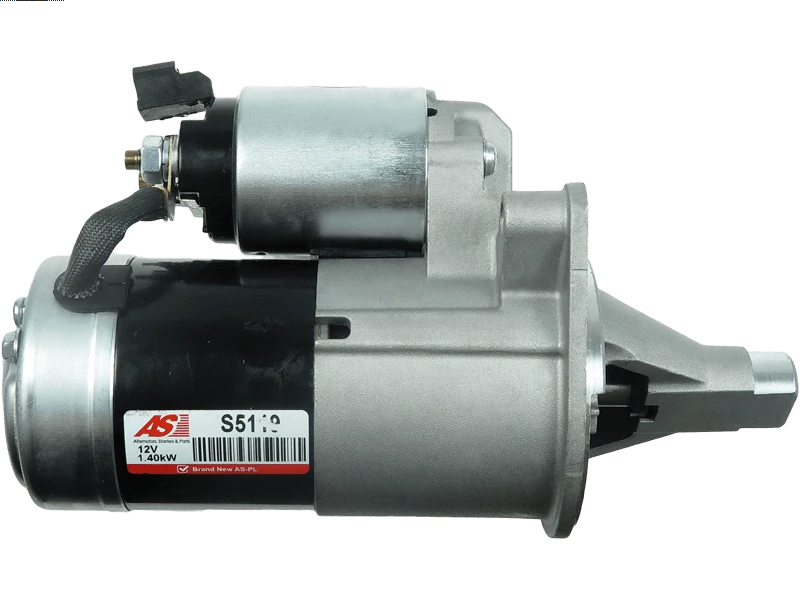

S5119 - Brand new AS-PL Starter motor

Brand new AS-PL Starter motor
Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
MITSUBISHI
Price:
NZ$ 258.78 including GST

NZ$ 225.03 excluding GST
each
S5119
No stock in NZ
Item available to backorder, submit your order. Aprox 7-14 day delay - $40 Air freight charge additional
Purchase Qty:

112845 17461N 25-3318 4609011 DRS0755 LRS01751 M001T77777 M001T77777ZC M001T77781 M001T77781ZC M1T77777 M1T77777ZC M1T77781 M1T77781ZC S1166M
Kilowatt1.4 kW
Length (L.1)230 mm
Mount Hole Center - Center (O.1)69 mm
Mount Hole Center - Center (O.2)114 mm
Mount Hole Center - Center (O.3)71 mm
Mount Hole Diameter (C.1)M10x1.5 mm
Mount Hole Diameter (C.2)M10x1.5 mm
Mount Hole Diameter (C.3)M10x1.5 mm
No./Mount holes3 qty
No./Mount holes with thread3 qty
No./Teeth10 qty
Pinion at Rest (B)8.5 mm
RotationCW
Spigot Diameter (A)82 mm
Unit TypeMITSUBISHI
Voltage12 V
Make Model Type Year
CHRYSLER Concorde 3.5 01.1993-01.1995
CHRYSLER Concorde 3.5 LX 01.1996-01.1997
CHRYSLER Concorde 3.5 LXI 01.1996-01.1997
CHRYSLER LHS 3.5 01.1994-01.1997
CHRYSLER New Yorker 3.5 01.1994-01.1996
CHRYSLER Prowler 3.5 01.2001-
DODGE B100 3.7 01.1971-01.1971
DODGE B100 3.7 01.1971-01.1979
DODGE B100 3.7 01.1979-01.1980
DODGE B100 3.7 Sportsman 01.1971-01.1978
DODGE B100 3.7 Sportsman 01.1979-01.1980
DODGE B100 5.2 01.1971-01.1971
DODGE B100 5.2 01.1971-01.1980
DODGE B100 5.2 01.1979-01.1980
DODGE B100 5.2 Sportsman 01.1971-01.1980
DODGE B100 5.2 Sportsman 01.1979-
DODGE B100 5.9 01.1971-01.1978
DODGE B100 5.9 01.1974-
DODGE B100 5.9 Sportsman 01.1972-01.1978
DODGE B100 5.9 Sportsman 01.1974-
DODGE B100 7.2 01.1974-
DODGE B150 3.7 01.1981-01.1982
DODGE B150 3.7 01.1983-01.1987
DODGE B150 3.7 Sportsman 01.1981-01.1982
DODGE B150 3.7 Sportsman 01.1983-01.1987
DODGE B150 5.2 01.1981-01.1982
DODGE B150 5.2 01.1983-01.1987
DODGE B150 5.2 Sportsman 01.1981-01.1982
DODGE B150 5.2 Sportsman 01.1983-01.1987
DODGE Intrepid 3.5 01.1993-01.1997
DODGE Intrepid 3.5 ES 01.1993-01.1997
EAGLE Vision 3.5 01.1993-01.1997
EAGLE Vision 3.5 ESI 01.1995-01.1997
PLYMOUTH Prowler 3.5 01.1997-01.1997
PLYMOUTH Prowler 3.5 01.1999-01.1999
112845 LRS1751 M1T77781 M1T77777 M001T77777 M001T77781ZC 25-3318 M1T77781ZC 4609011 M001T77781 DRS0755 S1166M LRS01751 M001T77777ZC M1T77777ZC STRS431 STR5421 17461N
112845 17461N 25-3318 4609011 DRS0755 LRS01751 LRS1751 M001T77777 M001T77777ZC M001T77781 M001T77781ZC M1T77777 M1T77777ZC M1T77781 M1T77781ZC S1166M STRS431
