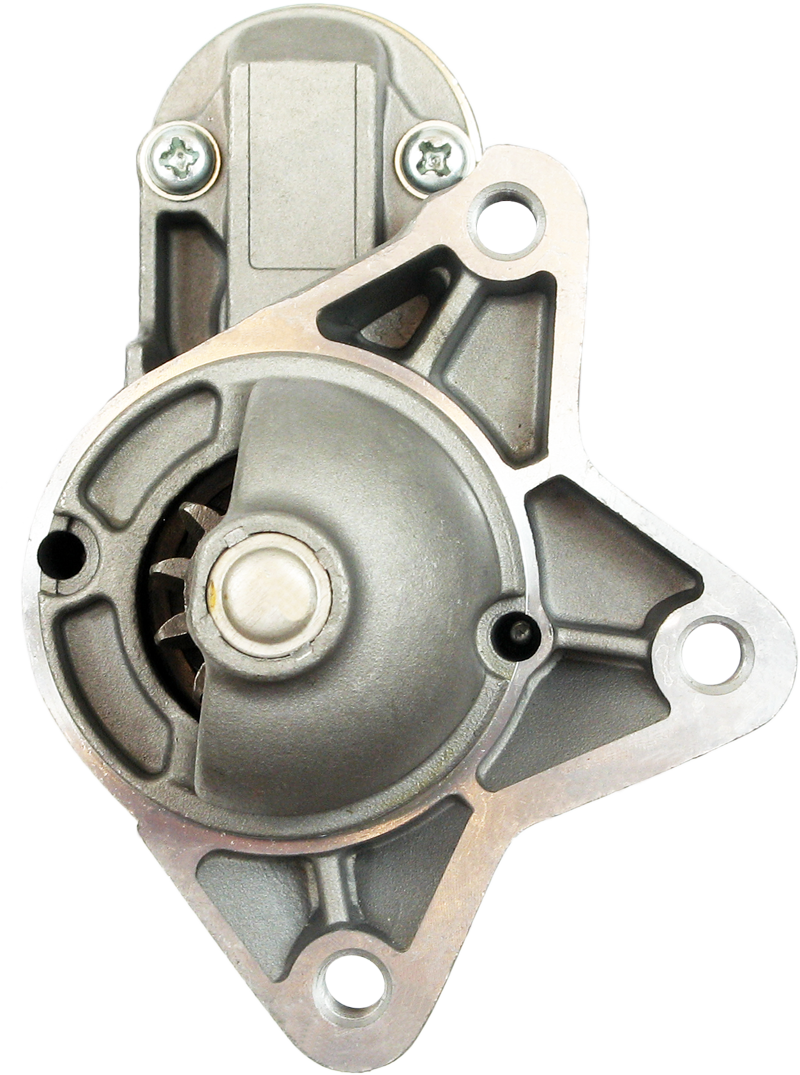

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
MITSUBISHI
Price:
NZ$ 259.73 including GST
NZ$ 225.85 excluding GST
or four payments of $64.93
with
Learn More
each
S5115
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
M1T74381Associated Numbers
20635 20768 25-1159 AET0635 DRS3157 JE01-18-400 JE01-18-400A JE01-18-400B JE01-18-400C JE16-18-400B JF01-18-400A JF01-18-400B JF01-18-400C LRS01166 M000T81081 M001T71781 M001T74381 M001T75181 M001T75181A M0T81081 M1T71781 M1T74381 M1T75181 M1T75181A MP117044 S1221M STR71055 TM000A04801 UD00471S UD00472SSpecifications
| Kilowatt | 1.70 kW |
| Length (L.1) | 256 mm |
| Mount Hole Center - Center (O.1) | 66 mm |
| Mount Hole Center - Center (O.2) | 68 mm |
| Mount Hole Center - Center (O.3) | 108 mm |
| Mount Hole Diameter (C.1) | M10x1.25 mm |
| Mount Hole Diameter (C.2) | M10x1.25 mm |
| Mount Hole Diameter (C.3) | M10x1.25 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 3 qty |
| No./Teeth | 12 qty |
| No./Teeth (Replaces) | 12 qty |
| OEM Product | No |
| Pinion at Rest (B) | 17 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 67 mm |
| Unit Type | MITSUBISHI |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| MAZDA | 929 3.0 V6 | [JE] | 01.1986-12.1992 |
| MAZDA | 929 3.0 V6 | [JE3] | 01.1986-12.1992 |
| MAZDA | MPV 3.0 | [JE] | 01.1995-12.1999 |
| MAZDA | Xedos 6 2.0 V6 | [KF1] | 01.1992-12.1999 |
Reference Information
| 003-M197 | ASHIKA |
| 17133N | WAI / TRANSPO |
| 20635 | KUHNER |
| 20768 | KUHNER |
| 25-1159 | ELSTOCK |
| 3M197 | JAPKO |
| AET0635 | AUTOELECTRO |
| DRS3157 | DELCO |
| JE01-18-400 | MAZDA |
| JE01-18-400A | MAZDA |
| JE01-18-400B | MAZDA |
| JE01-18-400C | MAZDA |
| JE16-18-400B | MAZDA |
| JF01-18-400A | MAZDA |
| JF01-18-400B | MAZDA |
| JF01-18-400C | MAZDA |
| LRS01166 | LUCAS |
| LRS1166 | LUCAS |
| M000T81081 | MITSUBISHI |
| M001T71781 | MITSUBISHI |
| M001T74381 | MITSUBISHI |
| M001T75181 | MITSUBISHI |
| M001T75181A | MITSUBISHI |
| M0T81081 | MITSUBISHI |
| M1T71781 | MITSUBISHI |
| M1T74381 | MITSUBISHI |
| M1T75181 | MITSUBISHI |
| M1T75181A | MITSUBISHI |
| MP117044 | MITSUBISHI |
| MTM197 | JAPANPARTS |
| S1221M | PRESTOLITE |
| STR5140 | ELECTROLOG |
| STR71055 | WOODAUTO |
| STRF313 | 3EFFE |
| STRF368 | 3EFFE |
| STX200534 | STARDAX |
| STX200544 | STARDAX |
| TM000A04801 | VALEO |
| UD00471S | AS-PL |
| UD00472S | AS-PL |
Video/Publications
