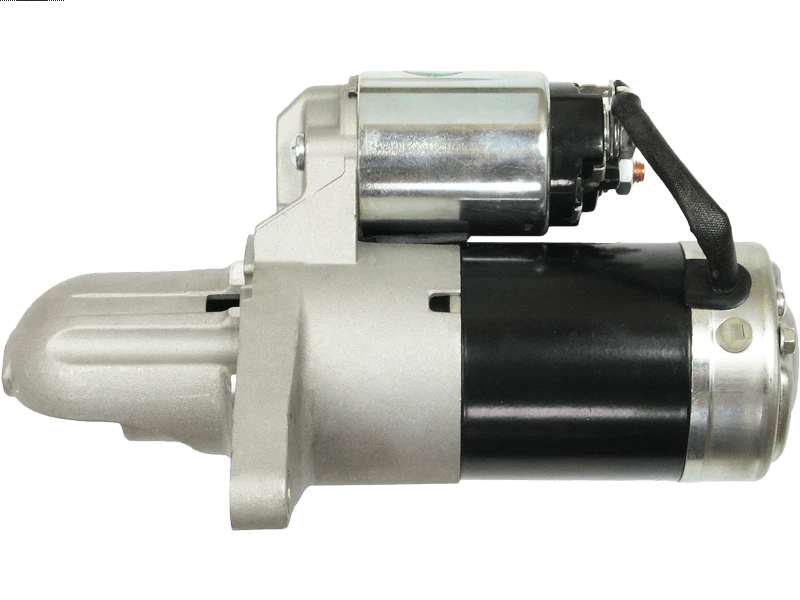

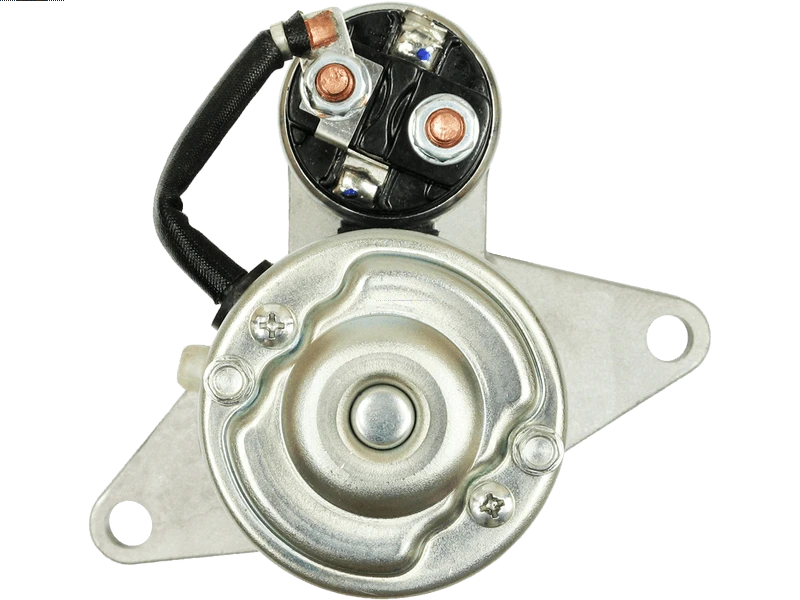

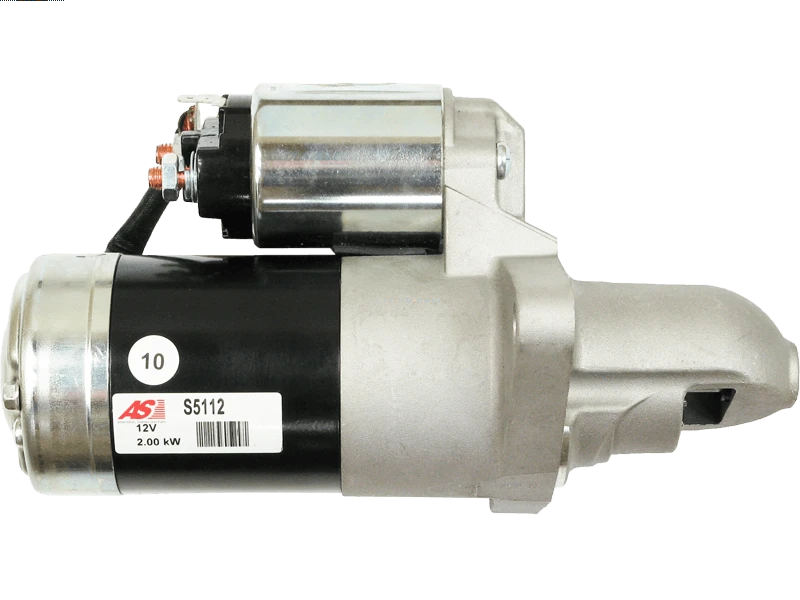

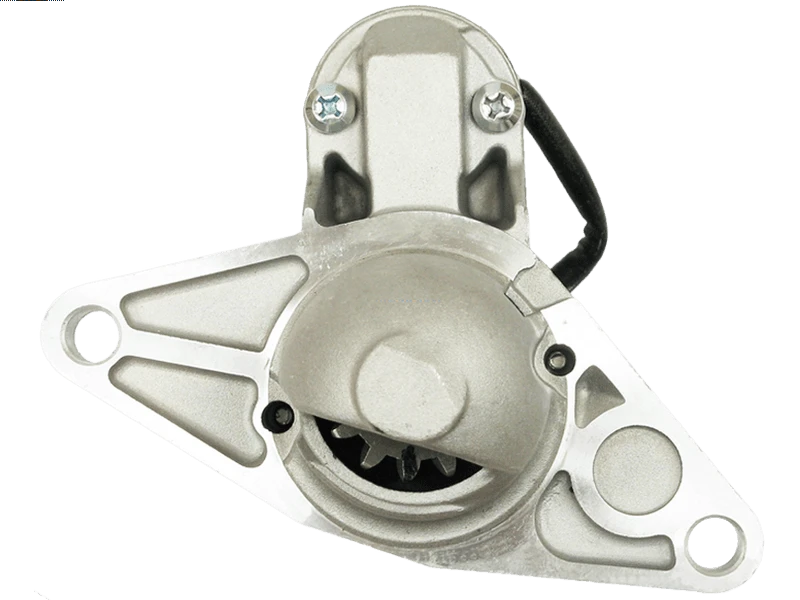

S5112 - Brand new AS-PL Starter motor

Specifications

Kilowatt	2 kW
Length (L.1)	247 mm
Mount Hole Center - Center (O.1)	148 mm
Mount Hole Diameter (C.1)	11.5 mm
Mount Hole Diameter (C.2)	11.5 mm
No./Mount holes	2 qty
No./Mount holes with thread	0 qty
No./Teeth	13 qty
No./Teeth (Replaces)	13 qty
Pinion at Rest (B)	41 mm
Rotation	ACW
Spigot Diameter (A)	67 mm
Unit Type	MITSUBISHI
Voltage	12 V

Vehicle Applications

Make	Model	Type	Year
MAZDA	RX8 1.3	[13B-MSP]	01.2006-

Reference Information

AEY2362 M1T30474A N3Z1-18-400 M1T30471 N3H1-18-400A EAA-121454 SS634 DRS0416 STR71238 CST35264RS 25-4034 M1T30471A 20437462RC UD03380S 5035742 M1T30471AM M001T30471AM CST35264GS STR5248 RNLM1T30471 M001T30471A 336459 M001T30471 M001T30474A N3H1-18-400AR ANM12636X 254794 6035264 20437462OE LRS02362 S12MH0323A2 LRS2362 S5112 17993R 17993N

Video/Publications

17993N 20437462OE 20437462RC 25-4034 254794 6035264 AEY2362 CST35264GS CST35264RS DRS0416 EAA-121454 LRS02362 LRS2362 M001T30471 M001T30471A M1T30471 M1T30471A N3H1-18-400A N3H1-18-400AR N3Z1-18-400 RNLM1T30471 S5112 SS634 STR71238 UD03380S
