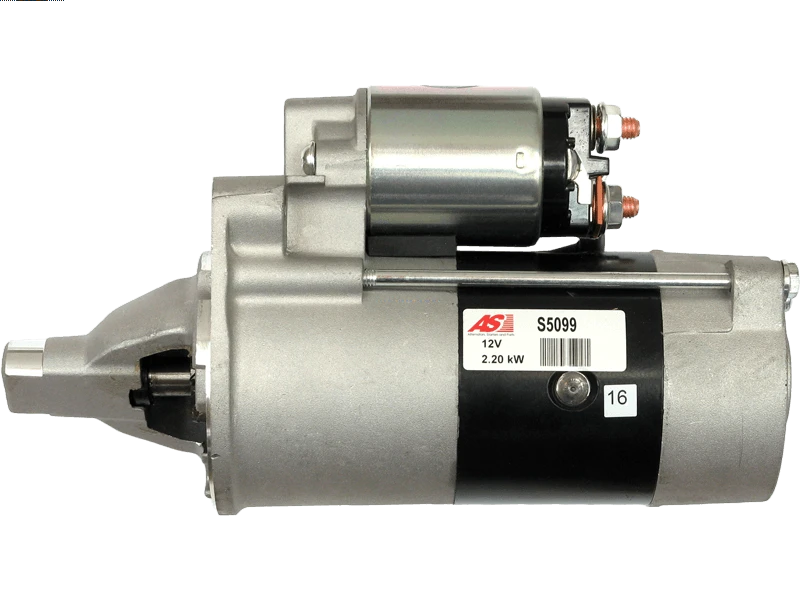

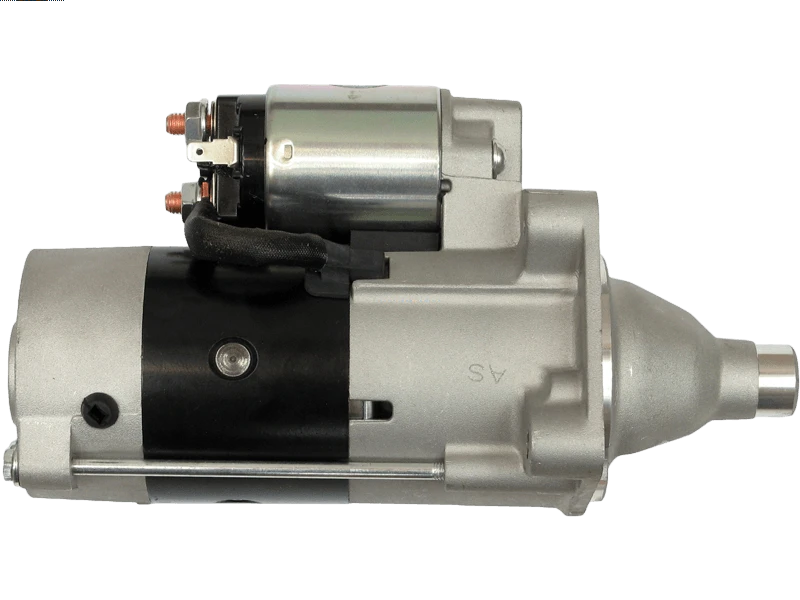

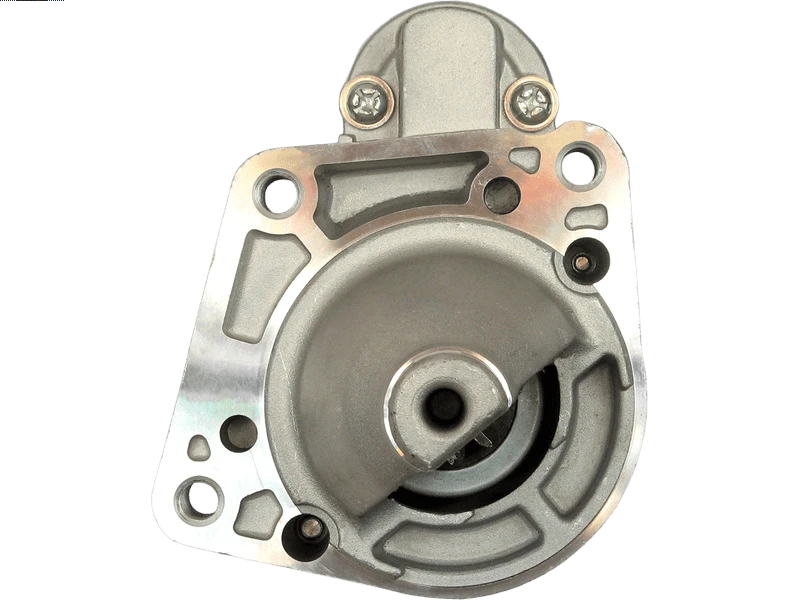

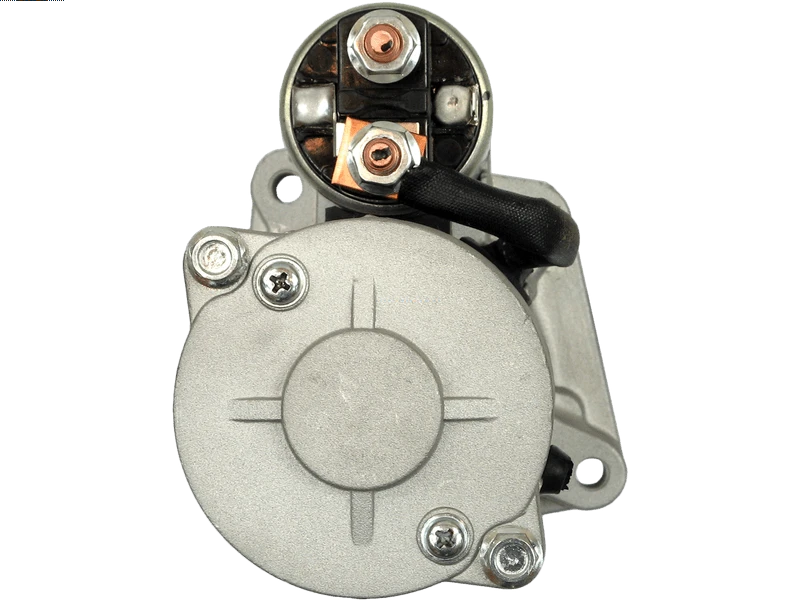

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
MITSUBISHI
Price:
NZ$ 472.35 including GST
NZ$ 410.74 excluding GST
or four payments of $118.09
with
Learn More
each
S5099
2
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
M2T88971Associated Numbers
04868860AA 113977 20437702BN 22.1482M 22.3230 25-4028 254394 254394M 32716N 4868860AA 6035207 88214294 AEY2356 CST35207AS CST35207GS DRS0095 EAA-121940 LRS02356 M002T88971 M2T88971 S5099 SS717Specifications
| Kilowatt | 2.20 kW |
| Length (L.1) | 251 mm |
| Mount Hole Center - Center (O.1) | 113 mm |
| Mount Hole Center - Center (O.2) | 71 mm |
| Mount Hole Center - Center (O.3) | 68 mm |
| Mount Hole Diameter (C.1) | M10x1.5 mm |
| Mount Hole Diameter (C.2) | M10x1.5 mm |
| Mount Hole Diameter (C.3) | M10x1.5 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 3 qty |
| No./Teeth | 9 qty |
| No./Teeth (Replaces) | 9 qty |
| OEM Product | No |
| Pinion at Rest (B) | 10 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 82 mm |
| Unit Type | MITSUBISHI |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| CHRYSLER | Voyager 2.8 CRD | [ENR] | 06.2004- |
| CHRYSLER | Voyager 2.8 CRD | 10.2007- | |
| CHRYSLER | Voyager 2.8 CRDi | [ENS] | 10.2007- |
| DODGE | Caravan IV 2.8 CRD | [ENS] | 01.2009- |
| DODGE | Grand Caravan 2.8 CRD | 01.2008- |
Reference Information
| 04838860AA | CHRYSLER |
| 04868860AA | CHRYSLER |
| 113977 | CARGO |
| 20437702BN | REAL |
| 220711 | ERA |
| 22.1482M | LAUBER |
| 22.3230 | LAUBER |
| 25-4028 | ELSTOCK |
| 254394 | KUHNER |
| 254394M | KUHNER |
| 32716N | WAI / TRANSPO |
| 336150 | LOGISTIK |
| 42024390 | HERTH+BUSS |
| 4688860AA | CHRYSLER |
| 4868860AA | CHRYSLER |
| 5035141 | MEAT & DORIA |
| 6035207 | SANDO |
| 8080360 | FRIESEN |
| 88214294 | POWERMAX |
| AEY2356 | AUTOELECTRO |
| ANM12315X | ANDEL |
| CS1482 | HC PARTS |
| CST35207AS | CASCO |
| CST35207GS | CASCO |
| DRS0095 | DELCO |
| F032113977 | CARGO |
| K04868860AA | FIAT |
| LRS02356 | LUCAS |
| LRS2356 | LUCAS |
| M002T88971 | MITSUBISHI |
| M002T88971ZC | MITSUBISHI |
| M2T88971 | MITSUBISHI |
| M2T88971ZC | MITSUBISHI |
| RNLM2T88971 | RNL |
| S5099 | AS-PL |
| SS717 | SOVEREIGN |
| STR5148 | ELECTROLOG |
| STRS235 | 3EFFE |
| STX200588 | STARDAX |
| STX200588R | STARDAX |
| UD104817S | AS-PL |
Video/Publications
