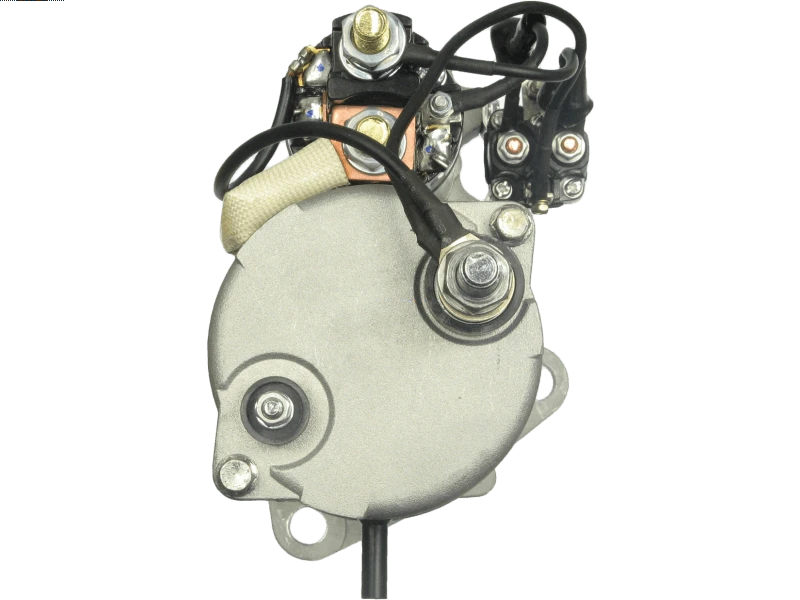

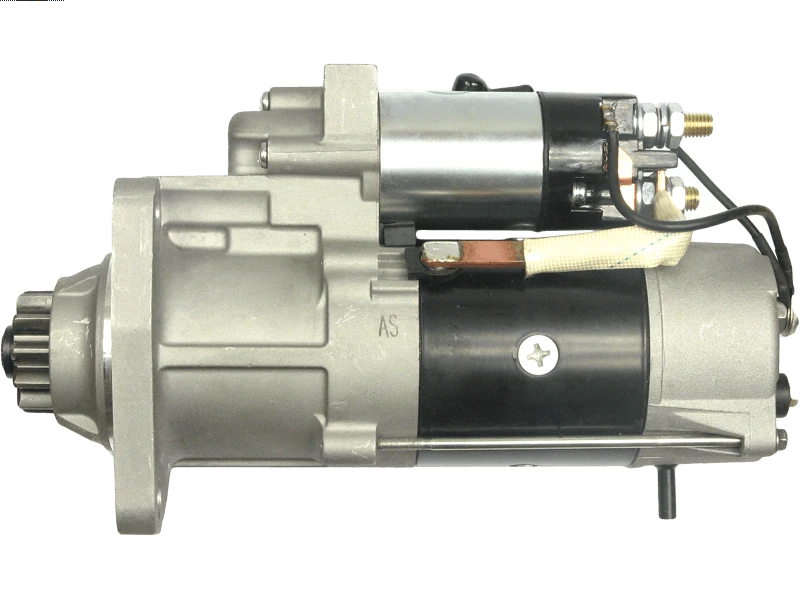

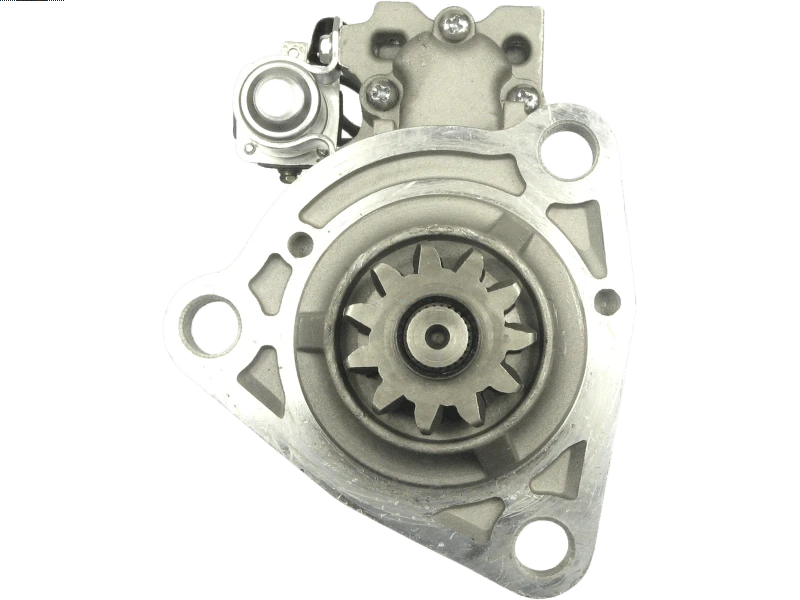

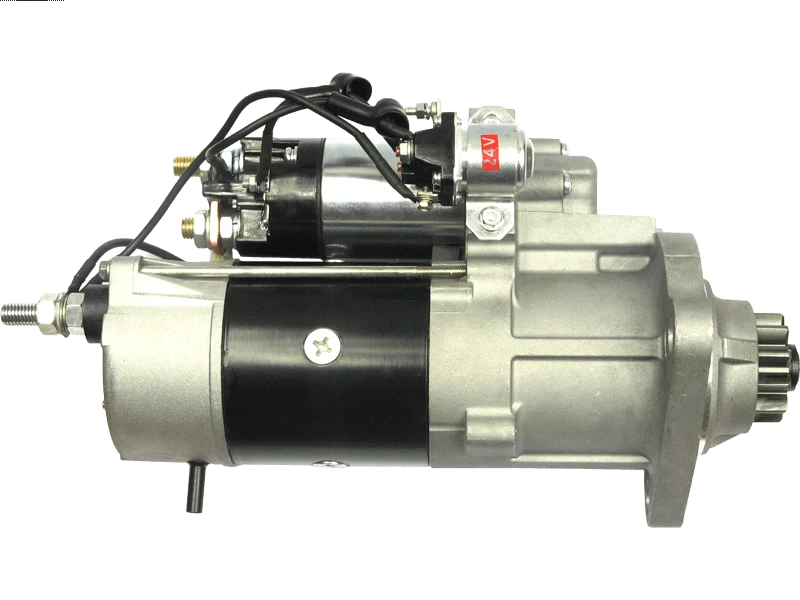

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
MITSUBISHI
Price:
NZ$ 882.00 including GST
NZ$ 766.96 excluding GST
or four payments of $220.50
with
Learn More
each
S5082
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
M9T82378Associated Numbers
10461754 19011507 19011522 19011527 20409316BN 20409316OE 254887D 254887P 3103305 3103952 6060613 641.020.113 CST60613AS CST60613GS EAA-123269 M009T82378 M105R3502SE M9T82378 STD4334 STD4334NB STD4334UW STD4334WA STD8334Specifications
| Kilowatt | 8.20 kW |
| Length (L.1) | 405 mm |
| Mount Hole Center - Center (O.1) | 126 mm |
| Mount Hole Center - Center (O.2) | 126 mm |
| Mount Hole Center - Center (O.3) | 126 mm |
| Mount Hole Diameter (C.1) | 17.50 mm |
| Mount Hole Diameter (C.2) | 17.50 mm |
| Mount Hole Diameter (C.3) | 17.50 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 11 qty |
| No./Teeth (Replaces) | 11 qty |
| OEM Product | No |
| Pinion at Rest (B) | 48 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 92 mm |
| Unit Type | MITSUBISHI |
| Voltage | 24 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| MCI | Engine | [Caterpillar C-12] | 01.2004- |
| MCI | Engine | [CaterpillarC-12] | 01.2004- |
| MCI | Engine | [Caterpillar C-13] | 01.1998- |
| MCI | Engine | [CaterpillarC-13] | 01.1998- |
| MCI | Engine | [Cummins ISM] | 01.2007- |
| MCI | Engine | [CumminsISM] | 01.2007- |
| MCI | Engine | [DD 60 Series] | 01.2004- |
| MCI | Engine | [DD60Series] | 01.2004- |
Reference Information
| 0707328RX | CUMMINS |
| 1047041 | CATERPILLAR |
| 1047042 | CATERPILLAR |
| 1068551 | CATERPILLAR |
| 1068554 | CATERPILLAR |
| 10858441R | DAF |
| 10R0400 | CATERPILLAR |
| 1443674R | DAF |
| 19011507 | DELCO |
| 19011522 | DELCO |
| 19531N | WAI / TRANSPO |
| 20409316BN | REAL |
| 20409316OE | REAL |
| 2071564 | CATERPILLAR |
| 216849 | CUMMINS |
| 2-2345-DR-1 | WAI / TRANSPO |
| 2871252 | CUMMINS |
| 2871253 | PERKINS |
| 2871256 | CUMMINS |
| 2T0792 | CATERPILLAR |
| 3021036RX | CUMMINS |
| 3102920 | CUMMINS |
| 3103305 | CUMMINS |
| 3103916 | CUMMINS |
| 3103952 | CUMMINS |
| 3250000 | CUMMINS |
| 3251827 | CUMMINS |
| 3255868 | CUMMINS |
| 3279169 | CUMMINS |
| 339793 | LOGISTIK |
| 3A1872H06 | CATERPILLAR |
| 3T3153 | CATERPILLAR |
| 3T5209 | CATERPILLAR |
| 4078512 | CUMMINS |
| 4N1062 | CATERPILLAR |
| 5284085 | CUMMINS |
| 5L4431 | CATERPILLAR |
| 6060613.0 | SANDO |
| 6060613.1 | SANDO |
| 641.051.113.038 | PSH |
| 652726 | DAF |
| 652726X | DAF |
| 657248 | DAF |
| 6819N | WAI / TRANSPO |
| 6819R | WAI / TRANSPO |
| 6N1887 | CATERPILLAR |
| 701124 | JCB |
| 704007 | CUMMINS |
| 706621 | CUMMINS |
| 706622 | CUMMINS |
| 706623 | CUMMINS |
| 707237 | CUMMINS |
| 707328 | CUMMINS |
| 707328RX | CUMMINS |
| 707330 | CUMMINS |
| 707330RX | CUMMINS |
| 708913 | CUMMINS |
| 708914 | CUMMINS |
| 708915 | CUMMINS |
| 708916 | CUMMINS |
| 8200034 | DELCO |
| 8200041 | DELCO |
| 8200410 | DELCO |
| 8200412 | DELCO |
| 859471PB | CUMMINS |
| 859484PB | CUMMINS |
| 859485PB | CUMMINS |
| 87417338 | CUMMINS |
| 87439325 | CASE |
| 87607509 | CASE |
| 91-27-3422 | WILSON |
| 92901940 | PEUGEOT |
| CCD003AX | CUMMINS |
| CGB-1744 | AINDE |
| CH12807 | PERKINS |
| CST60613AS | CASCO |
| CST60613GS | CASCO |
| M009T82378 | MITSUBISHI |
| M009T82479 | MITSUBISHI |
| M9T82378 | MITSUBISHI |
| M9T82479 | MITSUBISHI |
| MC2378 | ROBERT'S |
| R0461179 | DAF |
| R87D-B11000-CA | FORD |
| STD4334 | KRAUF |
| STM777 | ROLLCO |
| STX201301 | STARDAX |
