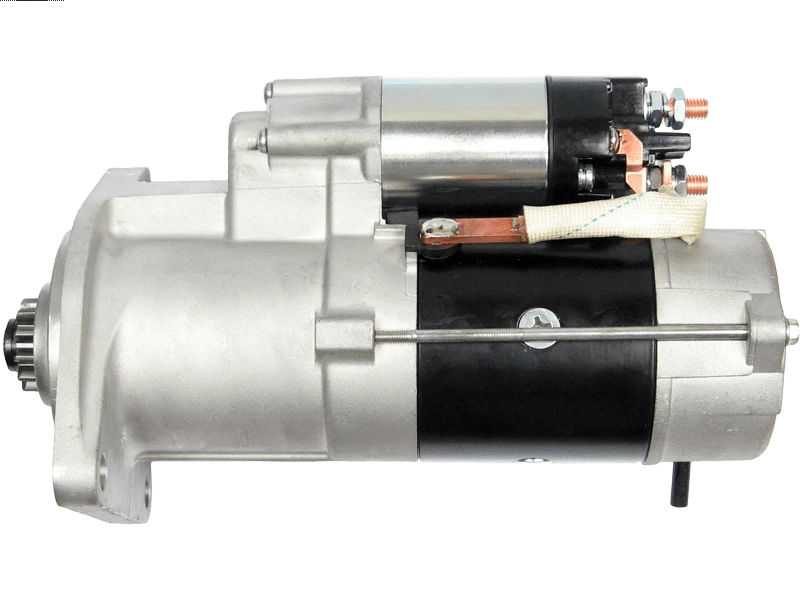

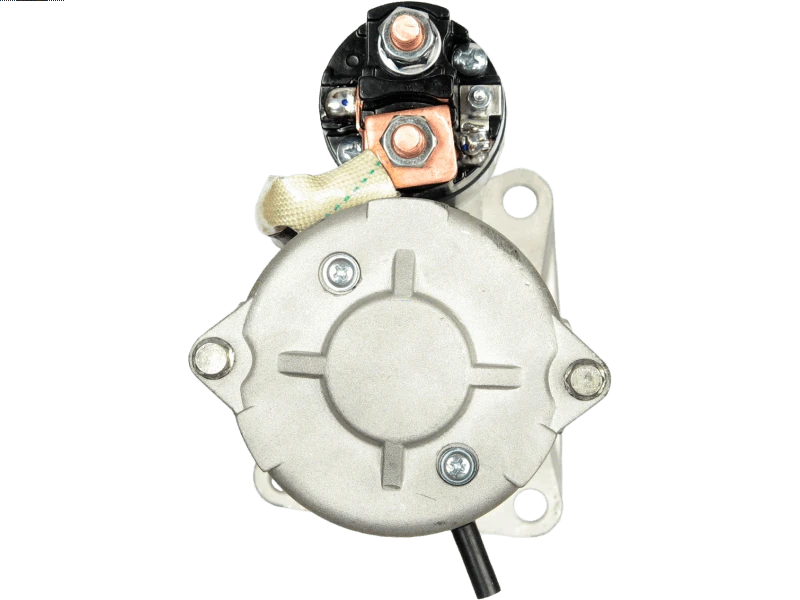

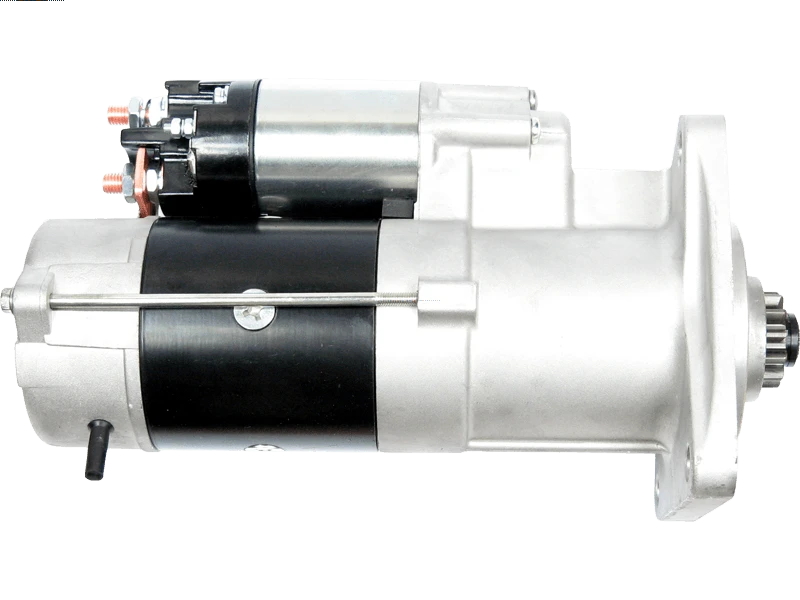

S5078 - Brand new AS-PL Starter motor

Brand new AS-PL Starter motor
Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
MITSUBISHI
Price:
NZ$ 727.73 including GST

NZ$ 632.81 excluding GST
each
S5078
No stock in NZ
Item available to backorder, submit your order. Aprox 7-14 day delay - $40 Air freight charge additional
Purchase Qty:

1811003453 254886 M009T80871 M9T80871
Kilowatt7.5 kW
Length (L.1)348 mm
Mount Hole Center - Center (O.1)168 mm
Mount Hole Center - Center (O.2)116 mm
Mount Hole Center - Center (O.3)141 mm
Mount Hole Diameter (C.1)15 mm
Mount Hole Diameter (C.2)15 mm
Mount Hole Diameter (C.3)15 mm
No./Mount holes3 qty
No./Mount holes with thread0 qty
No./Teeth12 qty
No./Teeth (Replaces)12 qty
Pinion at Rest (B)29 mm
RotationCW
Spigot Diameter (A)105 mm
Unit TypeMITSUBISHI
Voltage24 V
Make Model Type Year
ISUZU Engine [10PE1]
ISUZU Engine [CXZ81K]
254886 1811003453 MAV377000A M9T80871 STR5185 CST35700AS 20437007BN S5078 M009T80871 6035700 STRE238
1811003453 254886 M009T80871 M9T80871 STRE238 S5078
