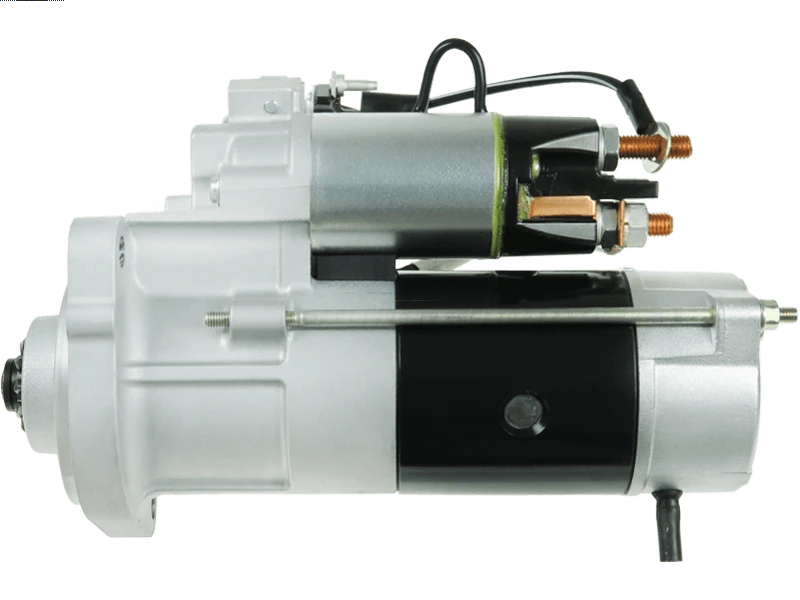

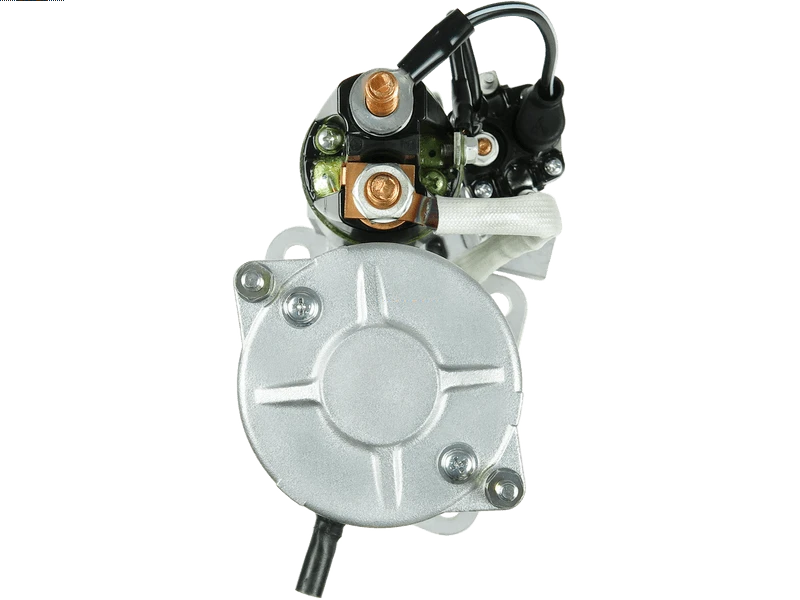

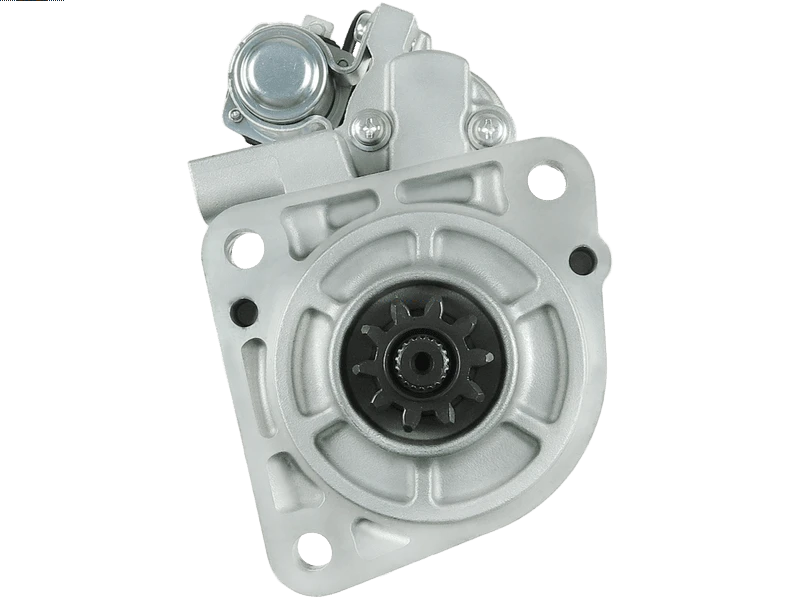

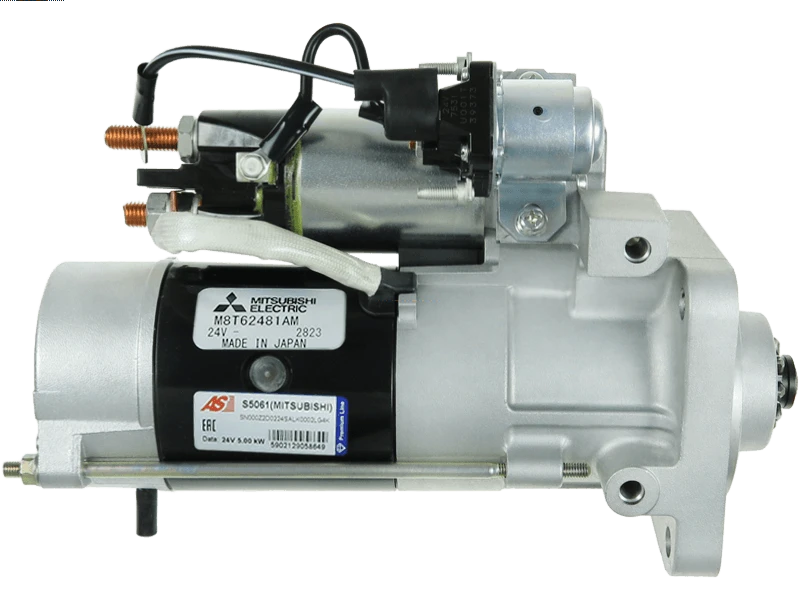

S5061(MITSUBISHI) - Brand new OEM MITSUBISHI Starter motor

Specifications

Kilowatt	5 kW
Length (L.1)	296 mm
Mount Hole Center - Center (O.1)	100.5 mm
Mount Hole Center - Center (O.2)	127.5 mm
Mount Hole Center - Center (O.3)	100.5 mm
Mount Hole Diameter (C.1)	11.5 mm
Mount Hole Diameter (C.2)	11.5 mm
Mount Hole Diameter (C.3)	11.5 mm
No./Mount holes	3 qty
No./Mount holes with thread	0 qty
No./Teeth	10 qty
Pinion at Rest (B)	27 mm
Rotation	CW
Spigot Diameter (A)	89 mm
Unit Type	MITSUBISHI
Voltage	24 V

Vehicle Applications

Make	Model	Type	Year
DENNIS	240 7.1	[D7E240]	05.2003-
DENNIS	240 MS 7.1	[D7E240]	10.2007-
DENNIS	240 RS 7.1	[D7E240]	10.2007-
RENAULT	Lander 320.18 7.2		02.2009-
VOLVO	FE 240-18 7.1	[D7E240]	05.2006-
VOLVO	FE 240-18 7.1	[D7E240]	05.2012-
VOLVO	FE 240-18 7.1	[D7F240]	05.2012-
VOLVO	FE 240-22 7.1	[D7E240]	05.2006-
VOLVO	FE 240-26 7.1	[D7E240]	05.2006-
VOLVO	FE 240-26 7.1	[D7E240]	05.2006-12.2006
VOLVO	FE 240-26 7.1	[D7E240]	05.2012-
VOLVO	FE 260-18 7.1	[D7F260]	05.2012-
VOLVO	FE 260-26 7.1	[D7F260]	05.2012-
VOLVO	FE 280-18 7.1	[D7E280]	05.2012-
VOLVO	FE 280-26 7.1	[D7E280]	05.2012-
VOLVO	FE 300-18 7.1	[D7F300]	05.2012-
VOLVO	FE 300-26 7.1	[D7F300]	05.2012-
VOLVO	FE 320-18 7.1	[D7E320]	05.2012-
VOLVO	FE 320-26 7.1	[D7E320]	05.2012-
VOLVO	FE 340-18 7.1	[D7F340]	05.2012-
VOLVO	FE 340-26 7.1	[D7F340]	05.2012-
VOLVO	FL 240-12 7.1	[D7E240]	05.2006-
VOLVO	FL 240-14 7.1	[D7E240]	06.2009-
VOLVO	FL 240-15 7.1	[D7E240]	05.2006-
VOLVO	FL 240-16 7.1	[D7E240]	05.2006-
VOLVO	FL 240-16 7.1	[D7E240]	06.2009-
VOLVO	FL 240-18 7.1	[D7E240]	05.2006-
VOLVO	FLH 240-12 7.1	[D7E240]	05.2013-
VOLVO	FLH 240-12 7.1	[D7F240]	05.2013-
VOLVO	FLH 240-18 7.1	[D7E240]	05.2013-
VOLVO	FLH 240-18 7.1	[D7F240]	05.2013-
VOLVO	FLH 260-12 7.1	[D7F260]	05.2013-
VOLVO	FLH 260-18 7.1	[D7F260]	05.2013-
VOLVO	FLH 280-12 7.1	[D7E280]	05.2013-
VOLVO	FLH 280-18 7.1	[D7E280]	05.2013-
VOLVO	FLH 290-12 7.1	[D7F290]	05.2013-
VOLVO	FLH 290-18 7.1	[D7F290]	05.2013-
VOLVO	FLL 240-14 7.1	[D7E240]	05.2013-
VOLVO	FLL 240-14 7.1	[D7F240]	05.2013-
VOLVO	FLL 240-15 7.1	[D7E240]	05.2013-
VOLVO	FLL 240-15 7.1	[D7F240]	05.2013-
VOLVO	FLL 240-16 7.1	[D7E240]	05.2013-
VOLVO	FLL 240-16 7.1	[D7F240]	05.2013-
VOLVO	FLL 260-14 7.1	[D7F260]	05.2013-
VOLVO	FLL 260-15 7.1	[D7F260]	05.2013-
VOLVO	FLL 260-16 7.1	[D7F260]	05.2013-
VOLVO	FLL 280-14 7.1	[D7E280]	05.2013-
VOLVO	FLL 280-16 7.1	[D7E280]	05.2013-
VOLVO	FLL 290-14 7.1	[D7F290]	05.2013-
VOLVO	FLL 290-16 7.1	[D7F290]	05.2013-

Reference Information

M008T62481 8154 20437836BN 6035638.1 114323 220555 7420997664 45-4200 85000750 254304 M85R3001SE M8T62481 88213887 20437836OE 30154N 254304M 1027189 1182758 1183209 DRS0392 20997663 STM4323 M008T62481AM 6035638 M8T62481AM UD100851(MITSUBISHI)S 20938971 M008T62471 MAV376380A LRS2528 S24MH0076A2 21645118 1182195 RNLM8T62471 7485003033 EAA-121568 CST35638GS 115889 CST35638AS S24MH0076 UD14620(MITSUBISHI)S M008T62481ZZ9 M8T62471 STR5222 LRS02528 M008T62471AM M8T62471AM
