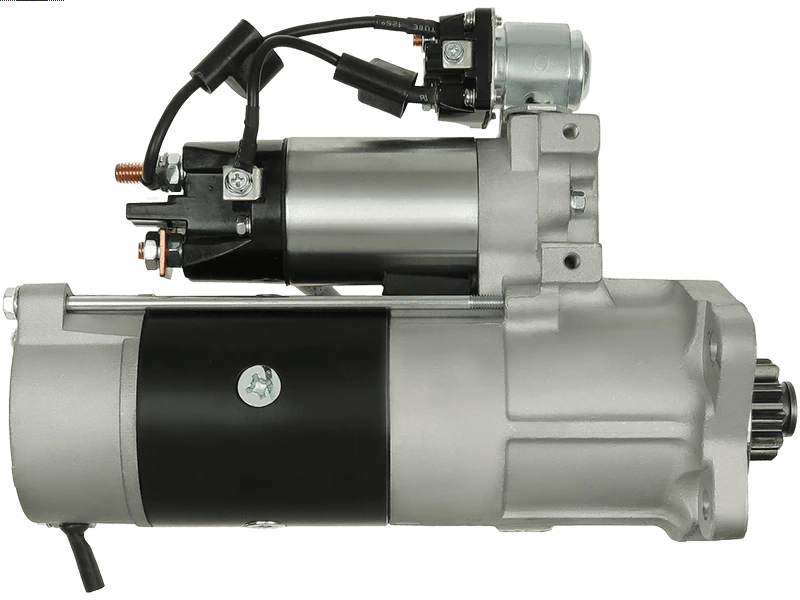

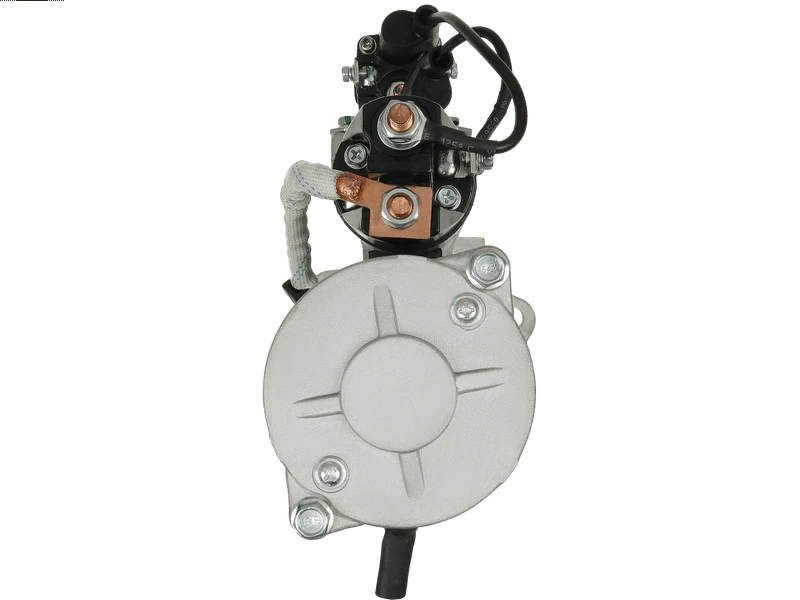

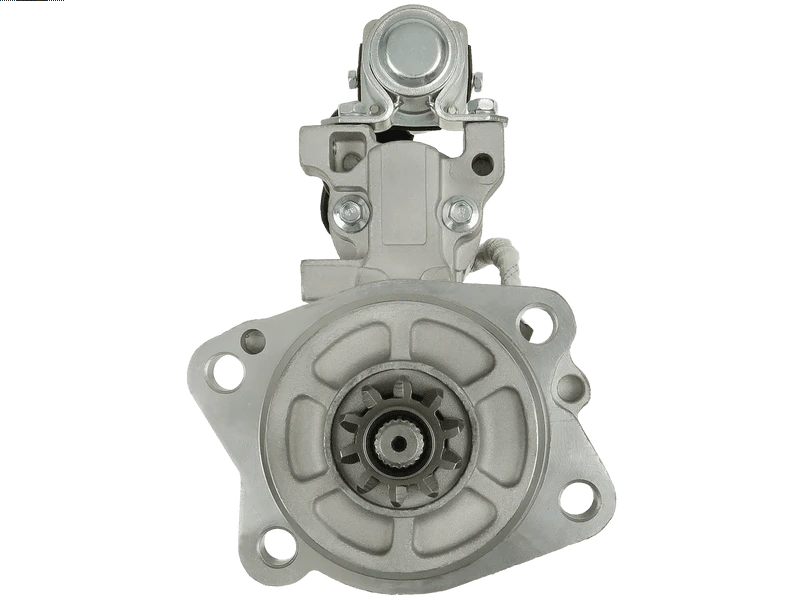

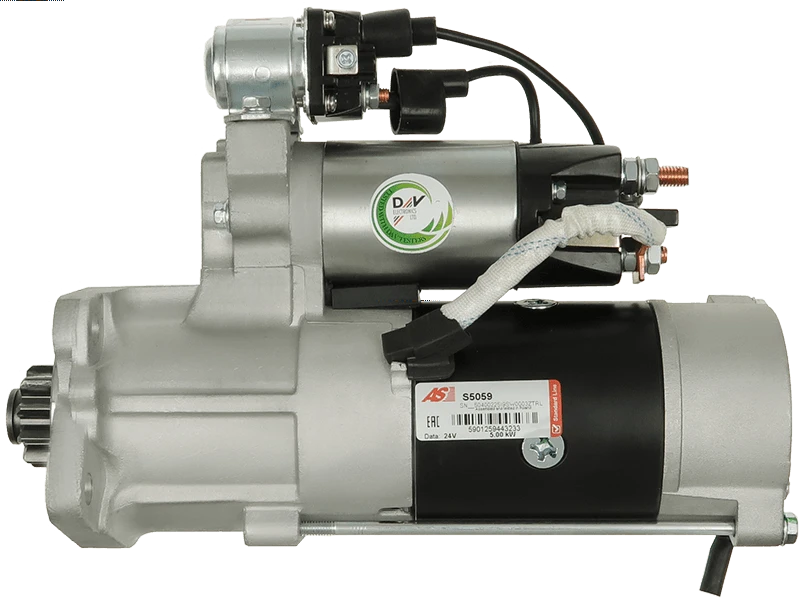

S5059 - Brand new AS-PL Starter motor

Specifications

Kilowatt	5 kW
Length (L.1)	287.5 mm
Mount Hole Center - Center (O.1)	105 mm
Mount Hole Diameter (C.1)	11 mm
Mount Hole Diameter (C.2)	11 mm
No./Mount holes	2 qty
No./Mount holes with thread	0 qty
No./Teeth	10 qty
No./Teeth (Replaces)	10 qty
Pinion at Rest (B)	22 mm
Rotation	CW
Spigot Diameter (A)	82 mm
Unit Type	MITSUBISHI
Voltage	24 V

Vehicle Applications

Make	Model	Type	Year
CATERPILLAR	3066T 320C Diesel
HYUNDAI	R110-7
HYUNDAI	R110-7A
HYUNDAI	R110D-7
HYUNDAI	R110D-7A
HYUNDAI	R140LC-7A
HYUNDAI	R140LC-9
HYUNDAI	R140LCD-7A
HYUNDAI	R140LCM-7A
HYUNDAI	R140W-7A
HYUNDAI	R145CR-9
HYUNDAI	R160LC-7A
HYUNDAI	R160LC-9
HYUNDAI	R16LCD-7A
HYUNDAI	R170W-7A
HYUNDAI	R180LC-7
HYUNDAI	R180LC-7A
HYUNDAI	R180LC-9
HYUNDAI	R180NLC-7A
MITSUBISHI	Engine	[D04FD]
MITSUBISHI	Engine	[S4K]
MITSUBISHI	Engine	[S6K]

Reference Information

32B66-02300 32B66-02303 151.553.102.370 M008T60481 MITM8T60481 20437056OE 32B66-22301 M8T60481 6035650 CST35650AS 32B66-12301 20437056BN CST35650GS STR5309 EAA-121786 DRS0908 M008T60472 M008T60471 6035650.1 130-80117NOE M8T60472 M8T60481AM M8T60471 M008T60481AM STRF651

Video/Publications

20437056OE 254652 32B6602300 6035650 CST35650GS EAA-121786 M008T60471 M8T60471 STRF651
