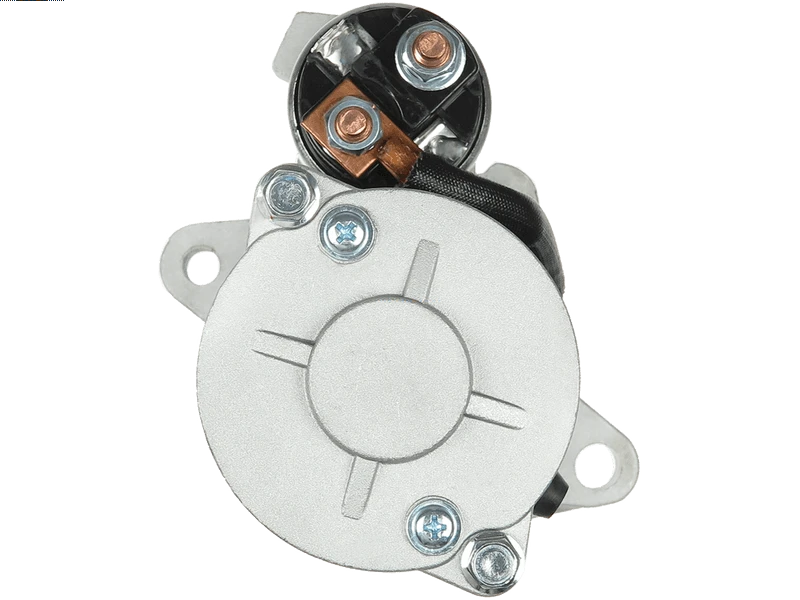

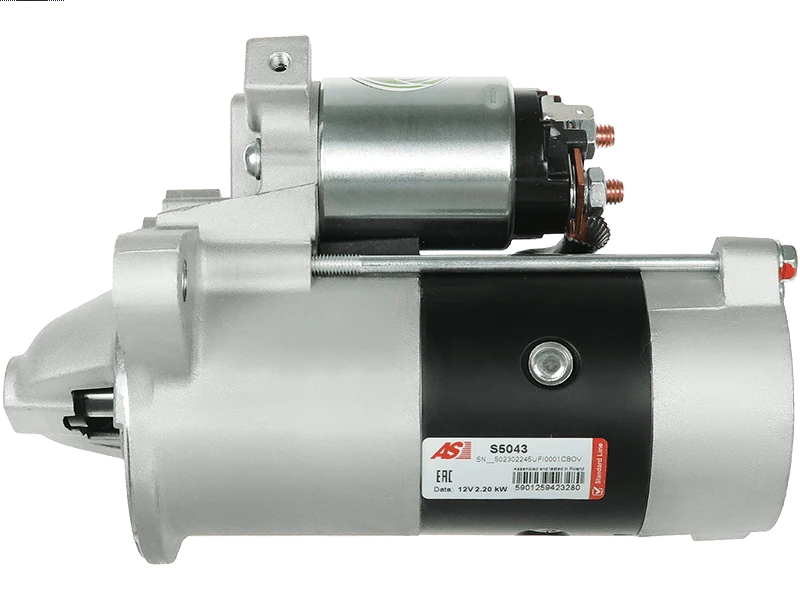

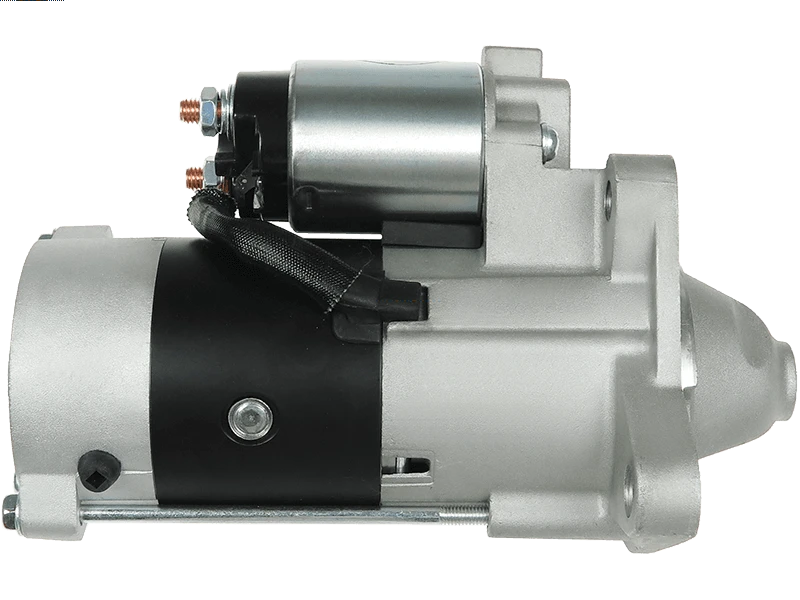

S5043 - Brand new AS-PL Starter motor

Specifications

Kilowatt	2.2 kW
Length (L.1)	228 mm
Mount Hole Center - Center (O.1)	132 mm
Mount Hole Center - Center (O.2)	84 mm
Mount Hole Center - Center (O.3)	89 mm
Mount Hole Diameter (C.1)	M12x1.5 mm
Mount Hole Diameter (C.2)	13.5 mm
Mount Hole Diameter (C.3)	M12x1.5 mm
No./Mount holes	3 qty
No./Mount holes with thread	2 qty
No./Teeth	10 qty
No./Teeth (Replaces)	10 qty
Pinion at Rest (B)	5.5 mm
Rotation	CW
Spigot Diameter (A)	88 mm
Unit Type	MITSUBISHI
Voltage	12 V

Vehicle Applications

Make	Model	Type	Year
MAZDA	323 2.0 Diesel	(BA)[RF]	05.1998-10.2000
MAZDA	323 2.0 Diesel	(BA)[RF1G]	10.1996-09.1998
MAZDA	323 2.0 Diesel	(BJ)	05.1998-10.2000
MAZDA	323 2.0 TD	(BJ)[RF]	07.1998-01.2001
MAZDA	323 F 2.0 TD	(BJ)[RF4F]	01.2001-05.2004
MAZDA	323 S 2.0 Diesel	(BJ)[RF4F]	10.2000-10.2002
MAZDA	626 2.0 Diesel	(GF)[RF]	04.1998-10.2002
MAZDA	626 2.0 Diesel	(GW)[RF4F]	04.1998-10.2002
MAZDA	626 2.0 TD		10.2000-10.2002
MAZDA	626 2.0 TDDi		04.1998-10.2002
MAZDA	E 2000 2.2 Diesel	(SR2)[R2]	02.1997-08.1999
MAZDA	E 2000 2.2 Diesel 4WD	(SR2)[R2]	02.1997-12.2001
MAZDA	E 2200 2.2 Diesel	(SR2)[R2]	02.1997-08.2002
MAZDA	E 2200 2.2 Diesel 4WD	(SR2)[R2]	02.1997-12.2001
MAZDA	Premacy 2.0 TD	(CP)[RF3F]	10.1999-07.2000
MAZDA	Premacy 2.0 TD	(CP)[RF4F]	07.2000-

Reference Information

113318 20437541BN M002T87471 8213216 ANM16134X 9662 M001T3097 25-2439 201238 CST35145RS LRS01492 SS475 20437541OE M2T87471 12012 RF1H18300 MAV371450 AET1238 22.1238 32492N JS1238 22.1238M 8EA738007-001 8052337 LRS1492 STRS342 5035741 DRS3914 CST35145OS RF1H-18-400 STR71008 6035145 STR5245 201238V CST35145AS M01T3097 CST35145GS CST35145 CST35145ES S12MH0322A2
