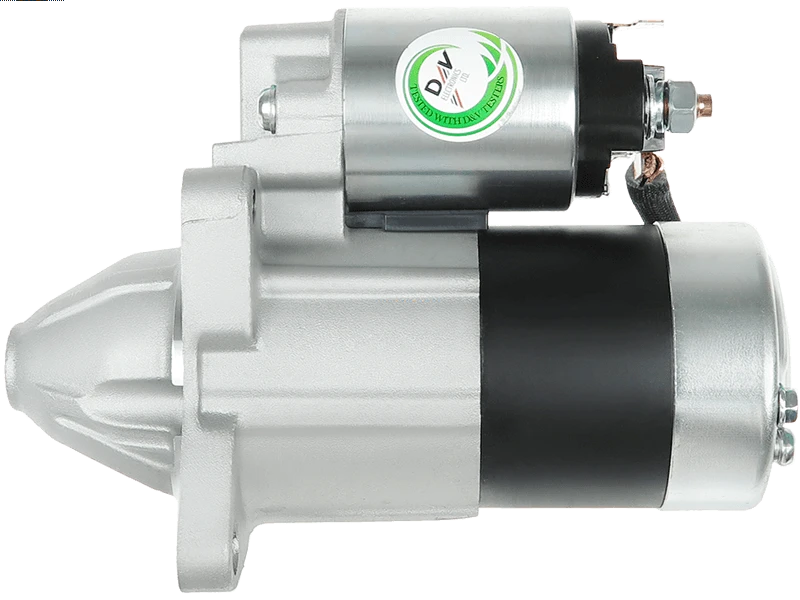

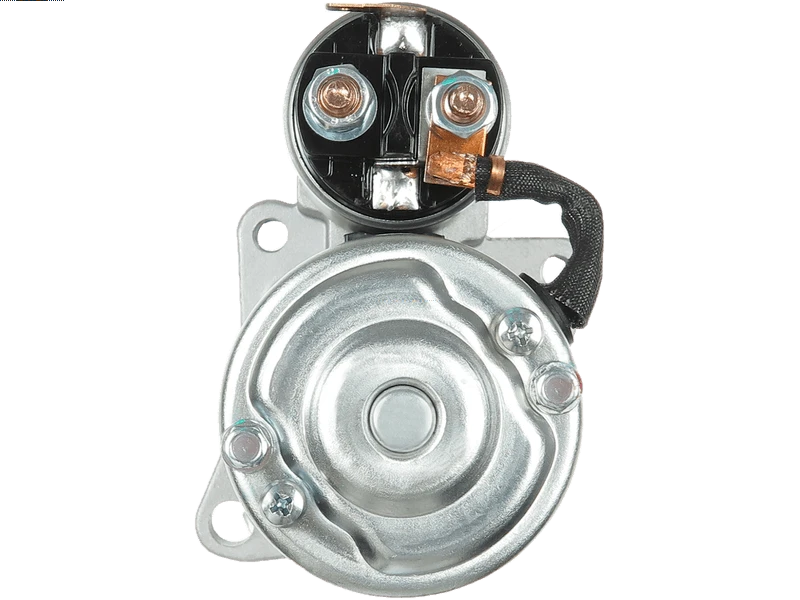

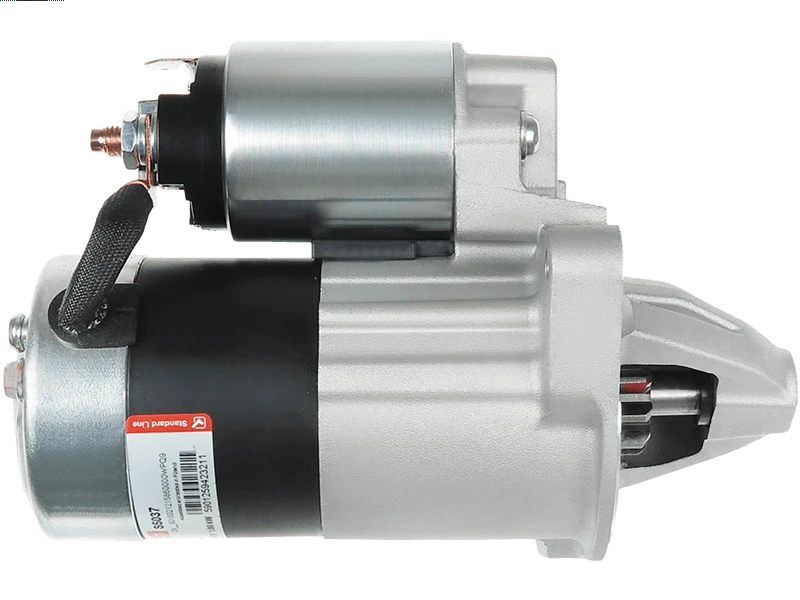

S5037 - Brand new AS-PL Starter motor

Specifications

Kilowatt	1 kW
Length (L.1)	194 mm
Mount Hole Center - Center (O.1)	79 mm
Mount Hole Center - Center (O.2)	111 mm
Mount Hole Center - Center (O.3)	78 mm
Mount Hole Diameter (C.1)	M10x1.25 mm
Mount Hole Diameter (C.2)	12.5 mm
Mount Hole Diameter (C.3)	M10x1.25 mm
No./Mount holes	3 qty
No./Mount holes with thread	2 qty
No./Teeth	10 qty
No./Teeth (Replaces)	8. 10 qty
Pinion at Rest (B)	13 mm
Rotation	CW
Spigot Diameter (A)	74 mm
Unit Type	MITSUBISHI
Voltage	12 V

Vehicle Applications

Make	Model	Type	Year
MAZDA	323 1.8 16V	[FP]	05.1998-05.2004
MAZDA	323 F 2.0	[FS7E]	01.2001-05.2004
MAZDA	323 F 2.0	[FS7G]	01.2001-05.2004
MAZDA	323 S 2.0	[FS7E]	01.2001-
MAZDA	323 S 2.0	[FS7G]	01.2001-05.2004
MAZDA	626 1.8	[FP]	05.1997-03.2002
MAZDA	626 1.8	[FP9A]	08.1999-03.2002
MAZDA	626 1.8 i	[FP]	01.1992-04.1997
MAZDA	626 2.0	[FS]	05.1997-04.2002
MAZDA	626 2.0	[FS2C]	02.1998-04.2002
MAZDA	626 2.0 i	[FS]	05.1994-04.1997
MAZDA	626 2.0 i 4WD	[FS]	05.1994-04.1997
MAZDA	MPV 2.0		08.2000-07.2002
MAZDA	MPV 2.0 i 16V	[FS-DS]	06.1999-04.2002
MAZDA	Premacy 1.8	[FP]	03.1999-01.2005
MAZDA	Premacy 2.0	[FS7E]	11.2001-
MAZDA	Premacy 2.0	[FS7G]	11.2001-

Reference Information

STRW373 F22518400A EP13-18-400 22.1096 8EA737476-001 F50518400 FP34-18-400A 3M201 M0T80381 CST35186RS F7RU-11000-AA STR5418 DRS3725 STR71038 F7RU11000AA 458233 12036 88212212 F225-18-400A LRS01306 8212212 9676 003-M201 STR5147 JS1096 20513071 CST35186ES 0K956-18-400B 6035186 201096 S5037 CST35186 CST35186AS FP13-18-400 17765N SS539 111730 MTM201 AET1096 EAA-121353 OK32618400 OK326-18-400 K95618400 335486 986018711 25-2056 20437681BN S1221M 8052333 LRS1306 S1225M ANM15945X 000986018711 K95618400B 220484 CST35186OS FP34-18-400 M000T80381 CST35186GS 9348BA F505-18-400 MAV371860 STA0436R 0K95618400
