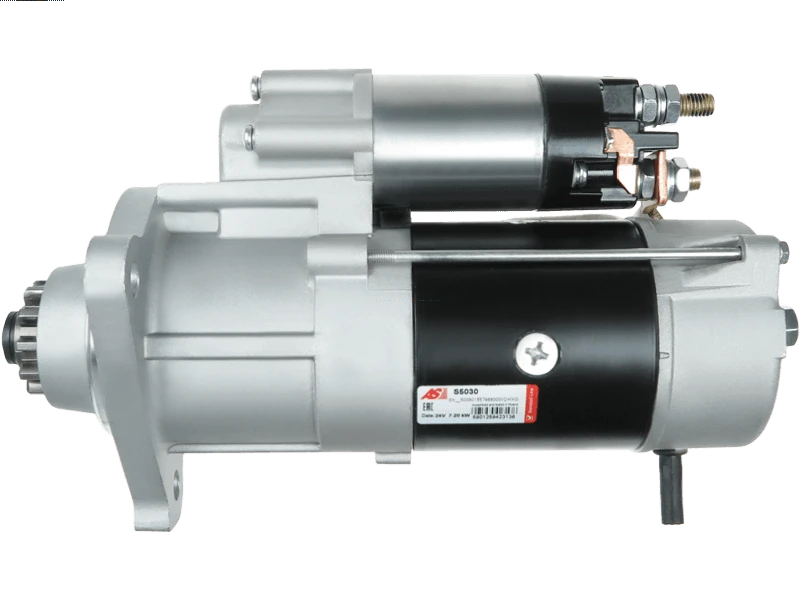

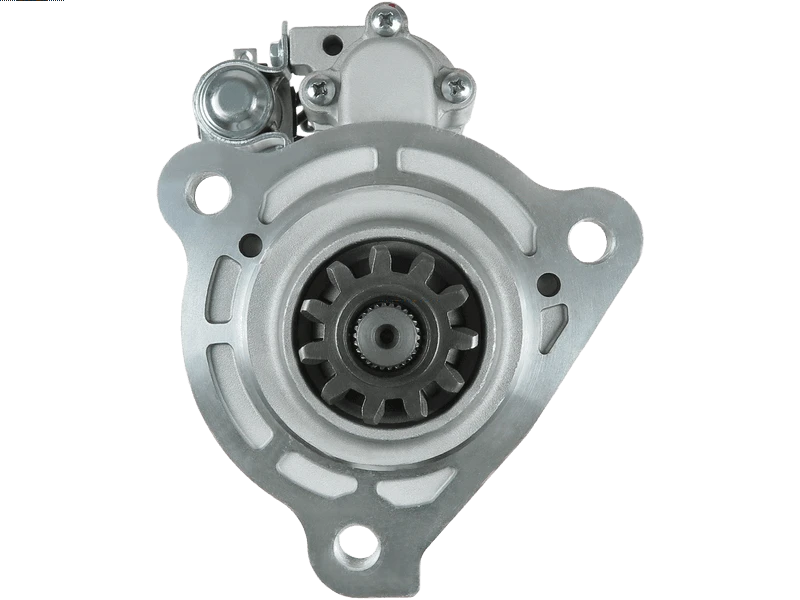

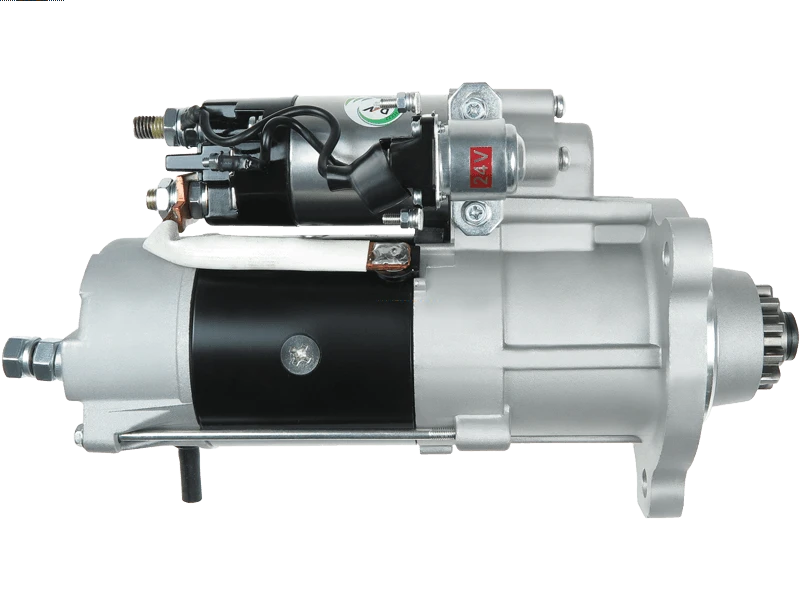

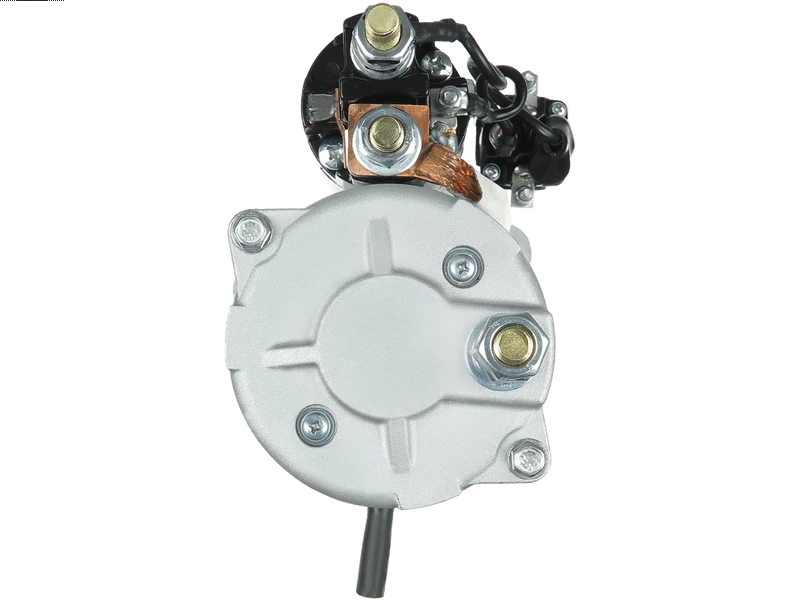

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
MITSUBISHI
Price:
NZ$ 705.15 including GST
NZ$ 613.17 excluding GST
or four payments of $176.29
with
Learn More
UOM:
each
Product Code:
S5030
Quantity In Stock Nationally
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
M9T80071Associated Numbers
101164 101164P 114100 19979N 20437036OE 20437116OE 254261 254261P 28.3028 30251N 45-3425 5001853716 5010306631 6035611 6035630 8152 CST35611GS CST35630GS DRS0127 EAA-121229 LRS02254 M009T80072 M105R3032SE M9T80071 M9T80072 M9T80271 M9T80272 S5030 STR71075Specifications
| Kilowatt | 7.20 kW |
| Length (L.1) | 380 mm |
| Mount Hole Center - Center (O.1) | 126 mm |
| Mount Hole Center - Center (O.2) | 126 mm |
| Mount Hole Center - Center (O.3) | 126 mm |
| Mount Hole Diameter (C.1) | 13.50 mm |
| Mount Hole Diameter (C.2) | 13.50 mm |
| Mount Hole Diameter (C.3) | 13.50 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 11 qty |
| No./Teeth (Replaces) | 11 qty |
| OEM Product | No |
| Pinion at Rest (B) | 48 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 92 mm |
| Unit Type | MITSUBISHI |
| Voltage | 24 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| RENAULT TRUCKS | MAGNUM 420.18 | MIDR06.35.40P/41 | 04.1996-12.1996 |
| RENAULT TRUCKS | MAGNUM 420.18 | MIDR06.35.40P/41 | 04.1996-12.1996 |
| RENAULT TRUCKS | MAGNUM 420.19 | MIDR06.35.40P/41 | 04.1996-12.1996 |
| RENAULT TRUCKS | MAGNUM 420.19 | MIDR06.35.40P/41 | 04.1996-12.1996 |
| RENAULT TRUCKS | MAGNUM 420.24 | MIDR06.35.40P/41 | 04.1996-12.1996 |
| RENAULT TRUCKS | MAGNUM 420.26 | MIDR06.35.40P/41 | 04.1996-12.1996 |
| RENAULT TRUCKS | MAGNUM 430.22 | MIDR06.24.65B/42 | 04.1996-04.2000 |
| RENAULT TRUCKS | MAGNUM 430.22 | MIDR06.24.65B/42 | 04.1996-04.2000 |
| RENAULT TRUCKS | MAGNUM 430.24 | MIDR06.24.65B/42 | 04.1996-04.2000 |
| RENAULT TRUCKS | MAGNUM 430.24 | MIDR06.24.65B/42 | 04.1996-04.2000 |
| RENAULT TRUCKS | MAGNUM 430.24 | MIDR06.24.65B/42 | 04.1996-04.2000 |
| RENAULT TRUCKS | MAGNUM 440.19 | MIDR06.24.65B/46 | 02.2000-03.2005 |
| RENAULT TRUCKS | MAGNUM 440.19 | MIDR06.24.65B/46 | 04.1996-03.2005 |
| RENAULT TRUCKS | MAGNUM 440.22 | MIDR06.24.65B/46 | 02.2000-03.2005 |
| RENAULT TRUCKS | MAGNUM 440.22 | MIDR06.24.65B/46 | 05.2000-03.2005 |
| RENAULT TRUCKS | MAGNUM 440.24 | DXi12 | 03.2005-08.2006 |
| RENAULT TRUCKS | MAGNUM 440.24 | MIDR06.24.65B/46 | 02.2000-03.2005 |
| RENAULT TRUCKS | MAGNUM 440.24 | MIDR06.24.65B/46 | 05.2000-03.2005 |
| RENAULT TRUCKS | MAGNUM 440.24 | MIDR06.24.65B/46 | 12.1999-03.2005 |
| RENAULT TRUCKS | MAGNUM 440.26 | MIDR06.24.65B/46 | 12.1999-03.2005 |
| RENAULT TRUCKS | MAGNUM 470.22 | MIDR06.24.65C/42 | 04.1996-04.2000 |
| RENAULT TRUCKS | MAGNUM 470.22 | MIDR06.24.65C/42 | 04.1996-04.2000 |
| RENAULT TRUCKS | MAGNUM 470.26 | MIDR06.24.65C/42 | 04.1996-04.2000 |
| RENAULT TRUCKS | MAGNUM 480.19 | MIDR06.24.65C/46 | 02.2000-03.2005 |
| RENAULT TRUCKS | MAGNUM 480.19 | MIDR06.24.65C/46 | 04.1996-03.2005 |
| RENAULT TRUCKS | MAGNUM 480.22 | MIDR06.24.65C/46 | 02.2000-03.2005 |
| RENAULT TRUCKS | MAGNUM 480.22 | MIDR06.24.65C/46 | 05.2000-03.2005 |
| RENAULT TRUCKS | MAGNUM 480.24 | MIDR06.24.65C/46 | 02.2000-03.2005 |
| RENAULT TRUCKS | MAGNUM 480.24 | MIDR06.24.65C/46 | 05.2000-03.2005 |
| RENAULT TRUCKS | MAGNUM 480.24 | MIDR06.24.65C/46 | 12.1999-03.2005 |
| RENAULT TRUCKS | MAGNUM 480.26 | MIDR06.24.65C/46 | 12.1999-03.2005 |
| RENAULT TRUCKS | MAGNUM AE 390.18 | MIDR06.24.65A/42 | 09.1996- |
| RENAULT TRUCKS | MAGNUM AE 390.18T | MIDR06.24.65A/42 | 09.1996- |
| RENAULT TRUCKS | MAGNUM AE 390.19 | MIDR06.24.65A/42 | 09.1996- |
| RENAULT TRUCKS | MAGNUM AE 390.19T | MIDR06.24.65A/42 | 09.1996- |
| RENAULT TRUCKS | MAGNUM AE 390.26 | MIDR06.24.65A/42 | 09.1996- |
| RENAULT TRUCKS | MAGNUM AE 420ti.18 | MIDR06.35.40J/3 | 10.1992-12.1996 |
| RENAULT TRUCKS | MAGNUM AE 420ti.18 | MIDR06.35.40P/41 | 10.1992-12.1996 |
| RENAULT TRUCKS | MAGNUM AE 420ti.18T | MIDR06.35.40J/3 | 10.1992-12.1996 |
| RENAULT TRUCKS | MAGNUM AE 420ti.18T | MIDR06.35.40P/41 | 10.1992-12.1996 |
| RENAULT TRUCKS | MAGNUM AE 420ti.19 | MIDR06.35.40J/3 | 10.1992-12.1996 |
| RENAULT TRUCKS | MAGNUM AE 420ti.19 | MIDR06.35.40P/41 | 10.1992-12.1996 |
| RENAULT TRUCKS | MAGNUM AE 420ti.19T | MIDR06.35.40J/3 | 10.1992-12.1996 |
| RENAULT TRUCKS | MAGNUM AE 420ti.19T | MIDR06.35.40P/41 | 10.1992-12.1996 |
| RENAULT TRUCKS | MAGNUM AE 420ti.22T | MIDR06.35.40J/3 | 10.1992-10.1996 |
| RENAULT TRUCKS | MAGNUM AE 420ti.22T | MIDR06.35.40P/41 | 10.1992-10.1996 |
| RENAULT TRUCKS | MAGNUM AE 420ti.24 | MIDR06.35.40J/3 | 10.1992-12.1996 |
| RENAULT TRUCKS | MAGNUM AE 420ti.24 | MIDR06.35.40P/41 | 10.1992-12.1996 |
| RENAULT TRUCKS | MAGNUM AE 420ti.24T | MIDR06.35.40J/3 | 10.1992-12.1996 |
| RENAULT TRUCKS | MAGNUM AE 420ti.24T | MIDR06.35.40P/41 | 10.1992-12.1996 |
| RENAULT TRUCKS | MAGNUM AE 420ti.26 | MIDR06.35.40J/3 | 10.1992-12.1996 |
| RENAULT TRUCKS | MAGNUM AE 420ti.26 | MIDR06.35.40P/41 | 10.1992-12.1996 |
| RENAULT TRUCKS | MAGNUM AE 420ti.26T | MIDR06.35.40J/3 | 10.1992-12.1996 |
| RENAULT TRUCKS | MAGNUM AE 420ti.26T | MIDR06.35.40P/41 | 10.1992-12.1996 |
| RENAULT TRUCKS | MAGNUM AE 430.18 | MIDR06.24.65B/42 | 09.1996- |
| RENAULT TRUCKS | MAGNUM AE 430.18T | MIDR06.24.65B/42 | 09.1996- |
| RENAULT TRUCKS | MAGNUM AE 430.19 | MIDR06.24.65B/42 | 09.1996- |
| RENAULT TRUCKS | MAGNUM AE 430.19T | MIDR06.24.65B/42 | 09.1996- |
| RENAULT TRUCKS | MAGNUM AE 430.26 | MIDR06.24.65B/42 | 09.1996- |
| RENAULT TRUCKS | MAGNUM AE 430.26T | MIDR06.24.65B/42 | 01.1997- |
| RENAULT TRUCKS | MAGNUM AE 430.26T | MIDR06.24.65B/42 | 01.1998- |
| RENAULT TRUCKS | MAGNUM AE 470.18 | MIDR06.24.65C/42 | 11.1996- |
| RENAULT TRUCKS | MAGNUM AE 470.18T | MIDR06.24.65C/42 | 11.1996- |
| RENAULT TRUCKS | MAGNUM AE 470.19 | MIDR06.24.65C/42 | 11.1996- |
| RENAULT TRUCKS | MAGNUM AE 470.19T | MIDR06.24.65C/42 | 11.1996- |
| RENAULT TRUCKS | MAGNUM AE 470.26 | MIDR06.24.65C/42 | 01.1997- |
| RENAULT TRUCKS | MAGNUM AE 470.26T | MIDR06.24.65C/42 | 01.1998- |
| RENAULT TRUCKS | MAGNUM AE 520.18 | Mack-EE9-530 | 10.1992-05.1996 |
| RENAULT TRUCKS | MAGNUM AE 520.18T | Mack-EE9-530 | 10.1992-05.1996 |
| RENAULT TRUCKS | MAGNUM AE 520.19 | Mack-EE9-530 | 10.1992-05.1996 |
| RENAULT TRUCKS | MAGNUM AE 520.19T | Mack-EE9-530 | 10.1992-05.1996 |
| RENAULT TRUCKS | MAGNUM AE 520.22T | Mack-EE9-530 | 10.1992-05.1996 |
| RENAULT TRUCKS | MAGNUM AE 520.24 | Mack-EE9-530 | 10.1992-05.1996 |
| RENAULT TRUCKS | MAGNUM AE 520.24T | Mack-EE9-530 | 10.1992-05.1996 |
| RENAULT TRUCKS | MAGNUM AE 520.26 | Mack-EE9-530 | 10.1992- |
| RENAULT TRUCKS | MAGNUM AE 520.26T | Mack-EE9-530 | 10.1992-05.1996 |
| RENAULT TRUCKS | MAGNUM DXi 12 440.24 | DXi12 | 10.2004-04.2006 |
| RENAULT TRUCKS | MAGNUM E.TECH 400.18 | MACKE.TECHA/46 | 05.2000- |
| RENAULT TRUCKS | MAGNUM E.TECH 400.18T | MACKE.TECHA/46 | 05.2000- |
| RENAULT TRUCKS | MAGNUM E.TECH 400.24 | MACKE.TECHA/46 | 05.2000- |
| RENAULT TRUCKS | MAGNUM E.TECH 400.26 | MACKE.TECHA/46 | 05.2000- |
| RENAULT TRUCKS | MAGNUM E.TECH 440.18 | MACKE.TECHB/46 | 05.2000- |
| RENAULT TRUCKS | MAGNUM E.TECH 440.18T | MACKE.TECHB/46 | 05.2000- |
| RENAULT TRUCKS | MAGNUM E.TECH 440.24 | MACKE.TECHB/46 | 05.2000- |
| RENAULT TRUCKS | MAGNUM E.TECH 440.26 | MACKE.TECHB/46 | 05.2000- |
| RENAULT TRUCKS | MAGNUM E.TECH 440.26T | MACKE.TECHB/46 | 05.2000- |
| RENAULT TRUCKS | MAGNUM E.TECH 440.26T | MACKE.TECHB/46 | 05.2000- |
| RENAULT TRUCKS | MAGNUM E.TECH 480.18 | MACKE.TECHC/46 | 05.2000- |
| RENAULT TRUCKS | MAGNUM E.TECH 480.18T | MACKE.TECHC/46 | 05.2000- |
| RENAULT TRUCKS | MAGNUM E.TECH 480.24 | MACKE.TECHC/46 | 05.2000- |
| RENAULT TRUCKS | MAGNUM E.TECH 480.26 | MACKE.TECHC/46 | 05.2000- |
| RENAULT TRUCKS | MAGNUM E.TECH 480.26T | MACKE.TECHC/46 | 05.2000- |
| RENAULT TRUCKS | MAGNUM E.TECH 480.26T | MACKE.TECHC/46 | 05.2000- |
| RENAULT V.I. | Magnum 390.18 12.0 | [MIDR06.24.65A/42] | 09.1996- |
| RENAULT V.I. | Magnum 390.18T 12.0 | [MIDR06.24.65A/42] | 09.1996- |
| RENAULT V.I. | Magnum 390.19 12.0 | [MIDR06.24.65A/42] | 09.1996- |
| RENAULT V.I. | Magnum 390.19T 12.0 | [MIDR06.24.65A/42] | 09.1996- |
| RENAULT V.I. | Magnum 390.26 12.0 | [MIDR06.24.65A/42] | 09.1996- |
| RENAULT V.I. | Magnum 430.18 12.0 | [MIDR06.24.65B/42] | 09.1996- |
| RENAULT V.I. | Magnum 430.18T 12.0 | [MIDR06.24.65B/42] | 09.1996- |
| RENAULT V.I. | Magnum 430.19 12.0 | [MIDR06.24.65B/42] | 09.1996- |
| RENAULT V.I. | Magnum 430.19T 12.0 | [MIDR06.24.65B/42] | 09.1996- |
| RENAULT V.I. | Magnum 430.26 12.8 | [MIDR06.24.65B/42] | 09.1996- |
| RENAULT V.I. | Magnum 430.26T 12.0 | [MIDR06.24.65B/42] | 01.1997- |
| RENAULT V.I. | Magnum 430.26T 12.0 | [MIDR06.24.65B/42] | 01.1998- |
| RENAULT V.I. | Magnum 470.18 12.0 | [MIDR06.24.65C/42] | 11.1996- |
| RENAULT V.I. | Magnum 470.18T 12.0 | [MIDR06.24.65C/42] | 11.1996- |
| RENAULT V.I. | Magnum 470.19 12.0 | [MIDR06.24.65C/42] | 11.1996- |
| RENAULT V.I. | Magnum 470.19T 12.0 | [MIDR06.24.65C/42] | 11.1996- |
| RENAULT V.I. | Magnum 470.26 12.0 | [MIDR06.24.65C/42] | 01.1997- |
| RENAULT V.I. | Magnum 470.26T 12.0 | [MIDR06.24.65C/42] | 01.1998- |
| RENAULT V.I. | Magnum 520.18 16.5 | [Mack-EE9-530] | 10.1992-05.1996 |
| RENAULT V.I. | Magnum 520.18T 16.5 | [Mack-EE9-530] | 10.1992-05.1996 |
| RENAULT V.I. | Magnum 520.19 16.5 | [Mack-EE9-530] | 10.1992-05.1996 |
| RENAULT V.I. | Magnum 520.19T 16.5 | [Mack-EE9-530] | 10.1992-05.1996 |
| RENAULT V.I. | Magnum 520.22T 16.5 | [Mack-EE9-530] | 10.1992-05.1996 |
| RENAULT V.I. | Magnum 520.24 16.5 | [Mack-EE9-530] | 10.1992-05.1996 |
| RENAULT V.I. | Magnum 520.24T 16.5 | [Mack-EE9-530] | 10.1992-05.1996 |
| RENAULT V.I. | Magnum 520.26 16.5 | [Mack-EE9-530] | 10.1992- |
| RENAULT V.I. | Magnum 520.26T 16.5 | [Mack-EE9-530] | 10.1992-05.1996 |
Reference Information
| 11.139.174 | ISKRA / LETRIKA |
| 114100 | CARGO |
| 115893 | CARGO |
| 130-90132 | ROBERT'S |
| 19081011 | DELCO |
| 20437116BN | REAL |
| 20437116OE | REAL |
| 220259 | ERA |
| 220567 | ERA |
| 220568 | ERA |
| 254261 | KUHNER |
| 254261P | KUHNER |
| 30251N | WAI |
| 438009 | VALEO |
| 453425 | ELSTOCK |
| 5001853716 | RENAULT |
| 5010306631 | RENAULT |
| 5010480432 | RENAULT |
| 5010508381 | RENAULT |
| 5010508382 | RENAULT |
| 5010853716 | RENAULT |
| 5135145 | MEAT & DORIA |
| 6035611.0 | SANDO |
| 6035611.1 | SANDO |
| 72482221 | MAHLE |
| 88212249 | POWERMAX |
| 8EA012586-151 | HELLA |
| AZG4876 | ISKRA / LETRIKA |
| CS1164 | HC PARTS |
| CS1497 | HC PARTS |
| CST35611AS | CASCO |
| CST35611GS | CASCO |
| DRS0466 | DELCO |
| DS1576 | DELCO |
| F032114100 | CARGO |
| F032115893 | CARGO |
| IS9478 | ISKRA / LETRIKA |
| LRS02254 | LUCAS |
| M009T80071 | MITSUBISHI |
| M009T80071AM | MITSUBISHI |
| M009T80072 | MITSUBISHI |
| M009T80072AM | MITSUBISHI |
| M009T80271 | MITSUBISHI |
| M009TA0071 | MITSUBISHI |
| M105R3032SE | PRESTOLITE |
| M9T80071 | MITSUBISHI |
| M9T80071AM | MITSUBISHI |
| M9T80072 | MITSUBISHI |
| M9T80072AM | MITSUBISHI |
| M9T80271 | MITSUBISHI |
| M9T80272 | MITSUBISHI |
| M9TA0071 | MITSUBISHI |
| MAV376110 | SIOM |
| MS884 | MAHLE |
| PRSL311 | 3EFFE |
| PRSL777 | 3EFFE |
| S24MH0085A2 | SIDAT |
| S5030 | AS-PL |
| STD1164 | KRAUF |
| STM1164 | KRAUF |
| STM8164 | KRAUF |
| STP1164 | KRAUF |
| STR5207 | ELECTROLOG |
| STR79595 | ELECTROLOG |
| STRL311 | 3EFFE |
| STRL777 | 3EFFE |
| STV1164 | KRAUF |
| UD19651S | AS-PL |
Video/Publications
S5030View your shopping basket or Browse other items in Starter Motors.
