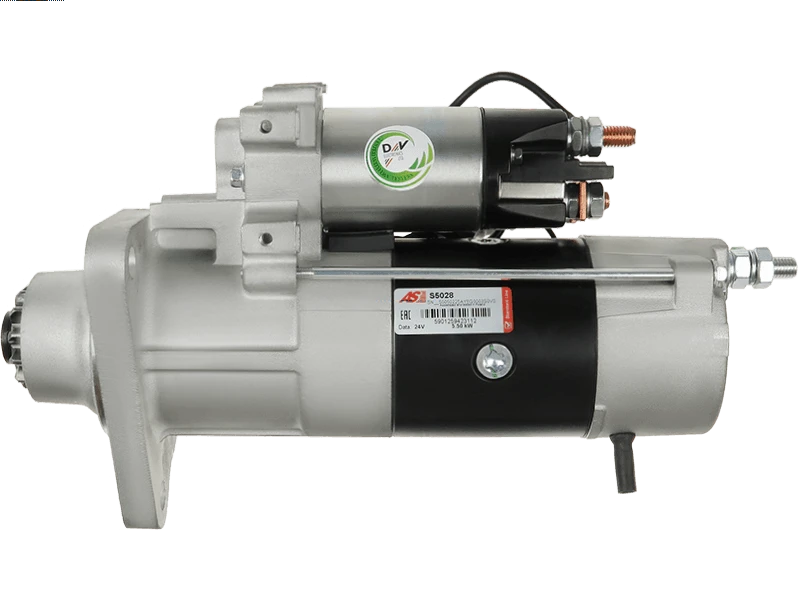

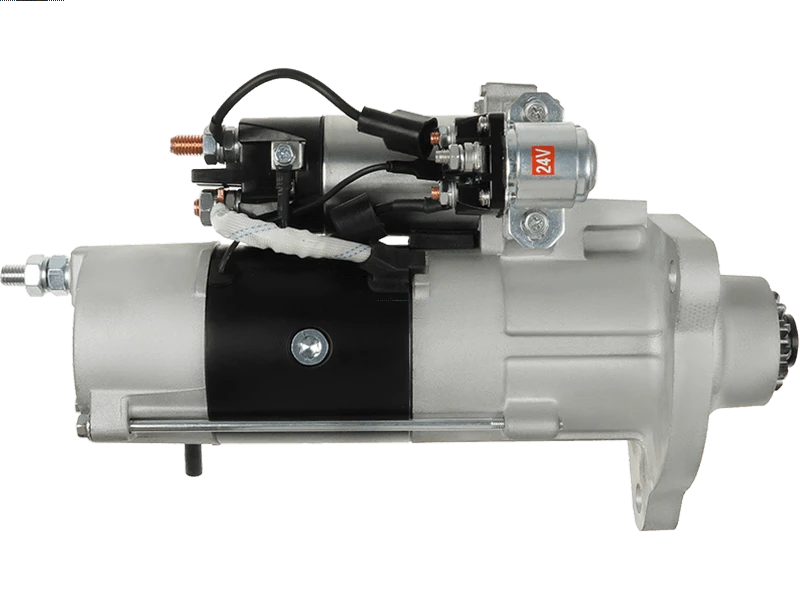

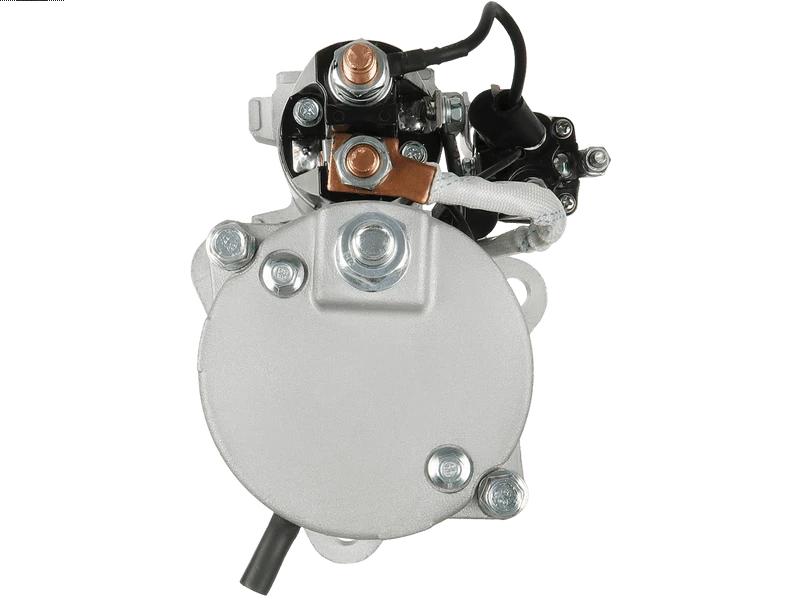

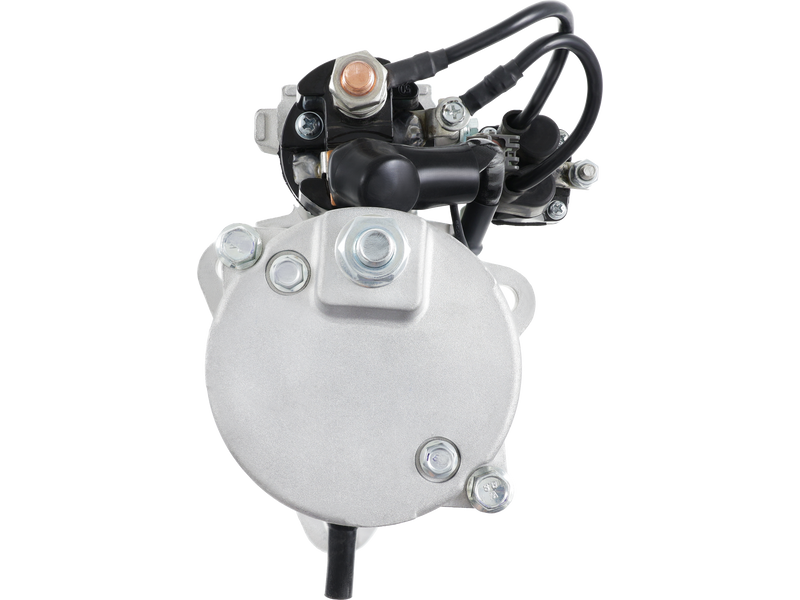

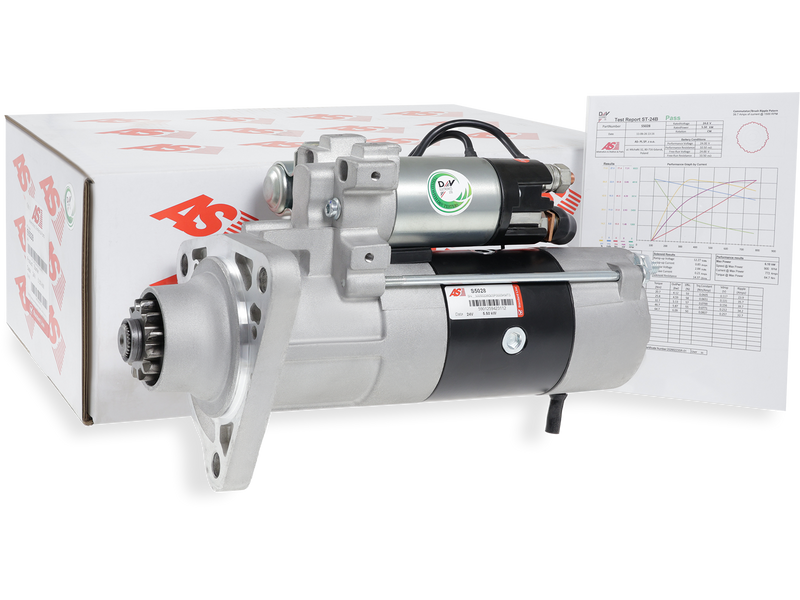

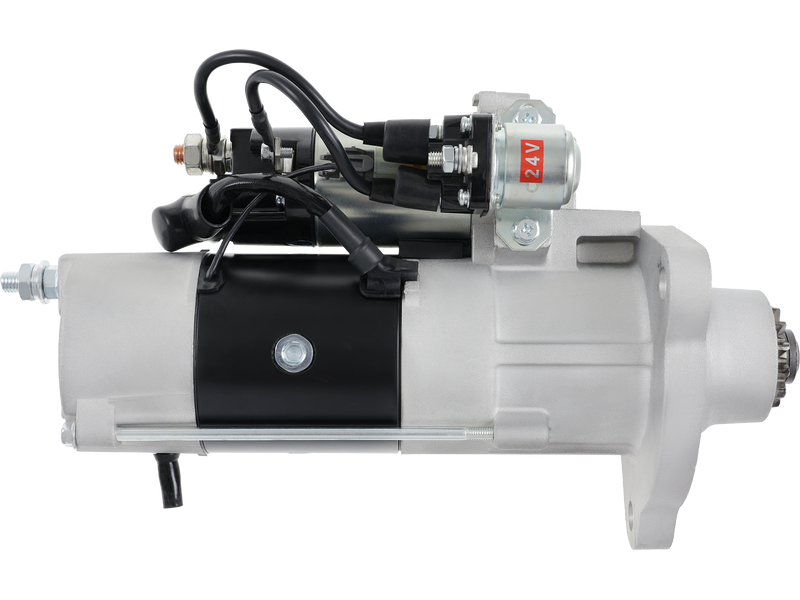

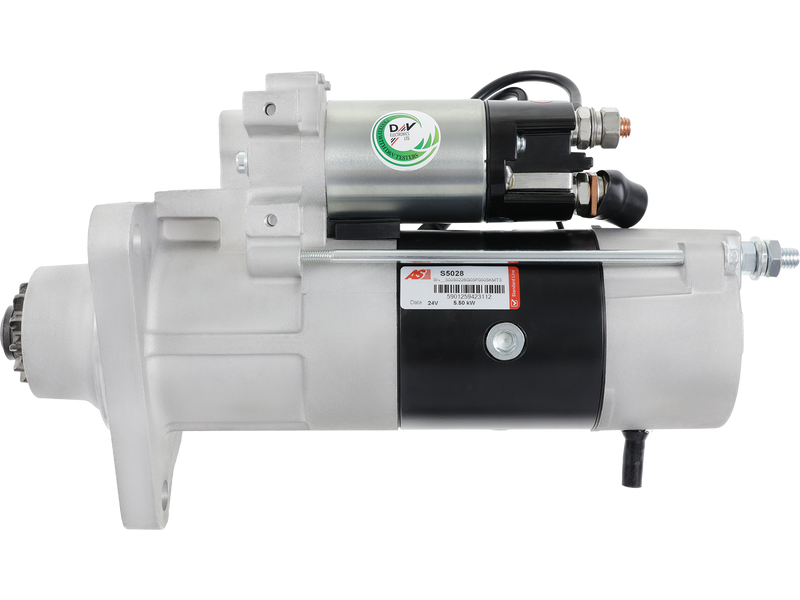

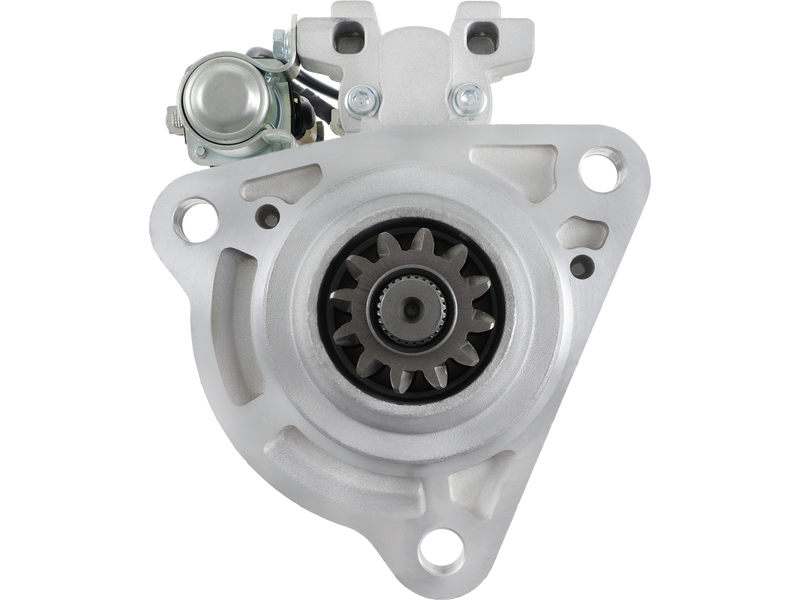

S5028 - Brand new AS-PL Starter motor

Brand new AS-PL Starter motor
Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
MITSUBISHI
Price:
NZ$ 569.02 including GST

NZ$ 494.80 excluding GST
each
S5028
No stock in NZ
Item available to backorder, submit your order. Aprox 7-14 day delay - $40 Air freight charge additional
Purchase Qty:

0001261049 0986025450 101388M 101388P 101388V 11.139.624 113830 114872 115875 130-90120 19081000 19081901 19081911 19538N 20430564 20437816BN 20437816OE 20572417 20714203 20891242 21632127 220558 243-55205 255259M 255259P 35050VL 45-3445 45-4127 6035618 6035669 811.502.123 811.520.123 8122 8178 85000087 8EA012586-051 8EA738258-381 91-27-3470 943213881010 AZE4697 BOS0001261049 CS1388 CST35618 CST35618AS CST35618ES CST35618GS CST35618OS CST35618RS CST35669 CST35669AS CST35669ES CST35669GS CST35669OS CST35669RS DRS0109 DS1219 EAA-121069 F042001199 F042001203 IS9476 LRS02274 LRS02455 LRS2274 LRS2455 M009T61171 M009T62172 M009T62173 M009T64171 M009T66371 M90R3547SE M90R3557SE M90R3558SE M9T61171 M9T62172 M9T62173 M9T64171 M9T66371 MITM9T61171 MS778 MSRC1388 S-80173 S-80473 S5028 SG0344 STM1388 STM4388 STM6388 STM8388 STR71067
Kilowatt5.5 kW
Length (L.1)358 mm
Mount Hole Center - Center (O.1)126 mm
Mount Hole Center - Center (O.2)126 mm
Mount Hole Center - Center (O.3)126 mm
Mount Hole Diameter (C.1)13.5 mm
Mount Hole Diameter (C.2)13.5 mm
Mount Hole Diameter (C.3)13.5 mm
No./Mount holes3 qty
No./Mount holes with thread0 qty
No./Teeth12 qty
Pinion at Rest (B)48 mm
RotationCW
Spigot Diameter (A)92 mm
Unit TypeMITSUBISHI
Voltage24 V
Make Model Type Year
VOLVO 9700 12.1 [DH12D340] 04.2001-
VOLVO 9700 12.1 [DH12D380] 10.2001-
VOLVO FH 12/340 12.1 [D12D340] 01.1995-
VOLVO FH 12/340 12.1 [D12D340] 08.1993-
VOLVO FH 12/380 12.1 [D12A380] 12.2001-08.2006
VOLVO FH 12/380 12.1 [D12C380] 12.2001-08.2006
VOLVO FH 12/380 12.1 [D12D380] 01.1995-
VOLVO FH 12/380 12.1 [D12D380] 08.1993-
VOLVO FH 12/380 12.1 [D12D380] 12.2001-08.2006
VOLVO FH 12/420 12.1 [D12A420] 10.2003-08.2006
VOLVO FH 12/420 12.1 [D12C420] 10.2003-08.2006
VOLVO FH 12/420 12.1 [D12D340] 08.1993-
VOLVO FH 12/420 12.1 [D12D420] 01.1995-
VOLVO FH 12/420 12.1 [D12D420] 08.1993-
VOLVO FH 12/420 12.1 [D12D420] 10.2003-08.2006
VOLVO FH 12/460 12.1 [D12C460] 10.2003-08.2006
VOLVO FH 12/460 12.1 [D12D460] 08.1998-
VOLVO FH 12/460 12.1 [D12D460] 10.2003-08.2006
VOLVO FH 12/500 12.1 [D12D500] 09.2001-
VOLVO FH 400 12.8 [D13A400] 09.2005-
VOLVO FH 400 12.8 [D13B400] 09.2005-
VOLVO FH 420 12.8 [D13C420] 01.2009-
VOLVO FH 440 12.8 [D13A440] 09.2005-
VOLVO FH 440 12.8 [D13B440] 09.2005-
VOLVO FH 440 12.8 [D13H440] 09.2005-
VOLVO FH 460 12.8 [D13C460] 01.2009-
VOLVO FH 480 12.8 [D13A480] 09.2005-
VOLVO FH 500 12.8 [D13B500] 09.2007-
VOLVO FH 500 12.8 [D13C500] 09.2007-
VOLVO FH 520 12.8 [D13A520] 09.2005-
VOLVO FH 540 12.8 [D13C540] 01.2009-
VOLVO FM 12/340 12.1 [D12C340] 02.2000-09.2003
VOLVO FM 12/340 12.1 [D12D340] 02.2000-09.2003
VOLVO FM 12/340 12.1 [D12D340] 08.1998-09.2005
VOLVO FM 12H/340 12.1 [D12D340] 08.1998-09.2005
VOLVO FM 12H/420 12.1 [D12D420] 08.1998-09.2005
VOLVO FM 360 12.8 [D13A360] 09.2005-
VOLVO FM 360 12.8 [D13A360] 11.2005-
VOLVO FM 360 12.8 [D13B360] 09.2005-
VOLVO FM 360 12.8 [D13B360] 11.2005-
VOLVO FM 380 12.8 [D13C380] 09.2005-
VOLVO FM 400 12.8 [D13A400] 09.2005-
VOLVO FM 400 12.8 [D13B400] 09.2005-
VOLVO FM 420 12.8 [D13C420] 09.2005-
VOLVO FM 440 12.8 [D13A440] 09.2005-
VOLVO FM 440 12.8 [D13B440] 09.2005-
VOLVO FM 460 12.8 [D13C460] 09.2005-
VOLVO FM 480 12.8 [D13A480] 09.2005-
VOLVO FM 500 12.8 [D13C500] 09.2005-
S24MH0026A2 CST35618 19081911 85020793 7420714203 M009T62171AM M9T62174AM STM8388 LRS02274 7485013211 114872 21632127 S24MH0109A2 000F042001199 7421632125 M009T66373AM M9T66373 M9T66372 M9T66371 M9T62171 M9T61171AM M9T66372AM 7485020794 19081901 22602940 811.502.123 M9T62173 85000677 M9T62172 EAA-121069 M9T62174 0001261049 CST35669GS CGB-91171 811.520.123 CST35669OS 6035669 M9T61171ZA 20431073 S-80173 85013089 M009T62174 5001866293 M009T62172 M009T62173 CST35669AS M009T62171 CST35618OS 20714203 M90R3557SE CS1472 M009T66371 M009T66372 M9T62171AM 20437816OE M009T66373 CST35669RS MAV376180 IS9476 M9T66371ZZ9 7422602941 130-90120 S5028 M009T61171ZA 255259M M9T64171 STRL902 255259P M9T66373AM MSRC1388 CST35618ES 20891242 DRS0109 M009T64171ZT STR5044 M009T61171AM M009T64171AM 22804728 8178 220558 19538N S-80473 20430564 115875 45-4127 85000746 BOS0001261049 M009T64171 M9T61171 336349 ANM12329X 336347 MS778 M90R3558SE 35050VL STR79711 STM4388 S24MH0109 LRS2455 6035618 91-27-3470 AZE4697 CST35669 M009T66371AM 45-3445 MAV127140 STM658 CST35618GS STRS045 DS1219 F042001199 M9T64171ZT 85000087 MITM9T61171 8EA738258-381 SG0344 000F042001203 243-55205 5135131 M9T64171AM 20437816BN 113830 000986025450 M009T66371ZZ9 CST35669ES F042001203 M009T62174AM LRS02455 9.43214E+11 LRS2274 STM6388 M009T66372AM 986025450 8122 CST35618AS M9T66371AM M009T61171 101388M 8EA012586-051 21632125 1261049 220563 101388P CS1388 M90R3547SE 101388V CST35618RS STR5365 11.139.624 20572417 19081000 STM1388 STR71067
0001261049 0986025450 101388M 101388P 101388V 11.139.624 113830 114872 115875 130-90120 19081000 19081901 19081911 19538N 20430564 20437816BN 20437816OE 20572417 20714203 20891242 21632127 220558 243-55205 255259M 255259P 35050VL 45-3445 45-4127 6035618 6035669 811.502.123 811.520.123 8122 8178 85000087 8EA012586-051 8EA738258-381 91-27-3470 943213881010 AZE4697 BOS0001261049 CGB-91171 CS1388 CS1472 CST35618 CST35618AS CST35618ES CST35618GS CST35618OS CST35618RS CST35669 CST35669AS CST35669ES CST35669GS CST35669OS CST35669RS DRS0109 DS1219 EAA-121069 F042001199 F042001203 IS9476 LRS02274 LRS02455 LRS2274 LRS2455 M009T61171 M009T62172 M009T62173 M009T64171 M009T66371 M90R3547SE M90R3557SE M90R3558SE M9T61171 M9T62172 M9T62173 M9T64171 M9T66371 MAV127140 MAV376180 MITM9T61171 MS778 MSRC1388 S-80173 S-80473 S5028 SG0344 STM1388 STM4388 STM6388 STM8388 STR71067 STRL902 STRS045 220563
