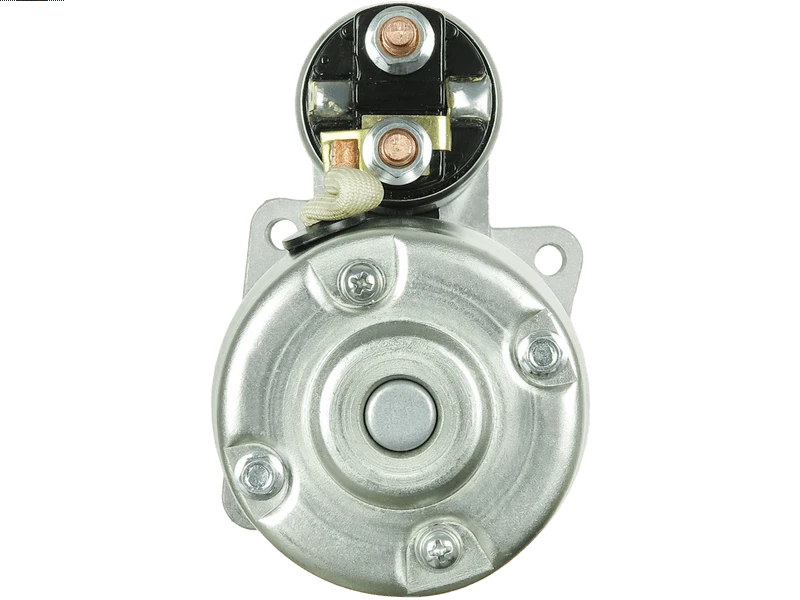

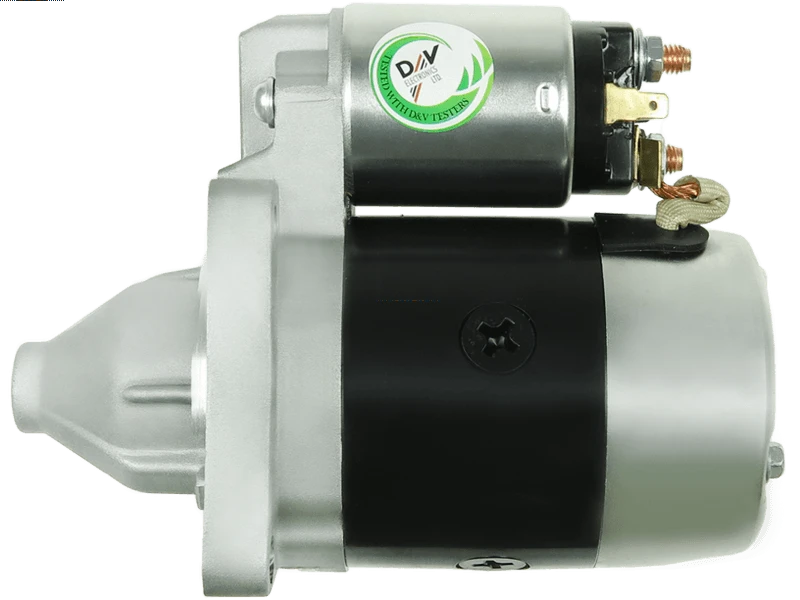

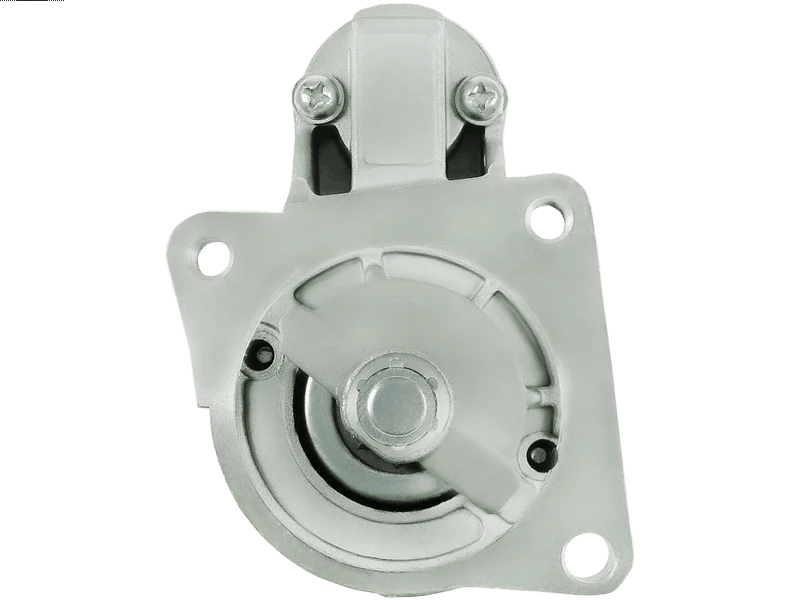

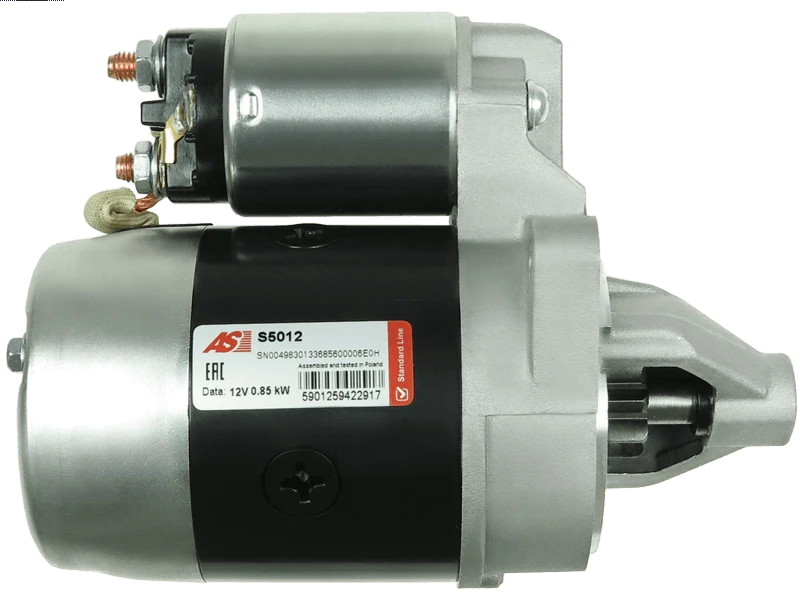

S5012 - Brand new AS-PL Starter motor

Specifications

Kilowatt	0.85 kW
Length (L.1)	190 mm
Mount Hole Center - Center (O.1)	77.5 mm
Mount Hole Center - Center (O.2)	110.5 mm
Mount Hole Center - Center (O.3)	77 mm
Mount Hole Diameter (C.1)	M10x1.75 mm
Mount Hole Diameter (C.2)	11 mm
Mount Hole Diameter (C.3)	M10x1.75 mm
No./Mount holes	3 qty
No./Mount holes with thread	2 qty
No./Teeth	8 qty
No./Teeth (Replaces)	8 qty
Pinion at Rest (B)	16 mm
Rotation	CW
Spigot Diameter (A)	74 mm
Unit Type	MITSUBISHI
Voltage	12 V

Vehicle Applications

Make	Model	Type	Year
KIA	Carens 1.8	[TB]	07.2002-08.2006
KIA	Rio 1.5	[A5D]	08.2000-02.2005
KIA	Shuma 1.8 i 16V	[T8D]	10.1997-01.2001
MAZDA	323 1.3	[B383]	09.1989-06.1991
MAZDA	323 1.3	[B3E]	09.1989-07.1994
MAZDA	323 1.3	[E3]	08.1985-04.1990
MAZDA	323 1.3 16V	[B3]	09.1989-10.1996
MAZDA	323 1.3 i	[B3]	09.1985-08.1989
MAZDA	323 1.4	[B3]	04.1987-07.1989
MAZDA	323 1.5	[B5]	04.1987-05.1989
MAZDA	323 1.5	[B50]	07.1987-04.1990
MAZDA	323 1.5	[B53]	07.1987-04.1990
MAZDA	323 1.5	[E5]	08.1985-05.1989
MAZDA	323 1.5 i	[E5E3]	10.1986-05.1989
MAZDA	323 1.5 i Turbo	[E5E2]	10.1986-05.1989
MAZDA	323 1.6	[B6]	03.1991-10.1994
MAZDA	323 1.6	[B65M]	09.1986-06.1987
MAZDA	323 1.6	[B68]	09.1987-10.1989
MAZDA	323 1.6	[B6E]	09.1986-06.1987
MAZDA	323 1.6 16V	[B6]	06.1989-10.1994
MAZDA	323 1.6 4WD	[B65M]	05.1990-03.1993
MAZDA	323 1.6 4WD	[B6E]	05.1990-03.1993
MAZDA	323 1.6 GT	[B6]	08.1985-10.1989
MAZDA	323 1.6 GTi	[B6]	01.1986-12.1988
MAZDA	323 1.6 Turbo	[B6]	10.1985-11.1991
MAZDA	323 1.6 Turbo GT	[B6]	10.1985-11.1991
MAZDA	323 1.6 Turbo GT 4WD	[B6]	10.1987-11.1991
MAZDA	323 1.8	[BP]	04.1991-07.1994
MAZDA	323 1.8 16V	[BP]	08.1989-07.1994
MAZDA	323 1.8 16V	[BP52]	09.1991-07.1994
MAZDA	323 1.8 16V 4WD	[BP]	11.1991-12.1993
MAZDA	323 1.8 Turbo 16V 4WD	[BP]	01.1991-07.1994
MAZDA	323 C 1.4 16V	[B3]	08.1994-09.1998
MAZDA	323 C 1.5 16V	[Z5-DE]	08.1994-09.1998
MAZDA	323 C 1.8	[BPZE]	08.1994-10.1996
MAZDA	323 F 1.5 16V	[Z5-DE]	07.1994-09.1998
MAZDA	323 F 1.8 16V	[BP31]	09.1989-03.1993
MAZDA	323 F 1.8 16V	[BPZE]	08.1994-10.1996
MAZDA	323 S 1.4 16V	[B3]	08.1994-09.1998
MAZDA	323 S 1.5 16V	[Z5-DE]	08.1994-09.1998
MAZDA	323 S 1.8 16V	[BPZE]	08.1994-10.1996
MAZDA	626 1.6	[F68]	06.1987-05.1992
MAZDA	626 1.6	[NA]	06.1987-05.1992
MAZDA	626 1.8	[F8]	11.1987-05.1992
MAZDA	626 2.0	[FE]	09.1987-10.1990
MAZDA	626 2.0 12V	[FE]	09.1987-05.1992
MAZDA	626 2.0 16V	[FE]	11.1987-05.1992
MAZDA	626 2.2 12V	[F2]	11.1987-03.1992
MAZDA	626 2.2 12V 4WD	[F2]	09.1989-07.1991
MAZDA	626 2.2 12V 4WD	[F2L1]	03.1992-10.1997
MAZDA	B 2200 2.2 8V 4WD	[JL22]	06.1999-
MAZDA	E 2000 2.0	[FE]	06.1994-
MAZDA	E 2000 2.0	[FE60]	03.1991-05.1994
MAZDA	E 2000 2.0	[FE61]	03.1991-05.1994
MAZDA	MX-3 1.6	[B69]	07.1991-10.1993
MAZDA	MX-3 1.6 i	[B6D]	01.1994-01.1998
MAZDA	Xedos 6 1.6 16V	[B69]	08.1992-05.1994

Reference Information

STRW053 220118 M003T38882B M003T38882A M003T38882C AA30G-18-400 B593-18-400-9R MC109028 CST35133OS M3T38881A M003T24486 M3T33587 MB35918400A M003T24487 M3T33588 M3T33585 M003T24485 M3T33586 LRS627 M3T33583 MAV341120 M3T38881C M003T24488 M3T33581 M3T38881B 8505-18-400 M3T33582 MAV371330 8EA011610-851 B67618400A 0K24018400 M3T49381 0K900-18400C F601-18-400A F8B118400C F8B118400B CST35223ES AEY1723 M003T24482 F601-18-400-9R M003T24483 F601-18-400B M003T24481 OK24018400 M3T30881 M3T30882 B63018400A MC109036 8EA726550-001 B6DK-18-400 CST35223 M35216 B6S8-18-400 B30318400 8212160 FE5018400D M3T33582A KB30318400 M003T24486A S12MH0849A2 0B6S818400 110808 986014991 E357-18-400 ANM17211X M3T49481 M003T38881 M003T38882 F802-18-400B KK38818400 F802-18-400A F802-18-400L F80218400A M003T38885 F80218400B 0K90018400A M003T38883 0K90018400B M003T38884 0K90018400C B658-18-400 S5012 B6S818400A M003T33586A M003T33586D M3T24482A 22.064 M3T24482J MC109015 M3T24482K MAV122620 M3T24482L 16922N M003T49781 M3T24482H 20325 B676-18-400 16922R M3T38882B M3T38882A 22.0640M 25-1114 M003T24486H M3T38882C M003T39981 8052309 CST35129AS B6S8-18-400A OK90018400 M3T34082 OK90018400B OK90018400C PE24-73-1100 FE79-18-400 11704 E356-48-400B CST35129RS M3T49585 9658 M003T30285 LRS2055 M003T30286 M3T49581 B50518400 M003T30281 F802-18-400AT M003T30282 E301-18-400B E301-18-400A 3M193 M3T43581 CST35133RS OB6S818400 M003T49481 220387 LRS557 B676-18-400A M3T30285 M3T30286 B676-18-400B M3T30281 M3T30282 6035223 DRS3511 0K90018400 CGB-23501 LRS00688 MAV371280 220616 E35618400A FE5A-18-400A OK24118400B OK24118400C B315-18-400 OK24118400A 5035234 M003T43581 LRS02055 CST35133AS M003T33582A M003T34082 M3T24486A DRS4991 F8B1-18-400AT 000986014991 LRS00557 F8B1-18-400 M3T24486H 20640 0K32618400 17704N B505-18-400-9R 3M179 CST35223GS M003T49581 F802-18-400 M003T49585 CST35129OS AES6188 B67618400 OK95418400 STR5082 3M162 0K24118400 B61P-18-400 B35918400 CST35129ES 8EA011610-581 M3T38881 M3T38882 FE1J-18-400 M000A0240Z SS352 F240-18-400A FE1J-18-400A SS353 MB30318400A F240-18-400B B303-18-400 B303-18-400A MTD212 E359-18-400B-9R AES2112 CST35133GS M3T24481 F240-18-400C M3T24482 0K95418400 M3T24483 F850-18-400A M003T30881 B59318400 M003T30882 LRS1723 M3T49781 FE5A-18-400 B505-18-4009R F850-18-400E F850-18-400C M3T24482HC F601-18-400 F850-18-400B MAV371290 SS229 M3T39981 LRS1150 M3T24485 25-0328 M3T24486 M3T24487 3D212 M3T24488 E35918400B9R 25-3279 STR71005 0K24118400A 66925114 0K24118400C M3T38883 M003T33588 M003T33587 M3T38884 CGB-24991 M3T38885 M003T33586 M003T33585 M003T39481 M003T33583 M003T33582 M003T33581 88212160 FE05-18-400C FE05-18-400B FE05-18-400A FE50-18-400A FE50-18-400B FE50-18-400C FE50-18-400D FE50-18-400E B593-18-400 MTM162 25-2057 LRS688 6035133 DRS3501 PRSS188 B61P-18-400A E356-18-400 LRS01723 CST35133ES B505-18-400 F8B1-18-400B F8B1-18-400C OK24118400 M003T49381 112816 003-D212 F8B1-18-400A M3T21874 JS640 FE05-18-400 17181N B658-18-400R 36100-2Y100 E357-18-400A E301-18-400 VS305 F24018400A M3T38862 LRS00627 F24018400C 6035129 B630-18-400A M003T33283 M003T33282 M003T33281 M003Y24482 E356-18-400A LRS01150 E356-18-400B 201000 003-M162 F240-18-400 F210-18-400A CST35133 CST35223RS F210-18-400 M3T39385 MTM179 B676-18-400AT M3T33282 B31518400A M3T33283 M3Y24482 MAV6070 B31518400B M3T33281 CST35223AS B593184009R AES5157 AES6127 F850-18-400 335490 E356-18-400L 66925181 B630-18-400 JS1000 003-M179 MAV6060 455606 M003T21874 FE50-18-400 M003T24482HC 8EA012526-551 CST35129 B315-18-400B M3T39481 B315-18-400E KB30818400 M003T38881A CST35223OS 88213322 M003T38881C 26-0395 M003T38881B 111089 26-395 B315-18-400A STRS188 25-2009 MTM193 201146 F806-18-400 S12MH0849 003-M193 B6S818400 M003T24482A M3T33586D 20437921BN M3T33586A M003T24482H CST35129GS M003T24482L M003T24482J M003T39385 M003T24482K
