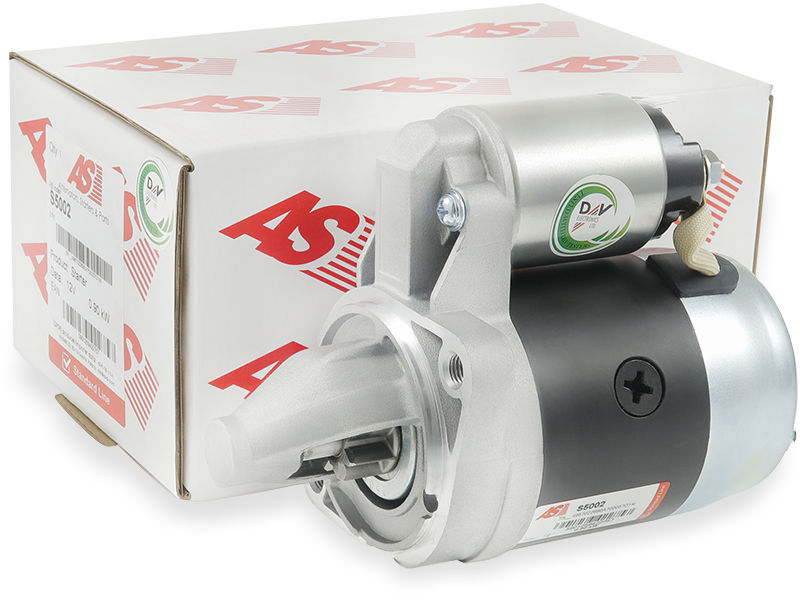

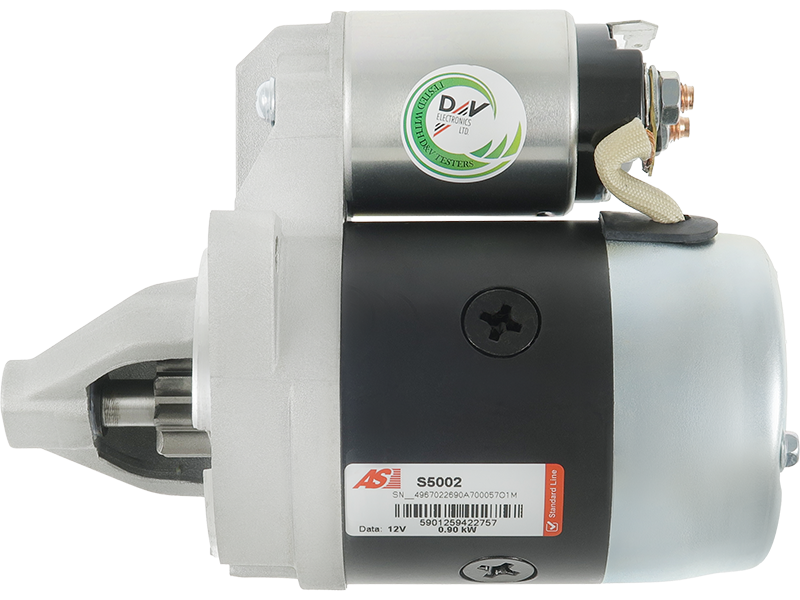

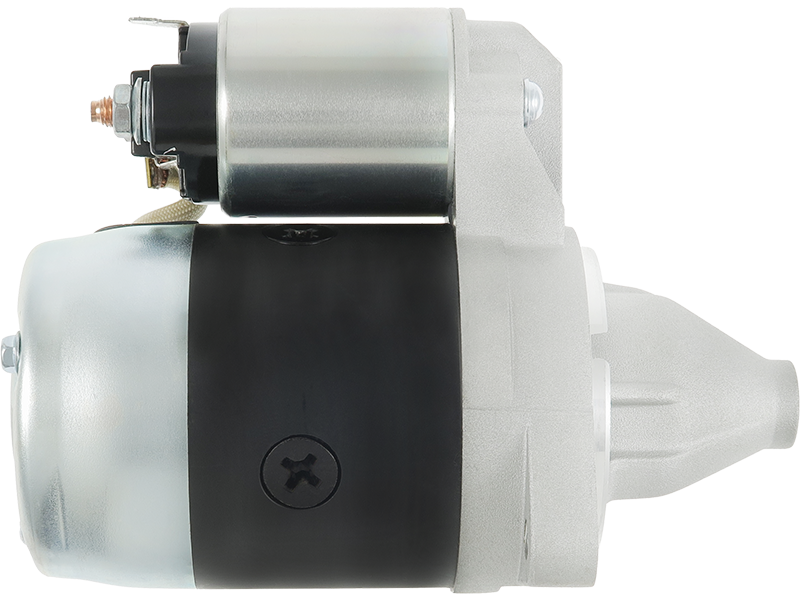

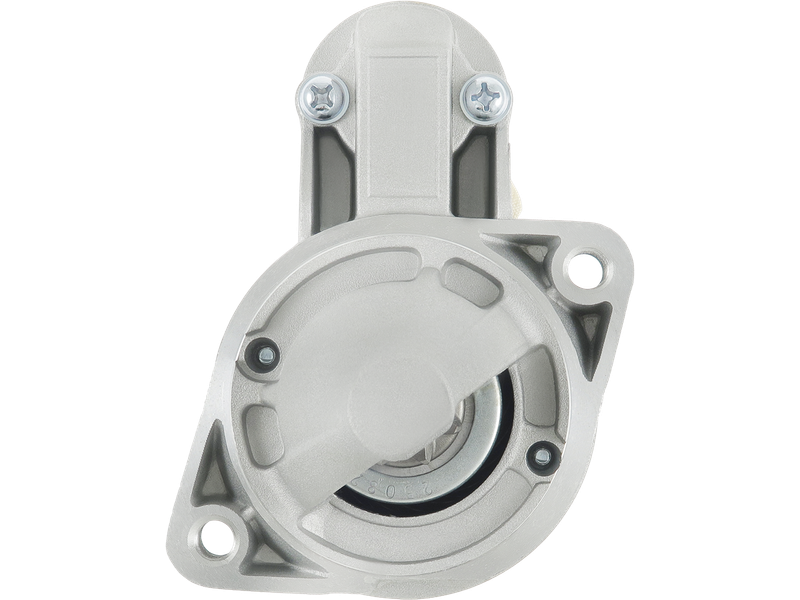

S5002 - Brand new AS-PL Starter motor

Specifications

Kilowatt	0.9 kW
Length (L.1)	191 mm
Mount Hole Center - Center (O.1)	105 mm
Mount Hole Diameter (C.1)	M10x1.75 mm
Mount Hole Diameter (C.2)	M10x1.75 mm
No./Mount holes	2 qty
No./Mount holes with thread	2 qty
No./Teeth	8 qty
No./Teeth (Replaces)	8 qty
Pinion at Rest (B)	18 mm
Rotation	CW
Spigot Diameter (A)	77 mm
Unit Type	MITSUBISHI
Voltage	12 V

Vehicle Applications

Make	Model	Type	Year
HYUNDAI	Accent 1.3	[G4EH]	07.1994-07.1999
HYUNDAI	Accent 1.3 i 12V	[G4EH]	07.1994-07.1999
HYUNDAI	Accent 1.5 i 12V	[G4EK]	07.1994-07.1999
HYUNDAI	Accent 1.5 i 16V	[G4FK]	12.1995-01.2000
HYUNDAI	Coupe 1.6 16V	[G4GR]	05.1996-09.2001
HYUNDAI	Elantra 1.6	[G4ED-G]	06.2000-
HYUNDAI	Lantra 1.5 12V	[G4EK]	12.1996-
HYUNDAI	Lantra 1.5 i	[G15B]	10.1990-11.1995
HYUNDAI	Lantra 1.5 i	[G4DJ]	10.1990-11.1995
HYUNDAI	Pony 1.2		06.1974-09.1985
HYUNDAI	Pony 1.3	[G13B]	10.1985-09.1989
HYUNDAI	Pony 1.3	[G4DG]	01.1990-01.1995
HYUNDAI	Pony 1.4		08.1977-09.1985
HYUNDAI	Pony 1.5	[G15B]	01.1990-01.1995
HYUNDAI	Pony 1.5	[G15B]	10.1985-11.1991
HYUNDAI	Pony 1.5	[G4DJ]	10.1985-09.1989
HYUNDAI	Pony 1.5	[G4DJ]	10.1989-11.1991
HYUNDAI	Pony 1.5 i	[G15B]	01.1990-01.1995
HYUNDAI	Pony 1.5 i	[G15B]	10.1989-11.1991
HYUNDAI	Pony 1.5 i	[G4DJ]	01.1990-11.1991
HYUNDAI	Pony 1.5 i	[G4DJ]	10.1989-11.1991
HYUNDAI	Santamo 2.0 16V		05.1999-12.2002
HYUNDAI	Santamo 2.0 16V 4WD		05.1999-12.2002
HYUNDAI	Scoupe 1.5 i	[G15B]	02.1990-06.1992
HYUNDAI	Scoupe 1.5 i	[G15B]	11.1991-06.1992
HYUNDAI	Scoupe 1.5 i	[G4DJ]	02.1990-05.1996
HYUNDAI	Scoupe 1.5 i	[G4DJ]	02.1990-10.1991
HYUNDAI	Scoupe 1.5 i	[G4EK]	04.1992-05.1996
HYUNDAI	Scoupe 1.5 i Turbo	[G4EK-TC]	04.1991-05.1995
HYUNDAI	Sonata 1.8 i		08.1988-05.1989
HYUNDAI	Sonata 2.0 i	[G4CP-U]	01.1991-10.1993
HYUNDAI	Sonata 2.0 i	[G4CP-U]	09.1988-05.1989
KIA	Joice 2.0	[G4CP]	08.1999-03.2003
MITSUBISHI	Celeste 1.6	(A72)[4G32]	01.1977-06.1981
MITSUBISHI	Colt 1.2	(A151A)[4G11]	12.1978-01.1984
MITSUBISHI	Colt 1.2	(A15A)[4G16]	02.1984-09.1986
MITSUBISHI	Colt 1.2	(C15A)[4G16]	09.1986-04.1988
MITSUBISHI	Colt 1.3	(C1_A)[G13B]	06.1986-04.1988
MITSUBISHI	Colt 1.3	(C51A)[4G13]	04.1988-05.1992
MITSUBISHI	Colt 1.3	(C5_A)[4G13]	04.1988-12.1990
MITSUBISHI	Colt 1.3 12V	(C51A)[4G13]	07.1990-05.1992
MITSUBISHI	Colt 1.3 12V	(CA1A)[4G13]	04.1992-11.1995
MITSUBISHI	Colt 1.4	(A152A)[4G12]	07.1980-01.1984
MITSUBISHI	Colt 1.5	(C12A)[4G15]	09.1984-04.1988
MITSUBISHI	Colt 1.5	(C12A)[G15B]	09.1985-04.1988
MITSUBISHI	Colt 1.5	(C52A)[4G15]	04.1988-05.1992
MITSUBISHI	Colt 1.6 GTi 16V	(C53A)[4G61]	04.1988-05.1990
MITSUBISHI	Cordia 1.6	(A212A)[4G32]	09.1982-05.1985
MITSUBISHI	Cordia 1.6 Turbo	(A212A)[4G32T]	09.1982-05.1985
MITSUBISHI	Cordia 1.8	(A215A)[4G37]	10.1986-12.1986
MITSUBISHI	Cordia 1.8 Turbo	(A213A)[4G62T]	10.1986-12.1986
MITSUBISHI	Galant 1.6	(A11A)[4G32]	06.1984-12.1987
MITSUBISHI	Galant 1.6	(A12_)[4G32]	01.1977-08.1980
MITSUBISHI	Galant 1.6	(A161A)[4G32]	09.1980-05.1984
MITSUBISHI	Galant 1.6	(A161V)[4G32]	09.1980-05.1984
MITSUBISHI	Galant 1.6 GL	(A121V)[4G32]	01.1979-08.1980
MITSUBISHI	Galant 1.8	(E32A)[4G37]	11.1988-12.1990
MITSUBISHI	Galant 2.0	(A12_)[4G52]	01.1977-08.1980
MITSUBISHI	Galant 2.0	(A163)[4G63]	09.1980-05.1984
MITSUBISHI	Galant 2.0	(A163V)[4G63]	09.1980-06.1983
MITSUBISHI	Galant 2.0	(E15A)[4G63]	06.1984-12.1987
MITSUBISHI	Galant 2.0	(E15A)[G63B]	06.1986-12.1987
MITSUBISHI	Galant 2.0	(E33A)[4G63]	11.1987-10.1992
MITSUBISHI	Galant 2.0	(E55A)[4G63]	11.1992-08.1996
MITSUBISHI	Galant 2.0 16V	(E33A)[4G63]	11.1987-10.1992
MITSUBISHI	Galant 2.0 16V 4WD	(E3_A)[4G63]	06.1988-10.1992
MITSUBISHI	Galant 2.0 4WD	(E38A)[4G63]	12.1988-10.1992
MITSUBISHI	Galant 2.0 4WD	(E39A)[4G63]	04.1989-10.1992
MITSUBISHI	Galant 2.0 4WD	(E75A)[4G63]	11.1992-08.1996
MITSUBISHI	Galant 2.0 GLX	(A123V)[4G52]	01.1979-08.1980
MITSUBISHI	Galant 2.0 GTi 16V	(E3_A)[4G63]	11.1987-10.1992
MITSUBISHI	Galant 2.0 GTi 16V 4WD	[4G63]	07.1989-12.1992
MITSUBISHI	Galant 2.0 Turbo	(A164)[4G63T]	05.1982-05.1984
MITSUBISHI	Galant 2.0 Turbo	(E15A)[4G63T]	06.1984-05.1985
MITSUBISHI	L 200 2.0	[4G63]	01.1996-06.2001
MITSUBISHI	L 300 1.6	(L030PW)[4G32]	11.1984-02.1987
MITSUBISHI	L 300 1.6	(L032P)[4G32]	05.1980-10.1986
MITSUBISHI	L 300 1.6	(PO2V,P12V)[4G32]	11.1986-05.1994
MITSUBISHI	L 300 1.6	(R12V,PO2V)[4G32]	11.1986-05.1994
MITSUBISHI	L 300 1.6	(R12V,PO2V)[4G32]	11.1990-05.1994
MITSUBISHI	L 300 1.8 4WD	(L03_P)[4G62]	08.1984-09.1990
MITSUBISHI	L 300 2.0	[4G63]	06.1994-04.2000
MITSUBISHI	L 300 2.0	(P03V,2W,13V)[4G63]	11.1986-10.1992
MITSUBISHI	L 300 2.0	(PO3V,P13V)[G63B]	11.1986-10.1988
MITSUBISHI	L 300 2.0	(PO3W)[G63B]	07.1996-08.1997
MITSUBISHI	L 300 2.0	(PO3W)[G63B]	11.1986-10.1988
MITSUBISHI	L 300 2.0 4WD	(P23W)[4G63]	11.1986-06.1993
MITSUBISHI	L 300 2.4	(P04V,W,14V)[4G64]	11.1990-05.1996
MITSUBISHI	L 300 2.4 4WD	(P24V,W)[4G64]	11.1990-06.1995
MITSUBISHI	L 300 2.4 4WD	(P24V,W)[G64B]	11.1986-12.1990
MITSUBISHI	L 400 2.0	(PAOV)[4G63]	06.1996-03.2001
MITSUBISHI	Lancer 1.2	(A171)[4G11]	01.1980-12.1981
MITSUBISHI	Lancer 1.2	(A7_)[4G36]	01.1978-09.1979
MITSUBISHI	Lancer 1.2	(C15AS)[4G16]	01.1984-10.1986
MITSUBISHI	Lancer 1.2	(C65A)[4G16]	08.1986-04.1988
MITSUBISHI	Lancer 1.3	(C61A)[4G13]	08.1988-05.1992
MITSUBISHI	Lancer 1.3	(C6_A)[4G13]	04.1988-05.1992
MITSUBISHI	Lancer 1.3	(CB1A)[4G13]	06.1992-12.1994
MITSUBISHI	Lancer 1.3 12V	(C61A)[4G13]	01.1991-06.1992
MITSUBISHI	Lancer 1.4	(A172)[4G12]	09.1979-02.1983
MITSUBISHI	Lancer 1.4	(A7_)[4G33]	01.1978-09.1979
MITSUBISHI	Lancer 1.4	(A7_K)[4G33]	01.1978-09.1979
MITSUBISHI	Lancer 1.5	(C12AS)[4G15]	11.1983-04.1988
MITSUBISHI	Lancer 1.5	(C12AS)[G15B]	06.1985-04.1988
MITSUBISHI	Lancer 1.5	(C12V)[4G15]	09.1985-12.1987
MITSUBISHI	Lancer 1.5	(C12V)[4G15]	09.1988-12.1990
MITSUBISHI	Lancer 1.5	(C12V)[G15B]	09.1985-08.1989
MITSUBISHI	Lancer 1.5	(C62A)[4G15]	04.1988-05.1992
MITSUBISHI	Lancer 1.5	(C6_A,C7_A)	06.1988-05.1992
MITSUBISHI	Lancer 1.5 12V	(C12V)[4G15]	09.1990-12.1991
MITSUBISHI	Lancer 1.5 12V	(C62A)[4G15]	05.1989-05.1992
MITSUBISHI	Lancer 1.6	(A174)[4G32GS]	03.1979-02.1983
MITSUBISHI	Lancer 1.6	(A7_)[4G32GS]	01.1978-09.1979
MITSUBISHI	Lancer 1.6	(C66A)[4G92]	06.1992-05.1994
MITSUBISHI	Lancer 1.8 4WD	(C37V)[4G37]	01.1987-12.1990
MITSUBISHI	Lancer 1.8 4WD	(C37V)[4G37]	06.1990-05.1992
MITSUBISHI	Lancer 1.8 4WD	(C77A)[4G37]	09.1989-06.1992
MITSUBISHI	Lancer 1.8 4WD	[G37B]	01.1987-08.1989
MITSUBISHI	Lancer F 1.2	(A171)[4G11]	03.1983-01.1984
MITSUBISHI	Lancer F 1.4	(A172)[4G12]	03.1983-01.1984
MITSUBISHI	Lancer F 1.4 Turbo	(A17_)[4G12T]	03.1983-01.1984
MITSUBISHI	Pajero 2.4	(V2_W,V4_W)[4G64]	04.1991-02.2000
MITSUBISHI	Pajero 2.6	(L042G)[4G54]	01.1983-11.1990
MITSUBISHI	Pajero 2.6	(L047G)[4G54]	12.1982-06.1991
MITSUBISHI	Santamo 2.0 16V		05.1999-
MITSUBISHI	Santamo 2.0 16V 4WD		05.1999-
MITSUBISHI	Sapporo 1.6	(A121)[4G32]	04.1978-07.1980
MITSUBISHI	Sapporo 1.6	(A161A)[4G32]	08.1980-09.1984
MITSUBISHI	Sapporo 2.0	(A123)[4G52]	04.1978-07.1980
MITSUBISHI	Sapporo 2.0	(A161A)[4G63]	08.1980-08.1983
MITSUBISHI	Sapporo 2.0 Turbo	(A164)[4G63T]	08.1982-08.1983
MITSUBISHI	Space Gear 2.0 16V	[4G63]	06.1994-05.2000
MITSUBISHI	Space Gear 2.0 16V	(PA3W)[4G63]	12.1994-05.2000
MITSUBISHI	Space Runner 1.8	[4G93]	06.1991-05.1999
MITSUBISHI	Space Runner 1.8	(N11W)[4G93]	06.1991-05.1992
MITSUBISHI	Space Runner 1.8 4WD	[4G93]	06.1991-05.1992
MITSUBISHI	Space Runner 1.8 4WD	(N21W)[4G93]	06.1991-05.1992
MITSUBISHI	Space Wagon 1.8	(N31W)[4G93]	05.1991-05.1992
MITSUBISHI	Space Wagon 1.8 4WD	[4G37]	10.1987-05.1991
MITSUBISHI	Space Wagon 1.8 4WD	(N41W)[4G93]	05.1991-05.1992
MITSUBISHI	Space Wagon 1.8 GLX	(D05V)[4G37]	01.1984-12.1988
MITSUBISHI	Space Wagon 2.0	(D04W)[4G63]	06.1988-04.1991
MITSUBISHI	Space Wagon 2.0	(D04W)[G63B]	06.1986-05.1988
MITSUBISHI	Space Wagon 2.0 4WD	(D08W)[4G63]	06.1988-04.1991
MITSUBISHI	Space Wagon 2.0 4WD	(D08W)[G63B]	06.1986-05.1988
MITSUBISHI	Starion 2.0 Turbo	(A183A)[4G63T/C]	05.1985-05.1988
MITSUBISHI	Starion 2.0 Turbo	(A183E)[4G63T]	06.1982-12.1985
MITSUBISHI	Tredia 1.4	(A211)[4G12]	10.1982-08.1985
MITSUBISHI	Tredia 1.8	(A215)[4G37]	08.1984-11.1987
MITSUBISHI	Tredia 1.8 Turbo	(A21_)[G62B]	09.1984-09.1985
PROTON	Aeroback 1.5		01.1991-11.1996
PROTON	Persona 315 1.5 GLi / GLSi	[4G15]	03.1996-
PROTON	Persona 315 1.5 GLi / GLSi	[4G15]	12.1995-
PROTON	Persona 316 1.6	[4G92]	03.1996-
PROTON	Persona 413 1.3	[4G13]	01.1994-
PROTON	Persona 413 1.3 GLSi	[4G13]	01.1994-
PROTON	Persona 415 1.5	[4G15]	01.1994-
PROTON	Persona 416 1.6 i	[4G92]	12.1995-
PROTON	Saloon 1.5		01.1991-11.1996
PROTON	Satria 1.5		07.2000-
PROTON	Wira 1.3		08.2000-
PROTON	Wira 1.5		08.2000-
VOLVO PENTA	Engine	[MD2020]	01.1993-

Reference Information

MD107615 M002T44681 M002T47281 25-0298 MC109025 CGB-23013 438105 S5002 JS350 STRF089 CGB-23139 3C1001 M0TD1771 M3T41083 M3T22582 M3T41088 MD085730 M3T22581 MD085731 20349 ANM15091X DRS2301N AES5115 JS349 LRS515 LRS516 M002T40081 MTC100-1 MD066761 MD316001 8EA726441-001 STRS034 PW501783 STR8701 HSC107100 MD180238 MD027401 MD027400 220382 M3T32592 66925301 M3T32591 MAV7280 LRS00473 M3T32593 M3T41081 22.0349 MD100431 SX MC109018 M2T49881 2219 128000-0461 22.535 000986017691 128000-0462 MD016921 MD016920 M003T32589 M003T32588 M003T32585 M003T32584 PSW501777 20349L M003T32583 MD001555 M003T32582 3610026800 M003T32581 M3T47281 M3T41282 M3T41285 M39646 986017691 16940N M3T32585 438097 M3T32584 220391 MD081568 M003T41081 MD081567 M3T32581 M3T32583 M3T32582 DRS2301 6035105 36100-26800 M3T32589 M3T32588 000986012301 MD101219 M2T47281 M003T41285 MD100481 RNLM3T22581 20437501BN M003T41282 M4T74281 8EA726442-001 MTC104 M2T44681 MAV371150 MD001333 20643 110158 455562 M2T40081 455561 MD034120 MD034121 185086540 M003T47281 66925210 CGB-22871 S1119M 986012301 VS226 M003T32593 M003T32592 M003T32591 3610011110 220078 36100-11110 3C134 M003T22582 M003T22581 ISJ0001 36100-22810 986012871 3610022805 DRS2871 3610022800 MTC126 000986012871 3610011120 003-C104 3C126 RNL104CS 36100-11120 36100-22805 3C130 36100-22800 LRS473 36100-22000 MTM935 3610022810 003-M935 CST35105AS 3610011130 EAA-121434 M3T25782 MD034212 M3T25783 M003T41088 M3T25785 MD161437 M003T41083 25-3025 20437501OE 36100-11130 3M935 ALT136080 S1120M LRS00516 36100-21740 LRS00515 3803437 CGB-22301 LRS2114 M2T44081 003-C126 3C104 MTC134 36100-11140 STR71028 MTC130 003-C130 M3T25881 M3T25882 M3T25883 M3T25885 003-C134 M003T25781 36100-11150 LRS02114 1516957R STRS970 MD021685 22.5349M M003T25883 M002T44081 M003T25881 25-3233 M003T25882 MD162836 1516956R MD162837 M003T25885 MDO21665 M3T25781 MD021674 MDO27400 MD021678 E5205-63012 MD192227 CST35105GS 003-C100-1 S12MH0843A2 20350 455607 M002T49881 361001120 455963 DRS2172 MAV6050 STR5006 185086820 M003T25785 M003T25782 M003T25783 361001130

Video/Publications

003-C100-1 003-C104 003-C126 003-C130 003-C134 003-M935 0986012301 0986012871 0986017691 110158 128000-0461 128000-0462 16940N 20349 20349L 20350 20437501BN 20437501OE 20643 22.0349 22.5349M 22.5350 220382 25-0298 25-3025 25-3233 36100-11140 36100-11150 36100-21740 36100-22000 3C1001 3C104 3C126 3C130 3C134 3M935 438097 438105 455561 455562 455607 455963 6035105 66925210 66925301 8EA726441-001 8EA726442-001 AES5115 ALT136080 CGB-22301 CGB-22871 CGB-23013 CGB-23139 CST35105AS CST35105GS DRS2172 DRS2301 DRS2301N DRS2871 EAA-121434 HSC107100 ISJ0001 JS349 JS350 LRS00473 LRS00515 LRS00516 LRS02114 LRS2114 LRS473 LRS515 LRS516 M2T40081 M2T44081 M2T44681 M2T47281 M2T49881 M39646 M3T22581 M3T22582 M3T25781 M3T25782 M3T25783 M3T25785 M3T25882 M3T25883 M3T32581 M3T32582 M3T32583 M3T32584 M3T32589 M3T32591 M3T32592 M3T32593 M3T41081 M3T41083 M3T41088 M3T41282 MAV371150 MAV6050 MAV7280 MC109018 MC109025 MD001333 MD001555 MD016921 MD021674 MD021678 MD027400 MD027401 MD034120 MD034121 MD066761 MD081567 MD081568 MD100431 MD107615 MD161437 MD162836 MD162837 MD180238 MD316001 MTC100-1 MTC104 MTC126 MTC130 MTC134 MTM935 PW501783 RNL104CS RNLM3T22581 S1119M S1120M S5002 STR71028 STRF089 STRS034 STRS970 SX 2219 VS226 220078 220391
