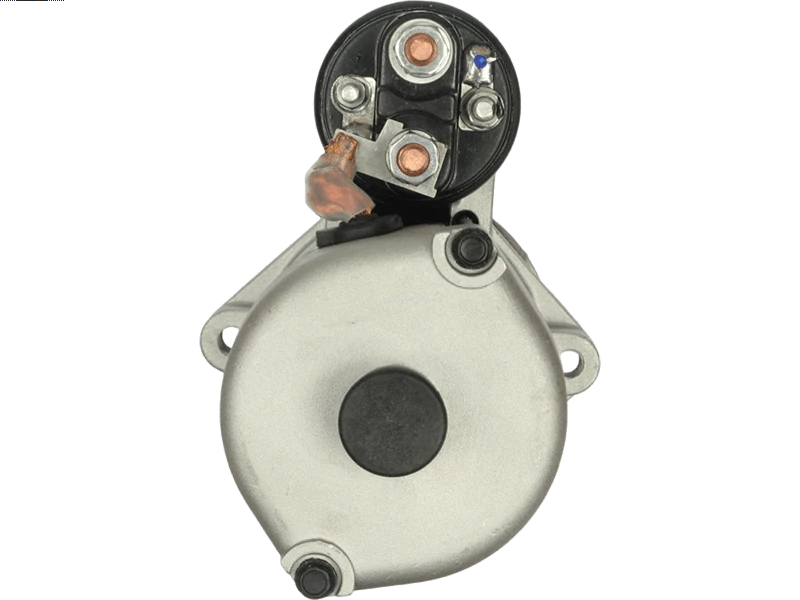

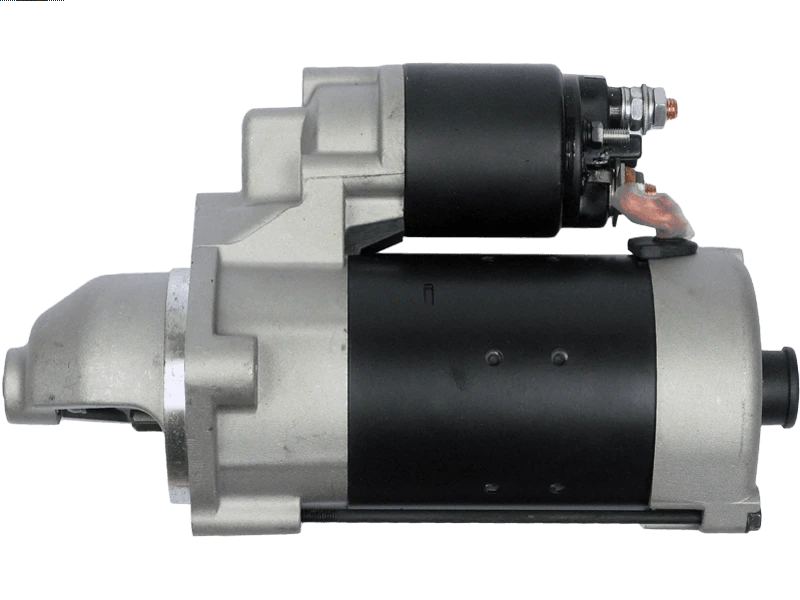

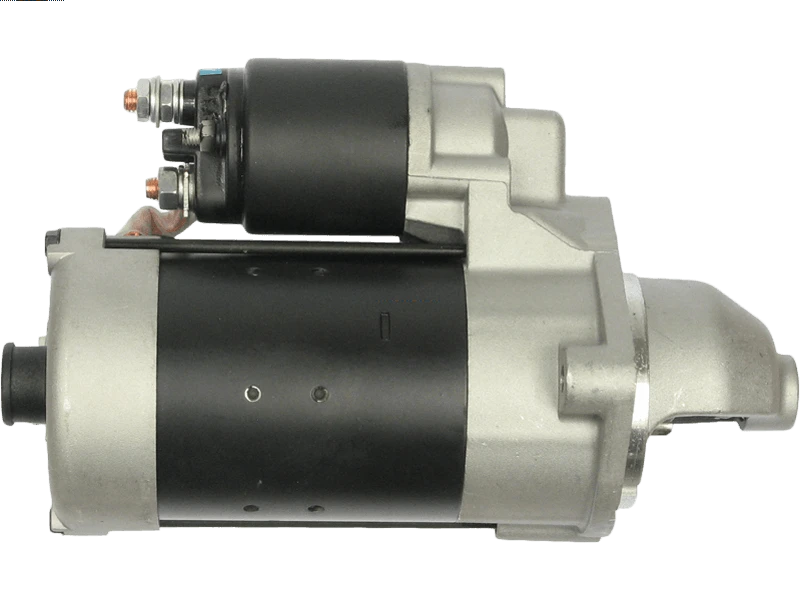

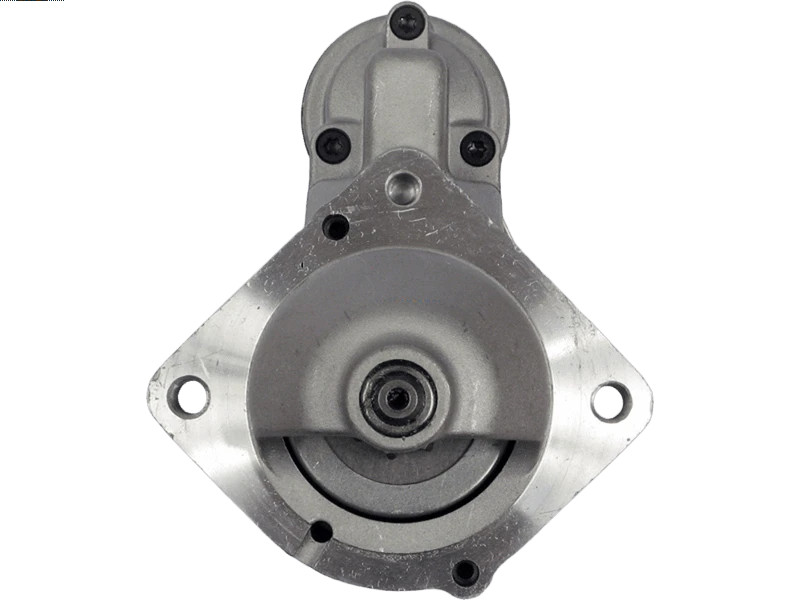

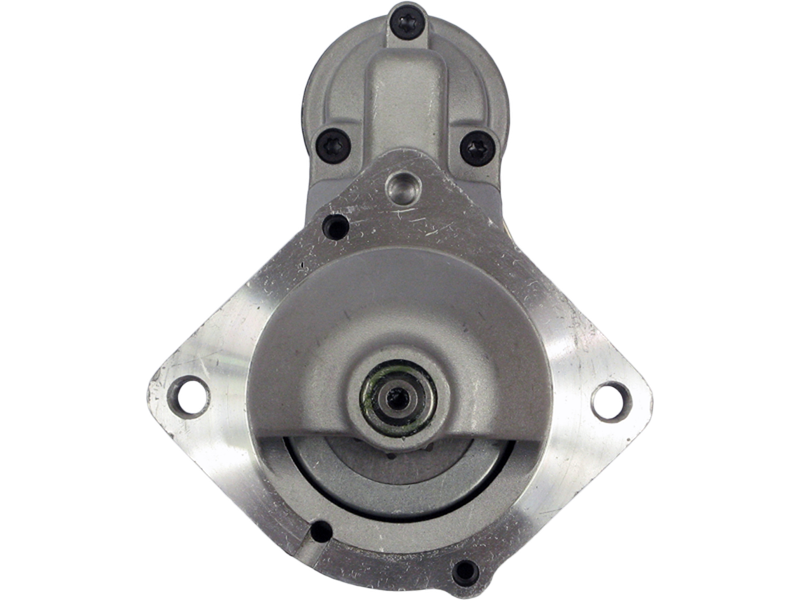

S4035 - Brand new AS-PL Starter motor

Specifications

Kilowatt	2.2 kW
Length (L.1)	256 mm
Mount Hole Center - Center (O.1)	74 mm
Mount Hole Center - Center (O.2)	105 mm
Mount Hole Center - Center (O.3)	74 mm
Mount Hole Diameter (C.1)	6.5 mm
Mount Hole Diameter (C.2)	M8x1.25 mm
Mount Hole Diameter (C.3)	M10x1.5 mm
No./Mount holes	3 qty
No./Mount holes with thread	2 qty
No./Teeth	9 qty
No./Teeth (Replaces)	9 qty
Pinion at Rest (B)	21 mm
Rotation	CW
Spigot Diameter (A)	76 mm
Unit Type	MAGNETI MARELLI
Voltage	12 V

Vehicle Applications

BMW	330 2.9 Diesel	(E46)[M57D30]	10.1999-02.2005
BMW	330 2.9 Xd 4x4	(E46)[M57D30]	06.2000-03.2006
BMW	530 2.9 Diesel	(E39)[M57D30]	08.1998-05.2004
BMW	530 2.9 TD	(E39)[M57D30]	08.1998-05.2004
BMW	730 3.0 Diesel	(E38)[M57306D1]	04.2000-11.2001
BMW	730 3.0 Diesel	(E38)[M57D30]	08.1998-12.2001
BMW	X5 3.0 Diesel	(E53)[M57306D1]	03.2001-09.2003

Alternatives >>>

S0093 - Bosch Style

Reference Information

42632920 101171 12417787925 22.1171 63222005 25-2417 SS055 8080061 DSN587 3182 EAA-121112 8EA011611-151 12412247492 AEU1171 CST30163RS ANM50416X 12412247391 11848 CS1171 S4035 NAD000090 DRS3684 458496 20404361RC 22.1171M STRL106 LRS1475 CST30163AS 113446 220607 6030163 8EA737706-001 8212650 RNL1171CS LRS01475 20513030 0986022710 STR52024 20404361BN 63114017 MAV2400 458386 32475R

Video/Publications

0986022710 101171 113446 11848 12412247391 12412247492 12417787925 20404361BN 20404361RC 20513030 22.1171 22.1171M 25-2417 3182 32475R 42632920 458386 458496 6030163 63114017 63222005 8080061 8212650 8EA011611-151 8EA737706-001 AEU1171 CS1171 CST30163AS CST30163RS DRS3684 DSN587 EAA-121112 LRS01475 LRS1475 MAV2400 NAD000090 RNL1171CS S4035 SS055 STR52024 STRL106 220607
