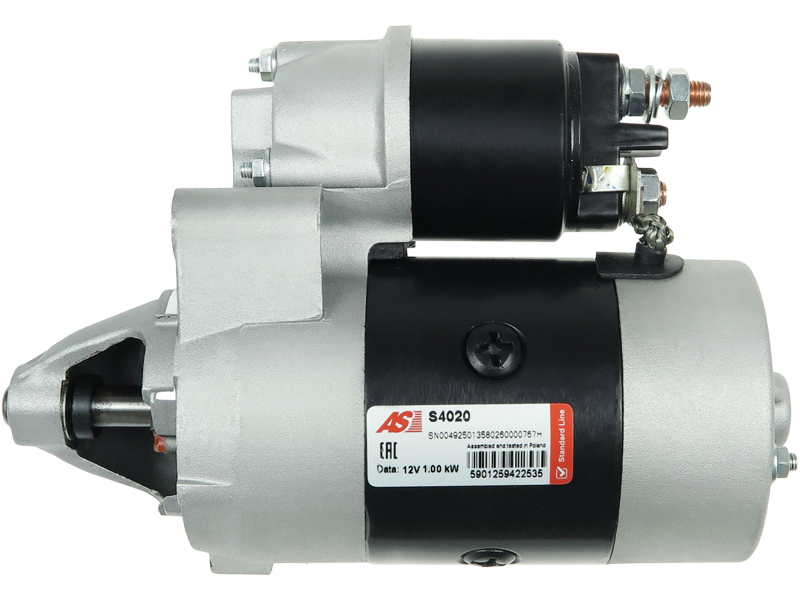

S4020 - Brand new AS-PL Starter motor

Specifications

Kilowatt	0.9 kW
Length (L.1)	208 mm
Mount Hole Center - Center (O.1)	105 mm
Mount Hole Center - Center (O.2)	72 mm
Mount Hole Center - Center (O.3)	72 mm
Mount Hole Diameter (C.1)	M8x1.25 mm
Mount Hole Diameter (C.2)	M8x1.25 mm
Mount Hole Diameter (C.3)	M8x1.25 mm
No./Mount holes	3 qty
No./Mount holes with thread	3 qty
No./Teeth	9 qty
No./Teeth (Replaces)	8. 9 qty
Pinion at Rest (B)	11 mm
Rotation	CW
Spigot Diameter (A)	64 mm
Unit Type	LUCAS/MARELLI
Voltage	12 V

Vehicle Applications

Make	Model	Type	Year
CITROEN	Jumpy 1.6	[1580SPI]	10.1995-
CITROEN	Jumpy 1.6	[220A2.000]	10.1995-
CITROEN	Jumpy 1.6 i	[1580SPI]	10.1995-
CITROEN	Jumpy 1.6 i	[220A2.000]	10.1995-
FIAT	Brava 1.6 16V EL	[182A6.000]	10.1995-10.2001
FIAT	Brava 1.6 16V SX	[182A4.000]	02.1996-10.1998
FIAT	Bravo 1.6	[182A6.000]	10.1995-10.2001
FIAT	Bravo 1.6 SX	[182A4.000]	03.1996-11.1998
FIAT	Fiorino 1.6	[146C6.000]	12.1996-05.2001
FIAT	Fiorino 1.6	[146D6.000]	12.1996-12.2001
FIAT	Marea 1.6 16 V Bipower	[185A3.000]	03.1999-10.1999
FIAT	Marea 1.6 16 V Bipower	[186A4.000]	04.1999-03.2002
FIAT	Marea 1.6 i 16V	[182A4.000]	09.1996-
FIAT	Palio 1.4	[178B2.000]	04.1996-05.1999
FIAT	Palio 1.4	[178B2.016]	04.1996-05.1999
FIAT	Palio 1.6 16V	[178B3.000]	04.1996-09.2001
FIAT	Punto 1.4 Turbo GT	[176A4.000]	03.1995-
FIAT	Punto 1.4 Turbo GT	[176B6.000]	09.1996-
FIAT	Scudo 1.6	[220A2.000]	02.1996-
FIAT	Siena 1.4	[178B2.000]	04.1996-
FIAT	Siena 1.4	[178B2.016]	04.1996-
FIAT	Siena 1.6 16V	[178B3.000]	09.1998-
FIAT	Tempra 1.6 i.e.	[159B9.000]	05.1994-12.1996
FIAT	Tipo 1.6 i.e.	[149C2.046]	02.1988-06.1990
LANCIA	Dedra 1.6	[159B9.000]	10.1994-07.1999
LANCIA	Dedra 1.6 i.e.	[835C1.000]	04.1995-07.1999
LANCIA	Dedra 1.6 LE	[159B9.000]	07.1994-04.1998
LANCIA	Delta 1.4 i.e.	[836A4.000]	04.1995-12.1999
LANCIA	Delta 1.6 i.e.	[835C1.000]	04.1995-12.1999
LANCIA	Delta 1.6 i.e. LE	[182A6.000]	03.1996-08.1999
LANCIA	Y10 1.0 Turbo	[156A1.000]	03.1985-02.1989

Reference Information

455872 STA0120R CST30116OS 63103002 LRT00147 EAA-121179 SS512 10536 500.008.093.050 000986010450 6030116.4 6030116.2 6030116.1 CS883 986010450 42001234 S4020 STA0050R 5030159 63223303 331127 8EA737148-001 63223031 MAV2200A 7772462 CST30116GS 66925112 EL25112 6030116 11680 20404611BN 31146N 46417006 63103022 7733966 AES1247 PRSF327 71721310 7666528 DRS3104 MAV321210 35258510 25-2051 35258890 46475793 22.0975M ALT136240 DSN577 46475794 20404611RC 7773812 E80E-1.0/12 20404611RE 3826 500.008.093.265 STRL077 63103007 DRS3697 STR52003 LRT147 MAV2200 22.0975 STR9085 71721304 SS437 7589655 77398430 7642573 112124 88213154 10975 63223101 5968605 5802-M1 7566528 7680615 7589547 CS975 E80E1012 5802M1 S12MA0659A2 46774415 PRSL077 RNL975CS 4470378 4470377 46431502 46231535 8080043 20404611OE MAV2410 63223085 STRL707 STRF327 46231540 220166 500.008.093.058 CST30116RS 50246648 EAA-121529 220051 46416879 10285 ANM15324X CST30116AS 11895

Video/Publications

0986010450 10285 10536 10975 112124 11680 11895 20404121OE 20404121RC 20404611BN 22.0975 22.0975M 25-2051 31146N 35258510 35258890 3826 42001234 455872 46417006 46475793 46774415 50246648 6030116 6030121 63103002 63103007 63103022 63223031 63223101 66925112 7773812 8080043 8EA737148-001 AES1247 ALT136240 CS883 CS975 CST30116AS CST30116GS CST30116OS CST30121GS CST30121RS DRS3104 DRS3697 DSN577 EAA-121179 EAA-121529 EL25112 LRT00147 MAV2200 MAV2410 MAV321210 RNL975CS S4020 SS437 SS512 STR52003 STRF327 STRL077 STRL707 STRS695 220018 220051 220166
