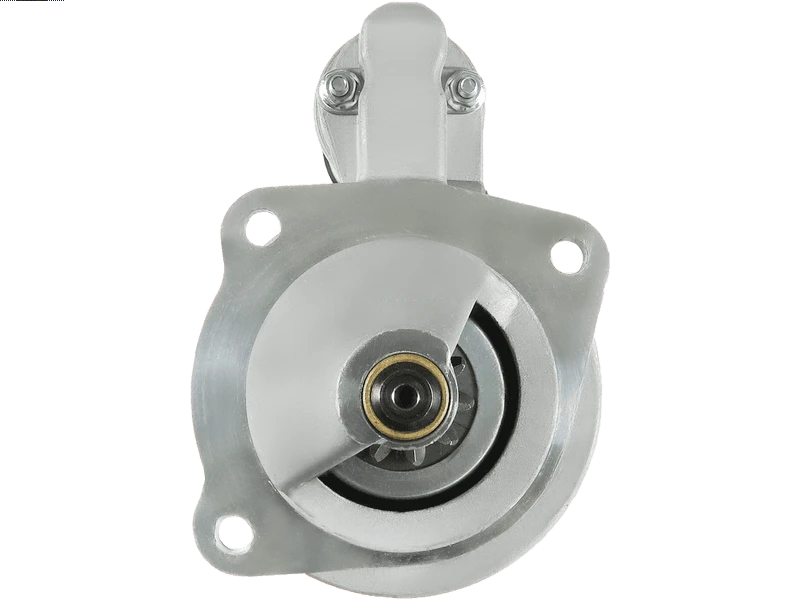

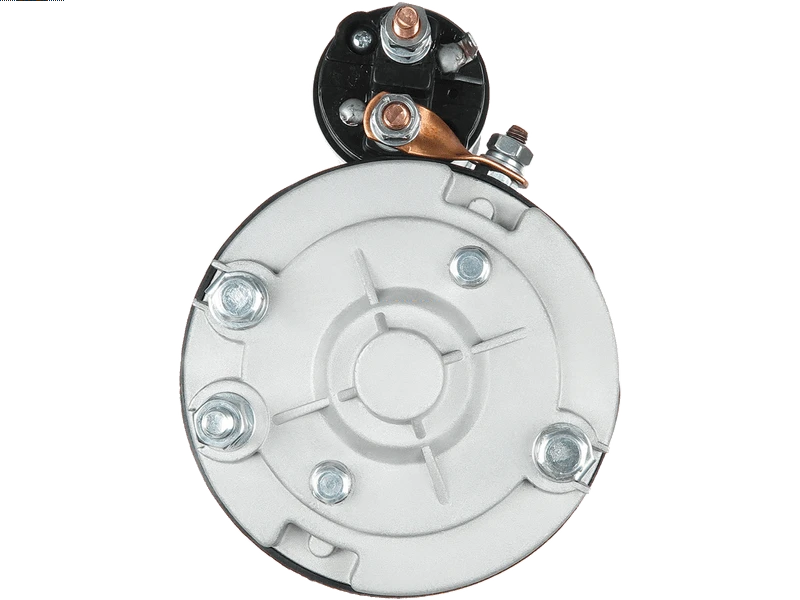

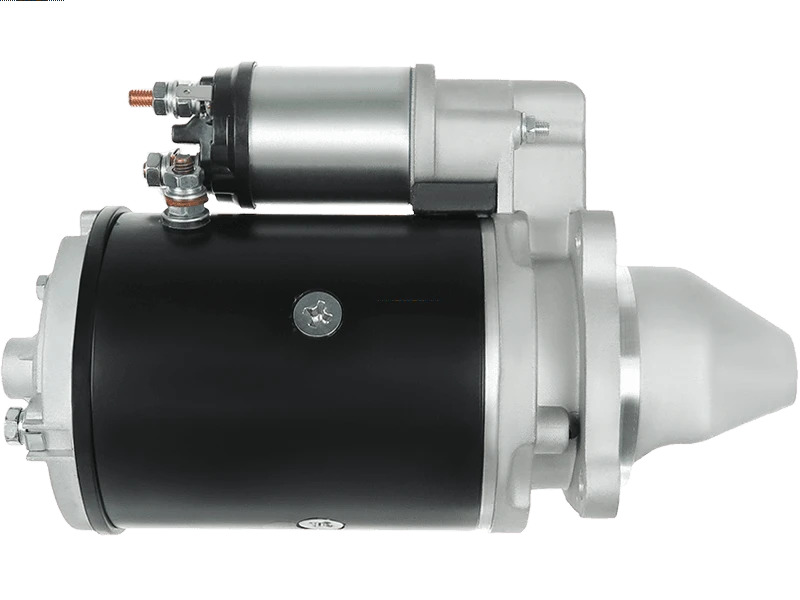

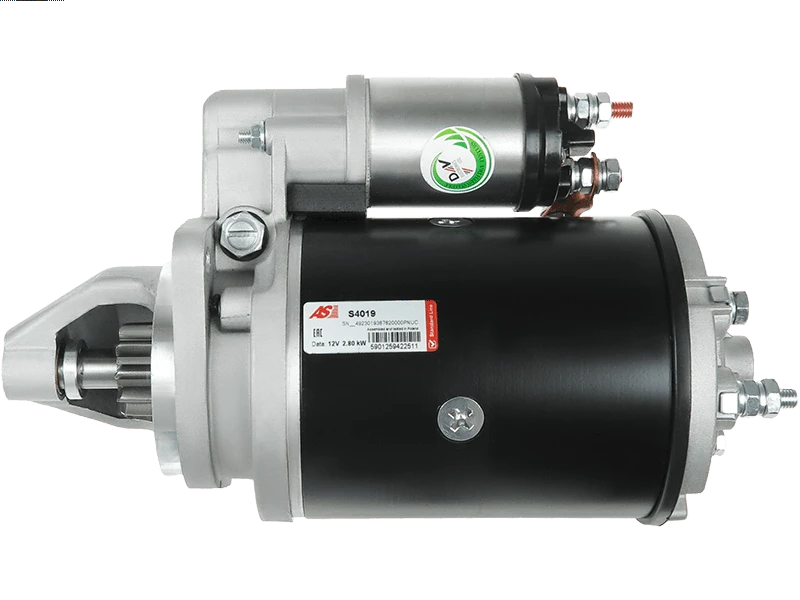

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
LUCAS
Price:
NZ$ 486.35 including GST
NZ$ 422.91 excluding GST
or four payments of $121.59
with
Learn More
each
S4019
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
LRS969Associated Numbers
0986022680 10994L 10994P 111346 17072N 17652N 20405221OE 20405231OE 20500969 22.0994 25-1030 25-2402 26414 27541 27565 27568 27590 27598 27599 27602 27608 27626 27627 27627B 28.0994 28.0994M 2873A029 2873A031 2873B072 33473 35260950 3763362M94 6025122 6025132 63227597 650.008.103 8212947 8735 8735R 8EA737243-001 AES9169 CS994 CST25122GS CST25132GS DRS3287 EAA-111029 EAA-121167 LRS00969 M100R2015SE STR25000Specifications
| Kilowatt | 2.80 kW |
| Length (L.1) | 316 mm |
| Mount Hole Center - Center (O.1) | 127 mm |
| Mount Hole Center - Center (O.2) | 90 mm |
| Mount Hole Center - Center (O.3) | 90 mm |
| Mount Hole Diameter (C.1) | 10.50 mm |
| Mount Hole Diameter (C.2) | 10.50 mm |
| Mount Hole Diameter (C.3) | 10.50 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 10 qty |
| No./Teeth (Replaces) | 10 qty |
| OEM Product | No |
| Pinion at Rest (B) | 30 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 89 mm |
| Unit Type | LUCAS |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| MASSEY FERGUSON | MF 285 | 01.1979-12.1988 | |
| MASSEY FERGUSON | MF 365 | 01.1986-12.1990 | |
| MASSEY FERGUSON | MF 375 | 01.1986-12.1997 | |
| MASSEY FERGUSON | MF 390 | 01.1986-12.1997 | |
| MASSEY FERGUSON | MF 390 T | 01.1991-12.1997 | |
| MASSEY FERGUSON | MF 398 | 01.1983-12.1984 | |
| MASSEY FERGUSON | MF 399 | 01.1986-12.1990 | |
| MASSEY FERGUSON | MF 4255 | 01.1997-12.2000 |
Reference Information
| 0986022680 | BOSCH |
| 10994L | KUHNER |
| 10994P | KUHNER |
| 111346 | CARGO |
| 13028AA071 | SUBARU |
| 13028AA072 | SUBARU |
| 13028AA200 | SUBARU |
| 1447731R1 | MASSEY FERGUSON |
| 17072N | WAI / TRANSPO |
| 17652N | WAI / TRANSPO |
| 1873A054 | PERKINS |
| 1873A055 | PERKINS |
| 20405221OE | REAL |
| 20405231OE | REAL |
| 20500969 | PRESTOLITE |
| 22.0994 | LAUBER |
| 2378A029 | PERKINS |
| 25-1030 | ELSTOCK |
| 25-2402 | ELSTOCK |
| 26414 | LUCAS |
| 26414R | PERKINS |
| 27519 | LUCAS |
| 27539A | LUCAS |
| 27541 | LUCAS |
| 27565 | LUCAS |
| 27568 | LUCAS |
| 27590 | LUCAS |
| 27598 | LUCAS |
| 27599 | LUCAS |
| 27602 | LUCAS |
| 27608 | LUCAS |
| 27626 | LUCAS |
| 27627 | LUCAS |
| 27627B | LUCAS |
| 28.0994 | LAUBER |
| 28.0994M | LAUBER |
| 2873006 | PERKINS |
| 2873A029 | PERKINS |
| 2873A031 | PERKINS |
| 2873B072 | PERKINS |
| 2873B073 | PERKINS |
| 3116683R91 | CASE |
| 3181A032 | PERKINS |
| 33473 | EAI |
| 35260950 | PRESTOLITE |
| 3763362M94 | MASSEY FERGUSON |
| 54265233 | LUCAS |
| 6025122 | SANDO |
| 6025132 | SANDO |
| 63227597 | MAGNETI MARELLI |
| 650.008.103 | PSH |
| 650.008.103.460 | PSH |
| 650.008.103.461 | PSH |
| 714-14300 | JCB |
| 714-29500 | JCB |
| 71429500R | JCB |
| 714/29500-R | JCB |
| 71440005 | JCB |
| 714-40005 | JCB |
| 714/40005 | JCB |
| 714/40159 | JCB |
| 8212947 | POWERMAX |
| 8735 | CEVAM |
| 8735R | CEVAM |
| 8EA737243-001 | HELLA |
| AES9169 | AUTOELECTRO |
| CS994 | HC PARTS |
| CST25122GS | CASCO |
| CST25132GS | CASCO |
| DRS3287 | DELCO |
| F032111346 | CARGO |
| LRS00969 | LUCAS |
| LRS969 | LUCAS |
| M100R2015SE | PRESTOLITE |
| MAV271220 | SIOM |
| S152.315 | PSH |
| S4019 | AS-PL |
| STR25000 | WOODAUTO |
| STR4090 | ELECTROLOG |
| STR4111 | ELECTROLOG |
| STRL030 | 3EFFE |
| STX200560 | STARDAX |
| STX200678 | STARDAX |
| STX210091 | STARDAX |
Video/Publications
