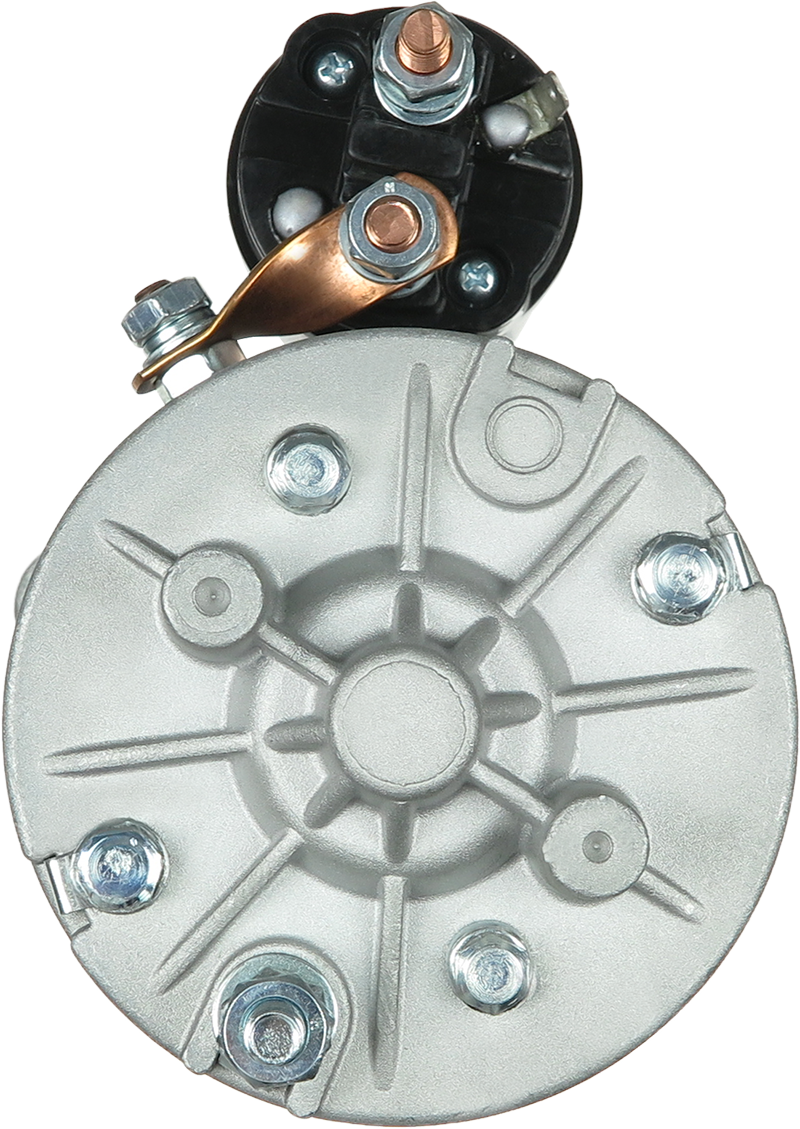

S4009 - Brand new AS-PL Starter motor

Specifications

Kilowatt	2.1 kW
Length (L.1)	316 mm
Mount Hole Center - Center (O.1)	103 mm
Mount Hole Center - Center (O.2)	146 mm
Mount Hole Center - Center (O.3)	103 mm
Mount Hole Diameter (C.1)	12.5 mm
Mount Hole Diameter (C.2)	12.5 mm
Mount Hole Diameter (C.3)	12.5 mm
No./Mount holes	3 qty
No./Mount holes with thread	0 qty
No./Teeth	9 qty
No./Teeth (Replaces)	9 qty
Pinion at Rest (B)	22 mm
Rotation	CW
Spigot Diameter (A)	92 mm
Unit Type	LUCAS/MARELLI
Voltage	12 V

Vehicle Applications

Make	Model	Type	Year
LAND ROVER	110 2.5 TD 4x4	[19J]	09.1986-07.1990
LAND ROVER	127 2.5 TD 4x4	[19J]	09.1986-07.1990
LAND ROVER	Defender 110 2.5 TD 4x4	[19J]	09.1986-07.1990
LAND ROVER	Defender 110 2.5 TDi	[23L]	09.1990-12.1998
LAND ROVER	Defender 2.5 TDi 4x4	[11L]	08.1990-11.1998
LAND ROVER	Defender 2.5 TDi 4x4	[11L]	08.1990-12.1998
LAND ROVER	Defender 2.5 TDi 4x4	[16L]	08.1990-11.1998
LAND ROVER	Defender 2.5 TDi 4x4	[16L]	08.1990-12.1998
LAND ROVER	Defender 2.5 TDi 4x4	[23L]	08.1990-11.1998
LAND ROVER	Defender 2.5 TDi 4x4	[23L]	08.1990-12.1998
LAND ROVER	Defender 2.5 TDi 90	[23L]	09.1990-12.2001
LAND ROVER	Defender 2.5 TDi 90, 110	[23L]	09.1990-12.2001
LAND ROVER	Defender 90 2.5 TD 4x4	[19J]	09.1986-07.1990
LAND ROVER	Defender 90 2.5 TDi	[23L]	09.1990-
LAND ROVER	Discovery 2.5 TDi
LAND ROVER	Discovery 2.5 TDi 4x4	[12L]	10.1989-12.1998
LAND ROVER	Discovery 2.5 TDi 4x4	[17L]	10.1989-12.1998
LAND ROVER	Discovery 2.5 TDi 4x4	[19L]	10.1989-12.1998
LAND ROVER	Discovery 2.5 TDi 4x4	[21L]	10.1989-12.1998
LAND ROVER	Land Rover 2.5 TD		09.1986-07.1990
LAND ROVER	Range Rover 2.5 D	[256T]	07.1994-03.2002

Reference Information

RTC5249E 27425B CST25117GS 9000331412 CST10114 CST25117OS STR4203 25024044A BF5T11001AA 0009000331425 NNN500210 22.059 LRS00574 CST10114ES NSB512 220362 PRSS086 63227460 27425A MAV3760 MAV3640 BOM UNIT NAD10039 35259480 6025117 27460B 27460A 20500574 SS662 STRS086 CST25117RS CST10114AS 220469 26925200A NAD500210 SG0144 51511501 0009004475107 120-5084 CST10114RS 22.0997 ERR5009 CST25117AS DRS3593 CST25117ES 10590 UD12409S 331835 9004475107 8EA012528-191 110441 27425 CS590 A0051511501 SS652 986016210 20500139 EAA-121837 254093B 27460 CST10114GS CST25117 26256 101201 6010114 PRC3032 CST10114OS STRF341 3619 35259400 028000-4001 9000331425 EAA-121087 1218814 6025117.1 25024044 AES1139 0009000331412 20405711BN 26321A 33089N MAV121140 S4009 ALT3800 26256E AES5174 20405711OE 26256D ANM15813X RTC5249 STR56004 450.501.093 LRS574
