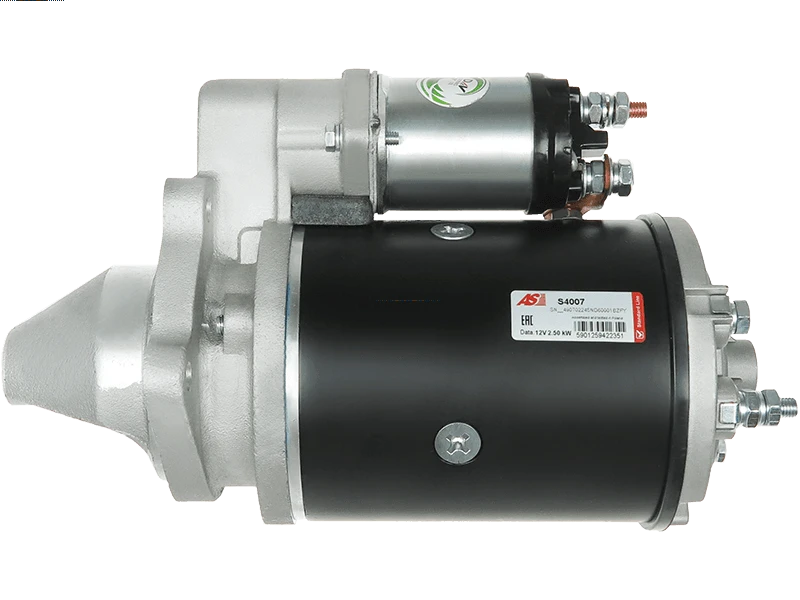

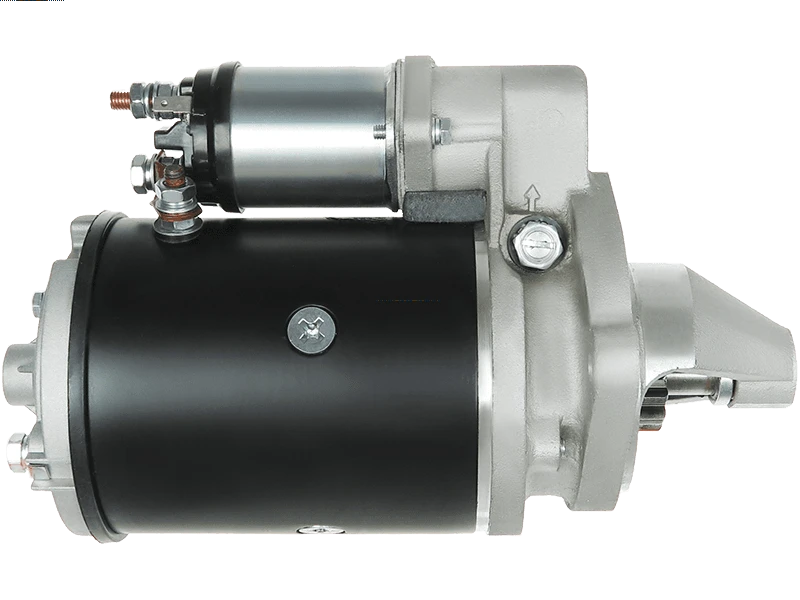

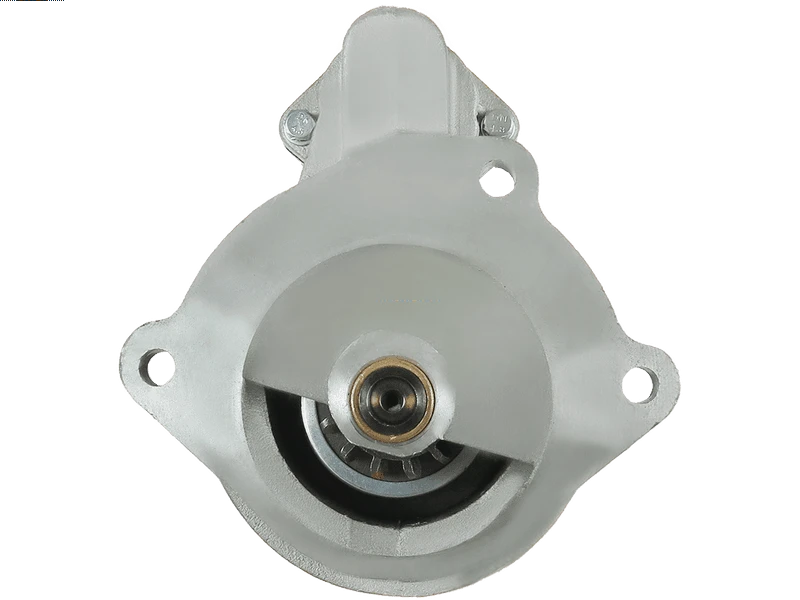

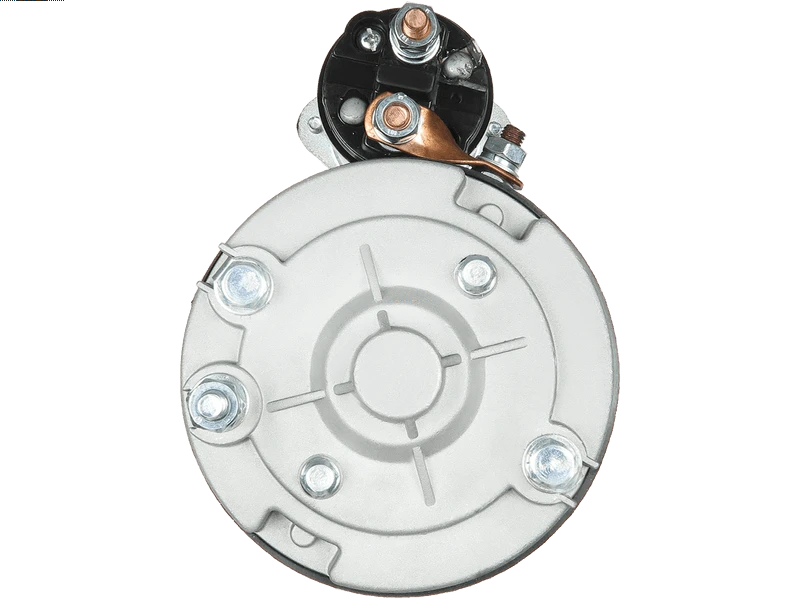

S4007 - Brand new AS-PL Starter motor

Specifications

Kilowatt	2.5 kW
Length (L.1)	316 mm
Mount Hole Center - Center (O.1)	75 mm
Mount Hole Center - Center (O.2)	144 mm
Mount Hole Center - Center (O.3)	116 mm
Mount Hole Diameter (C.1)	10.5 mm
Mount Hole Diameter (C.2)	10.5 mm
Mount Hole Diameter (C.3)	10.5 mm
No./Mount holes	3 qty
No./Mount holes with thread	0 qty
No./Teeth	13 qty
No./Teeth (Replaces)	12. 13 qty
Pinion at Rest (B)	20 mm
Rotation	CW
Spigot Diameter (A)	92 mm
Unit Type	LUCAS/MARELLI
Voltage	12 V

Vehicle Applications

Make	Model	Type	Year
FORD	Transit 2.4 Diesel	[4AA]	01.1977-05.1984
FORD	Transit 2.5 Diesel	[4AB]	10.1983-08.1991
FORD	Transit 2.5 Diesel	[4BA]	02.1986-08.1991
FORD	Transit 2.5 Diesel	[4CA]	02.1986-08.1991
FORD	Transit 2.5 Diesel Di	[4BC]	08.1991-08.1994
FORD	Transit 2.5 Diesel Di	[4CC]	08.1991-08.1994
FORD	Transit 2.5 Diesel Di	[4DA]	09.1991-08.1994
FORD	Transit 2.5 Diesel Di	[4FA]	08.1991-10.1996
FORD	Transit 2.5 Diesel Di	[4FB]	08.1994-10.1996
FORD	Transit 2.5 Diesel Di	[4FC]	08.1994-10.1996
FORD	Transit 2.5 Diesel Di	[4FD]	06.1994-10.1996
FORD	Transit 2.5 Diesel Di	[4GA]	10.1992-07.1994
FORD	Transit 2.5 Diesel Di	[4GB]	08.1994-10.1996
FORD	Transit 2.5 Diesel Di	[4GC]	08.1994-10.1996
FORD	Transit 2.5 Diesel Di	[4HB]	06.1994-09.1996
FORD	Transit 2.5 Diesel Di	[4HC]	06.1994-09.1996
FORD	Transit 2.5 DTi	[4HC]	07.1994-10.1996
FORD	Transit 2.5 TD	[4EA]	09.1991-08.1994
FORD	Transit 2.5 TD	[4EB]	07.1994-10.1996
FORD	Transit 2.5 TD	[4EC]	09.1991-09.1996
FORD	Transit 2.5 TD	[4GA]	08.1994-09.1996
FORD	Transit 2.5 TD	[4GB]	07.1994-10.1996
FORD	Transit 2.5 TD	[4GC]	06.1994-10.1996
FORD	Transit 2.5 TD	[4GD]	08.1994-09.1996
FORD	Transit 2.5 TD	[4GE]	08.1994-10.1996
FORD	Transit 2.5 TD	[4GF]	08.1994-09.1996
FORD	Transit 2.5 TDi	[4EB]	09.1995-10.1996
FORD	Transit 2.5 TDi	[4EC]	09.1995-10.1996

Reference Information

STR10003 AZJ3279 6025107 835F11000AC 1008823 835F11000AB 835F11000AA STR4204 ANM13170X 26388A 1416198 8010950 26388F 433292 755F11000BB STA0213R CST25107AS 835F11000BB 1507703 R755F-11000-BB 755F11000AA 25-0280 CGB-20950 755F11000AB 27501 SS655 1358200 20405701OE 1358202 1358201 3818 1626195 220020 1653210 795F11000CA MT130009 986010950 MAV3300 1416252 715F11000MA CST25107GS R835X11000AC1 SX 22.0693 R835X11000AC 20500673 1653206 1362307 003-130009 22.0337M 26388 22.0337 3130009 ALTS673 STR10205 715F11000JA 42010950 26356 330489 26355Y SS672 27567 LRS304 10337 98VB11000BB 26355 318 27501D 27501A 27501B 27577A 27501H 27501E MS 10337V 27501F EAA-121269 LRT00176 27577 10337K 27501J 2086 R755F11000BB 26407 26355A 8EA726085-001 CS337 26355D 26355J 30670N VS128 110461 11.130.769 11433 LRS673 835FX11000BB 25701E 20405701BN 1516738R STR79060 26407E 26407D LRS00673 835X11000AC DRS0950 DRS3789 0001362307 AES6173 5003643 000986010950 6160440 SS566 0001358200 835FX11000B 0001358201 0001358202 STRL031 DRS0950N S12BH0691A2 GS362307-A LRS00304 S4007

Video/Publications

0001358200 0001358201 0001358202 0001362307 003-130009 0986010950 10337 10337K 10337V 11.130.769 110461 11433 20405701BN 20405701OE 20500673 20500976 22.0337 22.0337M 22.0693 25-0280 25701E 26355 26355A 26355D 26355J 26355Y 26356 26388 26388A 26388F 26407 26407D 26407E 27501 27501A 27501B 27501D 27501E 27501F 27501H 27501J 27567 27577 27577A 30670N 3130009 3818 42010950 433292 6025107 6160440 715F11000MA 755F11000BB 795F11000CA 8010950 835F11000AA 835F11000AC 835F11000BB 835FX11000BB 8EA726085-001 AES6173 ALTS673 AZJ3279 CGB-20950 CS337 CST25107AS CST25107GS DRS0950 DRS0950N DRS3789 EAA-121269 GS362307-A LRS00304 LRS00673 LRS304 LRS673 LRT00176 MAV3300 MS 318 MT130009 R835X11000AC S4007 SS566 SS655 SS672 STR10003 STRL031 SX 2086 VS128 220020
