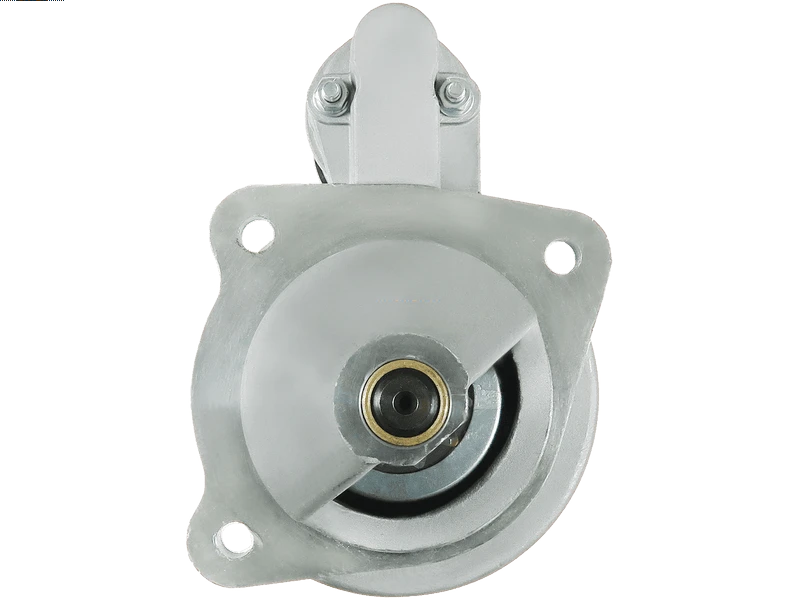

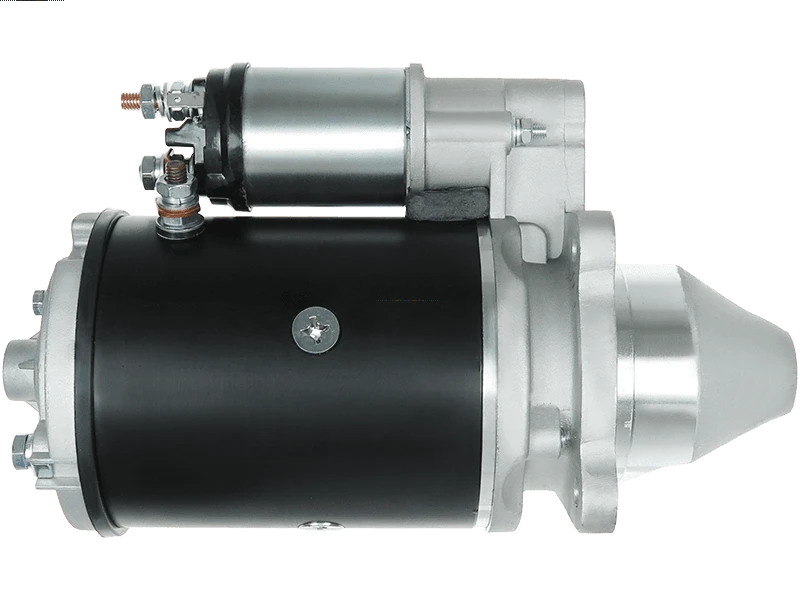

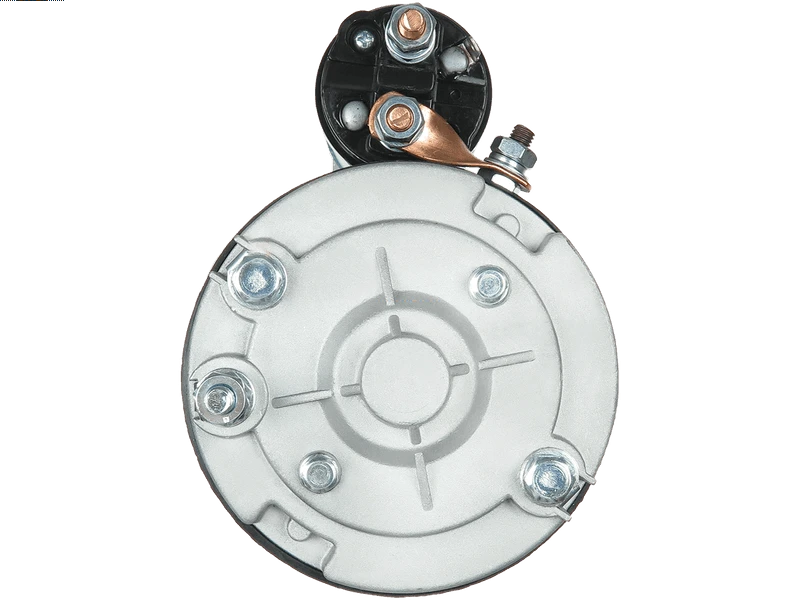

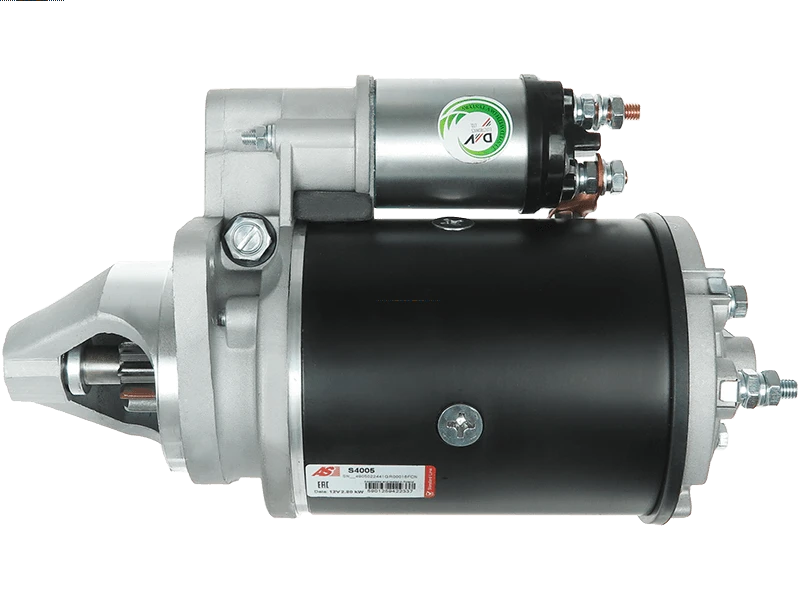

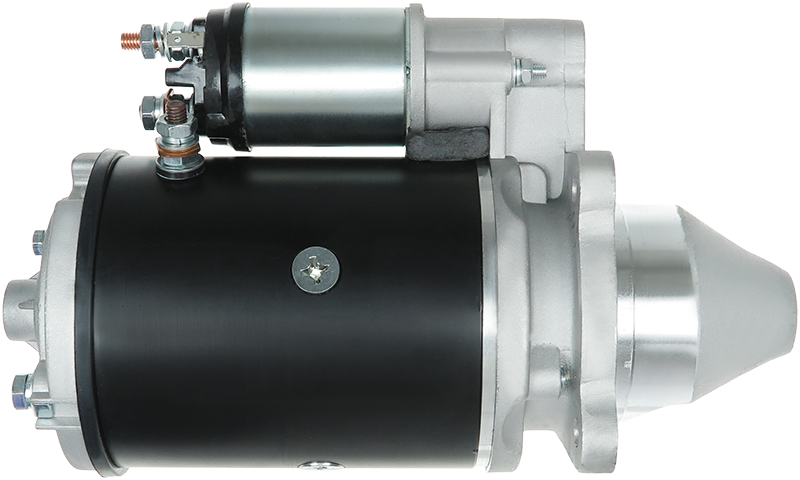

S4005 - Brand new AS-PL Starter motor

Brand new AS-PL Starter motor
Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
LUCAS
Price:
NZ$ 517.79 including GST

NZ$ 450.25 excluding GST
each
S4005
No stock in NZ
No stock in NZ
0001367040 10201L 10201P 10994L 10994P 11.130.076 11.130.200 11.130.373 11.130.411 11.130.509 11.130.629 11.130.872 11.130.904 110565 111013 111346 123708007 1447731 16670N 1691806R1 17072N 17652N 18289N 1860093M2 1868285R3 1868287T 19083015 20405231OE 20405301BN 20405301OE 20419831OE 20500173 20500969 22.0201M 25-0041 25-1022 25-1030 25-1410 25-2228 26274 26274B 26274E 26274H 26320D 26323 26323A 26345 26345A 26345B 26345D 26345E 26366 26366A 26366B 26410 26410A 26410B 26410R 26414 26414E 27510 27510B 27510F 27515 27515A 27515B 27515E 27539 27539B 27539D 27541 27565 27568 27572 27572A 27572B 27572D 27572E 27572F 27578 27583 27583A 27583B 27583D 27583H 27583J 27590 27594 27594A 27598 27599 27602 27606 27608 27626A 2873006 2873A029 2873A031 2873B055 2873B057 2873B072 30617N 33394 33473 33477 3519400M1 3519400M92 35260950 3597372M2 3763362M91 3930506R1 3930509R1 433316 443115142743 538502 6021138 6025103 6025132 650.001.103 650.501.103 66925051 70179544M1 7017954M1 8055232 806.004.000.0 8212679 863.000.4 863.000.5 8719 8719R 8EA012526-981 8EA726027-001 8EA737250-001 906.011.000.0 9142743 9144703 AES2132 AES9169 AZJ0405 AZJ3117 AZJ3144 AZJ3203 AZJ3305 AZJ3536 AZJ3590 AZJ3598 CS1033 CS201 CST21138GS CST25103AS CST25103GS CST25132GS D11E137 D11E154 D11E15H DRS3287 DRS3287N EAA-111032 LRS00173 LRS00232 LRS00969 M100R2015SE MT68S R11-04 R11G R11g RNL232 S13-73 S13-74 S4005 S5005L STR25013
Kilowatt2.8 kW
Length (L.1)316 mm
Mount Hole Center - Center (O.1)127 mm
Mount Hole Center - Center (O.2)90 mm
Mount Hole Center - Center (O.3)90 mm
Mount Hole Diameter (C.1)10 mm
Mount Hole Diameter (C.2)10 mm
Mount Hole Diameter (C.3)10 mm
No./Mount holes3 qty
No./Mount holes with thread0 qty
No./Teeth10 qty
No./Teeth (Replaces)10 qty
Oil SealedNo
Pinion at Rest (B)29 mm
RotationCW
Spigot Diameter (A)89 mm
Unit TypeLUCAS/MARELLI
Voltage12 V
Make Model Type Year
MASSEY FERGUSON MF 274 3.9 01.1983-12.1988
MASSEY FERGUSON MF 4270 01.1997-
4.43115E+11 538502 10994P 714-40005 10994L 20405301BN 25-1022 3597372M2 D11E154 DRS3287N LRS00137 20419831OE STR79012 111346 433316 2873A029 26323 25-2228 27539 8055232 3763362M94 863.000.5 863.000.4 D11E15H 9144703 17652N AZJ3144 714/40005 3763362M91 25-0041 27626A 8EA012526-981 27572A 27572B 3546391M91 27572E 8EA726027-001 6005021272 27572F 26414 27572D 2873A031 LRS00232 LRS969 26410 LRS162 714-14300 714/40159 1860093M2 3516094M1 35260950 27519 27515E 27583A 27583B CST25103GS 3519400M1 18289N 27583D 6021138 27583J 27515 27583H 385 26414E 9142743 13028AA071 27510 13028AA072 STR4111 LRS173 806.004.000.0 27515B 27539D 26414R 27539B 27515A 27608 27602 27606 R11g 26320D 3542185M93 CS201 3542185M92 11.130.411 2873006T STRL027 3542185M91 6005700081 2378A029 6005003154 3597372R2 7017954M1 282 MT68S EAA-111032 R11G MAV3630 D11E137 220739 AZJ3536 111013 33394 26366B 11.130.076 26366A AES2132 1868285R3 26295 11.130.872 CST21138GS 615 RNL232 13028AA200 11.130.509 STRL825 331823 8719R 16670N 1447731 70179544M1 2873B057 2873B055 STR7947 2873006 2873003 2873004 388187A1 CGB-23287 388187A2 S4005 71440005 11.130.629 27510B 19083015 6025103 27510F STR79085 234987A1 R11-04 S12LU0291A2 30617N CST25132GS 26274 7701031686 DRS3287 1447731R1 CST25103AS AZJ3305 20500173 MAV271220 2873D001 M100R2015SE 2873D002 2873D003 26323A 2873B073 20500969 11.130.200 2873B072 25-1410 NSB529 LRS232 ALTS698 1367040 3181A032 26358A 706022A1 27583 33477 33473 S5005L 3519400M92 1871434M1 AZJ3203 8212679 27599 714-29500 27594 26345B 17072N 26345A CS994 27598 26345E 26345D 323319A1 548 3930506R1 1447698M1 8719 27590 123708007 906.011.000.0 AZJ3598 650.001.103 20405301OE 27594A AZJ3117 27568 AZJ0405 3539390M92 26358 1873A055 3539390M91 1873A054 11.130.373 27565 LRS00173 S13-73 AZJ3590 S13-74 1868287T 1691806R1 54265233 MS 27578 27572 714/29500-R 26274B LRS00162 26366 3930509R1 26274E 1868285M3 LRS00969 1868285M2 909971R2 26274H 1868285M1 26410R 10201L 71429500R 110565 8EA737250-001 0001367040 10201P S12LU0292A2 1447834M91 22.0201M CS1033 20405231OE AES9169 27541 OF 6025132 3116683R91 S13-73B 26345 STR25013 26410B 26410A LRS137 7700011850 345 S12-73 66925051 11.130.904 25-1030
0001367040 10201L 10201P 10994L 10994P 11.130.076 11.130.200 11.130.373 11.130.411 11.130.509 11.130.629 11.130.872 11.130.904 110565 111013 111346 123708007 1447731 16670N 1691806R1 17072N 17652N 18289N 1860093M2 1868285R3 1868287T 19083015 20405231OE 20405301BN 20405301OE 20419831OE 20500173 20500969 22.0201M 25-0041 25-1022 25-1030 25-1410 25-2228 26274 26274B 26274E 26274H 26295 26320D 26323 26323A 26345 26345A 26345B 26345D 26345E 26358 26366 26366A 26366B 26410 26410A 26410B 26410R 26414 26414E 27510 27510B 27510F 27515 27515A 27515B 27515E 27539 27539B 27539D 27541 27565 27568 27572 27572A 27572B 27572D 27572E 27572F 27578 27583 27583A 27583B 27583D 27583H 27583J 27590 27594 27594A 27598 27599 27602 27606 27608 27626A 2873006 2873A029 2873A031 2873B055 2873B057 2873B072 30617N 33394 33473 33477 3519400M1 3519400M92 35260950 3597372M2 3763362M91 3930506R1 3930509R1 433316 443115142743 538502 54265233 6021138 6025103 6025132 650.001.103 66925051 70179544M1 7017954M1 8055232 806.004.000.0 8212679 863.000.4 863.000.5 8719 8719R 8EA012526-981 8EA726027-001 8EA737250-001 906.011.000.0 9142743 9144703 AES2132 AES9169 ALTS698 AZJ0405 AZJ3117 AZJ3144 AZJ3203 AZJ3305 AZJ3536 AZJ3590 AZJ3598 CGB-23287 CS1033 CS201 CS994 CST21138GS CST25103AS CST25103GS CST25132GS D11E137 D11E154 D11E15H DRS3287 DRS3287N EAA-111032 LRS00137 LRS00162 LRS00173 LRS00232 LRS00969 LRS137 LRS162 LRS173 LRS232 LRS969 M100R2015SE MAV271220 MAV3630 MS 282 MS 345 MS 385 MS 548 MS 615 OF MT68S NSB529 R11-04 R11G R11g RNL232 S13-73 S13-74 S4005 S5005L STR25013 STRL027 STRL825 220739
