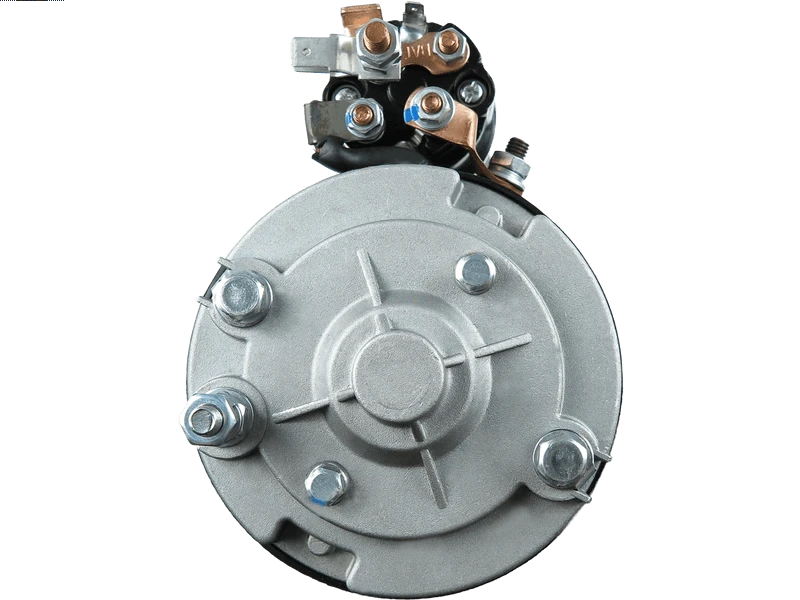

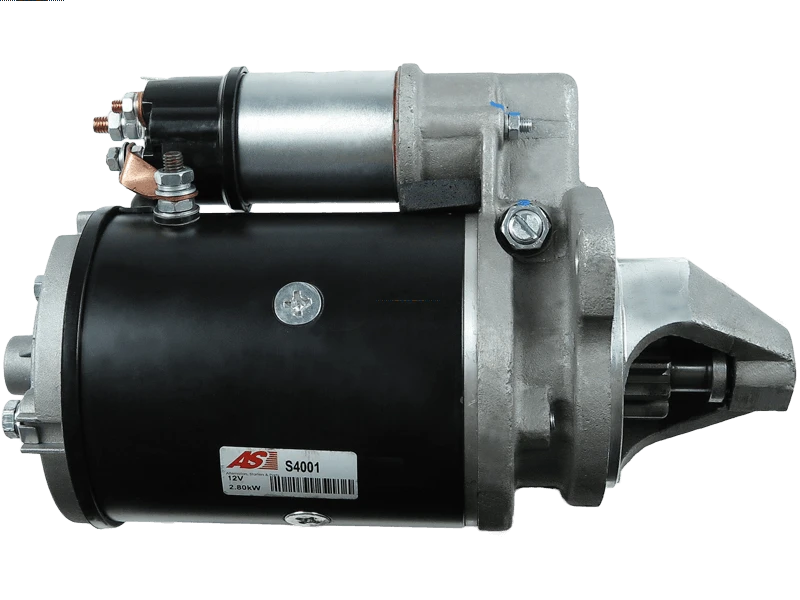

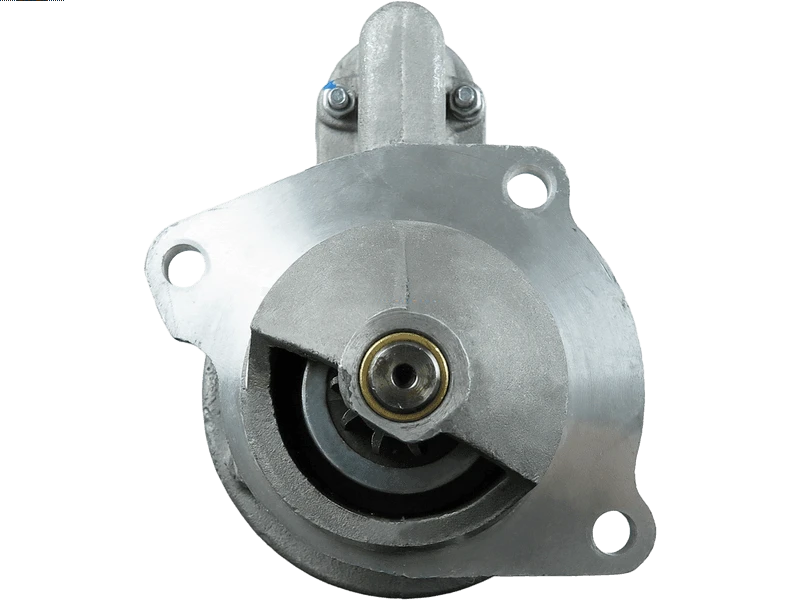

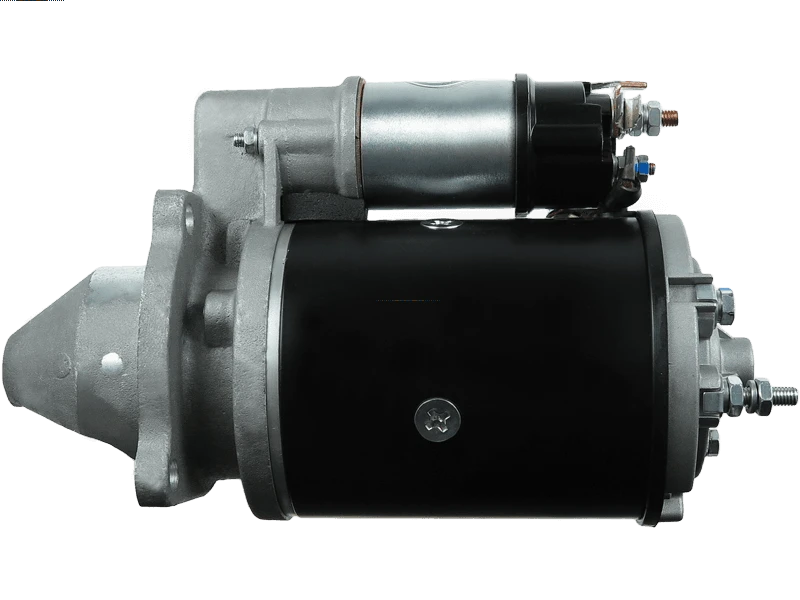

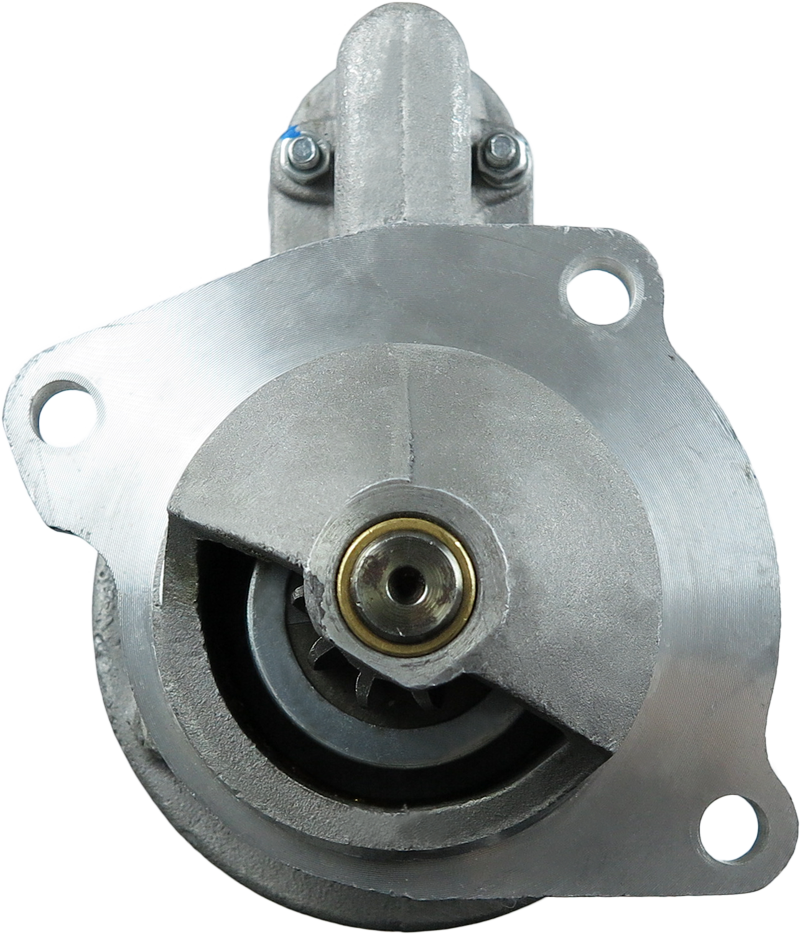

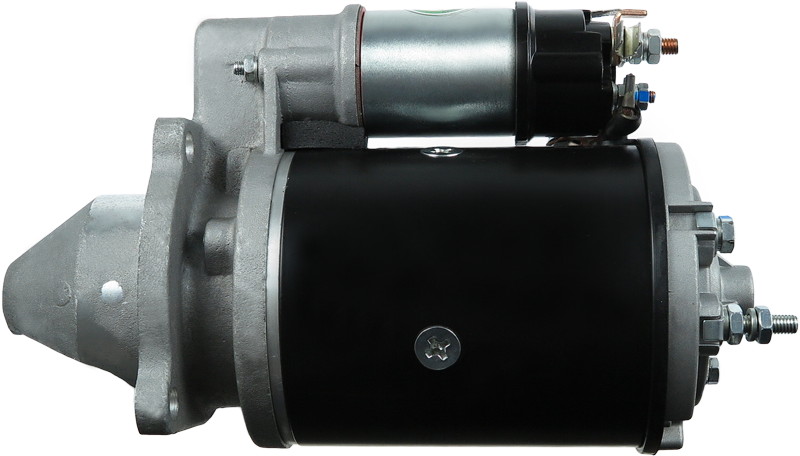

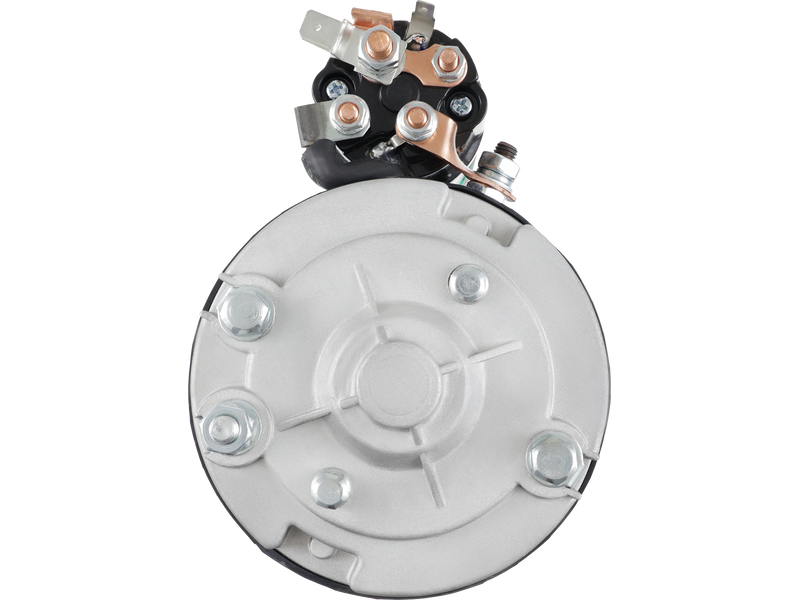

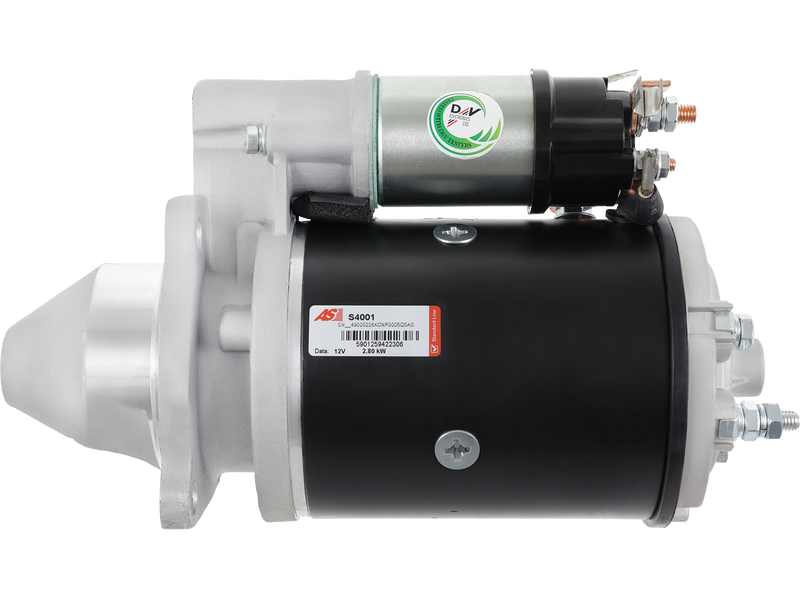

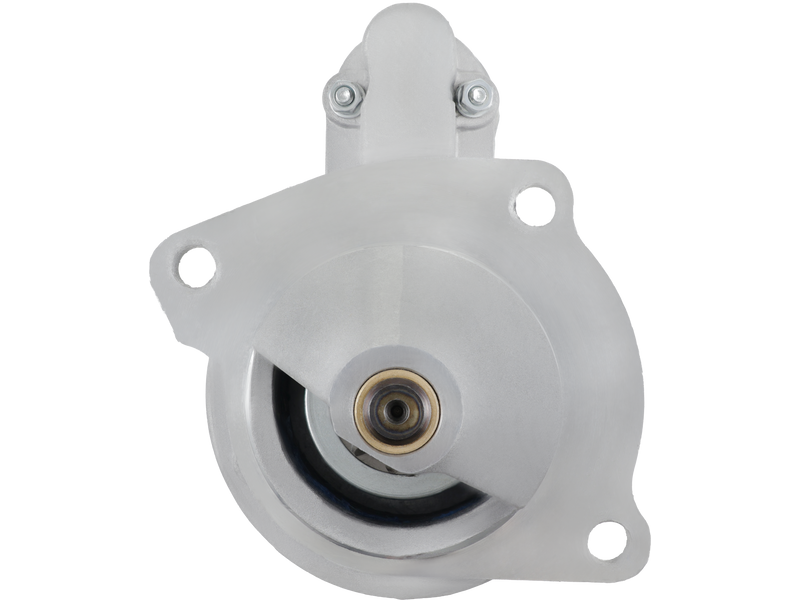

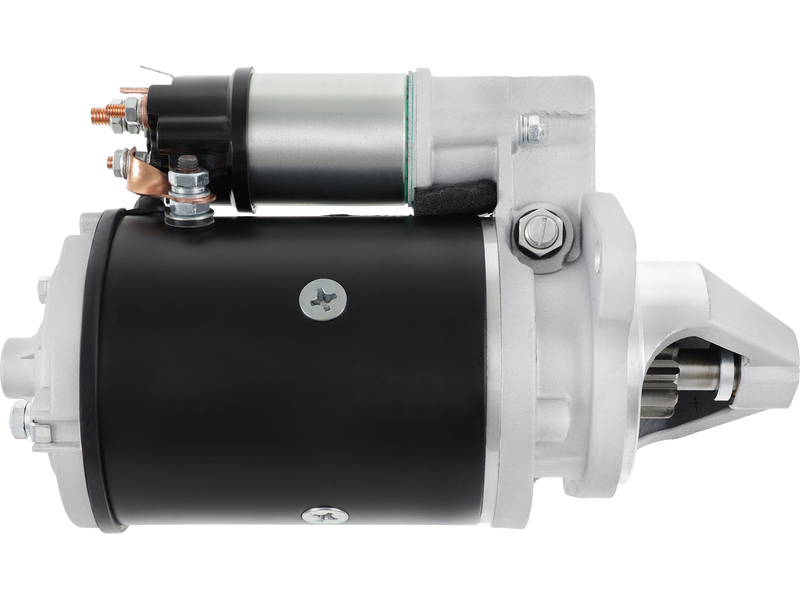

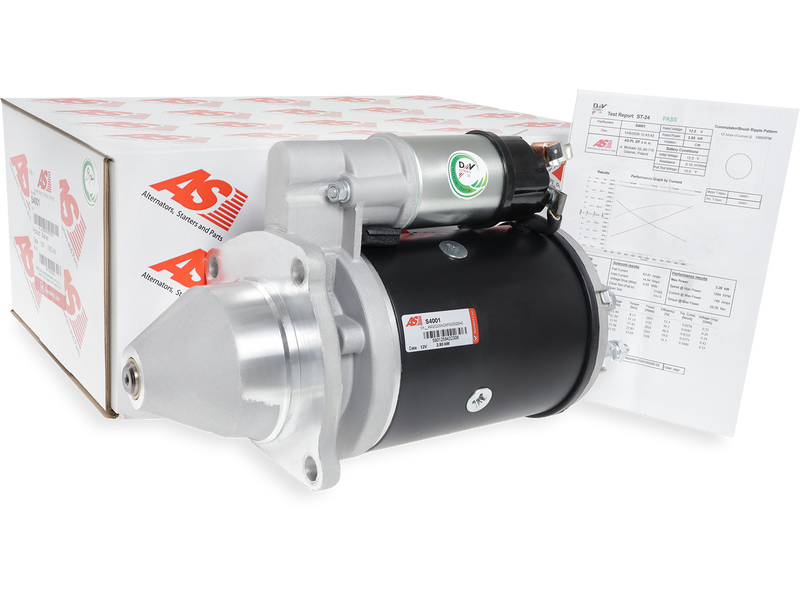

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
LUCAS
Price:
NZ$ 488.85 including GST
NZ$ 425.09 excluding GST
or four payments of $122.21
with
Learn More
UOM:
each
Alternative Item:
S4018
Product Code:
S4001
Quantity In Stock Nationally
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
- Information
- Associated Numbers
- Specifications
- Vehicle Applications
- Reference Information
- Video/Publications
Information
LRS301Associated Numbers
0986018161 101032 101032D 101032P 11.130.520 110819 17639N 17653N 20405811BN 20405811OE 20419411OE 20500301 25-1003 25-1416 26273 26273A 26273B 26273D 26344 26365 26411 27522 27540 27540A 27546 27546A 27571 27580 27582 27584 27593 2873B061 33475 3597371M2 6021114 6025118 650.003.103 8018161 8053 8212517 8513 8EA737249-001 AES3101 AZJ3148 CS1032 CST21114GS CST25118AS CST25118GS DRS3427 IS0520 IS0632 LRS00301 STR25010Specifications
| Kilowatt | 2.80 kW |
| Length (L.1) | 317 mm |
| Mount Hole Center - Center (O.1) | 103 mm |
| Mount Hole Center - Center (O.2) | 146 mm |
| Mount Hole Center - Center (O.3) | 103 mm |
| Mount Hole Diameter (C.1) | 12.50 mm |
| Mount Hole Diameter (C.2) | 12.50 mm |
| Mount Hole Diameter (C.3) | 12.50 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 10 qty |
| No./Teeth (Replaces) | 10 qty |
| OEM Product | No |
| Pinion at Rest (B) | 26 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | CW |
| Spigot Diameter (A) | 92 mm |
| Unit Type | LUCAS |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| MASSEY FERGUSON | MF 240 2.5 | 01.1979-12.1988 | |
| MASSEY FERGUSON | MF 245 2.5 | 01.1977-12.1988 | |
| MASSEY FERGUSON | MF 255 2.5 | 01.1977-12.1988 | |
| MASSEY FERGUSON | MF 350 | 01.1986-12.1992 | |
| MASSEY FERGUSON | MF 350 | 01.1986-12.1992 | |
| MASSEY FERGUSON | MF 354 | 01.1992-12.1997 | |
| MASSEY FERGUSON | MF 354 | 01.1992-12.1997 | |
| MASSEY FERGUSON | MF 355 | 01.1986-12.1992 | |
| MASSEY FERGUSON | MF 355 | 01.1986-12.1992 | |
| MASSEY FERGUSON | MF 360 | 01.1987-12.1990 | |
| MASSEY FERGUSON | MF 360 | 01.1987-12.1990 | |
| MASSEY FERGUSON | MF 364 | 01.1992-12.1997 | |
| MASSEY FERGUSON | MF 364 | 01.1992-12.1997 | |
| MERCEDES-BENZ | 123 Coupe (C123) 300 C Turbo-D (123.153) | OM617.952 | 09.1981-07.1985 |
| MERCEDES-BENZ | 123 Saloon (W123) 200 D | OM615.940 | 03.1979-11.1985 |
| MERCEDES-BENZ | 123 Saloon (W123) 200 D (123.120) | OM615.940 | 07.1976-02.1979 |
| MERCEDES-BENZ | 123 Saloon (W123) 220 D | OM615.941 | 01.1977-03.1979 |
| MERCEDES-BENZ | 123 Saloon (W123) 220 D (123.126) | OM615.941 | 01.1976-02.1979 |
| MERCEDES-BENZ | 123 Saloon (W123) 240 D (123.123) | OM616.912 | 02.1976-02.1979 |
| MERCEDES-BENZ | 123 Saloon (W123) 240 D (123.123) | OM616.912 | 03.1979-11.1985 |
| MERCEDES-BENZ | 123 Saloon (W123) 300 D (123.130) | OM617.912 | 02.1976-07.1980 |
| MERCEDES-BENZ | 123 Saloon (W123) 300 D (123.130) | OM617.912 | 03.1979-11.1985 |
| MERCEDES-BENZ | 123 Saloon (W123) 300 Turbo-D (123.133) | OM617.952 | 08.1981-07.1985 |
| MERCEDES-BENZ | 123 T-Model (S123) 240 T D | OM616.912 | 09.1977-02.1979 |
| MERCEDES-BENZ | 123 T-Model (S123) 240 T D (123.183) | OM616.912 | 03.1979-12.1985 |
| MERCEDES-BENZ | 123 T-Model (S123) 300 T D (123.190) | OM617.912 | 03.1979-11.1985 |
| MERCEDES-BENZ | 123 T-Model (S123) 300 T D (123.190) | OM617.912 | 09.1977-10.1985 |
| MERCEDES-BENZ | 123 T-Model (S123) 300 T Turbo-D (123.193) | OM617.952 | 10.1980-11.1985 |
| MERCEDES-BENZ | /8 (W115) 200 D (115.115) | OM615.913 | 01.1968-01.1977 |
| MERCEDES-BENZ | /8 (W115) 220 D (115.110) | OM615.912 | 01.1968-01.1977 |
| MERCEDES-BENZ | /8 (W115) 240 D (115.117) | OM616.916 | 08.1973-01.1977 |
| MERCEDES-BENZ | /8 (W115) 240 D 3.0 (115.114) | OM617.910 | 08.1974-11.1976 |
| MERCEDES-BENZ | CLK (C208) CLK 430 (208.370) | M113.943 | 07.1998-06.2002 |
| MERCEDES-BENZ | CLK (C208) CLK 55 AMG (208.374) | M113.981 | 08.1999-06.2002 |
| MERCEDES-BENZ | CLK (C208) CLK 55 AMG (208.374) | M113.984 | 08.1999-06.2002 |
| MERCEDES-BENZ | CLK Convertible (A208) CLK 430 (208.470) | M113.943 | 09.1998-03.2002 |
| MERCEDES-BENZ | CLK Convertible (A208) CLK 55 AMG (208.474) | M113.981 | 01.2000-03.2002 |
| MERCEDES-BENZ | CLK Convertible (A208) CLK 55 AMG (208.474) | M113.984 | 01.2000-03.2002 |
| MERCEDES-BENZ | CLS (C219) CLS 500 (219.375) | M113.967 | 10.2004-12.2010 |
| MERCEDES-BENZ | E-CLASS T-Model (S210) E 220 T CDI (210.206) | OM611.961 | 07.1999-03.2003 |
| MERCEDES-BENZ | E-CLASS T-Model (S210) E 270 T CDI (210.216) | OM612.961 | 07.1999-03.2003 |
| MERCEDES-BENZ | E-CLASS T-Model (S210) E 320 T CDI (210.226) | OM613.961 | 07.1999-03.2003 |
| MERCEDES-BENZ | E-CLASS T-Model (S210) E 430 T (210.270) | M113.940 | 06.1997-03.2003 |
| MERCEDES-BENZ | E-CLASS T-Model (S210) E 430 T 4-matic (210.283) | M113.940 | 05.1999-03.2003 |
| MERCEDES-BENZ | E-CLASS T-Model (S210) E 55 T AMG (210.274) | M113.980 | 08.1997-03.2003 |
| MERCEDES-BENZ | E-CLASS T-Model (S211) E 240 T (211.261) | M112.913 | 03.2003-07.2009 |
| MERCEDES-BENZ | E-CLASS T-Model (S211) E 240 T 4-matic (211.280) | M112.917 | 07.2003-07.2009 |
| MERCEDES-BENZ | E-CLASS T-Model (S211) E 320 T (211.265) | M112.949 | 03.2003-07.2009 |
| MERCEDES-BENZ | E-CLASS T-Model (S211) E 320 T 4-matic (211.282) | M112.954 | 07.2003-07.2009 |
| MERCEDES-BENZ | E-CLASS T-Model (S211) E 500 T (211.270) | M113.967 | 10.2003-07.2009 |
| MERCEDES-BENZ | E-CLASS T-Model (S211) E 500 T 4-matic (211.283) | M113.969 | 10.2003-07.2009 |
| MERCEDES-BENZ | E-CLASS (W210) E 200 CDI (210.007) | OM611.961 | 06.1998-03.2002 |
| MERCEDES-BENZ | E-CLASS (W210) E 200 CDI (210.007) | OM611.961 | 07.1999-03.2002 |
| MERCEDES-BENZ | E-CLASS (W210) E 220 CDI (210.006) | OM611.961 | 07.1999-03.2002 |
| MERCEDES-BENZ | E-CLASS (W210) E 270 CDI (210.016) | OM612.961 | 07.1999-03.2002 |
| MERCEDES-BENZ | E-CLASS (W210) E 320 CDI (210.026) | OM613.961 | 07.1999-03.2002 |
| MERCEDES-BENZ | E-CLASS (W210) E 430 (210.070) | M113.940 | 06.1997-03.2002 |
| MERCEDES-BENZ | E-CLASS (W210) E 430 4-matic (210.083) | M113.940 | 05.1999-03.2002 |
| MERCEDES-BENZ | E-CLASS (W210) E 55 AMG (210.074) | M113.980 | 08.1997-03.2002 |
| MERCEDES-BENZ | E-CLASS (W211) E 240 (211.061) | M112.913 | 03.2002-12.2008 |
| MERCEDES-BENZ | E-CLASS (W211) E 240 (211.061) | M112.917 | 03.2002-12.2008 |
| MERCEDES-BENZ | E-CLASS (W211) E 240 4-matic (211.080) | M112.917 | 03.2003-12.2008 |
| MERCEDES-BENZ | E-CLASS (W211) E 320 (211.065) | M112.949 | 03.2002-12.2008 |
| MERCEDES-BENZ | E-CLASS (W211) E 320 4-matic (211.082) | M112.954 | 03.2003-12.2008 |
| MERCEDES-BENZ | E-CLASS (W211) E 500 (211.070) | M113.967 | 03.2002-12.2008 |
| MERCEDES-BENZ | E-CLASS (W211) E 500 4-matic (211.083) | M113.969 | 10.2003-12.2008 |
| MERCEDES-BENZ | G-CLASS (W460) 240 GD (460,3) | OM616.936 | 03.1979-08.1987 |
| MERCEDES-BENZ | G-CLASS (W460) 300 GD (460,3) | OM617.931 | 12.1979-12.1991 |
| MERCEDES-BENZ | MB Bus (W631) D | OM616.963 | 12.1990-12.1994 |
| MERCEDES-BENZ | MB Bus (W631) D (631.333, 631.343, 631.334, 631.344) | OM616.963 | 02.1988-05.1992 |
| MERCEDES-BENZ | MB Bus (W631) D (631.333, 631.343, 631.334, 631.344) | OM616.963 | 12.1990-02.1996 |
| MERCEDES-BENZ | MB Platform/Chassis (W631) D (631.340) | OM616.963 | 02.1988-05.1992 |
| MERCEDES-BENZ | MB Platform/Chassis (W631) D (631.340) | OM616.963 | 12.1990-02.1996 |
| MERCEDES-BENZ | MB Van (W631) D (631.332, 631.342) | OM616.963 | 02.1988-05.1992 |
| MERCEDES-BENZ | MB Van (W631) D (631.332, 631.342) | OM616.963 | 12.1990-02.1996 |
| MERCEDES-BENZ | M-CLASS (W163) ML 270 CDI (163.113) | OM612.963 | 12.1999-06.2005 |
| MERCEDES-BENZ | S-CLASS (W220, V220) S 280 (220.063, 220.163) | M112.922 | 10.1998-08.2005 |
| MERCEDES-BENZ | S-CLASS (W220, V220) S 320 (220.065, 220.165) | M112.944 | 10.1998-08.2005 |
| MERCEDES-BENZ | S-CLASS (W220, V220) S 320 CDI (220.026, 220.126) | OM613.960 | 08.1999-09.2002 |
| MERCEDES-BENZ | S-CLASS (W220, V220) S 350 4-matic (220.087, 220.187) | M112.975 | 06.2003-08.2005 |
| MERCEDES-BENZ | S-CLASS (W220, V220) S 350, S 350 L (220.067, 220.167) | M112.972 | 09.2002-08.2005 |
| MERCEDES-BENZ | S-CLASS (W220, V220) S 430 4-matic (220.083, 220.183) | M113.948 | 09.2002-08.2005 |
| MERCEDES-BENZ | S-CLASS (W220, V220) S 430, S 430 L (220.070, 220.170) | M113.941 | 10.1998-08.2005 |
| MERCEDES-BENZ | S-CLASS (W220, V220) S 500 4-matic (220.084, 220.184) | M113.966 | 09.2002-08.2005 |
| MERCEDES-BENZ | S-CLASS (W220, V220) S 500, S 500 L (220.075, 220.175, 220.875) | M113.960 | 10.1998-08.2005 |
| MERCEDES-BENZ | S-CLASS (W220, V220) S 500, S 500 L (220.075, 220.175, 220.875) | M113.966 | 10.1998-08.2005 |
| MERCEDES-BENZ | S-CLASS (W220, V220) S 55 AMG (220.073, 220.173) | M113.986 | 04.1999-08.2005 |
| MERCEDES-BENZ | SL (R230) 350 (230.467) | M112.973 | 03.2003-01.2012 |
| MERCEDES-BENZ | SL (R230) 500 (230.475) | M113.963 | 10.2001-01.2012 |
| MERCEDES-BENZ | SL (R230) 55 AMG (230.474) | M113.992 | 10.2001-06.2002 |
| MERCEDES-BENZ | SLR (R199) 5.4 (199.376) | M155.980 | 04.2004- |
| MERCEDES-BENZ | SLR (R199) 5.4 722 Edition | M155.980 | 10.2006- |
| MERCEDES-BENZ | SLR Roadster (R199) 5.4 | M155.980 | 04.2007- |
| MERCEDES-BENZ | SLR Roadster (R199) 5.4 | M155.980 | 10.2006- |
| MERCEDES-BENZ | T1 Bus (B601) 207 D 2.4 (601.371, 601.372, 601.376, 601.377) | OM616.917 | 05.1977-12.1982 |
| MERCEDES-BENZ | T1 Bus (B601) 207 D 2.4 (601.371, 601.372, 601.376, 601.377) | OM616.934 | 05.1977-12.1982 |
| MERCEDES-BENZ | T1 Bus (B601) 207 D 2.4 (601.371, 601.376, 601.377) | OM616.937 | 07.1982-01.1990 |
| MERCEDES-BENZ | T1 Bus (B601) 207 D 2.4 (601.371, 601.376, 601.377) | OM616.939 | 07.1982-01.1990 |
| MERCEDES-BENZ | T1 Bus (B601) 209 D 2.9 | OM617.913 | 12.1982-01.1990 |
| MERCEDES-BENZ | T1 Platform/Chassis (601) 207 D 2.4 | OM616.917 | 04.1977-12.1982 |
| MERCEDES-BENZ | T1 Platform/Chassis (601) 207 D 2.4 | OM616.937 | 12.1977-10.1989 |
| MERCEDES-BENZ | T1 Platform/Chassis (601) 207 D 2.4 | OM616.939 | 12.1977-10.1989 |
| MERCEDES-BENZ | T1 Platform/Chassis (601) 209 D 2.9 | OM617.913 | 12.1982-01.1990 |
| MERCEDES-BENZ | T1 Platform/Chassis (B602) 307 D 2.4 | OM616.937 | 04.1977-01.1983 |
| MERCEDES-BENZ | T1 Platform/Chassis (B602) 307 D 2.4 | OM616.937 | 06.1982-01.1990 |
| MERCEDES-BENZ | T1 Platform/Chassis (B602) 307 D 2.4 | OM616.939 | 06.1982-01.1990 |
| MERCEDES-BENZ | T1 Platform/Chassis (B602) 309 D 3.0 | OM617.913 | 10.1982-01.1990 |
| MERCEDES-BENZ | T1 Van (601, 611) 207 D 2.4 | OM616.937 | 06.1982-01.1990 |
| MERCEDES-BENZ | T1 Van (601, 611) 207 D 2.4 | OM616.939 | 06.1982-01.1990 |
| MERCEDES-BENZ | T1 Van (601, 611) 209 D 2.9 | OM617.913 | 12.1982-01.1990 |
| MERCEDES-BENZ | T1 Van (B602) 307 D 2.4 | OM616.937 | 10.1982-01.1990 |
| MERCEDES-BENZ | T1 Van (B602) 307 D 2.4 | OM616.939 | 10.1982-01.1990 |
| MERCEDES-BENZ | T1 Van (B602) 309 D 3.0 | OM617.913 | 10.1982-01.1990 |
| PUCH | G-MODELL (W460) 240 GD (460.330, 460.331) | OM616.936 | 03.1979-09.1987 |
| PUCH | G-MODELL (W460) 240 GD (460.330, 460.331) | OM616.938 | 03.1979-09.1987 |
| PUCH | G-MODELL (W460) 300 GD (460.332, 460.333) | OM617.931 | 09.1979-12.1991 |
| PUCH | G-MODELL (W460) 300 GD (460.332, 460.333) | OM617.932 | 09.1979-12.1991 |
| SEAT | 132 (132A) 2.2 D | OM615.912 | 05.1979-12.1982 |
Reference Information
| 0986018161 | BOSCH |
| 101032 | KUHNER |
| 101032D | KUHNER |
| 101032P | KUHNER |
| 10109 | KUHNER |
| 10109K | KUHNER |
| 110819 | CARGO |
| 11.130.520 | ISKRA / LETRIKA |
| 1447698M1 | MASSEY FERGUSON |
| 1680064M1 | MASSEY FERGUSON |
| 1680065M2 | MASSEY FERGUSON |
| 1680065M3 | MASSEY FERGUSON |
| 1680065R3 | MASSEY FERGUSON |
| 1691805M1 | MASSEY FERGUSON |
| 1691805R1 | MASSEY FERGUSON |
| 1691805R2 | MASSEY FERGUSON |
| 17653N | WAI |
| 1808449R2 | MASSEY FERGUSON |
| 1868283M5 | MASSEY FERGUSON |
| 1868283R5 | MASSEY FERGUSON |
| 1871433M1 | MASSEY FERGUSON |
| 1871433M2 | MASSEY FERGUSON |
| 1873A012 | PERKINS |
| 1873A052 | PERKINS |
| 1893611M91 | MASSEY FERGUSON |
| 20405811BN | REAL |
| 20405811OE | REAL |
| 20500301 | PRESTOLITE |
| 25-1003 | ELSTOCK |
| 25-1416 | ELSTOCK |
| 26273 | LUCAS |
| 26273A | LUCAS |
| 26273B | LUCAS |
| 26273D | LUCAS |
| 26344 | LUCAS |
| 26365 | LUCAS |
| 26411 | LUCAS |
| 26411A | LUCAS |
| 27432R | PERKINS |
| 27522 | LUCAS |
| 27540 | LUCAS |
| 27540A | LUCAS |
| 27546 | LUCAS |
| 27546A | LUCAS |
| 27571 | LUCAS |
| 27580 | LUCAS |
| 27582 | LUCAS |
| 27584 | LUCAS |
| 27593 | LUCAS |
| 2873008 | PERKINS |
| 2873116 | PERKINS |
| 2873118 | PERKINS |
| 2873143 | PERKINS |
| 2873A012 | PERKINS |
| 2873A012T | PERKINS |
| 2873A017 | PERKINS |
| 2873A104 | PERKINS |
| 2873B052 | PERKINS |
| 2873D005 | PERKINS |
| 331184 | LOGISTIK |
| 33475 | EAI |
| 3539389M91 | MASSEY FERGUSON |
| 3597371M2 | MASSEY FERGUSON |
| 3597371R2 | MASSEY FERGUSON |
| 3597426R2 | MASSEY FERGUSON |
| 6005007548 | RENAULT |
| 6005700082 | RENAULT |
| 6025118 | SANDO |
| 650.003.103 | WAI |
| 650.003.103.312 | WAI |
| 650.003.103.460 | WAI |
| 7701028780 | RENAULT |
| 7701030289 | RENAULT |
| 8018161 | FRIESEN |
| 8053 | CEVAM |
| 8212517 | POWERMAX |
| 8513 | CEVAM |
| 898090M1 | MASSEY FERGUSON |
| 8EA737249-001 | HELLA |
| 9643382M1 | MASSEY FERGUSON |
| AES3101 | AUTOELECTRO |
| AZJ3148 | ISKRA / LETRIKA |
| CS1032 | HC PARTS |
| CS109 | HC PARTS |
| CST25118AS | CASCO |
| CST25118GS | CASCO |
| DRS3427 | DELCO |
| F032110819 | CARGO |
| IS0520 | ISKRA / LETRIKA |
| IS0632 | ISKRA / LETRIKA |
| LRS00301 | LUCAS |
| LRS301 | LUCAS |
| MAV3730 | SIOM |
| MS 149 | MAHLE |
| MS 267 | MAHLE |
| R11.05 | ELMOT |
| R11H | ELMOT |
| S12-85 | HITACHI |
| S12-87 | HITACHI |
| S12LU0380A2 | SIDAT |
| S134.819 | WAI |
| S145.449 | WAI |
| S4001 | AS-PL |
| STR25010 | WOODAUTO |
| STR4143 | ELECTROLOG |
| STR79021 | ELECTROLOG |
| STR9774 | ELECTROLOG |
| STRS073 | 3EFFE |
| STX200783 | STARDAX |
Video/Publications
S4001View your shopping basket or Browse other items in Starter Motors.
