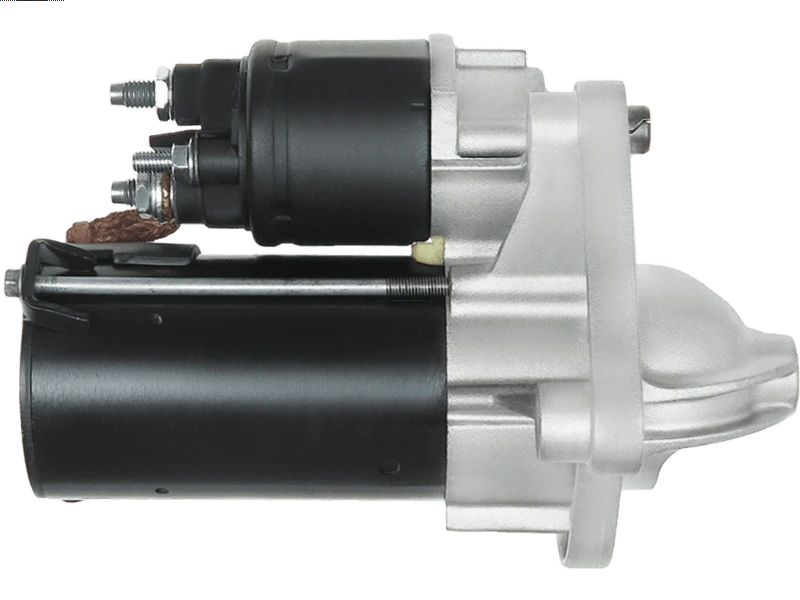

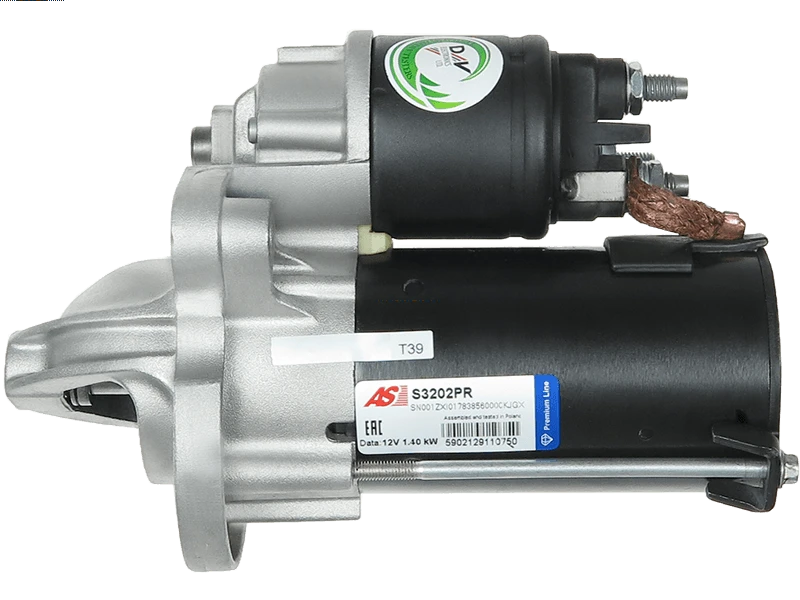

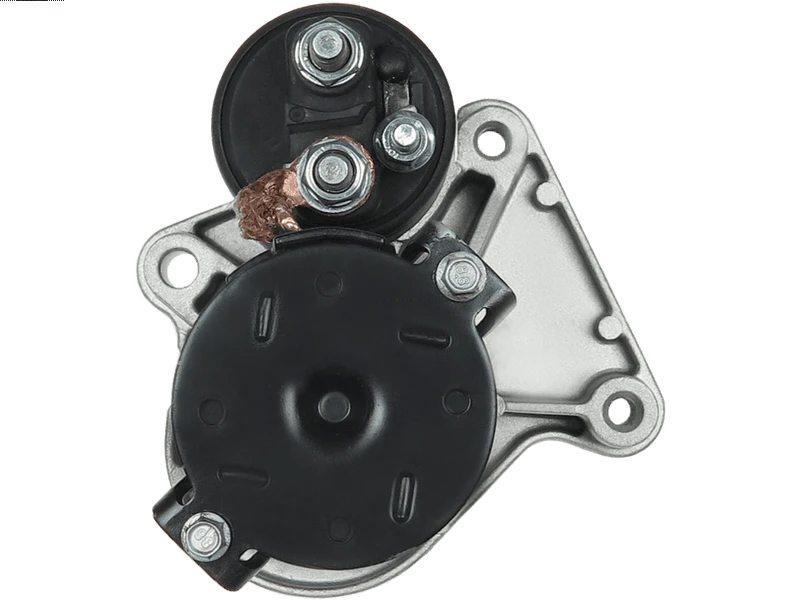

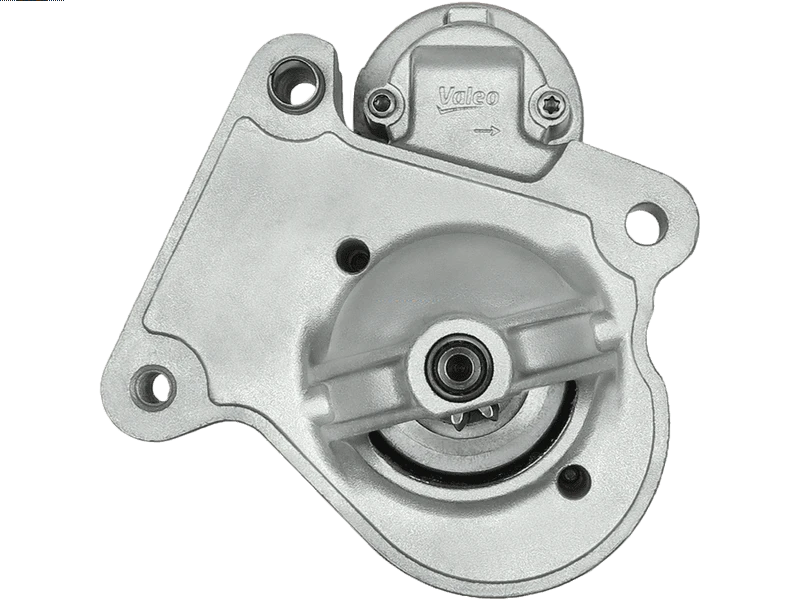

S3202PR - Remanufactured AS-PL Starter motor

Specifications

Kilowatt	1.4 kW
Length (L.1)	202 mm
Mount Hole Center - Center (O.1)	116 mm
Mount Hole Center - Center (O.2)	74 mm
Mount Hole Center - Center (O.3)	84 mm
Mount Hole Diameter (C.1)	9 mm
Mount Hole Diameter (C.2)	M8x1.25 mm
Mount Hole Diameter (C.3)	M8x1.25 mm
No./Mount holes	3 qty
No./Mount holes with thread	2 qty
No./Teeth	10 qty
Pinion at Rest (B)	13.5 mm
Rotation	CW
Unit Type	VALEO
Voltage	12 V

Vehicle Applications

Make	Model	Type	Year
FORD	Fiesta 1.4 TDCi	[F6JA]	11.2001-06.2008
FORD	Fiesta 1.4 TDCi	[F6JB]	01.2009-
FORD	Fiesta 1.4 TDCi	[F6JB]	11.2001-06.2008
FORD	Fiesta 1.4 TDCi	[F6JD]	01.2009-
FORD	Fiesta 1.4 TDCi V Van	[F6JA]	10.2003-12.2010
FORD	Fiesta 1.4 TDCi V Van	[F6JB]	10.2003-12.2010
FORD	Fiesta 1.6 TDCi	[HHJA]	11.2004-06.2008
FORD	Fiesta 1.6 TDCi	[HHJB]	11.2004-06.2008
FORD	Fiesta 1.6 TDCi	[HHJC]	06.2008-
FORD	Fiesta 1.6 TDCi	[HHJD]	06.2008-
FORD	Fiesta 1.6 TDCi	[HHJE]	06.2008-
FORD	Fusion 1.4 TDCi	[F6JA]	08.2002-12.2012
FORD	Fusion 1.4 TDCi	[F6JB]	08.2002-12.2012
FORD	Fusion 1.6 TDCi	[HHJA]	11.2004-12.2012
FORD	Fusion 1.6 TDCi	[HHJB]	11.2004-12.2012
MAZDA	2 1.4 CD	[F6JA]	04.2003-06.2007
MAZDA	2 1.4 CD	[F6JB]	04.2003-06.2007

Reference Information

590.564.103.500 20479432OE 8V21-11000-AB Y405-18-400B 25-5409 8V21-11000-AC Y405-18-400A S12VA0102 1670812 CST15234GS STR00210 8V21-11000-AD EW8V21-11000-AE 8V21-11000-AE CST15234AS Y405-18-400 458377 20479432BN S12VA0102A2 220425 6015234 LRS04247 TS14M11 254317V Y40118400A 1502880 254317M DS1492 6015234.1 TS14E11 1734633 254317 590.564.103.505 LRS4247 DRS0382
