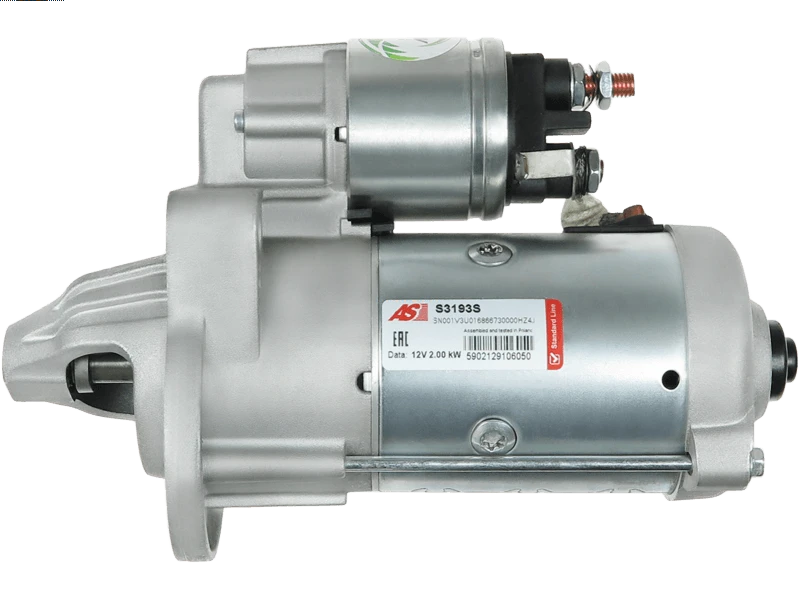

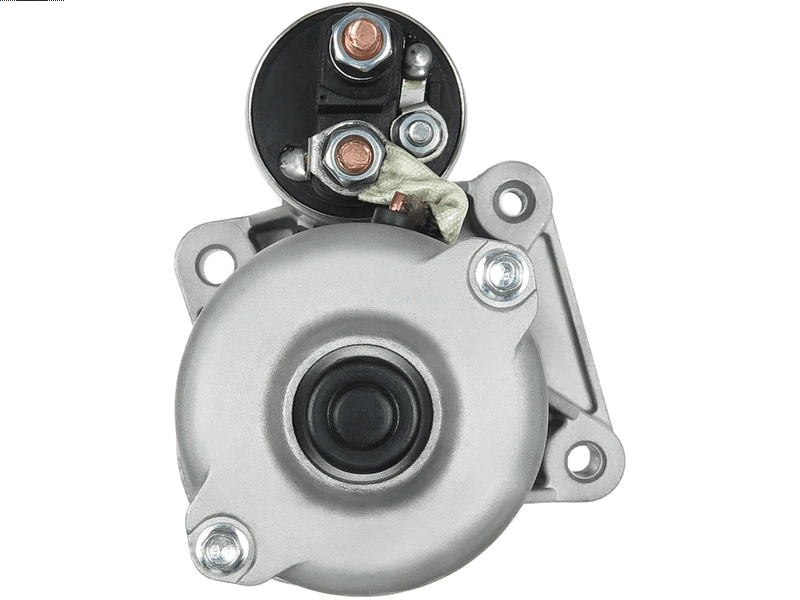

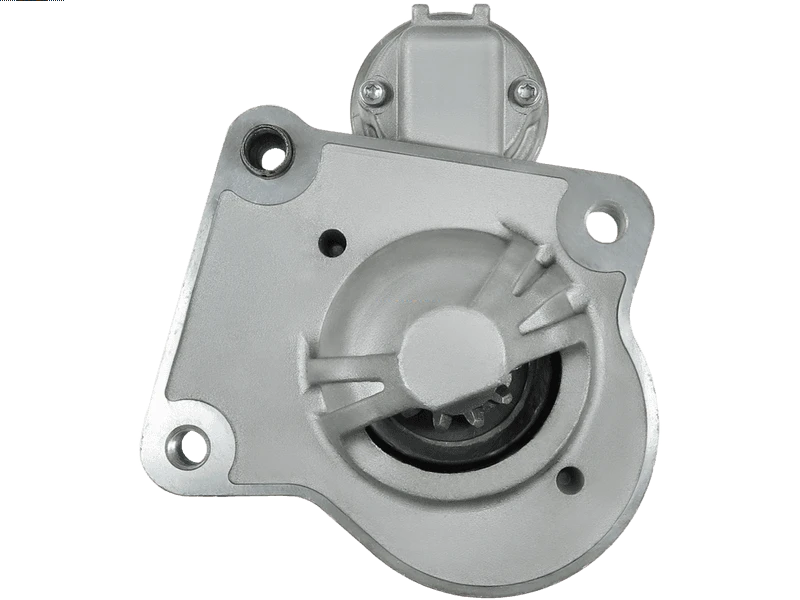

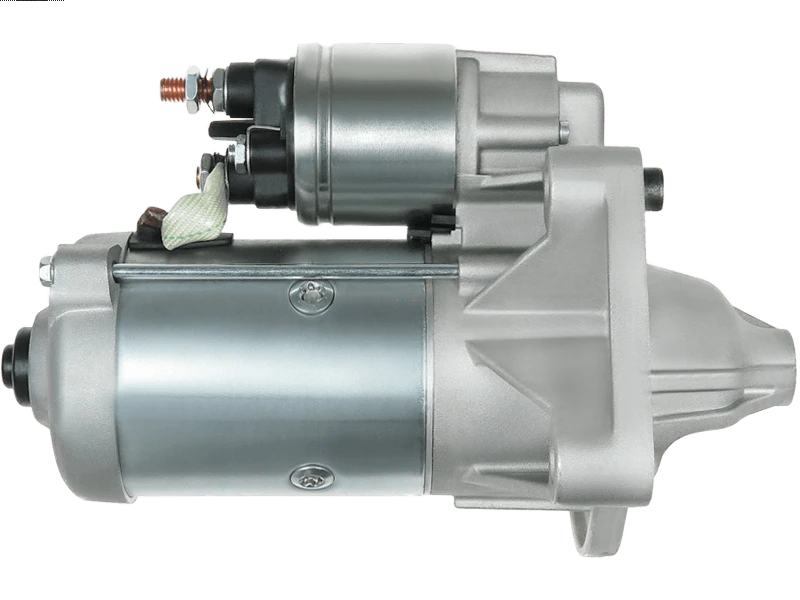

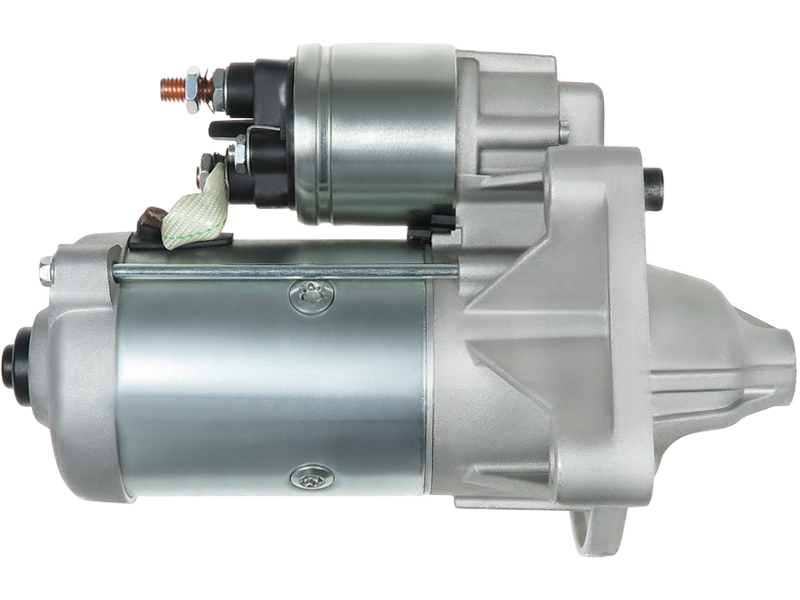

S3193S - Brand new AS-PL Starter motor

Specifications

Kilowatt	2 kW
Length (L.1)	234 mm
Mount Hole Center - Center (O.1)	116 mm
Mount Hole Center - Center (O.2)	74.5 mm
Mount Hole Center - Center (O.3)	84 mm
Mount Hole Diameter (C.1)	9.5 mm
Mount Hole Diameter (C.2)	M10x1.5 mm
Mount Hole Diameter (C.3)	M8x1.25 mm
No./Mount holes	3 qty
No./Mount holes with thread	2 qty
No./Teeth	11 qty
Pinion at Rest (B)	13 mm
Rotation	CW
Unit Type	VALEO
Voltage	12 V

Vehicle Applications

Make	Model	Type	Year
FORD	C-Max 1.5 TDCi	[XWDA]	03.2015-
FORD	C-Max 1.5 TDCi	[XWDB]	03.2015-
FORD	C-Max 1.5 TDCi	[XXDA]	03.2015-
FORD	C-Max 1.5 TDCi ECOnetic	[AEDA]	03.2015-
FORD	C-Max 1.6 TDCi	[T1DA]	12.2010-
FORD	C-Max 1.6 TDCi	[T1DB]	12.2010-
FORD	C-Max 1.6 TDCi	[T3DA]	12.2010-
FORD	C-Max 1.6 TDCi	[T3DB]	12.2010-
FORD	Focus 1.5 TDCi	[XWDA]	09.2014-
FORD	Focus 1.5 TDCi	[XWDA]	11.2014-
FORD	Focus 1.5 TDCi	[XWDB]	09.2014-
FORD	Focus 1.5 TDCi	[XWDB]	11.2014-
FORD	Focus 1.5 TDCi	[XWDC]	09.2014-
FORD	Focus 1.5 TDCi	[XWDC]	11.2014-
FORD	Focus 1.5 TDCi	[XWDD]	09.2014-
FORD	Focus 1.5 TDCi	[XWDD]	11.2014-
FORD	Focus 1.5 TDCi	[XXDA]	09.2014-
FORD	Focus 1.5 TDCi	[XXDA]	11.2014-
FORD	Focus 1.5 TDCi	[XXDC]	09.2014-
FORD	Focus 1.5 TDCi	[XXDC]	11.2014-
FORD	Focus 1.5 TDCi ECOnetic	[XXDB]	09.2014-
FORD	Focus 1.5 TDCi ECOnetic	[XXDB]	11.2014-
FORD	Focus 1.6 TDCi	[T1DA]	02.2012-
FORD	Focus 1.6 TDCi	[T1DA]	04.2011-
FORD	Focus 1.6 TDCi	[T1DA]	05.2011-
FORD	Focus 1.6 TDCi	[T1DB]	02.2012-
FORD	Focus 1.6 TDCi	[T1DB]	04.2011-
FORD	Focus 1.6 TDCi	[T1DB]	05.2011-
FORD	Focus 1.6 TDCi	[T3DA]	01.2011-
FORD	Focus 1.6 TDCi	[T3DA]	04.2011-
FORD	Focus 1.6 TDCi	[T3DA]	05.2011-
FORD	Focus 1.6 TDCi	[T3DB]	01.2011-
FORD	Focus 1.6 TDCi	[T3DB]	04.2011-
FORD	Focus 1.6 TDCi	[T3DB]	05.2011-
FORD	Focus 1.6 TDCi ECOnetic	[NGDA]	05.2012-
FORD	Galaxy 1.6 TDCi	[T1WA]	02.2011-
FORD	Galaxy 1.6 TDCi	[T1WB]	02.2011-
FORD	Grand C-Max 1.5 TDCi	[XWDA]	03.2015-
FORD	Grand C-Max 1.5 TDCi	[XWDB]	03.2015-
FORD	Grand C-Max 1.6 TDCi	[T1DA]	12.2010-
FORD	Grand C-Max 1.6 TDCi	[T1DB]	12.2010-
FORD	Grand C-Max 1.6 TDCi	[T3DA]	12.2010-
FORD	Grand C-Max 1.6 TDCi	[T3DB]	12.2010-
FORD	Kuga 1.5 TDCi		07.2016-
FORD	Mondeo 1.5 TDCi	[UGCC]	03.2015-
FORD	Mondeo 1.5 TDCi	[XUCA]	03.2015-
FORD	Mondeo 1.6 TDCi	[T1BA]	02.2011-
FORD	Mondeo 1.6 TDCi	[T1BB]	02.2011-
FORD	Mondeo 1.6 TDCi	[T1BC]	02.2011-
FORD	S-Max 1.6 TDCi	[T1WA]	02.2011-
FORD	S-Max 1.6 TDCi	[T1WB]	02.2011-
FORD	Tourneo Connect 1.5 TDCi	[XUGA]	05.2015-
FORD	Tourneo Connect 1.5 TDCi	[XVGA]	05.2015-
FORD	Tourneo Connect 1.5 TDCi	[XVGB]	05.2015-
FORD	Tourneo Connect 1.5 TDCi	[XVGC]	05.2015-
FORD	Tourneo Connect 1.5 TDCi	[XWGA]	05.2015-
FORD	Tourneo Connect 1.5 TDCi	[XWGB]	05.2015-
FORD	Tourneo Connect 1.6 TDCi	[T1GA]	09.2013-
FORD	Tourneo Connect 1.6 TDCi	[TZGA]	09.2013-
FORD	Tourneo Connect 1.6 TDCi	[TZGB]	09.2013-
FORD	Tourneo Connect 1.6 TDCi	[UBGA]	09.2013-
FORD	Transit Connect 1.5 TDCi	[XUGA]	08.2015-
FORD	Transit Connect 1.5 TDCi	[XVGA]	05.2015-
FORD	Transit Connect 1.5 TDCi	[XVGB]	05.2015-
FORD	Transit Connect 1.5 TDCi	[XVGC]	05.2015-
FORD	Transit Connect 1.5 TDCi	[XWGA]	05.2015-
FORD	Transit Connect 1.5 TDCi	[XWGB]	05.2015-
FORD	Transit Connect 1.6 TDCi	[TZGA]	09.2013-
FORD	Transit Connect 1.6 TDCi	[TZGB]	09.2013-
FORD	Transit Connect 1.6 TDCi	[UBGA]	09.2013-

Reference Information

S12VA0285A2 220715 DS1861 590.576.113.008 458706 8EA011611-591 1898356 2033247 25-4377 115684 CST15272GS 438303 254845 REAV6N-11000-GE STM1312 CGB-54377 STM1326 12281 EAA-123083 9M5T11000AA 116316 1893556 31324544 LRS02705 438299 590.576.113.000 88214620 590.576.113.505 2269109 3219 254845V AV6N-11000-GA 30368N DRS0751 UD16959S PRSF604 AV6N-11000-GD AV6N-11000-GE 11090318 AV6N-11000-GB AV6N-11000-GC S3193S 1778016 STRF604 REAV6N11000GE LRS2705 STR00176 VAL438299 20479272OE 9M5T-11000-AA 6015272.1 ESW2022 1687623 RNLESW20E11 590.576.113.500 590.576.113.501 ESW20E11 1715211

Video/Publications

11090318 115684 116316 12281 1778016 1893556 2033247 20479272 25-4377 254845 254845V 31324544 3219 438299 458706 590.576.113 6015272 88214620 8EA011611-591 AV6N-11000-GA AV6N-11000-GB AV6N-11000-GC AV6N-11000-GD AV6N-11000-GE CST15272 CST15272AS CST15272ES CST15272GS CST15272OS CST15272RS DRS0751 DS1861 EAA-123083 ESW2022 ESW20E11 LRS02705 LRS2705 RNLESW20E11 STM1326 STRF604 UD16959S VAL438299 220715
